ZZE121R-DHPDKW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - Feb 2007
Engine 3ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0111-0405)UKP..DCR,HDCR,HTWC,TWC

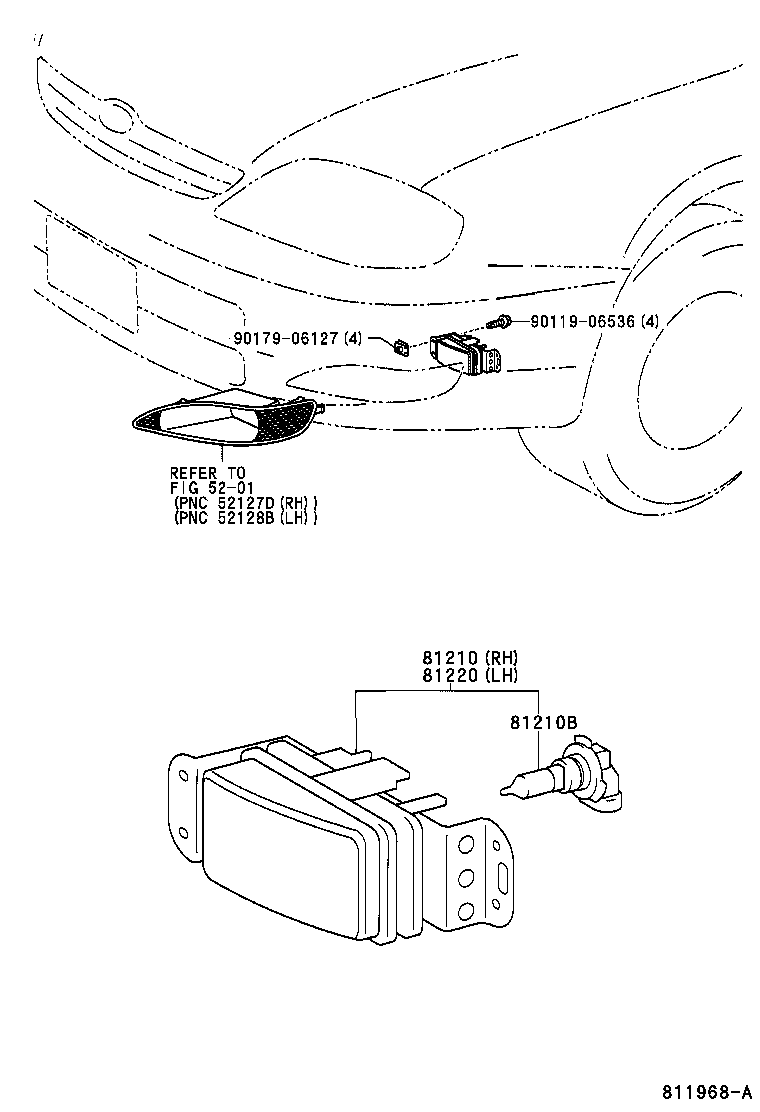

Click highlighted areas on diagram

diagram 5201 81210 81210B 81220 9011906536 9017906127
Part # Description Qty Price
81210 - LAMP ASSY, FOG
81210-02050

CDE120,ZZE12#..UKP..(DCR,HTWC,TWC)

 1
81210-02090

CDE120,NDE120,ZZE12#..UKP

 1
81210-02051

CDE120,ZZE12#..UKP..(DCR,HTWC,TWC)

 1
81210B - BULB, FOG LAMP
90981-13075

CDE120,NDE120,ZZE12#..UKP

12V 55W,HALOGEN,PHILIPS

 2
90981-WD011

CDE120,NDE120,ZZE12#..UKP

12V 55W,OSRAM

 2
90981-13081

CDE120,NDE120,ZZE12#..UKP

12V 55W,HALOGEN,OSRAM

 2
90080-81101

CDE120,ZZE12#..UKP..(DCR,HTWC,TWC)

 2
90080-81100

CDE120,ZZE12#..UKP..(DCR,HTWC,TWC)

 2
90981-WD012

CDE120,NDE120,ZZE12#..UKP

12V 55W,PHILIPS

 2
81220 - LAMP ASSY, FOG, LH
81220-02050

CDE120,ZZE12#..UKP..(DCR,HTWC,TWC)

 1
81220-02051

CDE120,ZZE12#..UKP..(DCR,HTWC,TWC)

 1
81220-02090

CDE120,NDE120,ZZE12#..UKP

 1
Common parts
90119-06536
90179-06127
Linked diagrams
5201

(0405- )UKP

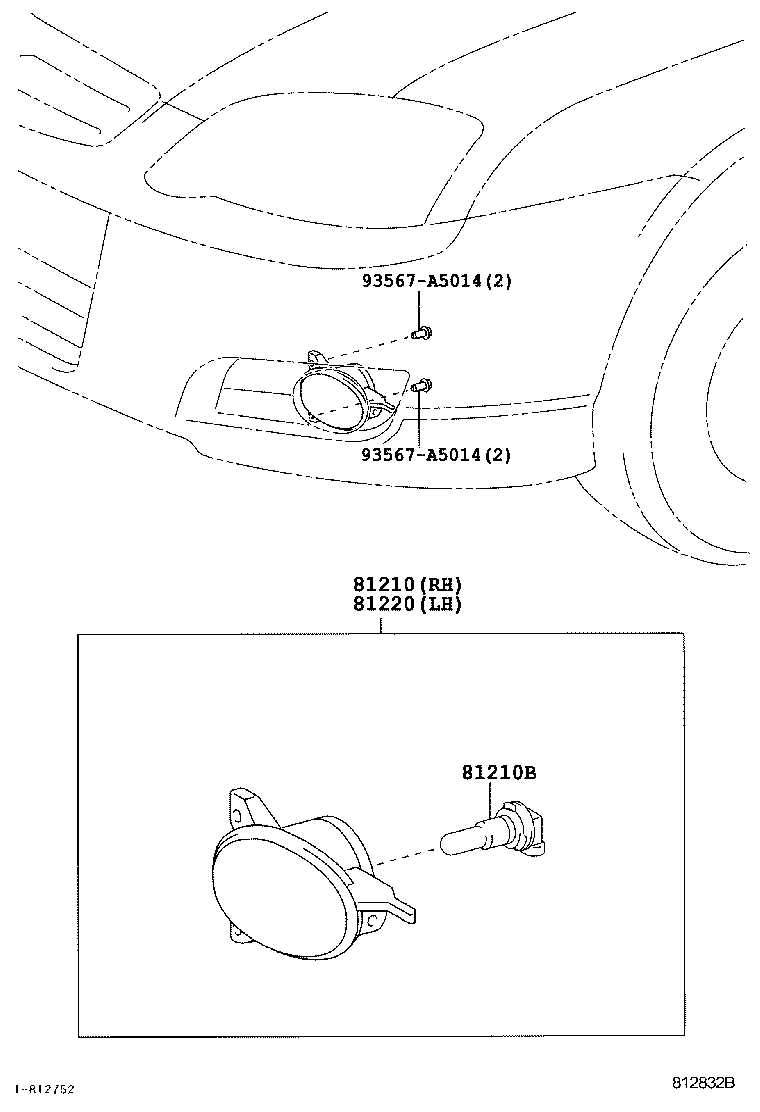

Click highlighted areas on diagram

diagram 81210 81210B 81220 93567A5014 93567A5014
Part # Description Qty Price
81210 - LAMP ASSY, FOG
81210-02050

CDE120,ZZE12#..UKP..(DCR,HTWC,TWC)

 1
81210-02090

CDE120,NDE120,ZZE12#..UKP

 1
81210-02051

CDE120,ZZE12#..UKP..(DCR,HTWC,TWC)

 1
81210B - BULB, FOG LAMP
90981-13075

CDE120,NDE120,ZZE12#..UKP

12V 55W,HALOGEN,PHILIPS

 2
90981-WD011

CDE120,NDE120,ZZE12#..UKP

12V 55W,OSRAM

 2
90981-13081

CDE120,NDE120,ZZE12#..UKP

12V 55W,HALOGEN,OSRAM

 2
90080-81101

CDE120,ZZE12#..UKP..(DCR,HTWC,TWC)

 2
90080-81100

CDE120,ZZE12#..UKP..(DCR,HTWC,TWC)

 2
90981-WD012

CDE120,NDE120,ZZE12#..UKP

12V 55W,PHILIPS

 2
81220 - LAMP ASSY, FOG, LH
81220-02050

CDE120,ZZE12#..UKP..(DCR,HTWC,TWC)

 1
81220-02051

CDE120,ZZE12#..UKP..(DCR,HTWC,TWC)

 1
81220-02090

CDE120,NDE120,ZZE12#..UKP

 1
Common parts
93567-A5014
