Toyota Corolla hb (ukp) ZZE121 HEADLAMP

ZZE121R-DHPDKW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - Feb 2007

Engine 3ZZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

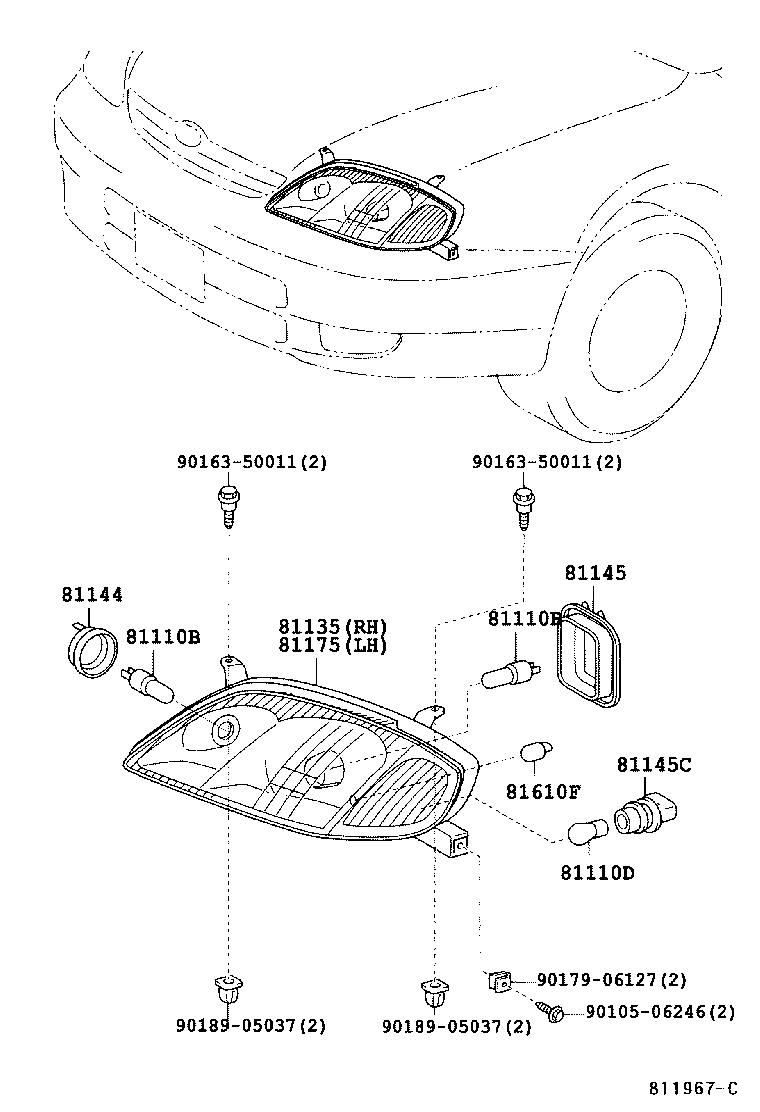

ILLUST NO. 1 OF 2(0111-0405)UKP

Click highlighted areas on diagram

Part #	Description	Period	Qty
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13079	CDE120,ZZE12#..UKP 12V 55W,HALOGEN,OSRAM	11/2001 - 05/2004	4
90981-13079	CDE120,ZZE120,121..UKP 12V 55W,HALOGEN,OSRAM	05/2004 - 12/2999	2
90080-81098	CDE120,NDE120,ZZE120,121..UKP 12V 55W,PHILIPS	05/2004 - 12/2999	2
90080-81097	CDE120,NDE120,ZZE120,121..UKP 12V 55W,GE	05/2004 - 12/2999	2
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13079	CDE120,ZZE12#..UKP 12V 55W,HALOGEN,OSRAM	11/2001 - 05/2004	4
90981-13079	CDE120,ZZE120,121..UKP 12V 55W,HALOGEN,OSRAM	05/2004 - 12/2999	2
90080-81098	CDE120,NDE120,ZZE120,121..UKP 12V 55W,PHILIPS	05/2004 - 12/2999	2
90080-81097	CDE120,NDE120,ZZE120,121..UKP 12V 55W,GE	05/2004 - 12/2999	2
81110D - BULB(FOR HEADLAMP, NO.2)
90080-81046	CDE120,ZZE12#..UKP 12V 21W	11/2001 - 05/2004	2
81135 - UNIT ASSY, HEADLAMP, RH
81130-02150	CDE120,ZZE12#..UKP..RHD..(DCR,DCRL,HTWC,TWC) RH TRAFFIC SPEC	11/2001 - 05/2004	1
81130-02380	CDE120,NDE120,ZZE12#..UKP..RHD RH TRAFFIC SPEC	05/2004 - 12/2999	1
81130-02160	CDE120,ZZE12#..UKP..RHD..(DCR,DCRL,HTWC,TWC)	11/2001 - 05/2004	1
81130-02390	CDE120,NDE120,ZZE12#..UKP..RHD	05/2004 - 12/2999	1
81144 - COVER, HEADLAMP, NO.1
90069-81025	CDE120,ZZE12#..UKP	11/2001 - 05/2004	2
90069-81025	CDE120,ZZE12#..UKP	07/2004 - 12/2999	2
90069-81025	CDE120,ZZE12#..UKP	05/2004 - 06/2004	2
81145 - COVER, HEADLAMP, NO.2
90069-81026	CDE120,ZZE12#..UKP	11/2001 - 05/2004	2
90069-81026	CDE120,ZZE12#..UKP	07/2004 - 12/2999	2
90069-81026	CDE120,ZZE12#..UKP	05/2004 - 06/2004	2
81145C - COVER, HEADLAMP SOCKET, NO.2
90069-81027	CDE120,ZZE12#..UKP	11/2001 - 05/2004	2
81175 - UNIT ASSY, HEADLAMP, LH
81170-02160	CDE120,ZZE12#..UKP..RHD..(DCR,DCRL,HTWC,TWC)	11/2001 - 05/2004	1
81170-02150	CDE120,ZZE12#..UKP..RHD..(DCR,DCRL,HTWC,TWC) RH TRAFFIC SPEC	11/2001 - 05/2004	1
81170-02390	CDE120,NDE120,ZZE12#..UKP..RHD	05/2004 - 12/2999	1
81170-02380	CDE120,NDE120,ZZE12#..UKP..RHD RH TRAFFIC SPEC	05/2004 - 12/2999	1
81610F - BULB(FOR CLEARANCE LAMP)
90080-81080	CDE120,ZZE12#..UKP 12V 5W	05/2004 - 06/2004	2
90981-WB003	CDE120,NDE120,ZZE12#..UKP 12V 5W	07/2004 - 12/2999	2
90080-81080	CDE120,ZZE12#..UKP 12V 5W	11/2001 - 05/2004	2
Common parts
90105-06246
90163-50011
90179-06127
90189-05037

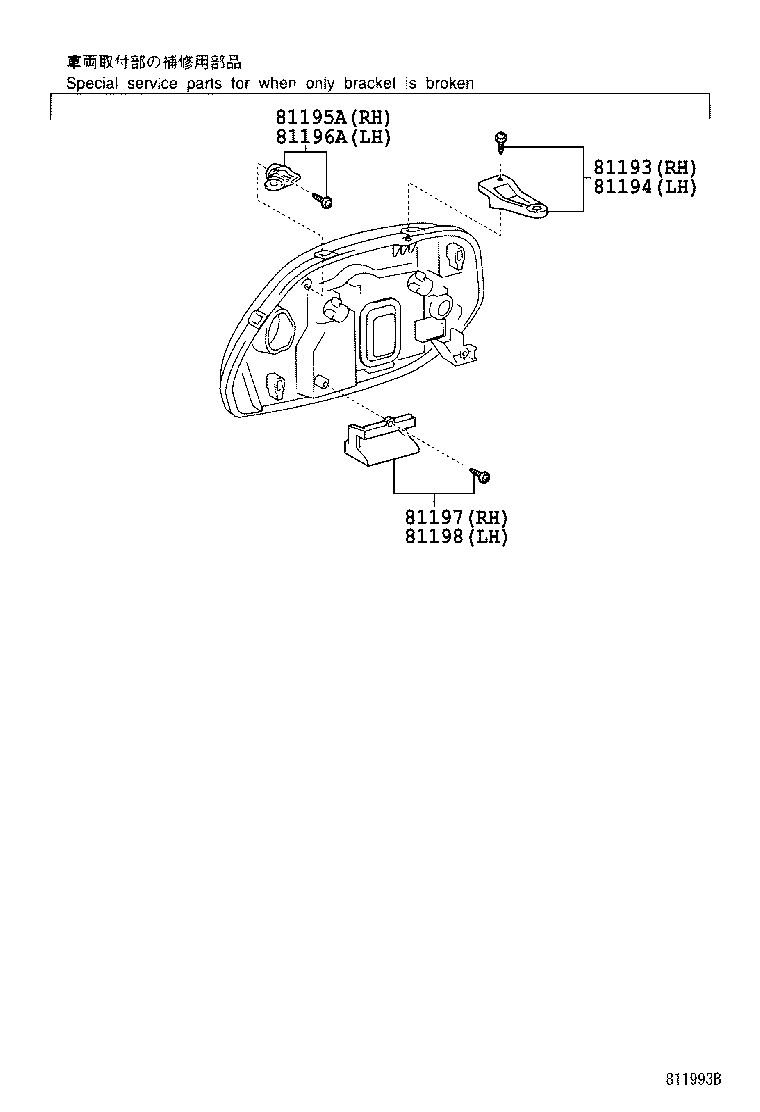

ILLUST NO. 2 OF 2(0111- )UKP

Click highlighted areas on diagram

Part #	Description	Period	Qty
81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193-02020	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
81193-02020	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194-02040	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
81194-02040	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH
81195-02030	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
81195-02030	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH
81196-02020	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
81196-02020	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
81197 - BRACKET, HEADLAMP, LOWER RH
81197-02020	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
81197-02020	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
81198 - BRACKET, HEADLAMP, LWR LH
81197-02020	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
81197-02020	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1

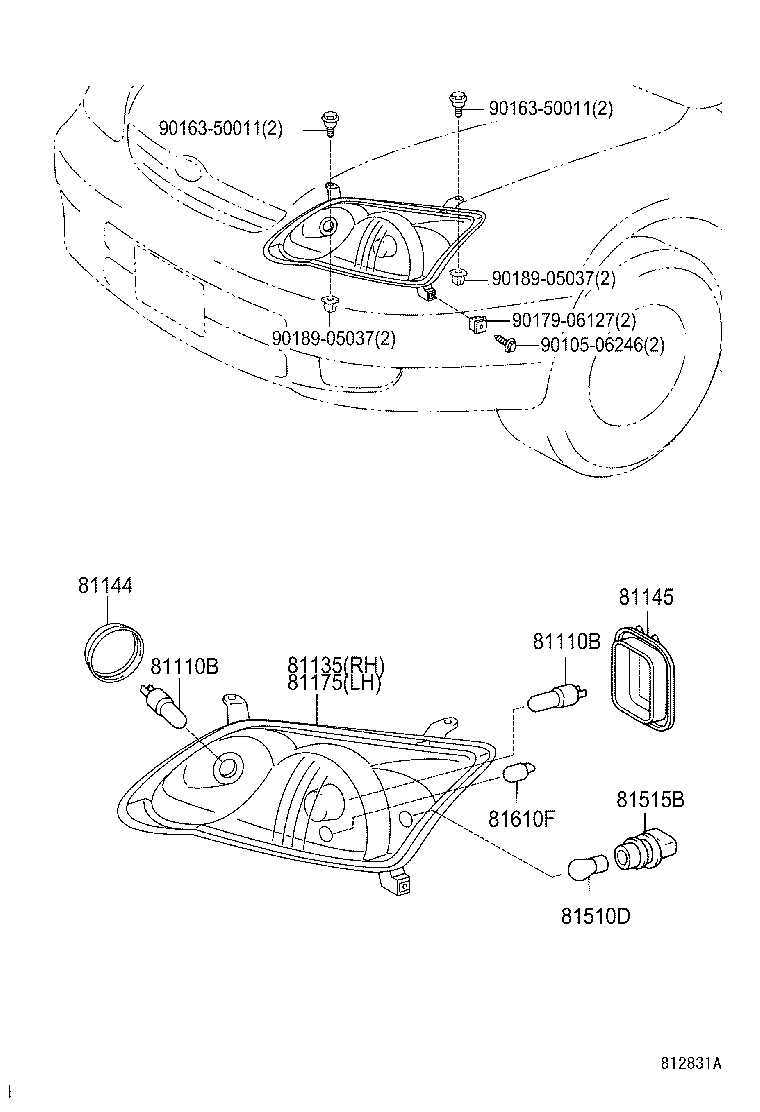

ILLUST NO. 1 OF 2(0405- )UKP

Click highlighted areas on diagram

Part #	Description	Period	Qty
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13079	CDE120,ZZE12#..UKP 12V 55W,HALOGEN,OSRAM	11/2001 - 05/2004	4
90981-13079	CDE120,ZZE120,121..UKP 12V 55W,HALOGEN,OSRAM	05/2004 - 12/2999	2
90080-81098	CDE120,NDE120,ZZE120,121..UKP 12V 55W,PHILIPS	05/2004 - 12/2999	2
90080-81097	CDE120,NDE120,ZZE120,121..UKP 12V 55W,GE	05/2004 - 12/2999	2
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13079	CDE120,ZZE12#..UKP 12V 55W,HALOGEN,OSRAM	11/2001 - 05/2004	4
90981-13079	CDE120,ZZE120,121..UKP 12V 55W,HALOGEN,OSRAM	05/2004 - 12/2999	2
90080-81098	CDE120,NDE120,ZZE120,121..UKP 12V 55W,PHILIPS	05/2004 - 12/2999	2
90080-81097	CDE120,NDE120,ZZE120,121..UKP 12V 55W,GE	05/2004 - 12/2999	2
81135 - UNIT ASSY, HEADLAMP, RH
81130-02150	CDE120,ZZE12#..UKP..RHD..(DCR,DCRL,HTWC,TWC) RH TRAFFIC SPEC	11/2001 - 05/2004	1
81130-02380	CDE120,NDE120,ZZE12#..UKP..RHD RH TRAFFIC SPEC	05/2004 - 12/2999	1
81130-02160	CDE120,ZZE12#..UKP..RHD..(DCR,DCRL,HTWC,TWC)	11/2001 - 05/2004	1
81130-02390	CDE120,NDE120,ZZE12#..UKP..RHD	05/2004 - 12/2999	1
81144 - COVER, HEADLAMP, NO.1
90069-81025	CDE120,ZZE12#..UKP	11/2001 - 05/2004	2
90069-81025	CDE120,ZZE12#..UKP	07/2004 - 12/2999	2
90069-81025	CDE120,ZZE12#..UKP	05/2004 - 06/2004	2
81145 - COVER, HEADLAMP, NO.2
90069-81026	CDE120,ZZE12#..UKP	11/2001 - 05/2004	2
90069-81026	CDE120,ZZE12#..UKP	07/2004 - 12/2999	2
90069-81026	CDE120,ZZE12#..UKP	05/2004 - 06/2004	2
81175 - UNIT ASSY, HEADLAMP, LH
81170-02160	CDE120,ZZE12#..UKP..RHD..(DCR,DCRL,HTWC,TWC)	11/2001 - 05/2004	1
81170-02150	CDE120,ZZE12#..UKP..RHD..(DCR,DCRL,HTWC,TWC) RH TRAFFIC SPEC	11/2001 - 05/2004	1
81170-02390	CDE120,NDE120,ZZE12#..UKP..RHD	05/2004 - 12/2999	1
81170-02380	CDE120,NDE120,ZZE12#..UKP..RHD RH TRAFFIC SPEC	05/2004 - 12/2999	1
81510D - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-WF003	CDE120,NDE120,ZZE12#..UKP 12V 21W	07/2004 - 12/2999	2
90080-81046	CDE120,ZZE12#..UKP 12V 21W	05/2004 - 06/2004	2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90069-81027	CDE120,ZZE12#..UKP	07/2004 - 12/2999	2
90069-81027	CDE120,ZZE12#..UKP	05/2004 - 06/2004	2
81610F - BULB(FOR CLEARANCE LAMP)
90080-81080	CDE120,ZZE12#..UKP 12V 5W	05/2004 - 06/2004	2
90981-WB003	CDE120,NDE120,ZZE12#..UKP 12V 5W	07/2004 - 12/2999	2
90080-81080	CDE120,ZZE12#..UKP 12V 5W	11/2001 - 05/2004	2
Common parts
90105-06246
90163-50011
90179-06127
90189-05037
