ZZE121R-DHPDKW (2001)
Toyota Corolla Hb (Ukp)
Production
Nov 2001
-
Feb 2007
Engine
3ZZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

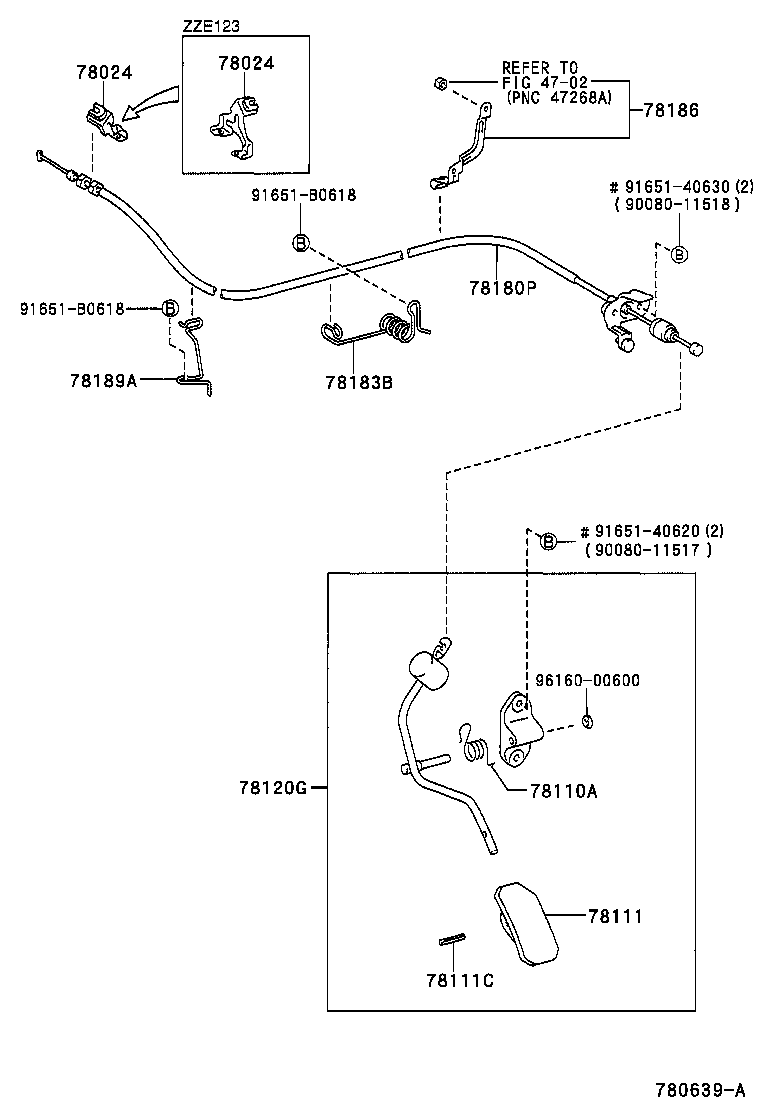

(0111-0405)ZZE12#..UKP..RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-12090 |
ZZE120,121..UKP |
1 | ||
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-12090 |
ZZE120,121..UKP |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90959-03307 |
ZZE12#..UKP..RHD |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-05040 |
ZZE12#..UKP..RHD (L) |
1 | ||
| 78111-32020 |
ZZE12#..UKP..RHD (J) |
1 | ||
| 78111-32020 |
CDE120,NDE120,ZZE121..UKP..RHD |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90254-04019 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 90254-04019 |
ZZE120,123..UKP;ZZE121..UKP..RHD;ZZE121..UKP..LHD..5F |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-12340 |
ZZE12#..UKP..RHD |
1 | ||
| 78120-12340 |
ZZE12#..UKP..RHD (J) |
1 | ||
| 78120-05190 |
ZZE12#..UKP..RHD (L) |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-02240 |
ZZE120,121..UKP..RHD |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-13010 |
ZZE12#..UKP..RHD |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-09010 |
ZZE12#..UKP..RHD |
1 | ||
| 78189A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.2 | ||||
| 78189-12100 |
ZZE12#..UKP |
1 | ||
| Common parts | ||||
| 90080-11517 | ||||
| 90080-11518 | ||||
| 91651-40620 | ||||
| 91651-40630 | ||||
| 91651-B0618 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 4702 | ||||

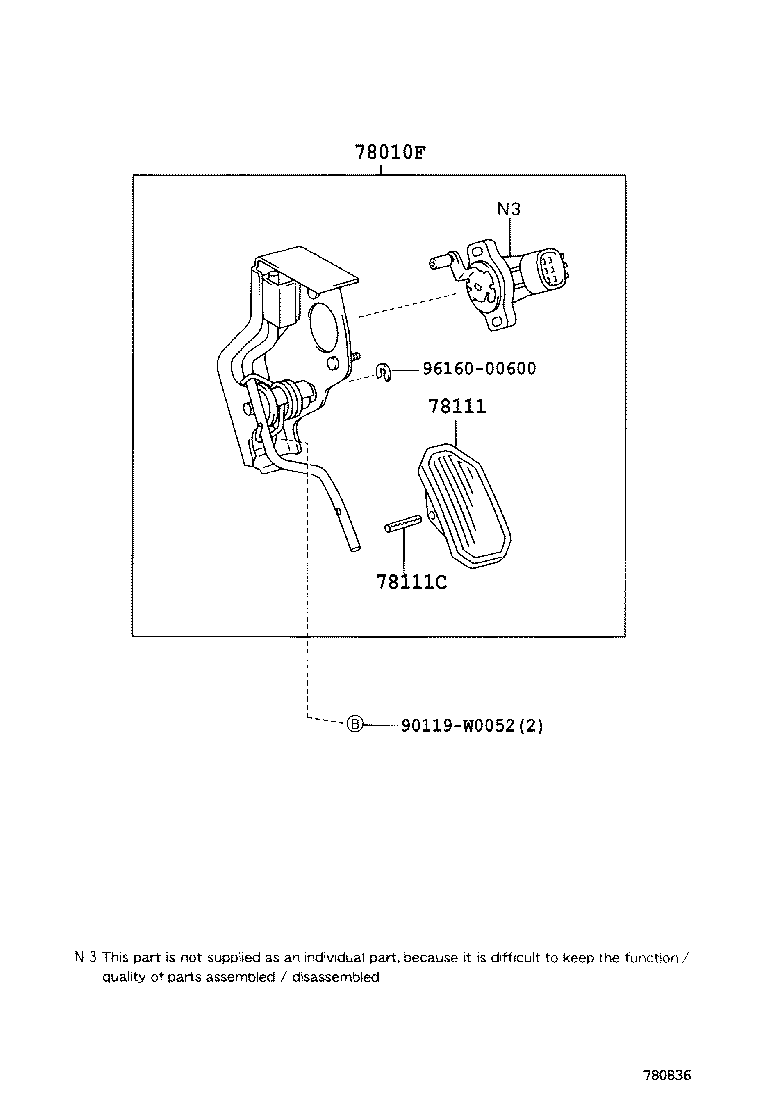

(0405- )CDE120,NDE120,ZZE121..UKP..RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78010F - PEDAL ASSY, ACCELERATOR | ||||
| 78010-13023 |
CDE120,NDE120,ZZE121..UKP..RHD |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-05040 |
ZZE12#..UKP..RHD (L) |
1 | ||
| 78111-32020 |
ZZE12#..UKP..RHD (J) |
1 | ||
| 78111-32020 |
CDE120,NDE120,ZZE121..UKP..RHD |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90254-04019 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 90254-04019 |
ZZE120,123..UKP;ZZE121..UKP..RHD;ZZE121..UKP..LHD..5F |
1 | ||
| Common parts | ||||
| 90119-W0052 | ||||
| 96160-00600 | ||||
