ZZE121R-DHPDKW (2001)
Toyota Corolla Hb (Ukp)

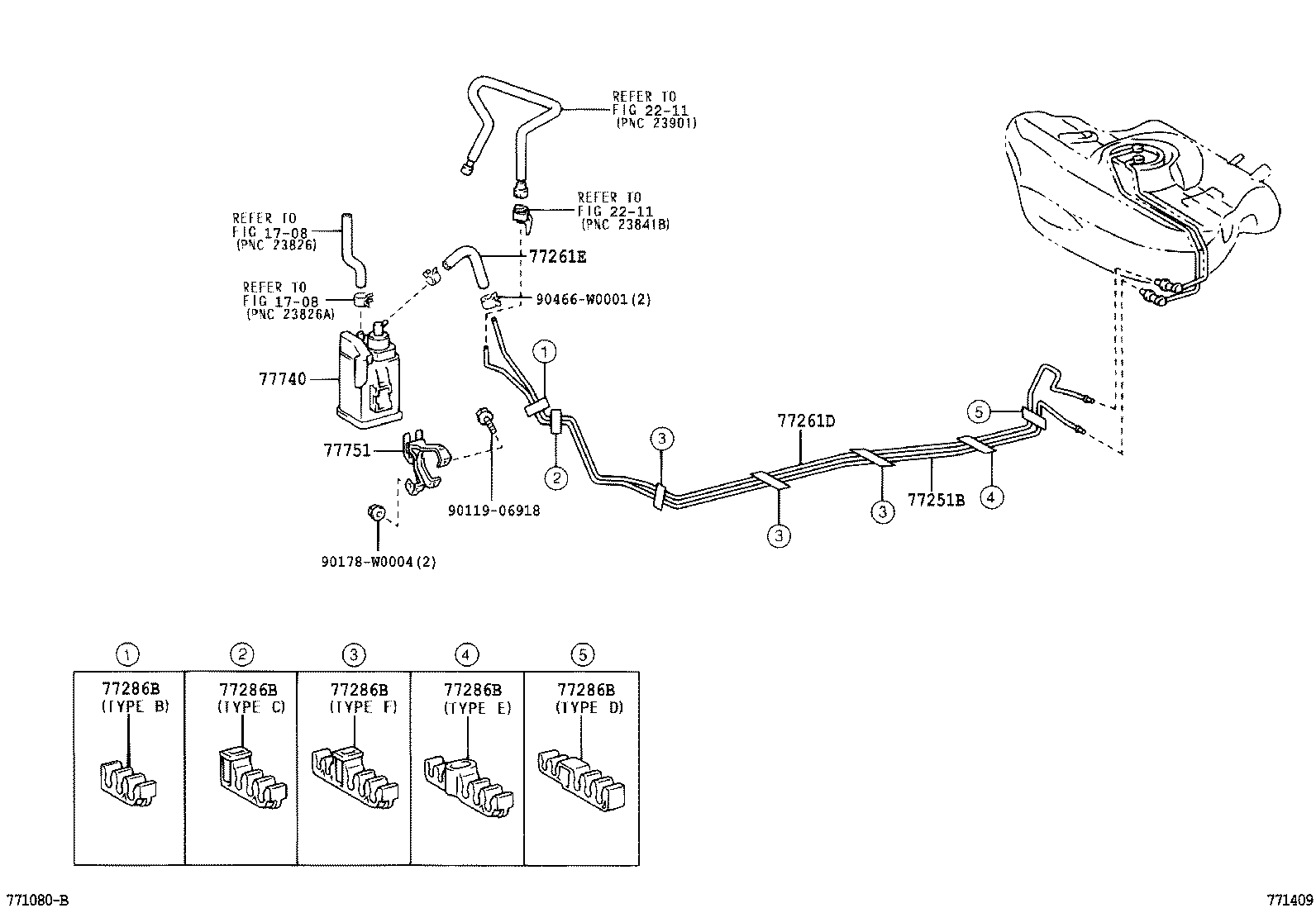

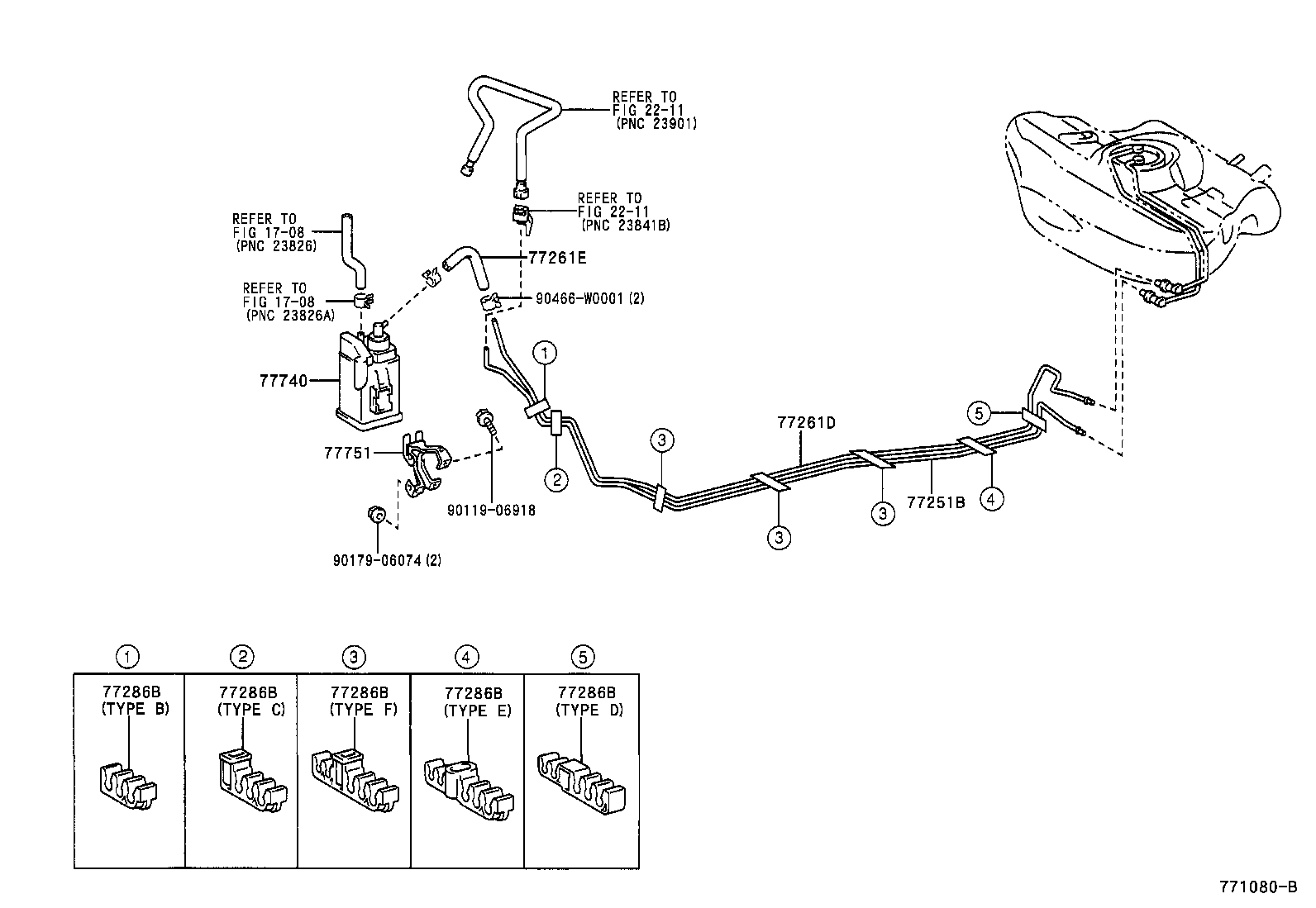

ILLUST NO. 2 OF 2(0111-0405)ZZE12#..UKP
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-02200 |
ZZE12#..UKP |
1 | ||
| 77251-02200 |
ZZE12#..UKP |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-02170 |
ZZE12#..UKP |
1 | ||
| 77261-02170 |
ZZE12#..UKP |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95337-06013 |
ZZE12#..UKP L=130 |
1 | ||
| 95337-06013 |
ZZE12#..UKP L=130 |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-47020 |
ZZE12#..UKP TYPE B |
1 | ||
| 77289-20060 |
CDE120,ZZE12#..UKP TYPE C |
1 | ||
| 77298-12100 |
CDE120,ZZE12#..UKP TYPE E |
1 | ||
| 77286-47020 |
ZZE12#..UKP TYPE B |
1 | ||
| 77298-20080 |
CDE120,ZZE12#..UKP TYPE F |
3 | ||
| 77298-20080 |
CDE120,NDE120,ZZE12#..UKP TYPE F |
3 | ||
| 77289-20060 |
CDE120,NDE120,ZZE12#..UKP TYPE C |
1 | ||
| 77298-12100 |
CDE120,NDE120,ZZE12#..UKP TYPE E |
1 | ||
| 77298-12060 |
CDE120,ZZE12#..UKP TYPE D |
1 | ||
| 77298-12060 |
CDE120,NDE120,ZZE12#..UKP TYPE D |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-47020 |
ZZE12#..UKP TYPE B |
1 | ||
| 77289-20060 |
CDE120,ZZE12#..UKP TYPE C |
1 | ||
| 77298-12100 |
CDE120,ZZE12#..UKP TYPE E |
1 | ||
| 77286-47020 |
ZZE12#..UKP TYPE B |
1 | ||
| 77298-20080 |
CDE120,ZZE12#..UKP TYPE F |
3 | ||
| 77298-20080 |
CDE120,NDE120,ZZE12#..UKP TYPE F |
3 | ||
| 77289-20060 |
CDE120,NDE120,ZZE12#..UKP TYPE C |
1 | ||
| 77298-12100 |
CDE120,NDE120,ZZE12#..UKP TYPE E |
1 | ||
| 77298-12060 |
CDE120,ZZE12#..UKP TYPE D |
1 | ||
| 77298-12060 |
CDE120,NDE120,ZZE12#..UKP TYPE D |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-47020 |
ZZE12#..UKP TYPE B |
1 | ||
| 77289-20060 |
CDE120,ZZE12#..UKP TYPE C |
1 | ||
| 77298-12100 |
CDE120,ZZE12#..UKP TYPE E |
1 | ||
| 77286-47020 |
ZZE12#..UKP TYPE B |
1 | ||
| 77298-20080 |
CDE120,ZZE12#..UKP TYPE F |
3 | ||
| 77298-20080 |
CDE120,NDE120,ZZE12#..UKP TYPE F |
3 | ||
| 77289-20060 |
CDE120,NDE120,ZZE12#..UKP TYPE C |
1 | ||
| 77298-12100 |
CDE120,NDE120,ZZE12#..UKP TYPE E |
1 | ||
| 77298-12060 |
CDE120,ZZE12#..UKP TYPE D |
1 | ||
| 77298-12060 |
CDE120,NDE120,ZZE12#..UKP TYPE D |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-47020 |
ZZE12#..UKP TYPE B |
1 | ||
| 77289-20060 |
CDE120,ZZE12#..UKP TYPE C |
1 | ||
| 77298-12100 |
CDE120,ZZE12#..UKP TYPE E |
1 | ||
| 77286-47020 |
ZZE12#..UKP TYPE B |
1 | ||
| 77298-20080 |
CDE120,ZZE12#..UKP TYPE F |
3 | ||
| 77298-20080 |
CDE120,NDE120,ZZE12#..UKP TYPE F |
3 | ||
| 77289-20060 |
CDE120,NDE120,ZZE12#..UKP TYPE C |
1 | ||
| 77298-12100 |
CDE120,NDE120,ZZE12#..UKP TYPE E |
1 | ||
| 77298-12060 |
CDE120,ZZE12#..UKP TYPE D |
1 | ||
| 77298-12060 |
CDE120,NDE120,ZZE12#..UKP TYPE D |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-47020 |
ZZE12#..UKP TYPE B |
1 | ||
| 77289-20060 |
CDE120,ZZE12#..UKP TYPE C |
1 | ||
| 77298-12100 |
CDE120,ZZE12#..UKP TYPE E |
1 | ||
| 77286-47020 |
ZZE12#..UKP TYPE B |
1 | ||
| 77298-20080 |
CDE120,ZZE12#..UKP TYPE F |
3 | ||
| 77298-20080 |
CDE120,NDE120,ZZE12#..UKP TYPE F |
3 | ||
| 77289-20060 |
CDE120,NDE120,ZZE12#..UKP TYPE C |
1 | ||
| 77298-12100 |
CDE120,NDE120,ZZE12#..UKP TYPE E |
1 | ||
| 77298-12060 |
CDE120,ZZE12#..UKP TYPE D |
1 | ||
| 77298-12060 |
CDE120,NDE120,ZZE12#..UKP TYPE D |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-05021 |
ZZE120,121..UKP |
1 | ||
| 77740-02090 |
ZZE12#..UKP |
1 | ||
| 77740-02091 |
ZZE12#..UKP |
1 | ||
| 77740-05020 |
ZZE120,121..UKP |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77705-02050 |
ZZE121..UKP..4FC (L) |
1 | ||
| 77705-12110 |
ZZE121..UKP..4FC (J) |
1 | ||
| 77705-02050 |
ZZE121..UKP..4FC |
1 | ||
| Common parts | ||||
| 90119-06918 | ||||
| 90179-06074 | ||||
| 90466-W0001 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||

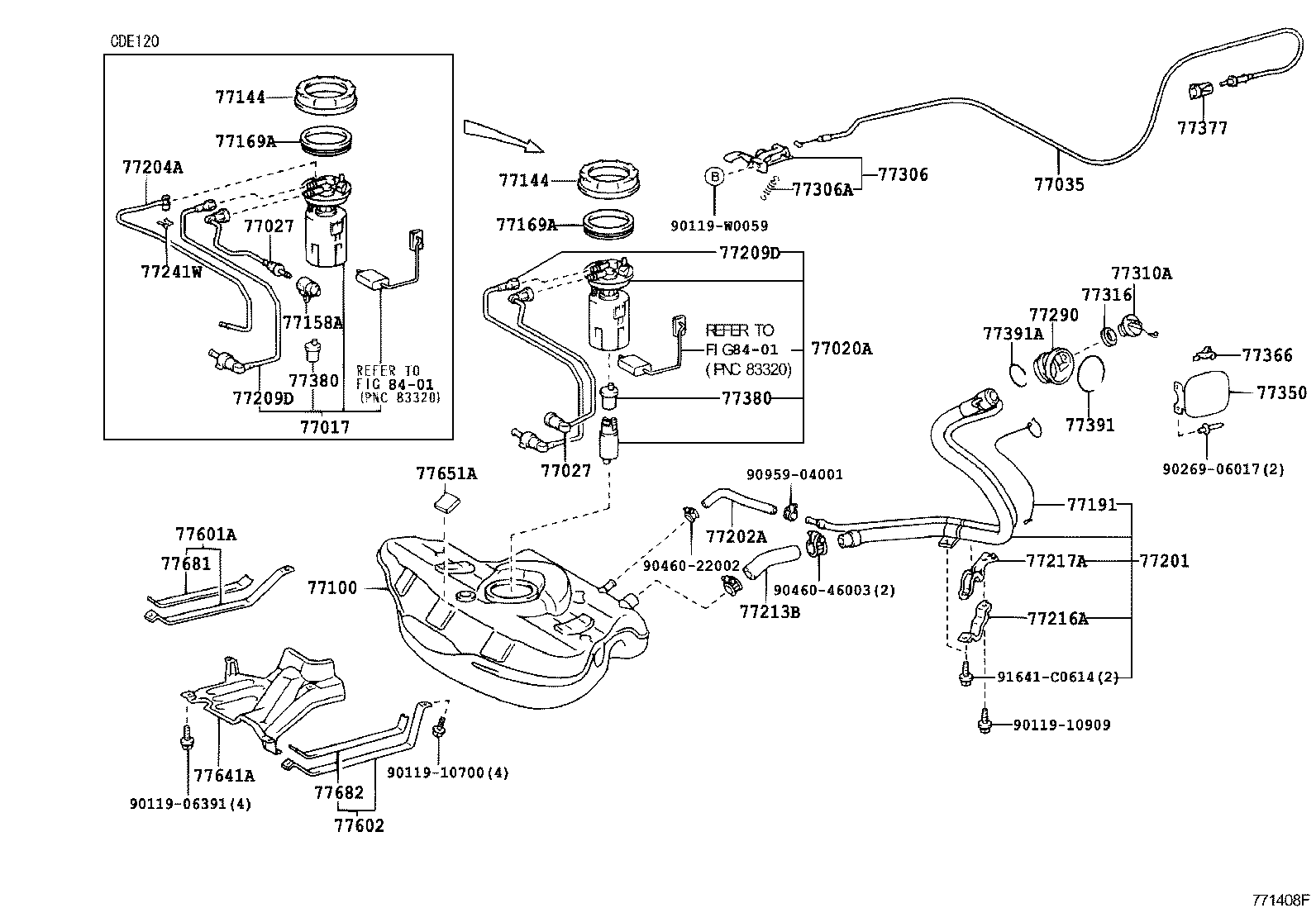

ILLUST NO. 1 OF 2(0111-0405)UKP
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-02070 |
ZZE120,121..UKP |
1 | ||
| 77020-02070 |
ZZE120,121..UKP |
1 | ||
| 77027 - TUBE SUB-ASSY, FUEL EVAPORATION, NO.2 | ||||
| 77027-02010 |
ZZE12#..UKP |
1 | ||
| 77027-02010 |
ZZE12#..UKP |
1 | ||
| 77027 - TUBE SUB-ASSY, FUEL EVAPORATION, NO.2 | ||||
| 77027-02010 |
ZZE12#..UKP |
1 | ||
| 77027-02010 |
ZZE12#..UKP |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-02080 |
CDE120,NDE120,ZZE12#..UKP..RHD |
1 | ||
| 77035-02080 |
CDE120,ZZE12#..UKP..RHD |
1 | ||
| 77035-02150 |
CDE120,NDE120,ZZE12#..UKP..RHD |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-02120 |
CDE120,ZZE12#..UKP |
1 | ||
| 77001-02120 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-02030 |
CDE120,ZZE12#..UKP |
1 | ||
| 77144-02030 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-02030 |
CDE120,ZZE12#..UKP |
1 | ||
| 77144-02030 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-02030 |
CDE120,ZZE12#..UKP |
1 | ||
| 77169-02030 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-02030 |
CDE120,ZZE12#..UKP |
1 | ||
| 77169-02030 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 77191 - WIRE, FUEL TANK EARTH | ||||
| 77191-02020 |
ZZE12#..UKP |
1 | ||
| 77191-02020 |
ZZE12#..UKP |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-02120 |
ZZE12#..UKP |
1 | ||
| 77201-02120 |
ZZE12#..UKP |
1 | ||
| 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) | ||||
| 77259-02050 |
ZZE12#..UKP |
1 | ||
| 77259-02050 |
ZZE12#..UKP |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-02050 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 77209-02050 |
CDE120,ZZE12#..UKP |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-02050 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 77209-02050 |
CDE120,ZZE12#..UKP |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-02070 |
ZZE12#..UKP |
1 | ||
| 77213-02070 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-02060 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 77216-02060 |
CDE120,ZZE12#..UKP |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-02030 |
CDE120,ZZE12#..UKP |
1 | ||
| 77217-02030 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-02030 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 77291-02030 |
CDE120,ZZE12#..UKP |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-13020 |
CDE120,ZZE12#..UKP..RHD |
1 | ||
| 77306-13020 |
CDE120,NDE120,ZZE12#..UKP..RHD |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-28010 |
ZZE12#..UKP |
1 | ||
| 77300-28010 |
ZZE12#..UKP |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
CDE120,ZZE12#..UKP |
1 | ||
| 77316-16010 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-13080 |
CDE120,ZZE12#..UKP |
1 | ||
| 77350-13080 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-30080 |
CDE120,NDE120,ZZE120,121..UKP |
1 | ||
| 77360-30080 |
CDE120,ZZE12#..UKP |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-02020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 77377-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-12020 |
CDE120,ZZE12#..UKP |
1 | ||
| 77380-12020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-12020 |
CDE120,ZZE12#..UKP |
1 | ||
| 77380-12020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12040 |
CDE120,ZZE12#..UKP |
1 | ||
| 77391-12040 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 77391-12020 |
CDE120,ZZE12#..UKP |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-02050 |
CDE120,ZZE12#..UKP |
1 | ||
| 77601-02060 |
CDE120,ZZE12#..UKP..(DCR,HDCR,HTWC,TWC) TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77601-02060 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 77602 - CASE SUB-ASSY, FUEL TANK, UPPER | ||||
| 77602-02050 |
CDE120,ZZE12#..UKP |
1 | ||
| 77602-02070 |
CDE120,ZZE12#..UKP..(DCR,HDCR,HTWC,TWC) TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77602-02070 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-02010 |
CDE120,ZZE12#..UKP |
1 | ||
| 77641-02010 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-12070 |
CDE120,ZZE12#..UKP..(DCR,HDCR,HTWC,TWC) |
5 | ||
| 77651-12070 |
ZZE120,121..UKP |
2 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-02040 |
CDE120,ZZE12#..UKP |
1 | ||
| 77681-02040 |
CDE120,ZZE12#..UKP..(DCR,HDCR,HTWC,TWC) |
1 | ||
| 77681-02040 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-02020 |
CDE120,ZZE12#..UKP..(DCR,HDCR,HTWC,TWC) |
1 | ||
| 77681-02020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 77681-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| Common parts | ||||
| 90119-06391 | ||||
| 90119-10700 | ||||
| 90119-10909 | ||||
| 90269-06017 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90959-04001 | ||||
| 91631-B0610 | ||||
| Linked diagrams | ||||
| 8401 | ||||

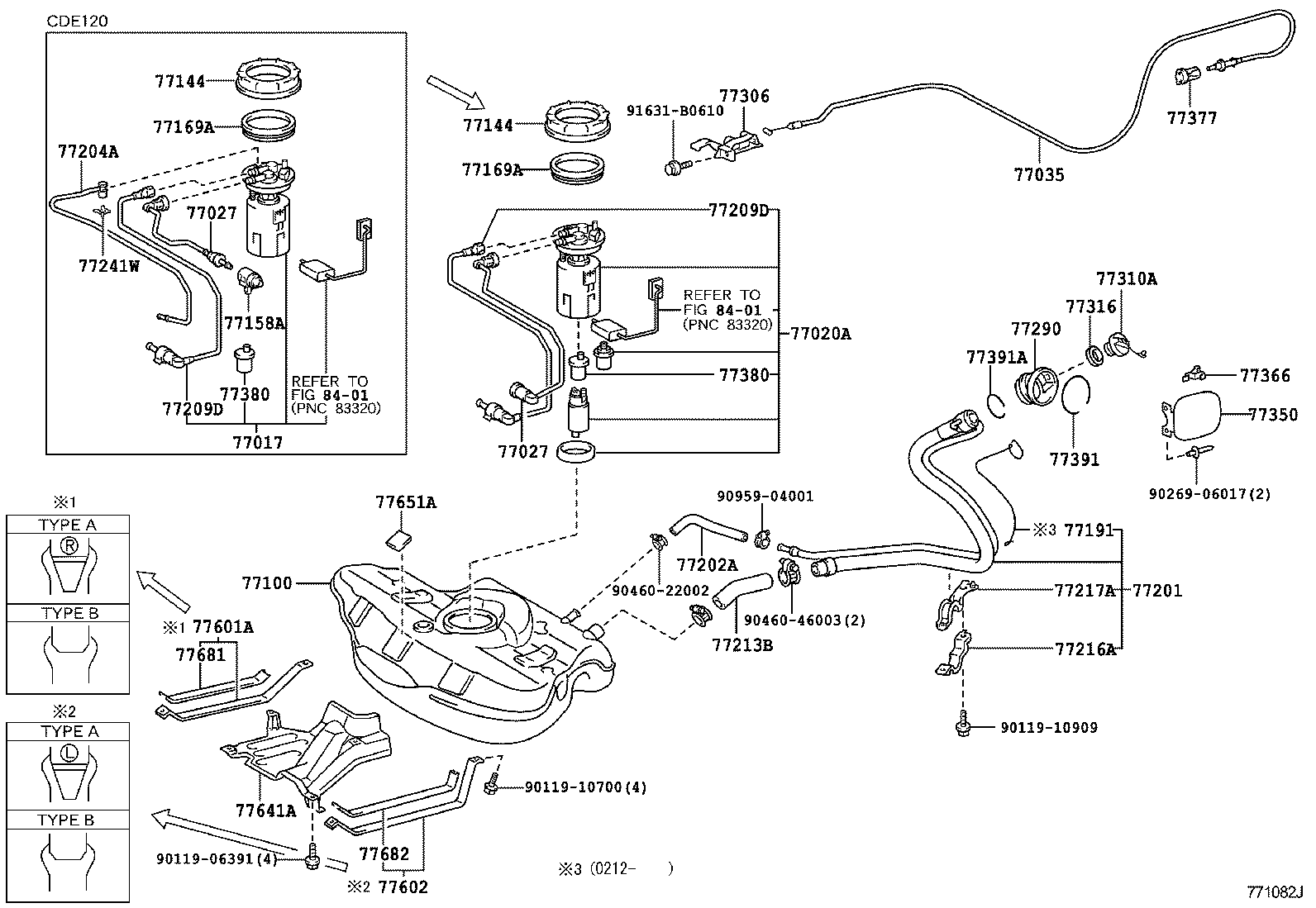

ILLUST NO. 1 OF 2(0405- )UKP
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-02070 |
ZZE120,121..UKP |
1 | ||
| 77020-02070 |
ZZE120,121..UKP |
1 | ||
| 77027 - TUBE SUB-ASSY, FUEL EVAPORATION, NO.2 | ||||
| 77027-02010 |
ZZE12#..UKP |
1 | ||
| 77027-02010 |
ZZE12#..UKP |
1 | ||
| 77027 - TUBE SUB-ASSY, FUEL EVAPORATION, NO.2 | ||||
| 77027-02010 |
ZZE12#..UKP |
1 | ||
| 77027-02010 |
ZZE12#..UKP |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-02080 |
CDE120,NDE120,ZZE12#..UKP..RHD |
1 | ||
| 77035-02080 |
CDE120,ZZE12#..UKP..RHD |
1 | ||
| 77035-02150 |
CDE120,NDE120,ZZE12#..UKP..RHD |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-02120 |
CDE120,ZZE12#..UKP |
1 | ||
| 77001-02120 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-02030 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 77144-02030 |
CDE120,ZZE12#..UKP |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-02030 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 77144-02030 |
CDE120,ZZE12#..UKP |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-02030 |
CDE120,ZZE12#..UKP |
1 | ||
| 77169-02030 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-02030 |
CDE120,ZZE12#..UKP |
1 | ||
| 77169-02030 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 77191 - WIRE, FUEL TANK EARTH | ||||
| 77191-02020 |
ZZE12#..UKP |
1 | ||
| 77191-02020 |
ZZE12#..UKP |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-02120 |
ZZE12#..UKP |
1 | ||
| 77201-02120 |
ZZE12#..UKP |
1 | ||
| 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) | ||||
| 77259-02050 |
ZZE12#..UKP |
1 | ||
| 77259-02050 |
ZZE12#..UKP |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-02050 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 77209-02050 |
CDE120,ZZE12#..UKP |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-02050 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 77209-02050 |
CDE120,ZZE12#..UKP |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-02070 |
ZZE12#..UKP |
1 | ||
| 77213-02070 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-02060 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 77216-02060 |
CDE120,ZZE12#..UKP |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-02030 |
CDE120,ZZE12#..UKP |
1 | ||
| 77217-02030 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-02030 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 77291-02030 |
CDE120,ZZE12#..UKP |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-13020 |
CDE120,ZZE12#..UKP..RHD |
1 | ||
| 77306-13020 |
CDE120,NDE120,ZZE12#..UKP..RHD |
1 | ||
| 77306A - SPRING, FUEL LID OPEN LEVER | ||||
| 90506-09004 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-28010 |
ZZE12#..UKP |
1 | ||
| 77300-28010 |
ZZE12#..UKP |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 77316-16010 |
CDE120,ZZE12#..UKP |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-13080 |
CDE120,ZZE12#..UKP |
1 | ||
| 77350-13080 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-30080 |
CDE120,NDE120,ZZE120,121..UKP |
1 | ||
| 77360-30080 |
CDE120,ZZE12#..UKP |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 77377-02020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-12020 |
CDE120,ZZE12#..UKP |
1 | ||
| 77380-12020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-12020 |
CDE120,ZZE12#..UKP |
1 | ||
| 77380-12020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12040 |
CDE120,ZZE12#..UKP |
1 | ||
| 77391-12040 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 77391-12020 |
CDE120,ZZE12#..UKP |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-02050 |
CDE120,ZZE12#..UKP |
1 | ||
| 77601-02060 |
CDE120,ZZE12#..UKP..(DCR,HDCR,HTWC,TWC) TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77601-02060 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 77602 - CASE SUB-ASSY, FUEL TANK, UPPER | ||||
| 77602-02050 |
CDE120,ZZE12#..UKP |
1 | ||
| 77602-02070 |
CDE120,ZZE12#..UKP..(DCR,HDCR,HTWC,TWC) TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77602-02070 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-02010 |
CDE120,ZZE12#..UKP |
1 | ||
| 77641-02010 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-12070 |
CDE120,ZZE12#..UKP..(DCR,HDCR,HTWC,TWC) |
5 | ||
| 77651-12070 |
ZZE120,121..UKP |
2 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-02040 |
CDE120,ZZE12#..UKP |
1 | ||
| 77681-02040 |
CDE120,ZZE12#..UKP..(DCR,HDCR,HTWC,TWC) |
1 | ||
| 77681-02040 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-02020 |
CDE120,ZZE12#..UKP..(DCR,HDCR,HTWC,TWC) |
1 | ||
| 77681-02020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 77681-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| Common parts | ||||
| 90119-06391 | ||||
| 90119-10700 | ||||
| 90119-10909 | ||||
| 90119-W0059 | ||||
| 90269-06017 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90959-04001 | ||||
| 91641-C0614 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(0405- )ZZE12#..UKP
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-02200 |
ZZE12#..UKP |
1 | ||
| 77251-02200 |
ZZE12#..UKP |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-02170 |
ZZE12#..UKP |
1 | ||
| 77261-02170 |
ZZE12#..UKP |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95337-06013 |
ZZE12#..UKP L=130 |
1 | ||
| 95337-06013 |
ZZE12#..UKP L=130 |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-47020 |
ZZE12#..UKP TYPE B |
1 | ||
| 77289-20060 |
CDE120,ZZE12#..UKP TYPE C |
1 | ||
| 77298-12100 |
CDE120,ZZE12#..UKP TYPE E |
1 | ||
| 77286-47020 |
ZZE12#..UKP TYPE B |
1 | ||
| 77298-20080 |
CDE120,ZZE12#..UKP TYPE F |
3 | ||
| 77298-20080 |
CDE120,NDE120,ZZE12#..UKP TYPE F |
3 | ||
| 77289-20060 |
CDE120,NDE120,ZZE12#..UKP TYPE C |
1 | ||
| 77298-12100 |
CDE120,NDE120,ZZE12#..UKP TYPE E |
1 | ||
| 77298-12060 |
CDE120,ZZE12#..UKP TYPE D |
1 | ||
| 77298-12060 |
CDE120,NDE120,ZZE12#..UKP TYPE D |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-47020 |
ZZE12#..UKP TYPE B |
1 | ||
| 77289-20060 |
CDE120,ZZE12#..UKP TYPE C |
1 | ||
| 77298-12100 |
CDE120,ZZE12#..UKP TYPE E |
1 | ||
| 77286-47020 |
ZZE12#..UKP TYPE B |
1 | ||
| 77298-20080 |
CDE120,ZZE12#..UKP TYPE F |
3 | ||
| 77298-20080 |
CDE120,NDE120,ZZE12#..UKP TYPE F |
3 | ||
| 77289-20060 |
CDE120,NDE120,ZZE12#..UKP TYPE C |
1 | ||
| 77298-12100 |
CDE120,NDE120,ZZE12#..UKP TYPE E |
1 | ||
| 77298-12060 |
CDE120,ZZE12#..UKP TYPE D |
1 | ||
| 77298-12060 |
CDE120,NDE120,ZZE12#..UKP TYPE D |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-47020 |
ZZE12#..UKP TYPE B |
1 | ||
| 77289-20060 |
CDE120,ZZE12#..UKP TYPE C |
1 | ||
| 77298-12100 |
CDE120,ZZE12#..UKP TYPE E |
1 | ||
| 77286-47020 |
ZZE12#..UKP TYPE B |
1 | ||
| 77298-20080 |
CDE120,ZZE12#..UKP TYPE F |
3 | ||
| 77298-20080 |
CDE120,NDE120,ZZE12#..UKP TYPE F |
3 | ||
| 77289-20060 |
CDE120,NDE120,ZZE12#..UKP TYPE C |
1 | ||
| 77298-12100 |
CDE120,NDE120,ZZE12#..UKP TYPE E |
1 | ||
| 77298-12060 |
CDE120,ZZE12#..UKP TYPE D |
1 | ||
| 77298-12060 |
CDE120,NDE120,ZZE12#..UKP TYPE D |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-47020 |
ZZE12#..UKP TYPE B |
1 | ||
| 77289-20060 |
CDE120,ZZE12#..UKP TYPE C |
1 | ||
| 77298-12100 |
CDE120,ZZE12#..UKP TYPE E |
1 | ||
| 77286-47020 |
ZZE12#..UKP TYPE B |
1 | ||
| 77298-20080 |
CDE120,ZZE12#..UKP TYPE F |
3 | ||
| 77298-20080 |
CDE120,NDE120,ZZE12#..UKP TYPE F |
3 | ||
| 77289-20060 |
CDE120,NDE120,ZZE12#..UKP TYPE C |
1 | ||
| 77298-12100 |
CDE120,NDE120,ZZE12#..UKP TYPE E |
1 | ||
| 77298-12060 |
CDE120,ZZE12#..UKP TYPE D |
1 | ||
| 77298-12060 |
CDE120,NDE120,ZZE12#..UKP TYPE D |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-47020 |
ZZE12#..UKP TYPE B |
1 | ||
| 77289-20060 |
CDE120,ZZE12#..UKP TYPE C |
1 | ||
| 77298-12100 |
CDE120,ZZE12#..UKP TYPE E |
1 | ||
| 77286-47020 |
ZZE12#..UKP TYPE B |
1 | ||
| 77298-20080 |
CDE120,ZZE12#..UKP TYPE F |
3 | ||
| 77298-20080 |
CDE120,NDE120,ZZE12#..UKP TYPE F |
3 | ||
| 77289-20060 |
CDE120,NDE120,ZZE12#..UKP TYPE C |
1 | ||
| 77298-12100 |
CDE120,NDE120,ZZE12#..UKP TYPE E |
1 | ||
| 77298-12060 |
CDE120,ZZE12#..UKP TYPE D |
1 | ||
| 77298-12060 |
CDE120,NDE120,ZZE12#..UKP TYPE D |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-05021 |
ZZE120,121..UKP |
1 | ||
| 77740-02090 |
ZZE12#..UKP |
1 | ||
| 77740-02091 |
ZZE12#..UKP |
1 | ||
| 77740-05020 |
ZZE120,121..UKP |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77705-02050 |
ZZE121..UKP..4FC (L) |
1 | ||
| 77705-12110 |
ZZE121..UKP..4FC (J) |
1 | ||
| 77705-02050 |
ZZE121..UKP..4FC |
1 | ||
| Common parts | ||||
| 90119-06918 | ||||
| 90178-W0004 | ||||
| 90466-W0001 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
