ZZE121R-DHPDKW (2001)
Toyota Corolla Hb (Ukp)
(0111- )UKP

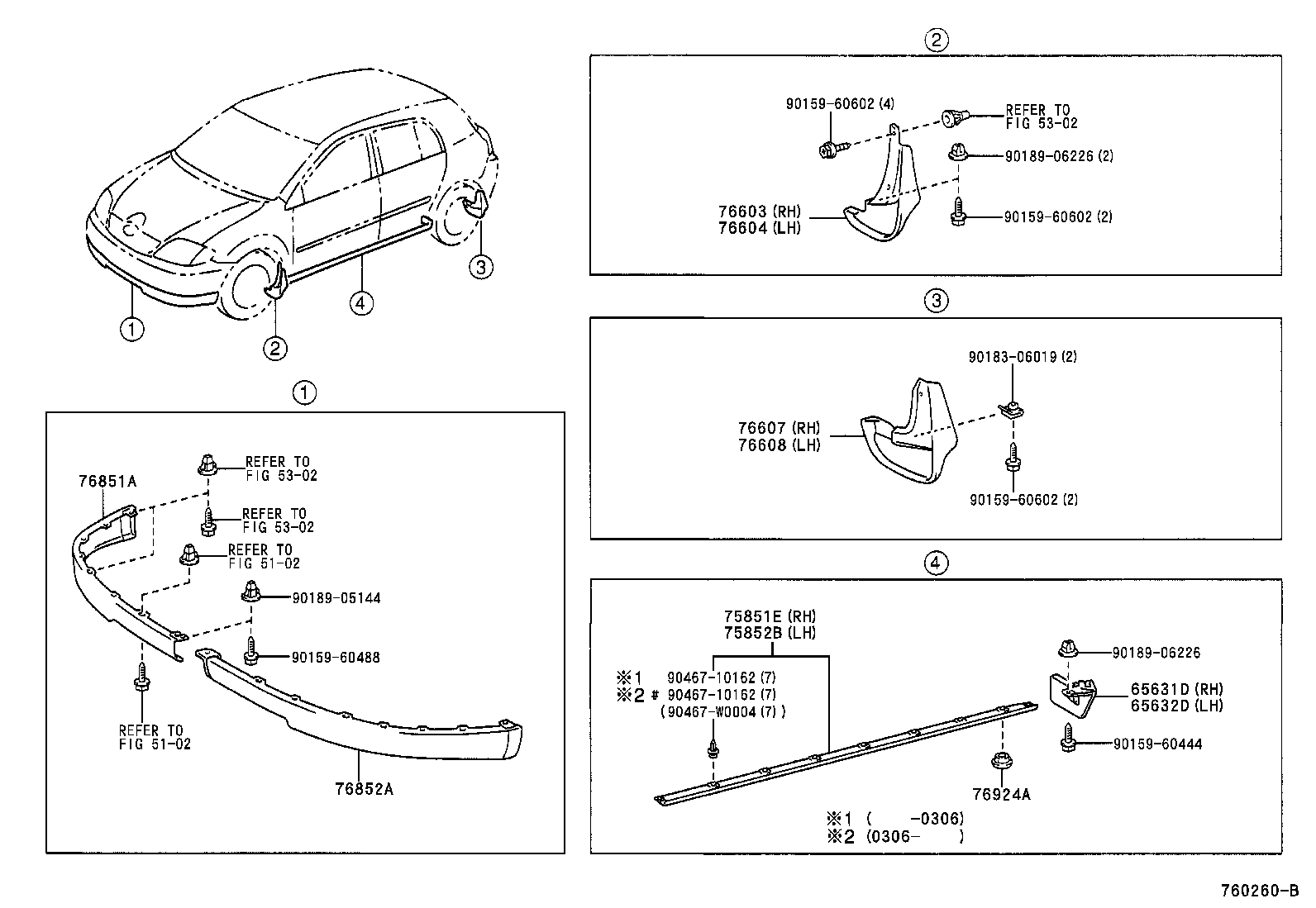

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65631D - PLATE, REAR WHEEL HOUSE, FRONT RH | ||||
| 65631-02020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 65631-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 65632D - PLATE, REAR WHEEL HOUSE, FRONT LH | ||||
| 65632-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 65632-02020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 75851E - MOULDING, BODY ROCKER PANEL, RH | ||||
| 75851-02050 |
CDE120,ZZE12#..UKP |
1 | ||
| 75851-02050 |
CDE120,NDE120,ZZE120,121..UKP |
1 | ||
| 75852B - MOULDING, BODY ROCKER PANEL, LH | ||||
| 75852-02050 |
CDE120,NDE120,ZZE120,121..UKP |
1 | ||
| 75852-02050 |
CDE120,ZZE12#..UKP |
1 | ||
| 76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH | ||||
| 76621-02120 |
CDE120,ZZE12#..UKP |
1 | ||
| 76621-02120 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 76621-02120 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH | ||||
| 76622-02130 |
CDE120,ZZE12#..UKP |
1 | ||
| 76622-02130 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 76622-02130 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76625-02160 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 76625-02160 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 76625-02130 |
CDE120,ZZE12#..UKP |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76626-02160 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 76626-02160 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 76626-02130 |
CDE120,ZZE12#..UKP |
1 | ||
| 76851A - COVER, FRONT SPOILER, RH | ||||
| 76851-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 76851-02090 |
CDE120,NDE120,ZZE120,121..UKP |
1 | ||
| 76852A - COVER, FRONT SPOILER, LH | ||||
| 76852-02080 |
CDE120,NDE120,ZZE120,121..UKP |
1 | ||
| 76852-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 76924A - RETAINER, SIDE MUDGUARD, NO.2 | ||||
| 76924-52021 |
CDE120,NDE120,ZZE120,121..UKP..5D..TERRA W(SIDE MUDGUARD) |
16 | ||
| 76924-52021 |
CDE120,ZZE12#..UKP |
14 | ||
| 76924-52021 |
CDE120,NDE120,ZZE120,121..UKP |
14 | ||
| Common parts | ||||
| 90159-60444 | ||||
| 90159-60488 | ||||
| 90159-60602 | ||||
| 90183-06019 | ||||
| 90189-05144 | ||||
| 90189-06226 | ||||
| 90467-10162 | ||||
| 90467-W0004 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5302 | ||||
(0405-0510)UKP..3D..TERRA ; (0405-0511)UKP..5D..TERRA ; (0405- )ZZE123..UKP ; (0

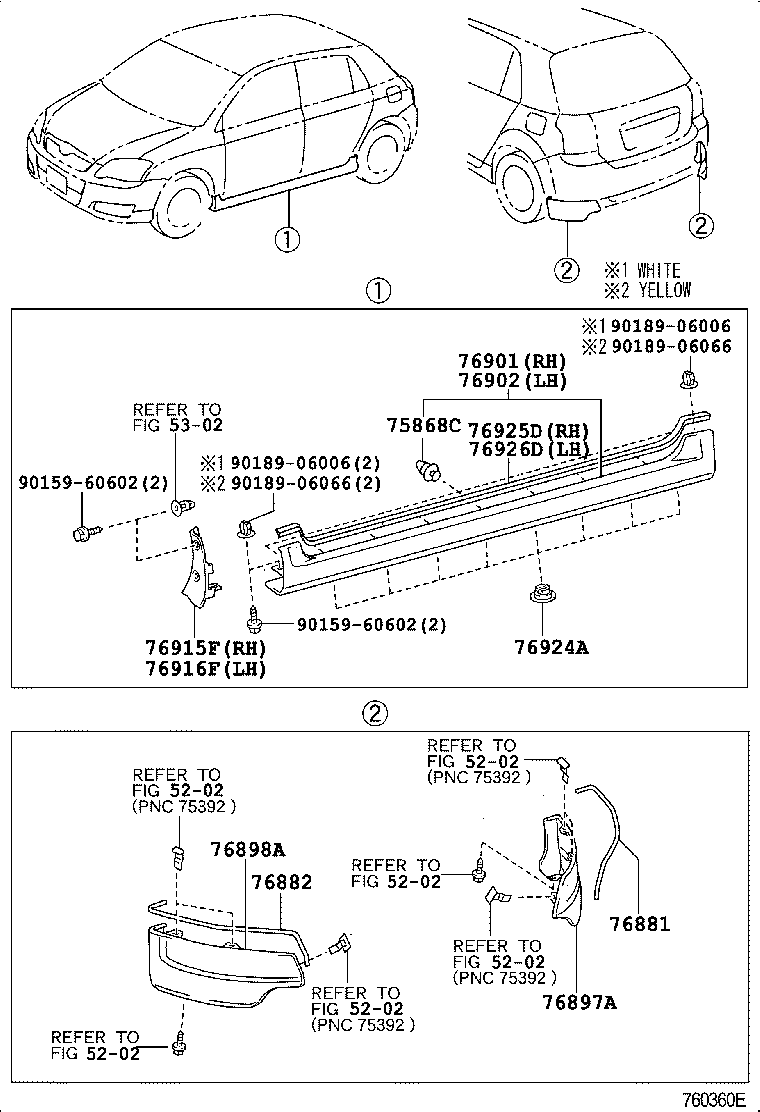

SIDE MUD GUARD & REAR SIDE SPOILEER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75868C - CLIP, REAR SPOILER, NO.2 | ||||
| 75868-33020 |
CDE120,NDE120,ZZE120,121..UKP..5D..TERRA |
18 | ||
| 75868-33020 |
CDE120,NDE120,ZZE120,121..UKP..5D..TERRA |
18 | ||
| 76881 - PROTECTOR, REAR SPOILER SIDE, NO.1 RH | ||||
| 76881-12060C0 |
CDE120..UKP..TERRA;NDE120..UKP..LHD..TERRA;ZZE120,121..UKP..5D..TERRA;ZZE120,121..UKP..LHD..3D..TERRA BLACK,1C3 ,209 ,3E5 ,6S3 ,8P4 |
1 | ||
| 76881-12060C0 |
CDE120..UKP..TERRA;NDE120..UKP..LHD..TERRA;ZZE120,121..UKP..5D..TERRA;ZZE120,121..UKP..LHD..3D..TERRA BLACK,1C3 ,209 ,3E5 ,6S3 ,8P4 |
1 | ||
| 76881-12060B2 |
CDE120,NDE120,ZZE120,121..UKP..TERRA LT. GRAY,040 ,1C0 ,8S1 |
1 | ||
| 76881-12060B2 |
CDE120,NDE120,ZZE120,121..UKP..TERRA LT. GRAY,040 ,1C0 ,8S1 |
1 | ||
| 76882 - PROTECTOR, REAR SPOILER SIDE, NO.1 LH | ||||
| 76881-12060B2 |
CDE120,NDE120,ZZE120,121..UKP..TERRA LT. GRAY,040 ,1C0 ,8S1 |
1 | ||
| 76881-12060B2 |
CDE120,NDE120,ZZE120,121..UKP..TERRA LT. GRAY,040 ,1C0 ,8S1 |
1 | ||
| 76881-12060C0 |
CDE120..UKP..TERRA;NDE120..UKP..LHD..TERRA;ZZE120,121..UKP..5D..TERRA;ZZE120,121..UKP..LHD..3D..TERRA BLACK,1C3 ,209 ,3E5 ,6S3 ,8P4 |
1 | ||
| 76881-12060C0 |
CDE120..UKP..TERRA;NDE120..UKP..LHD..TERRA;ZZE120,121..UKP..5D..TERRA;ZZE120,121..UKP..LHD..3D..TERRA BLACK,1C3 ,209 ,3E5 ,6S3 ,8P4 |
1 | ||
| 76897A - SPOILER,REAR SIDE RH | ||||
| 76087-02901 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 76087-02901 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 76898A - SPOILER,REAR SIDE LH | ||||
| 76088-02901 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 76088-02901 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 76901 - MUDGUARD SUB-ASSY, SIDE, RH | ||||
| 76901-02903 |
CDE120,NDE120,ZZE120,121..UKP..5D..TERRA |
1 | ||
| 76901-02903 |
CDE120,NDE120,ZZE120,121..UKP..5D..TERRA |
1 | ||
| 76902 - MUDGUARD SUB-ASSY, SIDE, LH | ||||
| 76902-02903 |
CDE120,NDE120,ZZE120,121..UKP..5D..TERRA |
1 | ||
| 76902-02903 |
CDE120,NDE120,ZZE120,121..UKP..5D..TERRA |
1 | ||
| 76915F - MUDGUARD, SIDE, FR RH | ||||
| 76915-02020 |
CDE120,NDE120,ZZE120,121..UKP..5D..TERRA |
1 | ||
| 76915-02020 |
CDE120,NDE120,ZZE120,121..UKP..5D..TERRA |
1 | ||
| 76916F - MUDGUARD, SIDE, FR LH | ||||
| 76916-02020 |
CDE120,NDE120,ZZE120,121..UKP..5D..TERRA |
1 | ||
| 76916-02020 |
CDE120,NDE120,ZZE120,121..UKP..5D..TERRA |
1 | ||
| 76924A - RETAINER, SIDE MUDGUARD, NO.2 | ||||
| 76924-52021 |
CDE120,NDE120,ZZE120,121..UKP..5D..TERRA W(SIDE MUDGUARD) |
16 | ||
| 76924-52021 |
CDE120,NDE120,ZZE120,121..UKP..5D..TERRA W(SIDE MUDGUARD) |
16 | ||
| 76924-52021 |
CDE120,ZZE12#..UKP |
14 | ||
| 76924-52021 |
CDE120,ZZE12#..UKP |
14 | ||
| 76924-52021 |
CDE120,NDE120,ZZE120,121..UKP |
14 | ||
| 76924-52021 |
CDE120,NDE120,ZZE120,121..UKP |
14 | ||
| 76925D - PROTECTOR, SIDE MUDGUARD, RH | ||||
| 76925-12080B2 |
CDE120,NDE120,ZZE120,121..UKP..5D..TERRA LT. GRAY,040 ,1C0 ,8S1 |
1 | ||
| 76925-12080B2 |
CDE120,NDE120,ZZE120,121..UKP..5D..TERRA LT. GRAY,040 ,1C0 ,8S1 |
1 | ||
| 76925-12080C0 |
NDE120..UKP..LHD..5D..TERRA;CDE120,ZZE120,121..UKP..5D..TERRA BLACK,1C3 ,209 ,3E5 ,6S3 ,8P4 |
1 | ||
| 76925-12080C0 |
NDE120..UKP..LHD..5D..TERRA;CDE120,ZZE120,121..UKP..5D..TERRA BLACK,1C3 ,209 ,3E5 ,6S3 ,8P4 |
1 | ||
| 76926D - PROTECTOR, SIDE MUDGUARD, LH | ||||
| 76925-12080C0 |
NDE120..UKP..LHD..5D..TERRA;CDE120,ZZE120,121..UKP..5D..TERRA BLACK,1C3 ,209 ,3E5 ,6S3 ,8P4 |
1 | ||
| 76925-12080C0 |
NDE120..UKP..LHD..5D..TERRA;CDE120,ZZE120,121..UKP..5D..TERRA BLACK,1C3 ,209 ,3E5 ,6S3 ,8P4 |
1 | ||
| 76925-12080B2 |
CDE120,NDE120,ZZE120,121..UKP..5D..TERRA LT. GRAY,040 ,1C0 ,8S1 |
1 | ||
| 76925-12080B2 |
CDE120,NDE120,ZZE120,121..UKP..5D..TERRA LT. GRAY,040 ,1C0 ,8S1 |
1 | ||
| Common parts | ||||
| 90159-60602 | ||||
| 90189-06006 | ||||
| 90189-06066 | ||||
| Linked diagrams | ||||
| 5202 | ||||
| 5302 | ||||
