ZZE121R-DHPDKW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - Feb 2007
Engine 3ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0111- )UKP

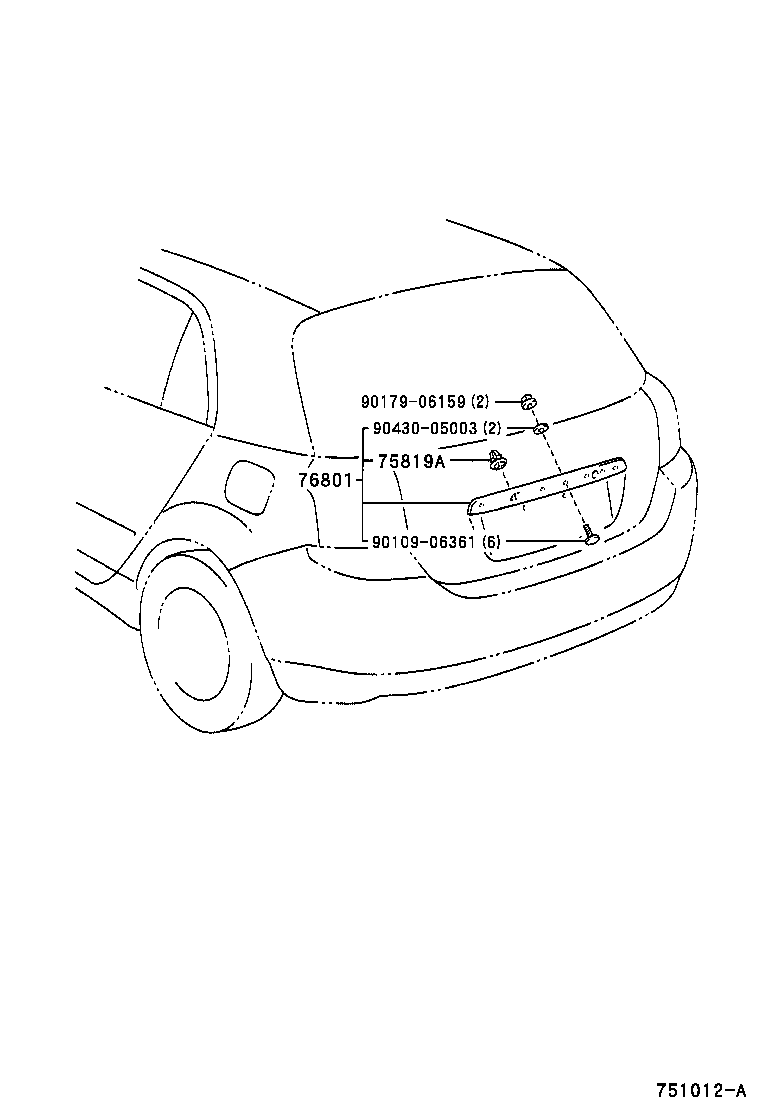

Click highlighted areas on diagram

diagram 75819A 76801 9010906361 9017906159 9043005003
Part # Description Qty Price
75819A - CLIP, BACK DOOR MOULDING
75819-12040

CDE120,ZZE12#..UKP

 1
75819-12040

CDE120,NDE120,ZZE12#..UKP

 1
76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
76801-02100A0

CDE120,ZZE120,121..UKP..(DCR,DCRL,HTWC)

SUPER WHITE 2,040

 1
76801-02100J0

CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC)

DK.BLUE M.M.,8P4

 1
76801-02100B2

CDE120,ZZE120,121..UKP..(DCR,DCRL,HTWC)

SILVER ME.,199

 1
76801-02100B0

CDE120,ZZE120,121..UKP..(DCR,DCRL,HTWC)

GRAY M.M.,1C3

 1
76801-02100J1

CDE120,ZZE120,121..UKP..(DCR,DCRL,HTWC)

GRAYISH BLUE M.M.,8Q3

 1
76801-02100B0

CDE120,NDE120,ZZE120,121..UKP

GRAY M.M.,1C3

 1
76801-02100J2

CDE120,ZZE120,121..UKP..(DCR,DCRL,HTWC)

DK.BLUE,8Q4

 1
76801-02100D0

CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC)

SUPER RED II,3E5

 1
76801-02100G0

CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC)

DARK GREEN MC.,6R4

 1
76801-02100J0

CDE120,NDE120,ZZE120,121..UKP

DK.BLUE M.M.,8P4

 1
76801-02100D0

CDE120,NDE120,ZZE12#..UKP

SUPER RED II,3E5

 1
76801-02100A0

CDE120,NDE120,ZZE120,121..UKP

SUPER WHITE 2,040

 1
76801-02100B3

CDE120,NDE120,ZZE12#..UKP

SILVER ME.,1C0

 1
76801-02100J4

CDE120,NDE120,ZZE12#..UKP

BLUE ME.,8P1

 1
76801-02100G1

CDE120,NDE120,ZZE120,121..UKP

DK.GREEN M.M.,6S3

 1
76801-02100C0

CDE120,NDE120,ZZE12#..UKP

BLACK MC.,209

 1
76801-02100B1

CDE120,ZZE120,121..UKP..TERRA

GRAY ME.,1D2

 1
76801-02100B5

CDE120,NDE120,ZZE12#..UKP

DK.GRAY M.M.,1F6

 1
76801-02100J3

CDE120,NDE120,ZZE120,121..UKP

LT.BLUE M.M.,8S1

 1
76801-02100C0

CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC)

BLACK MC.,209

 1
76801-02100D0

CDE120,NDE120,ZZE12#..UKP

SUPER RED II,3E5

 1
Common parts
90109-06361
90179-06159
90430-05003
