ZZE121R-DHPDKW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - Feb 2007
Engine 3ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0111- )UKP

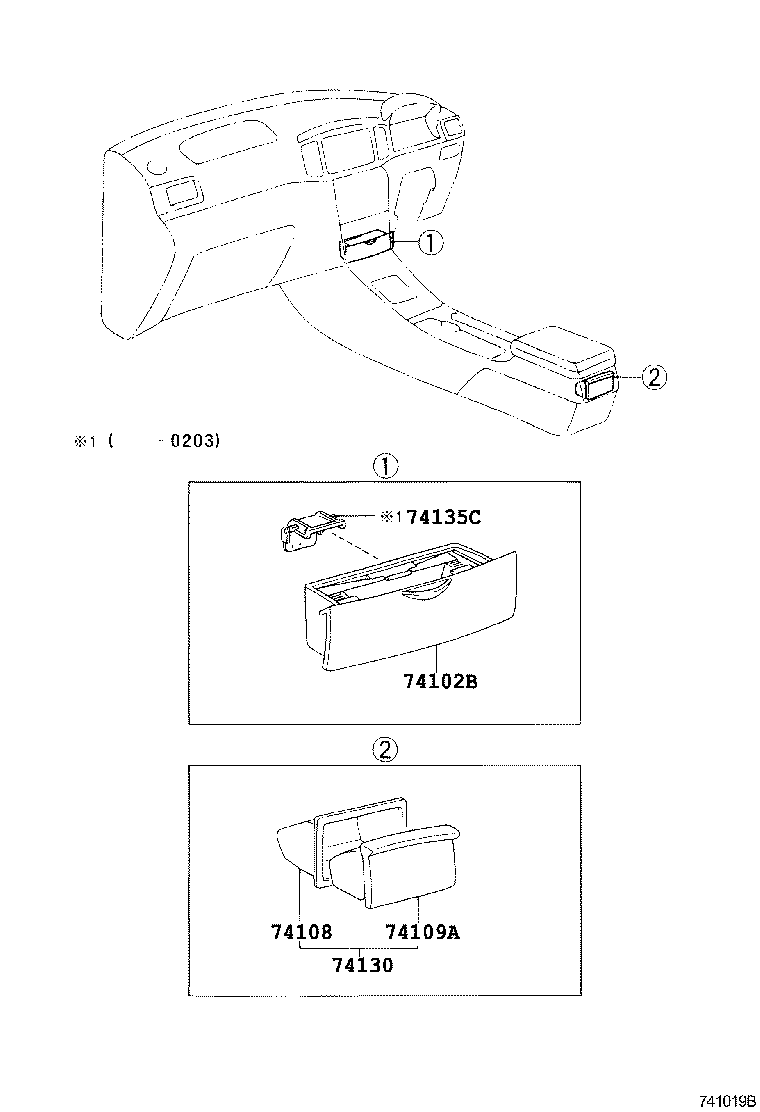

Click highlighted areas on diagram

diagram 74102B 74108 74109A 74130 74135C
Part # Description Qty Price
74102B - BOX SUB-ASSY, FRONT ASH RECEPTACLE
74102-02100B0

CDE120,ZZE120,121..UKP..TERRA

DARK GRAY,TRIM1#,8#

 1
74102-02100B0

CDE120,NDE120,ZZE120,121..UKP..TERRA

TRIM = TYPE A-*104,DARK GRAY,TRIM1#

 1
74102-02110B2

CDE120,NDE120,ZZE120,121..UKP..TERRA

TRIM = TYPE B-*104,DARK GRAY ME.22GY34,TRIM1#

 1
74108 - RETAINER SUB-ASSY, REAR ASH RECEPTACLE
74108-02010

CDE120,ZZE12#..UKP

 1
74108-02010

CDE120,NDE120,ZZE12#..UKP

 1
74109A - BOX SUB-ASSY, ASH RECEPTACLE
74109-02040J0

CDE120,ZZE120,121..UKP..TERRA

DK.BLUE,TRIM8#

 1
74109-02040B0

CDE120,NDE120,ZZE12#..UKP

DK.GRAY,TRIM1#

 1
74109-02040B0

CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC)

DK.GRAY,TRIM1#

 1
74130 - RECEPTACLE ASSY, REAR ASH
74130-02020B0

CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC)

DK.GRAY,TRIM1#

 1
74130-02020J0

CDE120,ZZE120,121..UKP..TERRA

DK.BLUE,TRIM8#

 1
74130-02020B0

CDE120,NDE120,ZZE12#..UKP

DK.GRAY,TRIM1#

 1
74135C - RETAINER, ASH RECEPTACLE
74123-02020

CDE120,ZZE120,121..UKP

 1
