ZZE121R-DHPDKW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - Feb 2007
Engine 3ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0111- )UKP

Click highlighted areas on diagram

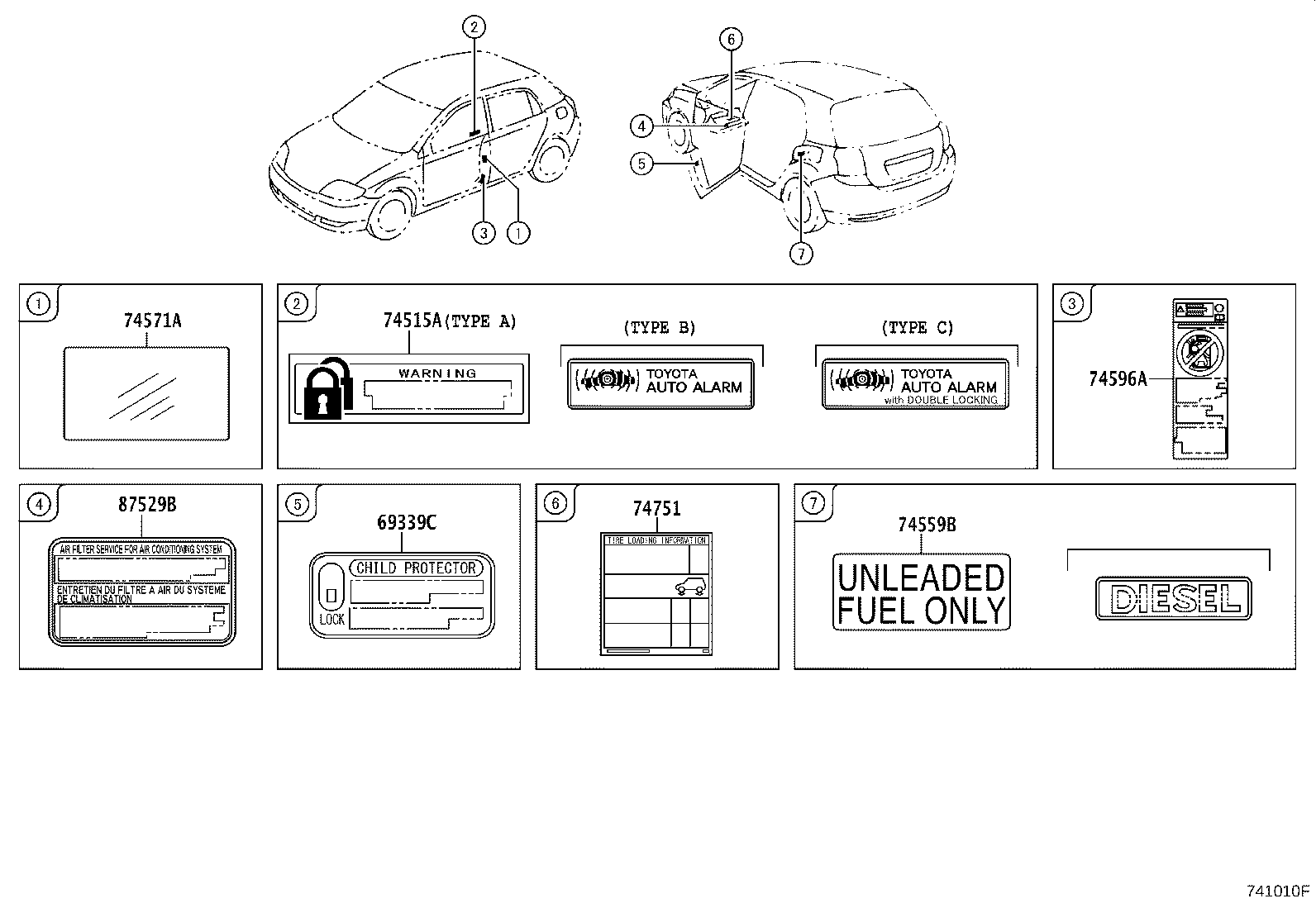

EXTERIOR & INTERIOR

diagram 69339C 74515A 74559B 74571A 74596A 74751 87529B
Part # Description Qty Price
69339C - LABEL, CHILD PROTECTOR INFORMATION
69339-03010

CDE120,NDE120,ZZE12#..UKP..5D

 2
69339-03010

CDE120,ZZE12#..UKP..5D

 2
74515A - PLATE, THEFT WARNING
74515-0D010

CDE120,ZZE12#..UKP..RHD

TYPE A:REFER TO ILLUSTRATION

 2
74515-0D010

CDE120,NDE120,ZZE12#..UKP..RHD

TYPE A:REFER TO ILLUSTRATION

 2
74559B - LABEL, FUEL INFORMATION
74559-05010

ZZE12#..UKP

 1
74559-05010

ZZE12#..UKP

 1
74571A - FILM, LABEL COVER
74571-05010

CDE120,ZZE12#..UKP

 1
74596A - LABEL, SIDE AIR BAG CAUTION
74596-12020

CDE120,ZZE12#..UKP

 2
74596-12020

CDE120,NDE120,ZZE12#..UKP

 2
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-02220

ZZE121..UKP

 1
42661-02220

NDE120,ZZE121..UKP

 1
42661-02221

NDE120,ZZE121..UKP

 1
87529B - LABEL, A/C FILTER INFORMATION
87529-0D010

CDE120,NDE120,ZZE12#..UKP

 1
87529-0D010

CDE120,ZZE12#..UKP

 1

ILLUST NO. 1 OF 2(0111- )UKP

Click highlighted areas on diagram

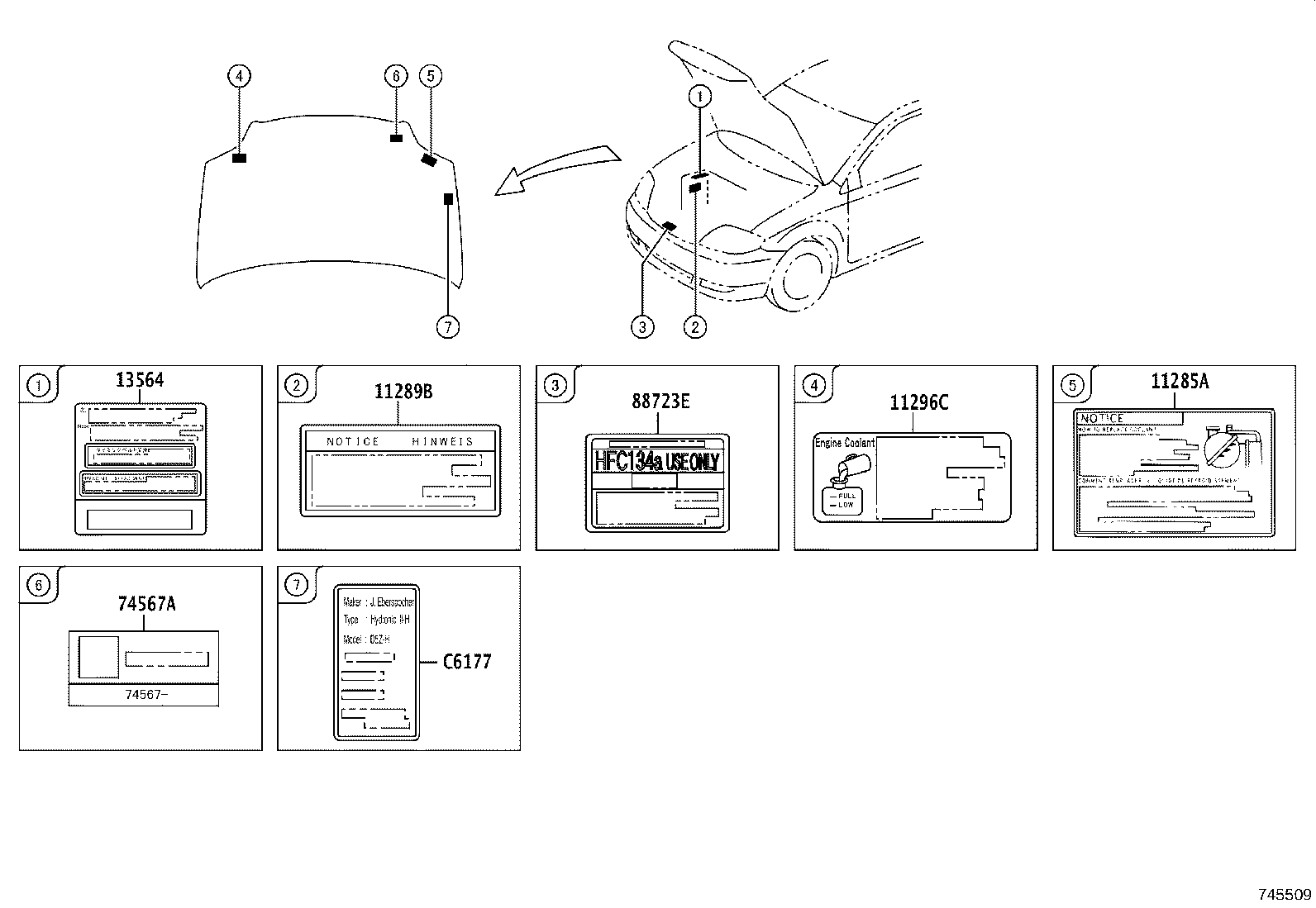

ENGINE ROOM

diagram 11285A 11289B 11296C 13564 74567A 88723E C6177
Part # Description Qty Price
11296C - LABEL, ENGINE SERVICE INFORMATION
11296-27020

1CDFTV,2ZZGE,3ZZFE,4ZZFE..CDE120,ZZE12#

 1
11296-27020

1CDFTV,1NDTV,2ZZGE,3ZZFE,4ZZFE..CDE120,NDE120,ZZE12#..UKP

 1
88723E - LABEL, COOLER SERVICE CAUTION
88723-12140

CDE120,ZZE12#..UKP

 1
88733-12030

CDE120,NDE120,ZZE12#..UKP

 1
88723-28220

CDE120..UKP..LHD..DCRL;CDE120,ZZE120,121..UKP..(DCR,HDCR,HTWC)

W(DEALER OPTION MANUAL AIR CONDITIONER)

 1
