ZZE121R-DHPDKW (2001)
Toyota Corolla Hb (Ukp)

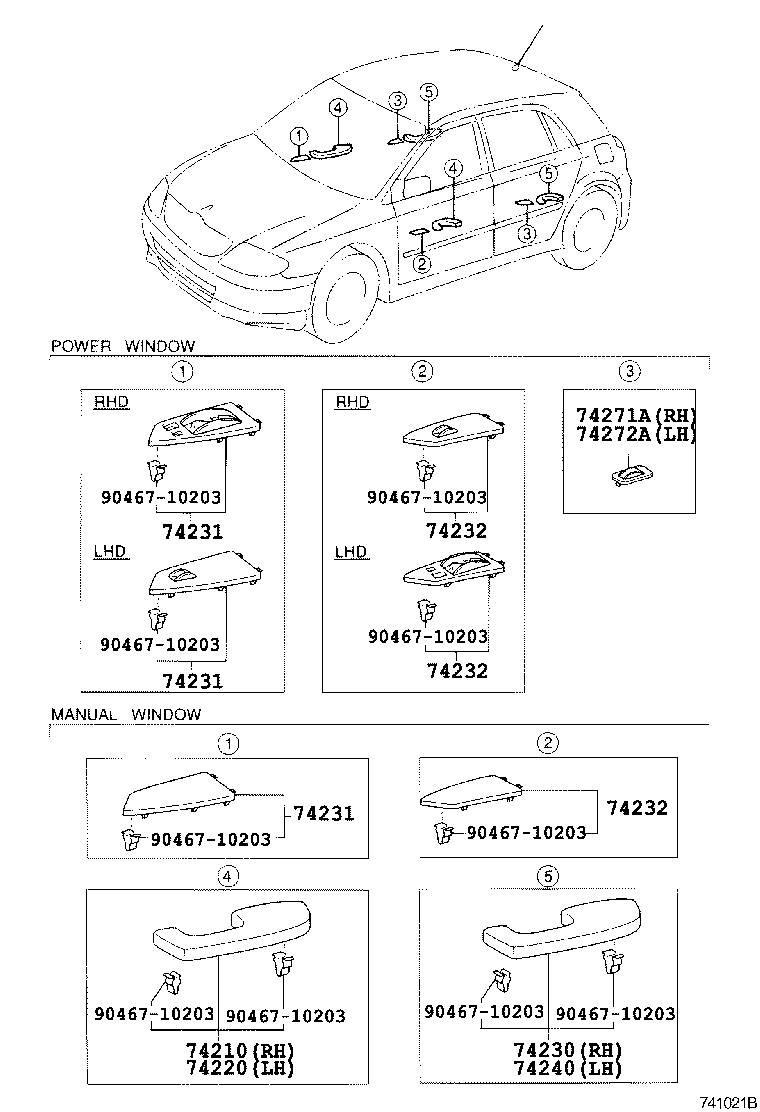

ILLUST NO. 1 OF 2(0111- )UKP..5D
ARMREST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-12240J0 |
CDE120,ZZE120,121..UKP..5D..TERRA DK.BLUE,TRIM8# |
1 | ||
| 74210-12240B1 |
CDE120,NDE120,ZZE12#..UKP..5D DK.GRAY,TRIM1# |
1 | ||
| 74210-12240B1 |
CDE120,ZZE12#..UKP..5D..(DCR,DCRL,HTWC,TWC) DK.GRAY,TRIM1# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74220-12180B1 |
CDE120,NDE120,ZZE12#..UKP..5D DK.GRAY,TRIM1# |
1 | ||
| 74220-12180J0 |
CDE120,ZZE120,121..UKP..5D..TERRA DK.BLUE,TRIM8# |
1 | ||
| 74220-12180B1 |
CDE120,ZZE12#..UKP..5D..(DCR,DCRL,HTWC,TWC) DK.GRAY,TRIM1# |
1 | ||
| 74230 - ARMREST ASSY, REAR, RH | ||||
| 74210-12240B1 |
CDE120,ZZE12#..UKP..5D..(DCR,DCRL,HTWC,TWC) DK.GRAY,TRIM1# |
1 | ||
| 74210-12240J0 |
CDE120,ZZE120,121..UKP..5D..TERRA DK.BLUE,TRIM8# |
1 | ||
| 74210-12240B1 |
CDE120,NDE120,ZZE12#..UKP..5D DK.GRAY,TRIM1# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-02290B0 |
CDE120,ZZE120,121..UKP..RHD..5D..TERRA W(POWER WINDOW = FRONT ONLY),DK.GRAY,TRIM1# |
1 | ||
| 74231-02270B2 |
CDE120,NDE120,ZZE120,121..UKP..RHD..5D..TERRA TRIM = TYPE B-*104 & W(POWER WINDOW---FRONT & REAR),DARK GRAY ME.22GY34,TRIM1# |
1 | ||
| 74231-02490B1 |
CDE120,NDE120,ZZE120,121..UKP..RHD..5D..TERRA TRIM = TYPE B-*104 & W(POWER WINDOW---FRONT ONLY),DARK GRAY ME.22GY34,TRIM1# |
1 | ||
| 74231-02310B0 |
CDE120,ZZE120,121..UKP..5D..TERRA DK.GRAY,TRIM1# |
1 | ||
| 74231-02290J0 |
CDE120,ZZE120,121..UKP..RHD..5D..TERRA W(POWER WINDOW = FRONT ONLY),DK.BLUE,TRIM8# |
1 | ||
| 74231-02310J0 |
CDE120,ZZE120,121..UKP..5D..TERRA DK.BLUE,TRIM8# |
1 | ||
| 74231-02290B0 |
CDE120,NDE120,ZZE120,121..UKP..RHD..5D..TERRA TRIM = TYPE A-*104 & W(POWER WINDOW---FRONT ONLY),DK.GRAY,TRIM1# |
1 | ||
| 74231-02480B0 |
CDE120,NDE120,ZZE120,121..UKP..RHD..5D..TERRA TRIM = TYPE A-*104 & W(POWER WINDOW---FRONT & REAR),DK.GRAY,TRIM1# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-02290B0 |
CDE120,ZZE120,121..UKP..RHD..5D..TERRA W(POWER WINDOW = FRONT ONLY),DK.GRAY,TRIM1# |
1 | ||
| 74231-02270B2 |
CDE120,NDE120,ZZE120,121..UKP..RHD..5D..TERRA TRIM = TYPE B-*104 & W(POWER WINDOW---FRONT & REAR),DARK GRAY ME.22GY34,TRIM1# |
1 | ||
| 74231-02490B1 |
CDE120,NDE120,ZZE120,121..UKP..RHD..5D..TERRA TRIM = TYPE B-*104 & W(POWER WINDOW---FRONT ONLY),DARK GRAY ME.22GY34,TRIM1# |
1 | ||
| 74231-02310B0 |
CDE120,ZZE120,121..UKP..5D..TERRA DK.GRAY,TRIM1# |
1 | ||
| 74231-02290J0 |
CDE120,ZZE120,121..UKP..RHD..5D..TERRA W(POWER WINDOW = FRONT ONLY),DK.BLUE,TRIM8# |
1 | ||
| 74231-02310J0 |
CDE120,ZZE120,121..UKP..5D..TERRA DK.BLUE,TRIM8# |
1 | ||
| 74231-02290B0 |
CDE120,NDE120,ZZE120,121..UKP..RHD..5D..TERRA TRIM = TYPE A-*104 & W(POWER WINDOW---FRONT ONLY),DK.GRAY,TRIM1# |
1 | ||
| 74231-02480B0 |
CDE120,NDE120,ZZE120,121..UKP..RHD..5D..TERRA TRIM = TYPE A-*104 & W(POWER WINDOW---FRONT & REAR),DK.GRAY,TRIM1# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-02290B0 |
CDE120,ZZE120,121..UKP..RHD..5D..TERRA W(POWER WINDOW = FRONT ONLY),DK.GRAY,TRIM1# |
1 | ||
| 74231-02270B2 |
CDE120,NDE120,ZZE120,121..UKP..RHD..5D..TERRA TRIM = TYPE B-*104 & W(POWER WINDOW---FRONT & REAR),DARK GRAY ME.22GY34,TRIM1# |
1 | ||
| 74231-02490B1 |
CDE120,NDE120,ZZE120,121..UKP..RHD..5D..TERRA TRIM = TYPE B-*104 & W(POWER WINDOW---FRONT ONLY),DARK GRAY ME.22GY34,TRIM1# |
1 | ||
| 74231-02310B0 |
CDE120,ZZE120,121..UKP..5D..TERRA DK.GRAY,TRIM1# |
1 | ||
| 74231-02290J0 |
CDE120,ZZE120,121..UKP..RHD..5D..TERRA W(POWER WINDOW = FRONT ONLY),DK.BLUE,TRIM8# |
1 | ||
| 74231-02310J0 |
CDE120,ZZE120,121..UKP..5D..TERRA DK.BLUE,TRIM8# |
1 | ||
| 74231-02290B0 |
CDE120,NDE120,ZZE120,121..UKP..RHD..5D..TERRA TRIM = TYPE A-*104 & W(POWER WINDOW---FRONT ONLY),DK.GRAY,TRIM1# |
1 | ||
| 74231-02480B0 |
CDE120,NDE120,ZZE120,121..UKP..RHD..5D..TERRA TRIM = TYPE A-*104 & W(POWER WINDOW---FRONT & REAR),DK.GRAY,TRIM1# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-02300B0 |
CDE120,ZZE120,121..UKP..RHD..5D..TERRA W(POWER WINDOW = FRONT ONLY),DK.GRAY,TRIM1# |
1 | ||
| 74232-02300J0 |
CDE120,ZZE120,121..UKP..RHD..5D..TERRA W(POWER WINDOW = FRONT ONLY),DK.BLUE,TRIM8# |
1 | ||
| 74232-02310B0 |
CDE120,ZZE120,121..UKP..5D..TERRA DK.GRAY,TRIM1# |
1 | ||
| 74232-02280B2 |
CDE120,NDE120,ZZE120,121..UKP..RHD..5D..TERRA TRIM = TYPE B-*104,DARK GRAY ME.22GY34,TRIM1# |
1 | ||
| 74232-02310J0 |
CDE120,ZZE120,121..UKP..5D..TERRA DK.BLUE,TRIM8# |
1 | ||
| 74232-02300B0 |
CDE120,NDE120,ZZE120,121..UKP..RHD..5D..TERRA TRIM = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-02300B0 |
CDE120,ZZE120,121..UKP..RHD..5D..TERRA W(POWER WINDOW = FRONT ONLY),DK.GRAY,TRIM1# |
1 | ||
| 74232-02300J0 |
CDE120,ZZE120,121..UKP..RHD..5D..TERRA W(POWER WINDOW = FRONT ONLY),DK.BLUE,TRIM8# |
1 | ||
| 74232-02310B0 |
CDE120,ZZE120,121..UKP..5D..TERRA DK.GRAY,TRIM1# |
1 | ||
| 74232-02280B2 |
CDE120,NDE120,ZZE120,121..UKP..RHD..5D..TERRA TRIM = TYPE B-*104,DARK GRAY ME.22GY34,TRIM1# |
1 | ||
| 74232-02310J0 |
CDE120,ZZE120,121..UKP..5D..TERRA DK.BLUE,TRIM8# |
1 | ||
| 74232-02300B0 |
CDE120,NDE120,ZZE120,121..UKP..RHD..5D..TERRA TRIM = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-02300B0 |
CDE120,ZZE120,121..UKP..RHD..5D..TERRA W(POWER WINDOW = FRONT ONLY),DK.GRAY,TRIM1# |
1 | ||
| 74232-02300J0 |
CDE120,ZZE120,121..UKP..RHD..5D..TERRA W(POWER WINDOW = FRONT ONLY),DK.BLUE,TRIM8# |
1 | ||
| 74232-02310B0 |
CDE120,ZZE120,121..UKP..5D..TERRA DK.GRAY,TRIM1# |
1 | ||
| 74232-02280B2 |
CDE120,NDE120,ZZE120,121..UKP..RHD..5D..TERRA TRIM = TYPE B-*104,DARK GRAY ME.22GY34,TRIM1# |
1 | ||
| 74232-02310J0 |
CDE120,ZZE120,121..UKP..5D..TERRA DK.BLUE,TRIM8# |
1 | ||
| 74232-02300B0 |
CDE120,NDE120,ZZE120,121..UKP..RHD..5D..TERRA TRIM = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 74240 - ARMREST ASSY, REAR, LH | ||||
| 74220-12180B1 |
CDE120,ZZE12#..UKP..5D..(DCR,DCRL,HTWC,TWC) DK.GRAY,TRIM1# |
1 | ||
| 74220-12180J0 |
CDE120,ZZE120,121..UKP..5D..TERRA DK.BLUE,TRIM8# |
1 | ||
| 74220-12180B1 |
CDE120,NDE120,ZZE12#..UKP..5D DK.GRAY,TRIM1# |
1 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 84656-02130B1 |
CDE120,NDE120,ZZE12#..UKP..5D DK.GRAY,TRIM1# |
1 | ||
| 74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH | ||||
| 84656-02130B1 |
CDE120,NDE120,ZZE12#..UKP..5D DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90467-10203 | ||||

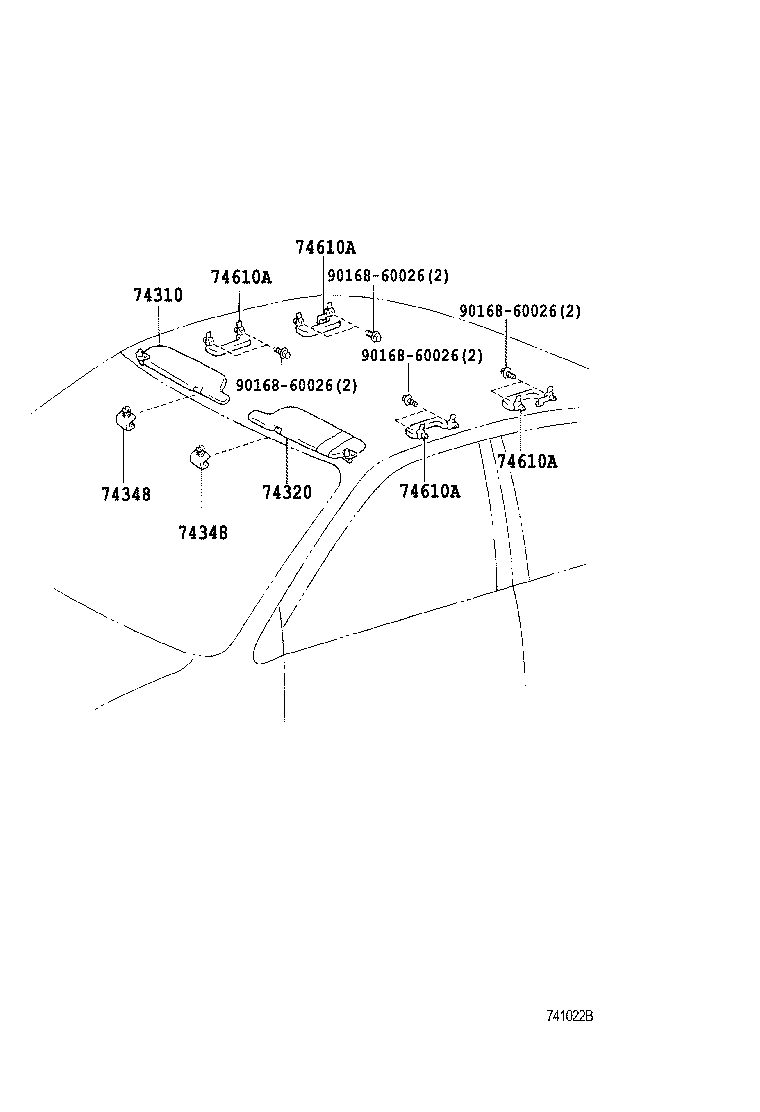

ILLUST NO. 2 OF 2(0111- )UKP
VISOR & ASSIST GRIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-02250B1 |
CDE120,ZZE120,121..UKP..RHD..TERRA LT.GRAY,TRIM1#,8# |
1 | ||
| 74310-02251B1 |
CDE120,NDE120,ZZE12#..UKP..RHD LT.GRAY,TRIM1# |
1 | ||
| 74310-02251B1 |
CDE120,ZZE120,121..UKP..RHD..TERRA LT.GRAY,TRIM1#,8# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-02250B1 |
CDE120,ZZE120,121..UKP..RHD..TERRA LT.GRAY,TRIM1#,8# |
1 | ||
| 74320-02251B1 |
CDE120,ZZE120,121..UKP..RHD..TERRA LT.GRAY,TRIM1#,8# |
1 | ||
| 74320-02561B1 |
CDE120,NDE120,ZZE12#..UKP..RHD LT.GRAY,TRIM1# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-12040B0 |
CDE120,ZZE120,121..UKP..TERRA LT.GRAY,TRIM1#,8# |
2 | ||
| 74348-12040B0 |
CDE120,NDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
2 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-12040B0 |
CDE120,ZZE120,121..UKP..TERRA LT.GRAY,TRIM1#,8# |
2 | ||
| 74348-12040B0 |
CDE120,NDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-02090B0 |
CDE120,ZZE120,121..UKP..TERRA LT.GRAY,TRIM1#,8#,FRONT |
2 | ||
| 74610-02101B0 |
CDE120,ZZE120,121..UKP..TERRA LT.GRAY,TRIM1#,8#,REAR |
2 | ||
| 74610-02091B0 |
CDE120,ZZE120,121..UKP..TERRA LT.GRAY,TRIM1#,8#,FRONT |
2 | ||
| 74610-02100B0 |
CDE120,ZZE120,121..UKP..TERRA LT.GRAY,TRIM1#,8#,REAR |
2 | ||
| 74610-02101B0 |
CDE120,NDE120,ZZE12#..UKP LT.GRAY,TRIM1#,REAR |
2 | ||
| 74610-02091B0 |
CDE120,NDE120,ZZE12#..UKP LT.GRAY,TRIM1#,FRONT |
2 | ||
| 74610-02092B0 |
CDE120,NDE120,ZZE12#..UKP LT.GRAY,TRIM1#,FRONT |
2 | ||
| 74610-02102B0 |
CDE120,NDE120,ZZE12#..UKP LT.GRAY,TRIM1#,REAR |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-02090B0 |
CDE120,ZZE120,121..UKP..TERRA LT.GRAY,TRIM1#,8#,FRONT |
2 | ||
| 74610-02101B0 |
CDE120,ZZE120,121..UKP..TERRA LT.GRAY,TRIM1#,8#,REAR |
2 | ||
| 74610-02091B0 |
CDE120,ZZE120,121..UKP..TERRA LT.GRAY,TRIM1#,8#,FRONT |
2 | ||
| 74610-02100B0 |
CDE120,ZZE120,121..UKP..TERRA LT.GRAY,TRIM1#,8#,REAR |
2 | ||
| 74610-02101B0 |
CDE120,NDE120,ZZE12#..UKP LT.GRAY,TRIM1#,REAR |
2 | ||
| 74610-02091B0 |
CDE120,NDE120,ZZE12#..UKP LT.GRAY,TRIM1#,FRONT |
2 | ||
| 74610-02092B0 |
CDE120,NDE120,ZZE12#..UKP LT.GRAY,TRIM1#,FRONT |
2 | ||
| 74610-02102B0 |
CDE120,NDE120,ZZE12#..UKP LT.GRAY,TRIM1#,REAR |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-02090B0 |
CDE120,ZZE120,121..UKP..TERRA LT.GRAY,TRIM1#,8#,FRONT |
2 | ||
| 74610-02101B0 |
CDE120,ZZE120,121..UKP..TERRA LT.GRAY,TRIM1#,8#,REAR |
2 | ||
| 74610-02091B0 |
CDE120,ZZE120,121..UKP..TERRA LT.GRAY,TRIM1#,8#,FRONT |
2 | ||
| 74610-02100B0 |
CDE120,ZZE120,121..UKP..TERRA LT.GRAY,TRIM1#,8#,REAR |
2 | ||
| 74610-02101B0 |
CDE120,NDE120,ZZE12#..UKP LT.GRAY,TRIM1#,REAR |
2 | ||
| 74610-02091B0 |
CDE120,NDE120,ZZE12#..UKP LT.GRAY,TRIM1#,FRONT |
2 | ||
| 74610-02092B0 |
CDE120,NDE120,ZZE12#..UKP LT.GRAY,TRIM1#,FRONT |
2 | ||
| 74610-02102B0 |
CDE120,NDE120,ZZE12#..UKP LT.GRAY,TRIM1#,REAR |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-02090B0 |
CDE120,ZZE120,121..UKP..TERRA LT.GRAY,TRIM1#,8#,FRONT |
2 | ||
| 74610-02101B0 |
CDE120,ZZE120,121..UKP..TERRA LT.GRAY,TRIM1#,8#,REAR |
2 | ||
| 74610-02091B0 |
CDE120,ZZE120,121..UKP..TERRA LT.GRAY,TRIM1#,8#,FRONT |
2 | ||
| 74610-02100B0 |
CDE120,ZZE120,121..UKP..TERRA LT.GRAY,TRIM1#,8#,REAR |
2 | ||
| 74610-02101B0 |
CDE120,NDE120,ZZE12#..UKP LT.GRAY,TRIM1#,REAR |
2 | ||
| 74610-02091B0 |
CDE120,NDE120,ZZE12#..UKP LT.GRAY,TRIM1#,FRONT |
2 | ||
| 74610-02092B0 |
CDE120,NDE120,ZZE12#..UKP LT.GRAY,TRIM1#,FRONT |
2 | ||
| 74610-02102B0 |
CDE120,NDE120,ZZE12#..UKP LT.GRAY,TRIM1#,REAR |
2 | ||
| Common parts | ||||
| 90168-60026 | ||||
