ZZE121R-DHPDKW (2001)
Toyota Corolla Hb (Ukp)

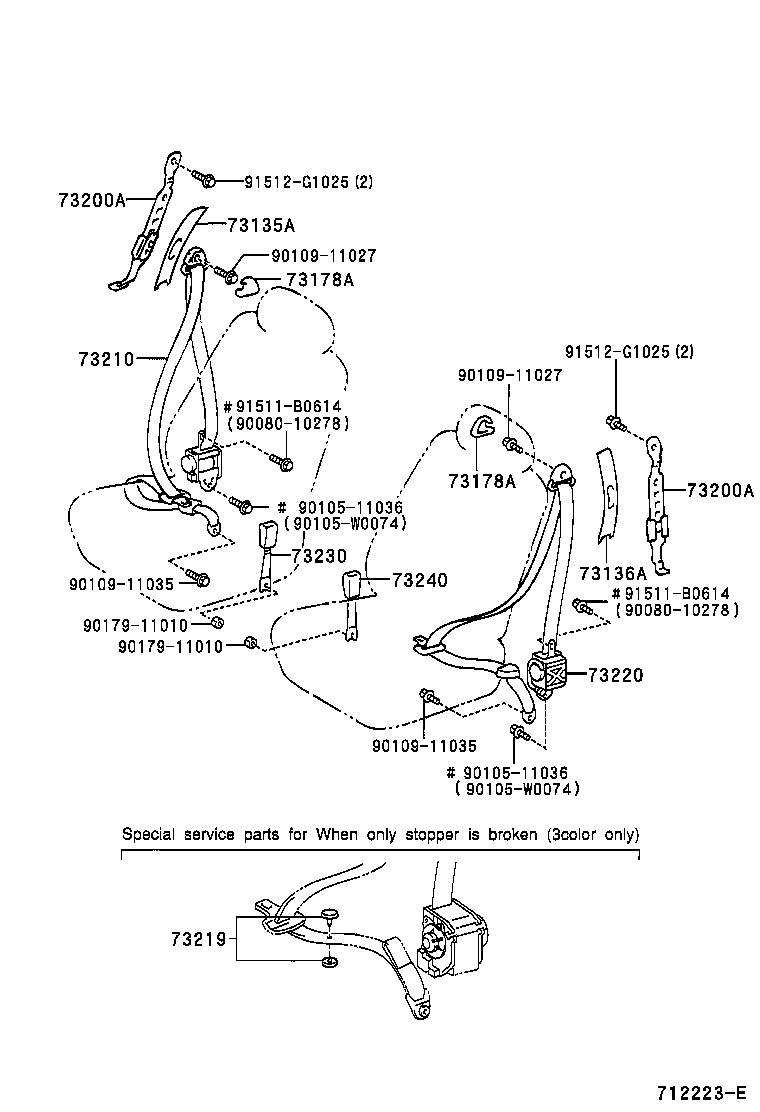

ILLUST NO. 1 OF 2(0111-0405)UKP..5D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73135A - COVER, SHOULDER BELT ANCHOR, RH | ||||
| 73237-02010B2 |
CDE120,NDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
1 | ||
| 73237-02020B0 |
CDE120,ZZE120,121..UKP..TERRA W(SRS CURTAIN SHILD AIR BAG),LT.GRAY,TRIM1#,8# |
1 | ||
| 73237-02020B0 |
CDE120,NDE120,ZZE12#..UKP W(SRS CURTAIN SHILD AIR BAG),LT.GRAY,TRIM1# |
1 | ||
| 73237-02010B2 |
CDE120,ZZE120,121..UKP..TERRA LT.GRAY,TRIM1#,8# |
1 | ||
| 73136A - COVER, SHOULDER BELT ANCHOR, LH | ||||
| 73237-02020B0 |
CDE120,ZZE120,121..UKP..TERRA W(SRS CURTAIN SHILD AIR BAG),LT.GRAY,TRIM1#,8# |
1 | ||
| 73237-02020B0 |
CDE120,NDE120,ZZE12#..UKP W(SRS CURTAIN SHILD AIR BAG),LT.GRAY,TRIM1# |
1 | ||
| 73237-02010B2 |
CDE120,ZZE120,121..UKP..TERRA LT.GRAY,TRIM1#,8# |
1 | ||
| 73237-02010B2 |
CDE120,NDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
1 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-33020B3 |
CDE120,ZZE120,121..UKP..TERRA LT.GRAY,TRIM1#,8# |
2 | ||
| 73178-33020B3 |
CDE120,NDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
2 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-33020B3 |
CDE120,ZZE120,121..UKP..TERRA LT.GRAY,TRIM1#,8# |
2 | ||
| 73178-33020B3 |
CDE120,NDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-02080B0 |
CDE120,NDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
2 | ||
| 73200-02080B0 |
CDE120,ZZE120,121..UKP..TERRA LT.GRAY,TRIM1#,8# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-02080B0 |
CDE120,NDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
2 | ||
| 73200-02080B0 |
CDE120,ZZE120,121..UKP..TERRA LT.GRAY,TRIM1#,8# |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-02121C1 |
CDE120,ZZE120,121..UKP..5D..TERRA BLACK,TRIM1#,8# |
1 | ||
| 73210-02120C0 |
CDE120,ZZE120,121..UKP..5D..TERRA BLACK,TRIM1#,8# |
1 | ||
| 73210-02271C0 |
CDE120,NDE120,ZZE12#..UKP..5D BLACK,TRIM1# |
1 | ||
| 73210-02270C0 |
CDE120,NDE120,ZZE12#..UKP..5D BLACK,TRIM1# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33020 |
CDE120,NDE120,ZZE12#..UKP GRAY |
1 | ||
| 73219-33010 |
CDE120,NDE120,ZZE12#..UKP BLACK |
1 | ||
| 73219-33010 |
CDE120,ZZE12#..UKP BLACK |
1 | ||
| 73219-33030 |
CDE120,ZZE12#..UKP BEIGE |
1 | ||
| 73219-33020 |
CDE120,ZZE12#..UKP GRAY |
1 | ||
| 73219-33030 |
CDE120,NDE120,ZZE12#..UKP BEIGE |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-02110C0 |
CDE120,ZZE120,121..UKP..5D..TERRA BLACK,TRIM1#,8# |
1 | ||
| 73220-02111C1 |
CDE120,ZZE120,121..UKP..5D..TERRA BLACK,TRIM1#,8# |
1 | ||
| 73220-02260C0 |
CDE120,NDE120,ZZE12#..UKP..5D BLACK,TRIM1# |
1 | ||
| 73220-02261C0 |
CDE120,NDE120,ZZE12#..UKP..5D BLACK,TRIM1# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-02120B0 |
CDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1#,8# |
1 | ||
| 73230-02300B0 |
CDE120,NDE120,ZZE12#..UKP..RHD DK.GRAY,TRIM1# |
1 | ||
| 73230-02301B0 |
CDE120,NDE120,ZZE120,121..UKP..RHD DK.GRAY,TRIM1# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-05051B0 |
CDE120,NDE120,ZZE120,121..UKP..RHD DK.GRAY,TRIM1# |
1 | ||
| 73230-02120B0 |
CDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1#,8# |
1 | ||
| 73230-05050B0 |
CDE120,NDE120,ZZE12#..UKP..RHD DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90080-10278 | ||||
| 90105-11036 | ||||
| 90105-W0074 | ||||
| 90109-11027 | ||||
| 90109-11035 | ||||
| 90179-11010 | ||||
| 91511-B0614 | ||||
| 91512-G1025 | ||||

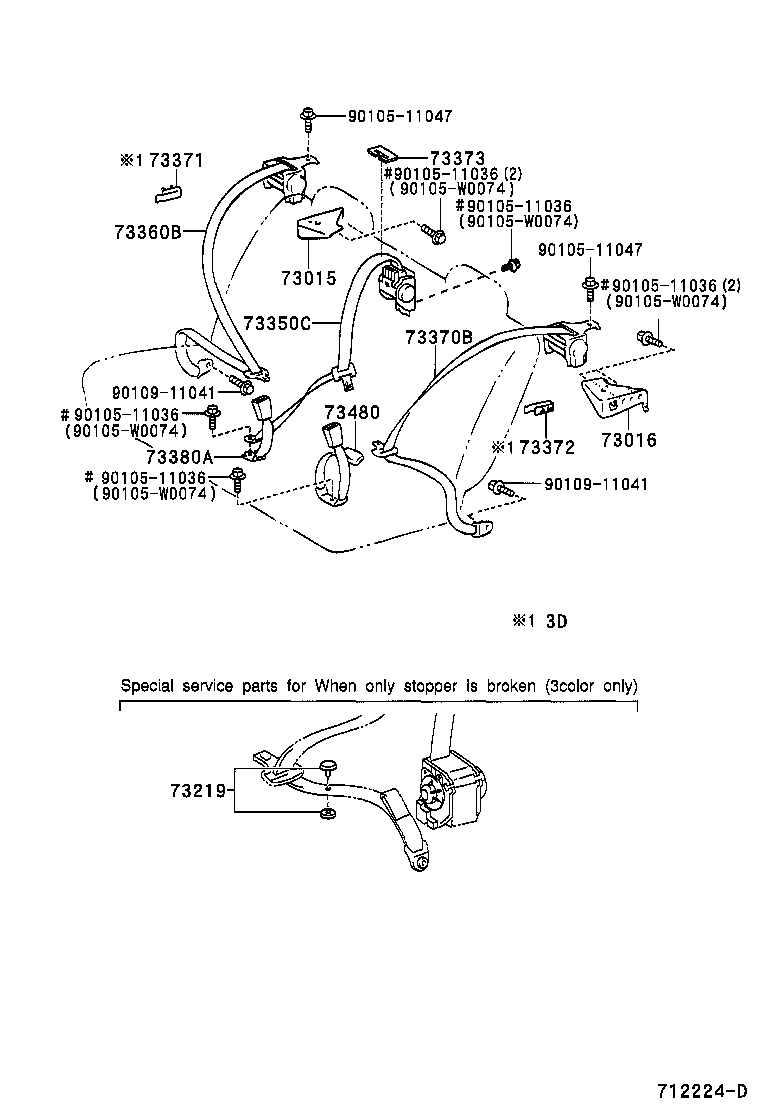

ILLUST NO. 2 OF 2(0111- )UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73015 - BRACKET SUB-ASSY, BELT OUTER ANCHOR, RH | ||||
| 73015-02010 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 73015-02010 |
CDE120,ZZE12#..UKP |
1 | ||
| 73016 - BRACKET SUB-ASSY, BELT OUTER ANCHOR, LH | ||||
| 73016-02010 |
CDE120,ZZE12#..UKP |
1 | ||
| 73016-02010 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33020 |
CDE120,NDE120,ZZE12#..UKP GRAY |
1 | ||
| 73219-33010 |
CDE120,NDE120,ZZE12#..UKP BLACK |
1 | ||
| 73219-33010 |
CDE120,ZZE12#..UKP BLACK |
1 | ||
| 73219-33030 |
CDE120,ZZE12#..UKP BEIGE |
1 | ||
| 73219-33020 |
CDE120,ZZE12#..UKP GRAY |
1 | ||
| 73219-33030 |
CDE120,NDE120,ZZE12#..UKP BEIGE |
1 | ||
| 73350C - BELT ASSY, REAR SEAT, OUTER CENTER | ||||
| 73350-02040C1 |
CDE120,ZZE120,121..UKP..TERRA BLACK,TRIM1#,8# |
1 | ||
| 73350-02041C1 |
CDE120,NDE120,ZZE120,121..UKP BLACK,TRIM1# |
1 | ||
| 73350-02040C1 |
CDE120,NDE120,ZZE12#..UKP BLACK,TRIM1# |
1 | ||
| 73350-02040C0 |
CDE120,ZZE120,121..UKP..TERRA BLACK,TRIM1#,8# |
1 | ||
| 73360B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73360-02170C1 |
CDE120,ZZE120,121..UKP..TERRA BLACK,TRIM1#,8# |
1 | ||
| 73360-02170C1 |
CDE120,NDE120,ZZE12#..UKP BLACK,TRIM1# |
1 | ||
| 73360-02171C1 |
CDE120,NDE120,ZZE12#..UKP BLACK,TRIM1# |
1 | ||
| 73360-02170C0 |
CDE120,ZZE120,121..UKP..TERRA BLACK,TRIM1#,8# |
1 | ||
| 73370B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73360-02171C1 |
CDE120,NDE120,ZZE12#..UKP BLACK,TRIM1# |
1 | ||
| 73360-02170C0 |
CDE120,ZZE120,121..UKP..TERRA BLACK,TRIM1#,8# |
1 | ||
| 73360-02170C1 |
CDE120,NDE120,ZZE12#..UKP BLACK,TRIM1# |
1 | ||
| 73360-02170C1 |
CDE120,ZZE120,121..UKP..TERRA BLACK,TRIM1#,8# |
1 | ||
| 73373 - COVER, REAR SEAT SHOULDER BELT | ||||
| 73373-02030B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 73373-02030J0 |
CDE120,ZZE120,121..UKP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 73373-02030B0 |
CDE120,NDE120,ZZE120,121..UKP DK.GRAY,TRIM1# |
1 | ||
| 73380A - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-02030C0 |
CDE120,ZZE120,121..UKP..TERRA BLACK,TRIM1#,8# |
1 | ||
| 73380-02030C1 |
CDE120,ZZE120,121..UKP..TERRA BLACK,TRIM1#,8# |
1 | ||
| 73380-02030C1 |
CDE120,NDE120,ZZE12#..UKP BLACK,TRIM1# |
1 | ||
| 73380-02031C1 |
CDE120,NDE120,ZZE120,121..UKP BLACK,TRIM1# |
1 | ||
| 73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH | ||||
| 73480-02110C0 |
CDE120,ZZE120,121..UKP..TERRA BLACK,TRIM1#,8# |
1 | ||
| 73480-02110C1 |
CDE120,NDE120,ZZE12#..UKP BLACK,TRIM1# |
1 | ||
| 73480-02110C1 |
CDE120,ZZE120,121..UKP..TERRA BLACK,TRIM1#,8# |
1 | ||
| 73480-02111C1 |
CDE120,NDE120,ZZE12#..UKP BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-11036 | ||||
| 90105-11047 | ||||
| 90105-W0074 | ||||
| 90109-11041 | ||||

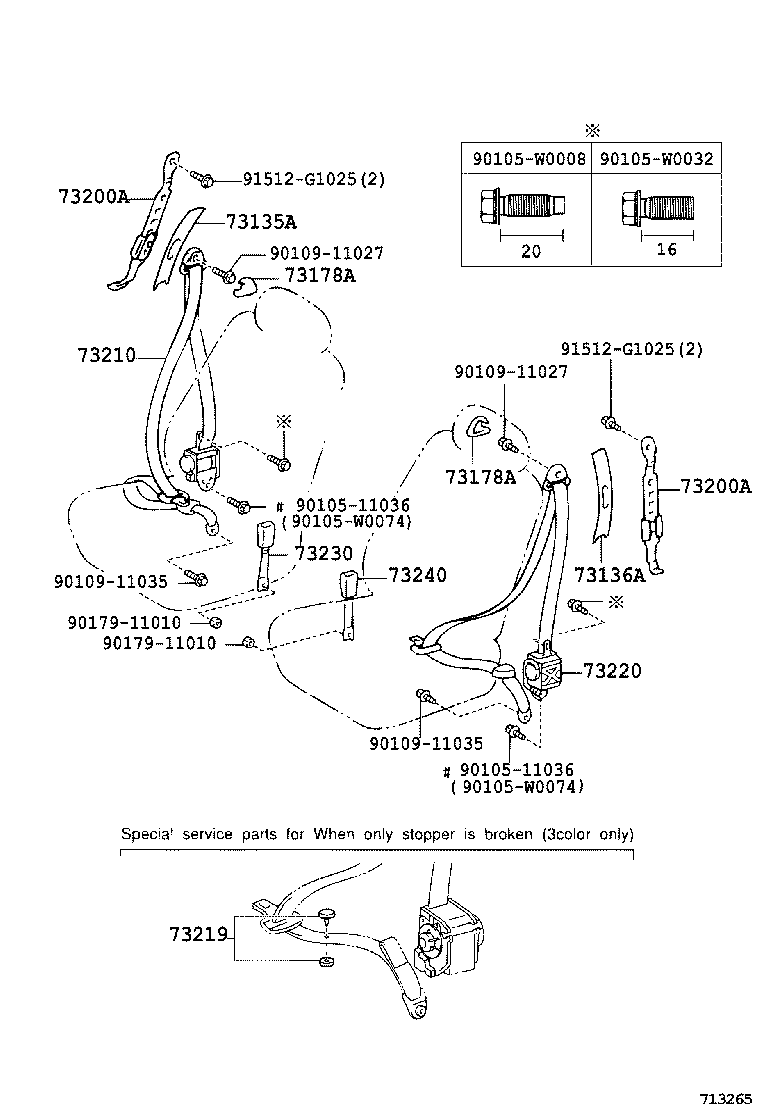

ILLUST NO. 1 OF 2(0405- )UKP..5D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73135A - COVER, SHOULDER BELT ANCHOR, RH | ||||
| 73237-02010B2 |
CDE120,NDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
1 | ||
| 73237-02020B0 |
CDE120,ZZE120,121..UKP..TERRA W(SRS CURTAIN SHILD AIR BAG),LT.GRAY,TRIM1#,8# |
1 | ||
| 73237-02020B0 |
CDE120,NDE120,ZZE12#..UKP W(SRS CURTAIN SHILD AIR BAG),LT.GRAY,TRIM1# |
1 | ||
| 73237-02010B2 |
CDE120,ZZE120,121..UKP..TERRA LT.GRAY,TRIM1#,8# |
1 | ||
| 73136A - COVER, SHOULDER BELT ANCHOR, LH | ||||
| 73237-02020B0 |
CDE120,ZZE120,121..UKP..TERRA W(SRS CURTAIN SHILD AIR BAG),LT.GRAY,TRIM1#,8# |
1 | ||
| 73237-02020B0 |
CDE120,NDE120,ZZE12#..UKP W(SRS CURTAIN SHILD AIR BAG),LT.GRAY,TRIM1# |
1 | ||
| 73237-02010B2 |
CDE120,ZZE120,121..UKP..TERRA LT.GRAY,TRIM1#,8# |
1 | ||
| 73237-02010B2 |
CDE120,NDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
1 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-33020B3 |
CDE120,ZZE120,121..UKP..TERRA LT.GRAY,TRIM1#,8# |
2 | ||
| 73178-33020B3 |
CDE120,NDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
2 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-33020B3 |
CDE120,ZZE120,121..UKP..TERRA LT.GRAY,TRIM1#,8# |
2 | ||
| 73178-33020B3 |
CDE120,NDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-02080B0 |
CDE120,NDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
2 | ||
| 73200-02080B0 |
CDE120,ZZE120,121..UKP..TERRA LT.GRAY,TRIM1#,8# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-02080B0 |
CDE120,NDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
2 | ||
| 73200-02080B0 |
CDE120,ZZE120,121..UKP..TERRA LT.GRAY,TRIM1#,8# |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-02121C1 |
CDE120,ZZE120,121..UKP..5D..TERRA BLACK,TRIM1#,8# |
1 | ||
| 73210-02120C0 |
CDE120,ZZE120,121..UKP..5D..TERRA BLACK,TRIM1#,8# |
1 | ||
| 73210-02271C0 |
CDE120,NDE120,ZZE12#..UKP..5D BLACK,TRIM1# |
1 | ||
| 73210-02270C0 |
CDE120,NDE120,ZZE12#..UKP..5D BLACK,TRIM1# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33020 |
CDE120,NDE120,ZZE12#..UKP GRAY |
1 | ||
| 73219-33010 |
CDE120,NDE120,ZZE12#..UKP BLACK |
1 | ||
| 73219-33010 |
CDE120,ZZE12#..UKP BLACK |
1 | ||
| 73219-33030 |
CDE120,ZZE12#..UKP BEIGE |
1 | ||
| 73219-33020 |
CDE120,ZZE12#..UKP GRAY |
1 | ||
| 73219-33030 |
CDE120,NDE120,ZZE12#..UKP BEIGE |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-02110C0 |
CDE120,ZZE120,121..UKP..5D..TERRA BLACK,TRIM1#,8# |
1 | ||
| 73220-02111C1 |
CDE120,ZZE120,121..UKP..5D..TERRA BLACK,TRIM1#,8# |
1 | ||
| 73220-02260C0 |
CDE120,NDE120,ZZE12#..UKP..5D BLACK,TRIM1# |
1 | ||
| 73220-02261C0 |
CDE120,NDE120,ZZE12#..UKP..5D BLACK,TRIM1# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-02120B0 |
CDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1#,8# |
1 | ||
| 73230-02300B0 |
CDE120,NDE120,ZZE12#..UKP..RHD DK.GRAY,TRIM1# |
1 | ||
| 73230-02301B0 |
CDE120,NDE120,ZZE120,121..UKP..RHD DK.GRAY,TRIM1# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-05051B0 |
CDE120,NDE120,ZZE120,121..UKP..RHD DK.GRAY,TRIM1# |
1 | ||
| 73230-02120B0 |
CDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1#,8# |
1 | ||
| 73230-05050B0 |
CDE120,NDE120,ZZE12#..UKP..RHD DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-11036 | ||||
| 90105-W0008 | ||||
| 90105-W0032 | ||||
| 90105-W0074 | ||||
| 90109-11027 | ||||
| 90109-11035 | ||||
| 90179-11010 | ||||
| 91512-G1025 | ||||
