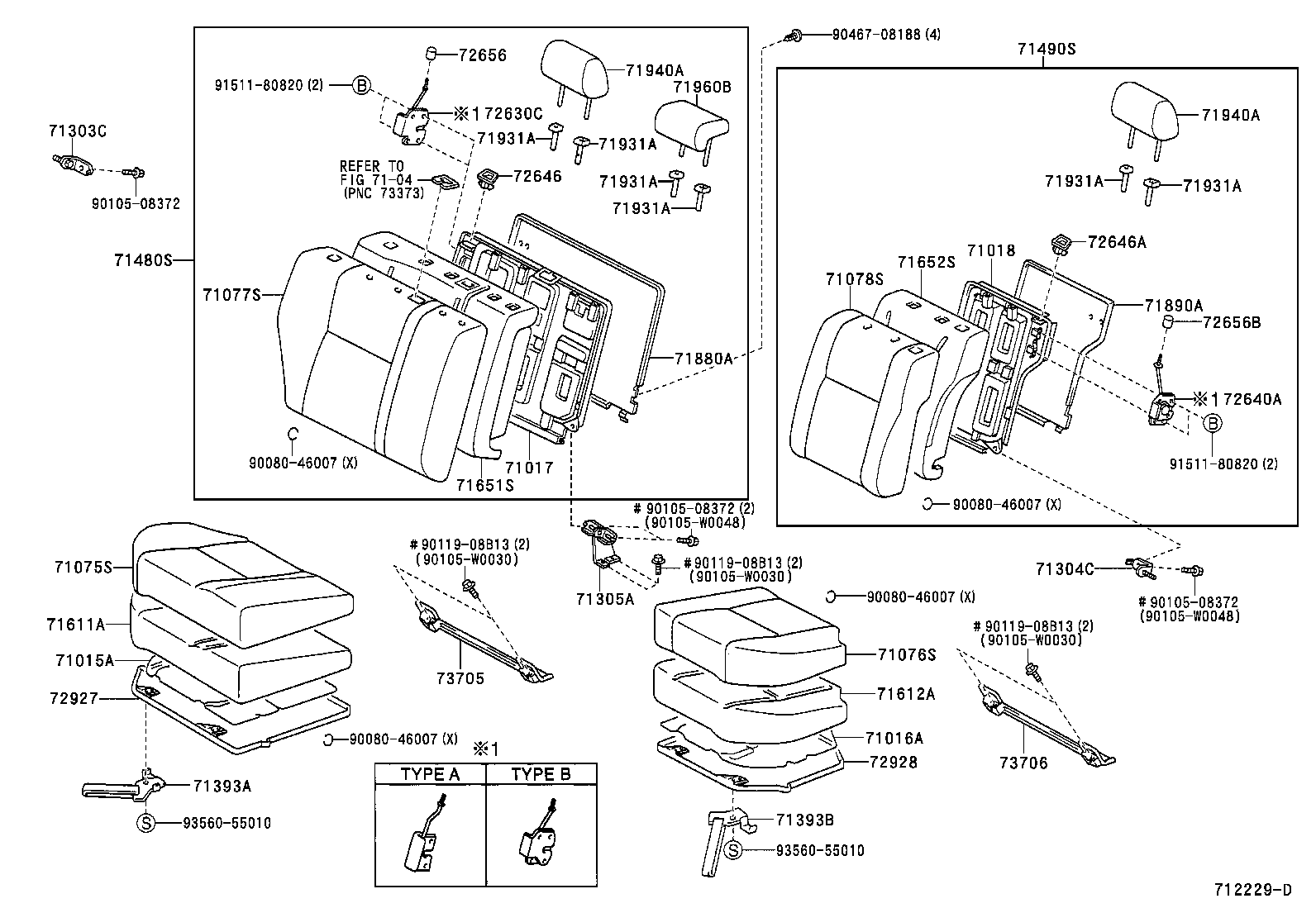

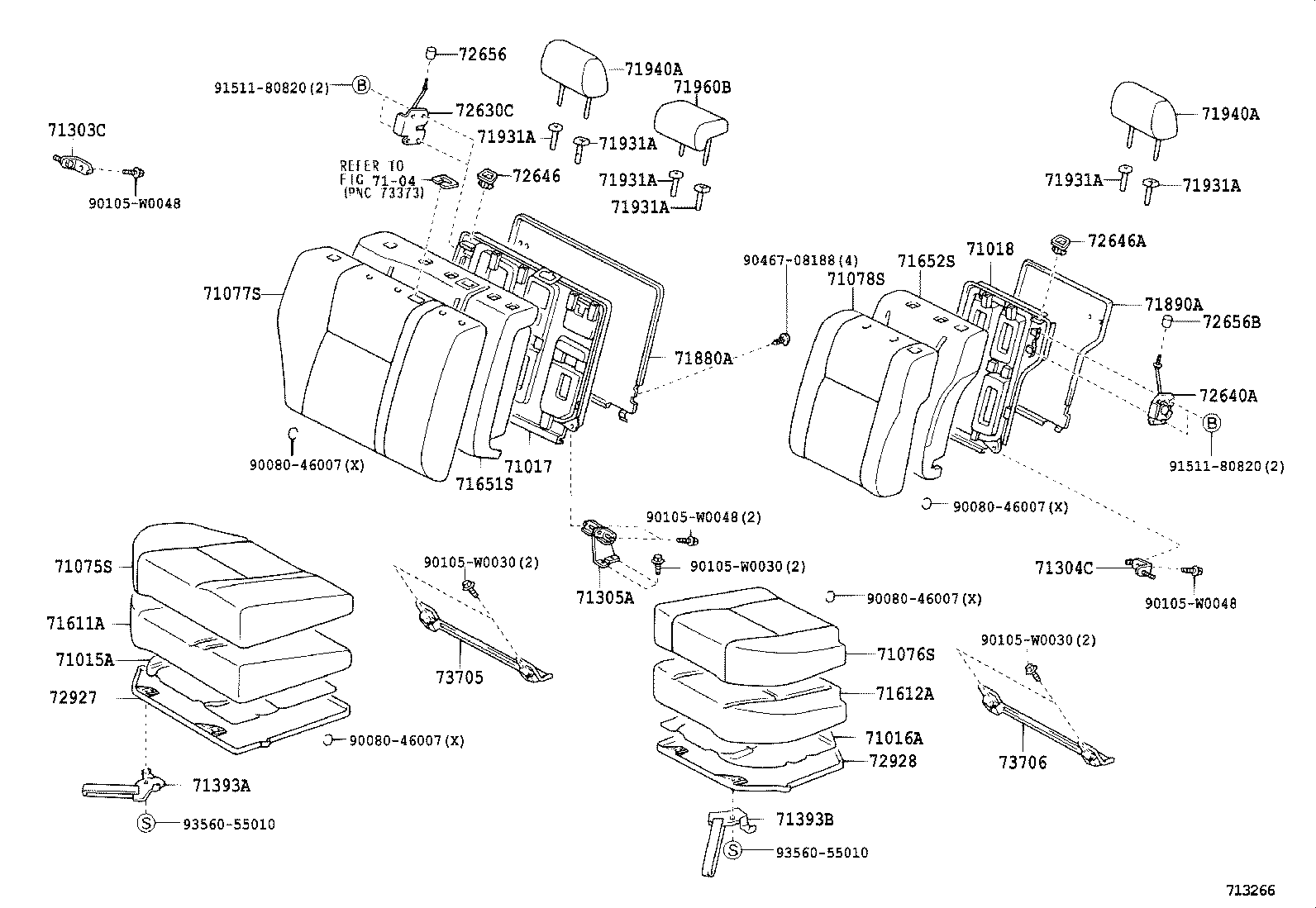

ZZE121R-DHPDKW (2001)
Toyota Corolla Hb (Ukp)
(0111-0405)UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 71015-02060 |
CDE120,ZZE12#..UKP |
1 | ||
| 71015-02060 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH | ||||
| 71016-02010 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 71016-02010 |
CDE120,ZZE12#..UKP |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-02150 |
CDE120,ZZE12#..UKP |
1 | ||
| 71017-02150 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-02080 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 71018-02080 |
CDE120,ZZE12#..UKP |
1 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-02380B1 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71075-02380J0 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.BLUE,TRIM8# |
1 | ||
| 71075-02810B1 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71075-02J10B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71075-02820B1 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-02160B1 |
CDE120..UKP..TERRA;NDE120,ZZE120,121..UKP..5D..TERRA;NDE120,ZZE120,121..UKP..LHD..3D..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71076-02010B1 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71076-02010J0 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.BLUE,TRIM8# |
1 | ||
| 71076-02420B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71076-02150B1 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-02460J0 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.BLUE,TRIM8# |
1 | ||
| 71077-02A40B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71077-02460B1 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71077-02A30B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71077-02K90B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-02660B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71078-02300J0 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.BLUE,TRIM8# |
1 | ||
| 71078-02300B1 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71078-02650B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71078-02E60B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-02030 |
CDE120,ZZE12#..UKP |
1 | ||
| 71303-02030 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71303-02030 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 71303-02030 |
CDE120,ZZE12#..UKP |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-02030 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 71305-02030 |
CDE120,ZZE12#..UKP |
1 | ||
| 71393A - BAND, REAR SEAT CUSHION, RH | ||||
| 71393-02020C0 |
CDE120,ZZE120,121..UKP..TERRA BLACK,TRIM1#,8# |
1 | ||
| 71393-02020C0 |
CDE120,NDE120,ZZE12#..UKP BLACK,TRIM1# |
1 | ||
| 71393B - BAND, REAR SEAT CUSHION, LH | ||||
| 71393-02030C0 |
CDE120,NDE120,ZZE12#..UKP BLACK,TRIM1# |
1 | ||
| 71393-02030C0 |
CDE120,ZZE120,121..UKP..TERRA BLACK,TRIM1#,8# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-02850J1 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK. BLUE,TRIM8# |
1 | ||
| 71480-02850B1 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK. GRAY,TRIM1# |
1 | ||
| 71480-02850B2 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK. GRAY,TRIM1# |
1 | ||
| 71480-02850J2 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK. BLUE,TRIM8# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-02620J0 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK. BLUE,TRIM8# |
1 | ||
| 71490-02620J1 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK. BLUE,TRIM8# |
1 | ||
| 71490-02620B0 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK. GRAY,TRIM1# |
1 | ||
| 71490-02620B1 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK. GRAY,TRIM1# |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71611-02030 |
CDE120,ZZE12#..UKP |
1 | ||
| 71611-02030 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71612-02010 |
CDE120,ZZE12#..UKP |
1 | ||
| 71612-02010 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-02090 |
CDE120,ZZE12#..UKP PNC 72630C=TYPE B |
1 | ||
| 71651-02190 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 71651-02190 |
CDE120,ZZE12#..UKP PNC 72630C=TYPE A |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-02190 |
CDE120,ZZE12#..UKP PNC 72640A=TYPE A |
1 | ||
| 71652-02190 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 71652-02090 |
CDE120,ZZE12#..UKP PNC 72640A=TYPE B |
1 | ||
| 71880A - CARPET ASSY, REAR SEAT BACK BOARD, RH | ||||
| 71885-02030C0 |
CDE120,ZZE120,121..UKP..TERRA BLACK,TRIM1#,8# |
1 | ||
| 71885-02030C0 |
ZZE123..UKP;CDE120,NDE120,ZZE120,121..UKP..TERRA BLACK,TRIM1# |
1 | ||
| 71890A - CARPET ASSY, REAR SEAT BACK BOARD, LH | ||||
| 71886-02030C0 |
CDE120,ZZE120,121..UKP..TERRA BLACK,TRIM1#,8# |
1 | ||
| 71886-02030C0 |
ZZE123..UKP;CDE120,NDE120,ZZE120,121..UKP..TERRA BLACK,TRIM1# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-02020B0 |
CDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71956-02020B0 |
CDE120,NDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71970-02020J0 |
CDE120,ZZE120,121..UKP..TERRA W(LOCK),DK.BLUE,TRIM8# |
1 | ||
| 71970-02020B0 |
CDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71970-02020B0 |
CDE120,NDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71956-02020J0 |
CDE120,ZZE120,121..UKP..TERRA W/O(LOCK),DK.BLUE,TRIM8# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-02020B0 |
CDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71956-02020B0 |
CDE120,NDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71970-02020J0 |
CDE120,ZZE120,121..UKP..TERRA W(LOCK),DK.BLUE,TRIM8# |
1 | ||
| 71970-02020B0 |
CDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71970-02020B0 |
CDE120,NDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71956-02020J0 |
CDE120,ZZE120,121..UKP..TERRA W/O(LOCK),DK.BLUE,TRIM8# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-02020B0 |
CDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71956-02020B0 |
CDE120,NDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71970-02020J0 |
CDE120,ZZE120,121..UKP..TERRA W(LOCK),DK.BLUE,TRIM8# |
1 | ||
| 71970-02020B0 |
CDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71970-02020B0 |
CDE120,NDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71956-02020J0 |
CDE120,ZZE120,121..UKP..TERRA W/O(LOCK),DK.BLUE,TRIM8# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-02020B0 |
CDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71956-02020B0 |
CDE120,NDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71970-02020J0 |
CDE120,ZZE120,121..UKP..TERRA W(LOCK),DK.BLUE,TRIM8# |
1 | ||
| 71970-02020B0 |
CDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71970-02020B0 |
CDE120,NDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71956-02020J0 |
CDE120,ZZE120,121..UKP..TERRA W/O(LOCK),DK.BLUE,TRIM8# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-02020B0 |
CDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71956-02020B0 |
CDE120,NDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71970-02020J0 |
CDE120,ZZE120,121..UKP..TERRA W(LOCK),DK.BLUE,TRIM8# |
1 | ||
| 71970-02020B0 |
CDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71970-02020B0 |
CDE120,NDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71956-02020J0 |
CDE120,ZZE120,121..UKP..TERRA W/O(LOCK),DK.BLUE,TRIM8# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-02020B0 |
CDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71956-02020B0 |
CDE120,NDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71970-02020J0 |
CDE120,ZZE120,121..UKP..TERRA W(LOCK),DK.BLUE,TRIM8# |
1 | ||
| 71970-02020B0 |
CDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71970-02020B0 |
CDE120,NDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71956-02020J0 |
CDE120,ZZE120,121..UKP..TERRA W/O(LOCK),DK.BLUE,TRIM8# |
1 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-02260B1 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
2 | ||
| 71940-02630B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
2 | ||
| 71940-02260J1 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.BLUE,TRIM8# |
2 | ||
| 71940-02650B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE B OR TYPE D-*104,DK.GRAY,TRIM1# |
2 | ||
| 71940-02650B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE B OR TYPE D-*104,DK.GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-02260B1 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
2 | ||
| 71940-02630B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
2 | ||
| 71940-02260J1 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.BLUE,TRIM8# |
2 | ||
| 71940-02650B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE B OR TYPE D-*104,DK.GRAY,TRIM1# |
2 | ||
| 71940-02650B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE B OR TYPE D-*104,DK.GRAY,TRIM1# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-02040J0 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.BLUE,TRIM8# |
1 | ||
| 71960-02240B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71960-02040B0 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DARK GRAY,TRIM1# |
1 | ||
| 71960-02260B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE B OR TYPE D-*104,DK.GRAY,TRIM1# |
1 | ||
| 71960-02260B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE B OR TYPE D-*104,DK.GRAY,TRIM1# |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-02040 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 72630-13140 |
CDE120,ZZE12#..UKP TYPE B:REFER ILLUST. |
1 | ||
| 72630-02040 |
CDE120,ZZE12#..UKP TYPE A:REFER ILLUST. |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-02040 |
CDE120,ZZE12#..UKP TYPE A:REFER ILLUST. |
1 | ||
| 72640-13130 |
CDE120,ZZE12#..UKP TYPE B:REFER ILLUST. |
1 | ||
| 72640-02040 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-02040B2 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 72646-02040J0 |
CDE120,ZZE120,121..UKP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 72646-02040B2 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 72646A - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-02040B2 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 72646-02040J0 |
CDE120,ZZE120,121..UKP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 72646-02040B2 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 72656 - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-05010B3 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 72661-05010J1 |
CDE120,ZZE120,121..UKP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 72661-05010B3 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 72656B - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-05010J1 |
CDE120,ZZE120,121..UKP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 72661-05010B3 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 72661-05010B3 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 72927 - COVER, REAR SEAT CUSHION UNDER, RH | ||||
| 72927-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 72927-02020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 72928 - COVER, REAR SEAT CUSHION UNDER, LH | ||||
| 72928-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 72928-02020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH | ||||
| 73705-02020 |
CDE120,NDE120,ZZE120,121..UKP |
1 | ||
| 73705-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH | ||||
| 73706-02020 |
CDE120,NDE120,ZZE120,121..UKP |
1 | ||
| 73706-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| Common parts | ||||
| 90080-46007 | ||||
| 90105-08372 | ||||
| 90105-W0030 | ||||
| 90105-W0048 | ||||
| 90119-08B13 | ||||
| 90467-08188 | ||||
| 91511-80820 | ||||
| 93560-55010 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(0405- )UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 71015-02060 |
CDE120,ZZE12#..UKP |
1 | ||
| 71015-02060 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH | ||||
| 71016-02010 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 71016-02010 |
CDE120,ZZE12#..UKP |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-02150 |
CDE120,ZZE12#..UKP |
1 | ||
| 71017-02150 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-02080 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 71018-02080 |
CDE120,ZZE12#..UKP |
1 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-02380B1 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71075-02380J0 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.BLUE,TRIM8# |
1 | ||
| 71075-02810B1 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71075-02J10B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71075-02820B1 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-02160B1 |
CDE120..UKP..TERRA;NDE120,ZZE120,121..UKP..5D..TERRA;NDE120,ZZE120,121..UKP..LHD..3D..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71076-02010B1 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71076-02010J0 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.BLUE,TRIM8# |
1 | ||
| 71076-02420B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71076-02150B1 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-02460J0 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.BLUE,TRIM8# |
1 | ||
| 71077-02A40B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71077-02460B1 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71077-02A30B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71077-02K90B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-02660B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71078-02300J0 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.BLUE,TRIM8# |
1 | ||
| 71078-02300B1 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71078-02650B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71078-02E60B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-02030 |
CDE120,ZZE12#..UKP |
1 | ||
| 71303-02030 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71303-02030 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 71303-02030 |
CDE120,ZZE12#..UKP |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-02030 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 71305-02030 |
CDE120,ZZE12#..UKP |
1 | ||
| 71393A - BAND, REAR SEAT CUSHION, RH | ||||
| 71393-02020C0 |
CDE120,ZZE120,121..UKP..TERRA BLACK,TRIM1#,8# |
1 | ||
| 71393-02020C0 |
CDE120,NDE120,ZZE12#..UKP BLACK,TRIM1# |
1 | ||
| 71393B - BAND, REAR SEAT CUSHION, LH | ||||
| 71393-02030C0 |
CDE120,NDE120,ZZE12#..UKP BLACK,TRIM1# |
1 | ||
| 71393-02030C0 |
CDE120,ZZE120,121..UKP..TERRA BLACK,TRIM1#,8# |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71611-02030 |
CDE120,ZZE12#..UKP |
1 | ||
| 71611-02030 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71612-02010 |
CDE120,ZZE12#..UKP |
1 | ||
| 71612-02010 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-02090 |
CDE120,ZZE12#..UKP PNC 72630C=TYPE B |
1 | ||
| 71651-02190 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 71651-02190 |
CDE120,ZZE12#..UKP PNC 72630C=TYPE A |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-02190 |
CDE120,ZZE12#..UKP PNC 72640A=TYPE A |
1 | ||
| 71652-02190 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 71652-02090 |
CDE120,ZZE12#..UKP PNC 72640A=TYPE B |
1 | ||
| 71880A - CARPET ASSY, REAR SEAT BACK BOARD, RH | ||||
| 71885-02030C0 |
CDE120,ZZE120,121..UKP..TERRA BLACK,TRIM1#,8# |
1 | ||
| 71885-02030C0 |
ZZE123..UKP;CDE120,NDE120,ZZE120,121..UKP..TERRA BLACK,TRIM1# |
1 | ||
| 71890A - CARPET ASSY, REAR SEAT BACK BOARD, LH | ||||
| 71886-02030C0 |
CDE120,ZZE120,121..UKP..TERRA BLACK,TRIM1#,8# |
1 | ||
| 71886-02030C0 |
ZZE123..UKP;CDE120,NDE120,ZZE120,121..UKP..TERRA BLACK,TRIM1# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-02020B0 |
CDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71956-02020B0 |
CDE120,NDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71970-02020J0 |
CDE120,ZZE120,121..UKP..TERRA W(LOCK),DK.BLUE,TRIM8# |
1 | ||
| 71970-02020B0 |
CDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71970-02020B0 |
CDE120,NDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71956-02020J0 |
CDE120,ZZE120,121..UKP..TERRA W/O(LOCK),DK.BLUE,TRIM8# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-02020B0 |
CDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71956-02020B0 |
CDE120,NDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71970-02020J0 |
CDE120,ZZE120,121..UKP..TERRA W(LOCK),DK.BLUE,TRIM8# |
1 | ||
| 71970-02020B0 |
CDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71970-02020B0 |
CDE120,NDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71956-02020J0 |
CDE120,ZZE120,121..UKP..TERRA W/O(LOCK),DK.BLUE,TRIM8# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-02020B0 |
CDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71956-02020B0 |
CDE120,NDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71970-02020J0 |
CDE120,ZZE120,121..UKP..TERRA W(LOCK),DK.BLUE,TRIM8# |
1 | ||
| 71970-02020B0 |
CDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71970-02020B0 |
CDE120,NDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71956-02020J0 |
CDE120,ZZE120,121..UKP..TERRA W/O(LOCK),DK.BLUE,TRIM8# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-02020B0 |
CDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71956-02020B0 |
CDE120,NDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71970-02020J0 |
CDE120,ZZE120,121..UKP..TERRA W(LOCK),DK.BLUE,TRIM8# |
1 | ||
| 71970-02020B0 |
CDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71970-02020B0 |
CDE120,NDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71956-02020J0 |
CDE120,ZZE120,121..UKP..TERRA W/O(LOCK),DK.BLUE,TRIM8# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-02020B0 |
CDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71956-02020B0 |
CDE120,NDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71970-02020J0 |
CDE120,ZZE120,121..UKP..TERRA W(LOCK),DK.BLUE,TRIM8# |
1 | ||
| 71970-02020B0 |
CDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71970-02020B0 |
CDE120,NDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71956-02020J0 |
CDE120,ZZE120,121..UKP..TERRA W/O(LOCK),DK.BLUE,TRIM8# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-02020B0 |
CDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71956-02020B0 |
CDE120,NDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71970-02020J0 |
CDE120,ZZE120,121..UKP..TERRA W(LOCK),DK.BLUE,TRIM8# |
1 | ||
| 71970-02020B0 |
CDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71970-02020B0 |
CDE120,NDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71956-02020J0 |
CDE120,ZZE120,121..UKP..TERRA W/O(LOCK),DK.BLUE,TRIM8# |
1 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-02260B1 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
2 | ||
| 71940-02630B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
2 | ||
| 71940-02260J1 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.BLUE,TRIM8# |
2 | ||
| 71940-02650B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE B OR TYPE D-*104,DK.GRAY,TRIM1# |
2 | ||
| 71940-02650B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE B OR TYPE D-*104,DK.GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-02260B1 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
2 | ||
| 71940-02630B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
2 | ||
| 71940-02260J1 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.BLUE,TRIM8# |
2 | ||
| 71940-02650B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE B OR TYPE D-*104,DK.GRAY,TRIM1# |
2 | ||
| 71940-02650B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE B OR TYPE D-*104,DK.GRAY,TRIM1# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-02040J0 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.BLUE,TRIM8# |
1 | ||
| 71960-02240B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71960-02040B0 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DARK GRAY,TRIM1# |
1 | ||
| 71960-02260B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE B OR TYPE D-*104,DK.GRAY,TRIM1# |
1 | ||
| 71960-02260B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE B OR TYPE D-*104,DK.GRAY,TRIM1# |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-02040 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 72630-13140 |
CDE120,ZZE12#..UKP TYPE B:REFER ILLUST. |
1 | ||
| 72630-02040 |
CDE120,ZZE12#..UKP TYPE A:REFER ILLUST. |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-02040 |
CDE120,ZZE12#..UKP TYPE A:REFER ILLUST. |
1 | ||
| 72640-13130 |
CDE120,ZZE12#..UKP TYPE B:REFER ILLUST. |
1 | ||
| 72640-02040 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-02040B2 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 72646-02040J0 |
CDE120,ZZE120,121..UKP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 72646-02040B2 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 72646A - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-02040B2 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 72646-02040J0 |
CDE120,ZZE120,121..UKP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 72646-02040B2 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 72656 - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-05010B3 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 72661-05010J1 |
CDE120,ZZE120,121..UKP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 72661-05010B3 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 72656B - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-05010J1 |
CDE120,ZZE120,121..UKP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 72661-05010B3 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 72661-05010B3 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 72927 - COVER, REAR SEAT CUSHION UNDER, RH | ||||
| 72927-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 72927-02020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 72928 - COVER, REAR SEAT CUSHION UNDER, LH | ||||
| 72928-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 72928-02020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH | ||||
| 73705-02020 |
CDE120,NDE120,ZZE120,121..UKP |
1 | ||
| 73705-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH | ||||
| 73706-02020 |
CDE120,NDE120,ZZE120,121..UKP |
1 | ||
| 73706-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| Common parts | ||||
| 90080-46007 | ||||
| 90105-W0030 | ||||
| 90105-W0048 | ||||
| 90467-08188 | ||||
| 91511-80820 | ||||
| 93560-55010 | ||||
| Linked diagrams | ||||
| 7104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
