ZZE121R-DHPDKW (2001)
Toyota Corolla Hb (Ukp)

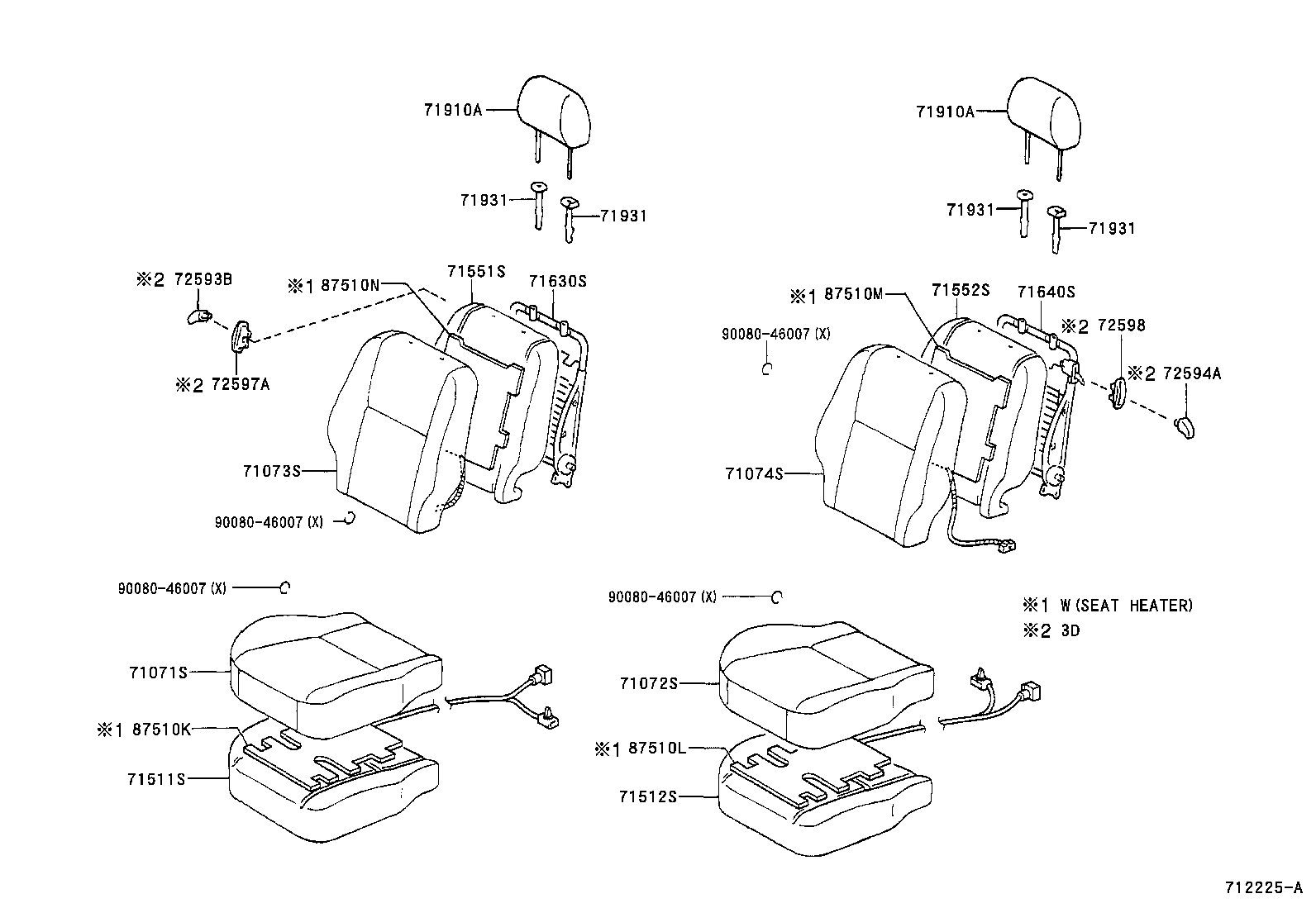

ILLUST NO. 1 OF 2(0111-0405)UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-02560B1 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71071-02560J0 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.BLUE,TRIM8# |
1 | ||
| 71071-02B90B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71071-02B70B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71071-02D90B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-02560J0 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.BLUE,TRIM8# |
1 | ||
| 71071-02560B1 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71071-02B90B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71071-02B70B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71071-02D90B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-02720J0 |
CDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104,DK.BLUE,TRIM8# |
1 | ||
| 71073-02720B1 |
CDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71073-02730J0 |
CDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104 & W(SIDE AIR BAG),DK.BLUE,TRIM8# |
1 | ||
| 71073-02730B1 |
CDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104 & W(SIDE AIR BAG),DK.GRAY,TRIM1# |
1 | ||
| 71073-02B20B0 |
CDE120,NDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71073-02B00B0 |
CDE120,NDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71073-02U80B0 |
CDE120,NDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-02720B1 |
CDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71073-02720J0 |
CDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104,DK.BLUE,TRIM8# |
1 | ||
| 71074-02600B1 |
CDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104 & W(SIDE AIR BAG),DK.GRAY,TRIM1# |
1 | ||
| 71074-02600J0 |
CDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104 & W(SIDE AIR BAG),DK.BLUE,TRIM8# |
1 | ||
| 71074-02C30B0 |
CDE120,NDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71074-02C10B0 |
CDE120,NDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71074-02U70B0 |
CDE120,NDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-02120 |
CDE120,ZZE12#..UKP |
1 | ||
| 71511-05060 |
CDE120,NDE120,ZZE120,121..UKP..RHD..5D |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-02120 |
CDE120,ZZE12#..UKP |
1 | ||
| 71502-05010 |
CDE120,NDE120,ZZE120,121..UKP..RHD |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-02150 |
CDE120,ZZE12#..UKP..5D |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-02150 |
CDE120,ZZE12#..UKP..5D |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-02070 |
CDE120,ZZE12#..UKP..5D |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-02040 |
CDE120,ZZE12#..UKP..5D |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-02360J1 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.BLUE,TRIM8# |
2 | ||
| 71910-02790B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE B OR TYPE D-*104,DK.GRAY,TRIM1# |
2 | ||
| 71910-02360B1 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
2 | ||
| 71910-02790B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE B OR TYPE D-*104,DK.GRAY,TRIM1# |
2 | ||
| 71910-02770B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-02360J1 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.BLUE,TRIM8# |
2 | ||
| 71910-02790B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE B OR TYPE D-*104,DK.GRAY,TRIM1# |
2 | ||
| 71910-02360B1 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
2 | ||
| 71910-02790B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE B OR TYPE D-*104,DK.GRAY,TRIM1# |
2 | ||
| 71910-02770B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-02050J0 |
CDE120,ZZE120,121..UKP..TERRA W/O(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931-02050B0 |
CDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-02070J0 |
CDE120,ZZE120,121..UKP..TERRA W(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931-02050B0 |
CDE120,NDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-02070B0 |
CDE120,NDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-02070B0 |
CDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-02050J0 |
CDE120,ZZE120,121..UKP..TERRA W/O(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931-02050B0 |
CDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-02070J0 |
CDE120,ZZE120,121..UKP..TERRA W(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931-02050B0 |
CDE120,NDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-02070B0 |
CDE120,NDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-02070B0 |
CDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-02050J0 |
CDE120,ZZE120,121..UKP..TERRA W/O(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931-02050B0 |
CDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-02070J0 |
CDE120,ZZE120,121..UKP..TERRA W(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931-02050B0 |
CDE120,NDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-02070B0 |
CDE120,NDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-02070B0 |
CDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-02050J0 |
CDE120,ZZE120,121..UKP..TERRA W/O(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931-02050B0 |
CDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-02070J0 |
CDE120,ZZE120,121..UKP..TERRA W(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931-02050B0 |
CDE120,NDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-02070B0 |
CDE120,NDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-02070B0 |
CDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90080-46007 | ||||

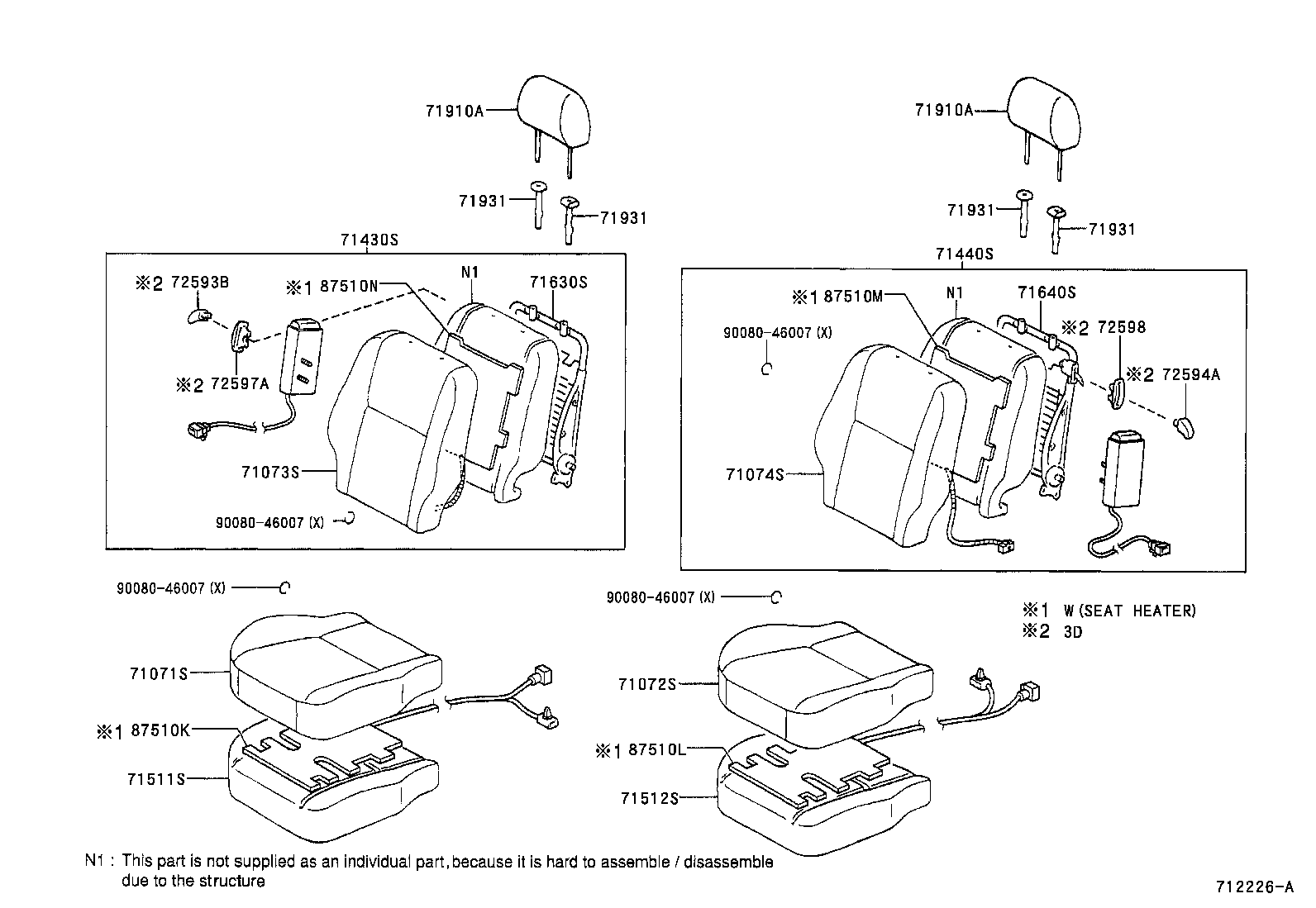

ILLUST NO. 1 OF 2(0111-0405)UKP
W(SIDE AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-02560B1 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71071-02560J0 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.BLUE,TRIM8# |
1 | ||
| 71071-02B90B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71071-02B70B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71071-02D90B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-02560J0 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.BLUE,TRIM8# |
1 | ||
| 71071-02560B1 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71071-02B90B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71071-02B70B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71071-02D90B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-02720J0 |
CDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104,DK.BLUE,TRIM8# |
1 | ||
| 71073-02720B1 |
CDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71073-02730J0 |
CDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104 & W(SIDE AIR BAG),DK.BLUE,TRIM8# |
1 | ||
| 71073-02730B1 |
CDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104 & W(SIDE AIR BAG),DK.GRAY,TRIM1# |
1 | ||
| 71073-02B20B0 |
CDE120,NDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71073-02B00B0 |
CDE120,NDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71073-02U80B0 |
CDE120,NDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-02720B1 |
CDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71073-02720J0 |
CDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104,DK.BLUE,TRIM8# |
1 | ||
| 71074-02600B1 |
CDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104 & W(SIDE AIR BAG),DK.GRAY,TRIM1# |
1 | ||
| 71074-02600J0 |
CDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104 & W(SIDE AIR BAG),DK.BLUE,TRIM8# |
1 | ||
| 71074-02C30B0 |
CDE120,NDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71074-02C10B0 |
CDE120,NDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71074-02U70B0 |
CDE120,NDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-02660B1 |
CDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104 & W(SIDE AIR BAG),DK.GRAY,TRIM1# |
1 | ||
| 71430-02660J0 |
CDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104 & W(SIDE AIR BAG),DK.BLUE,TRIM8# |
1 | ||
| 71430-02G00B0 |
CDE120,NDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71430-02F80B0 |
CDE120,NDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71430-02L10B0 |
CDE120,NDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-02620J0 |
CDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104 & W(SIDE AIR BAG),DK.BLUE,TRIM8# |
1 | ||
| 71440-02620B1 |
CDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104 & W(SIDE AIR BAG),DK.GRAY,TRIM1# |
1 | ||
| 71440-02D40B0 |
CDE120,NDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71440-02D20B0 |
CDE120,NDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71440-02G20B0 |
CDE120,NDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-02120 |
CDE120,ZZE12#..UKP |
1 | ||
| 71511-05060 |
CDE120,NDE120,ZZE120,121..UKP..RHD..5D |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-02120 |
CDE120,ZZE12#..UKP |
1 | ||
| 71502-05010 |
CDE120,NDE120,ZZE120,121..UKP..RHD |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-02070 |
CDE120,ZZE12#..UKP..5D |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-02040 |
CDE120,ZZE12#..UKP..5D |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-02360J1 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.BLUE,TRIM8# |
2 | ||
| 71910-02790B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE B OR TYPE D-*104,DK.GRAY,TRIM1# |
2 | ||
| 71910-02360B1 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
2 | ||
| 71910-02790B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE B OR TYPE D-*104,DK.GRAY,TRIM1# |
2 | ||
| 71910-02770B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-02360J1 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.BLUE,TRIM8# |
2 | ||
| 71910-02790B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE B OR TYPE D-*104,DK.GRAY,TRIM1# |
2 | ||
| 71910-02360B1 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
2 | ||
| 71910-02790B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE B OR TYPE D-*104,DK.GRAY,TRIM1# |
2 | ||
| 71910-02770B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-02050J0 |
CDE120,ZZE120,121..UKP..TERRA W/O(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931-02050B0 |
CDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-02070J0 |
CDE120,ZZE120,121..UKP..TERRA W(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931-02050B0 |
CDE120,NDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-02070B0 |
CDE120,NDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-02070B0 |
CDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-02050J0 |
CDE120,ZZE120,121..UKP..TERRA W/O(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931-02050B0 |
CDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-02070J0 |
CDE120,ZZE120,121..UKP..TERRA W(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931-02050B0 |
CDE120,NDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-02070B0 |
CDE120,NDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-02070B0 |
CDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-02050J0 |
CDE120,ZZE120,121..UKP..TERRA W/O(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931-02050B0 |
CDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-02070J0 |
CDE120,ZZE120,121..UKP..TERRA W(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931-02050B0 |
CDE120,NDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-02070B0 |
CDE120,NDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-02070B0 |
CDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-02050J0 |
CDE120,ZZE120,121..UKP..TERRA W/O(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931-02050B0 |
CDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-02070J0 |
CDE120,ZZE120,121..UKP..TERRA W(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931-02050B0 |
CDE120,NDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-02070B0 |
CDE120,NDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-02070B0 |
CDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90080-46007 | ||||

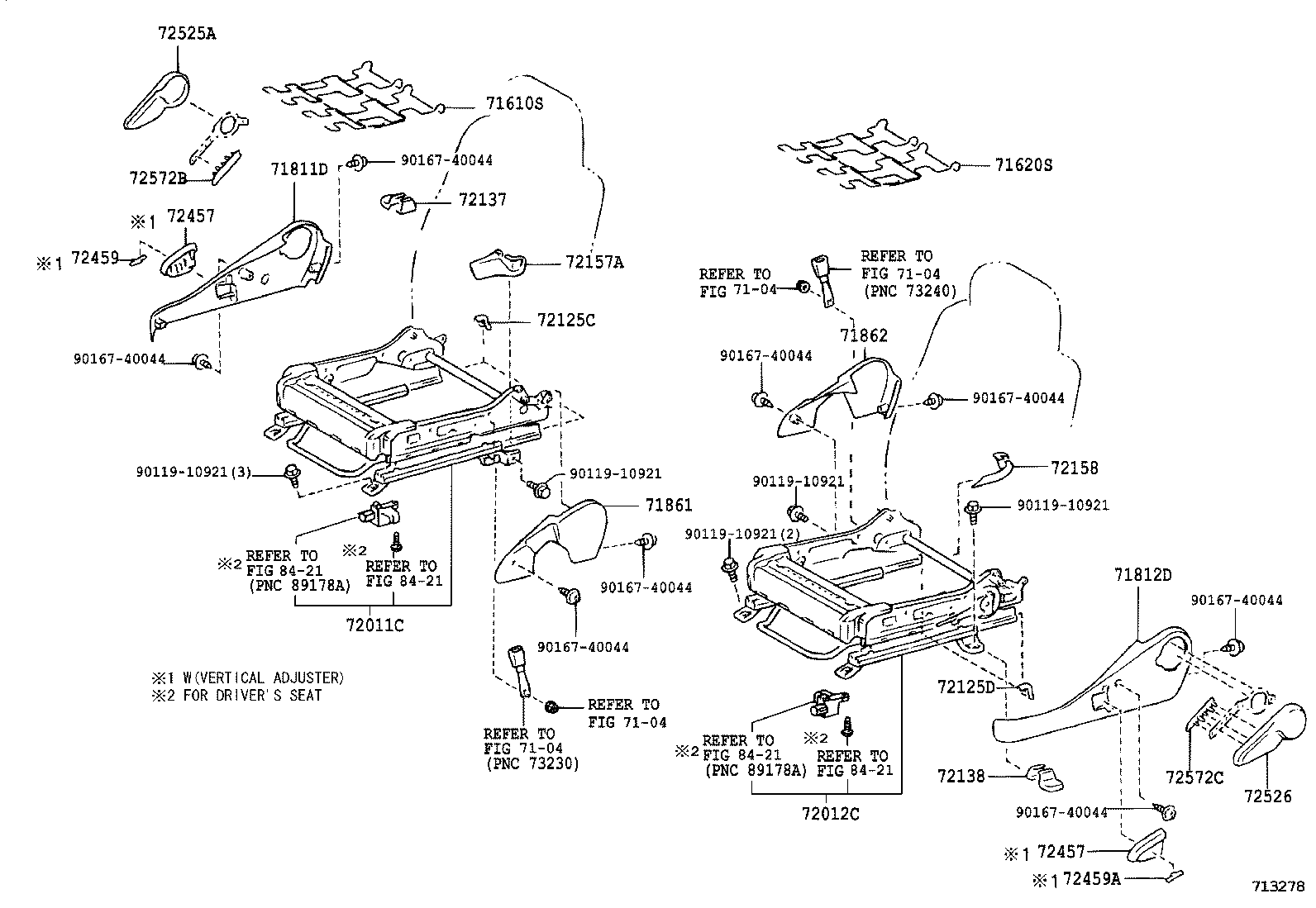

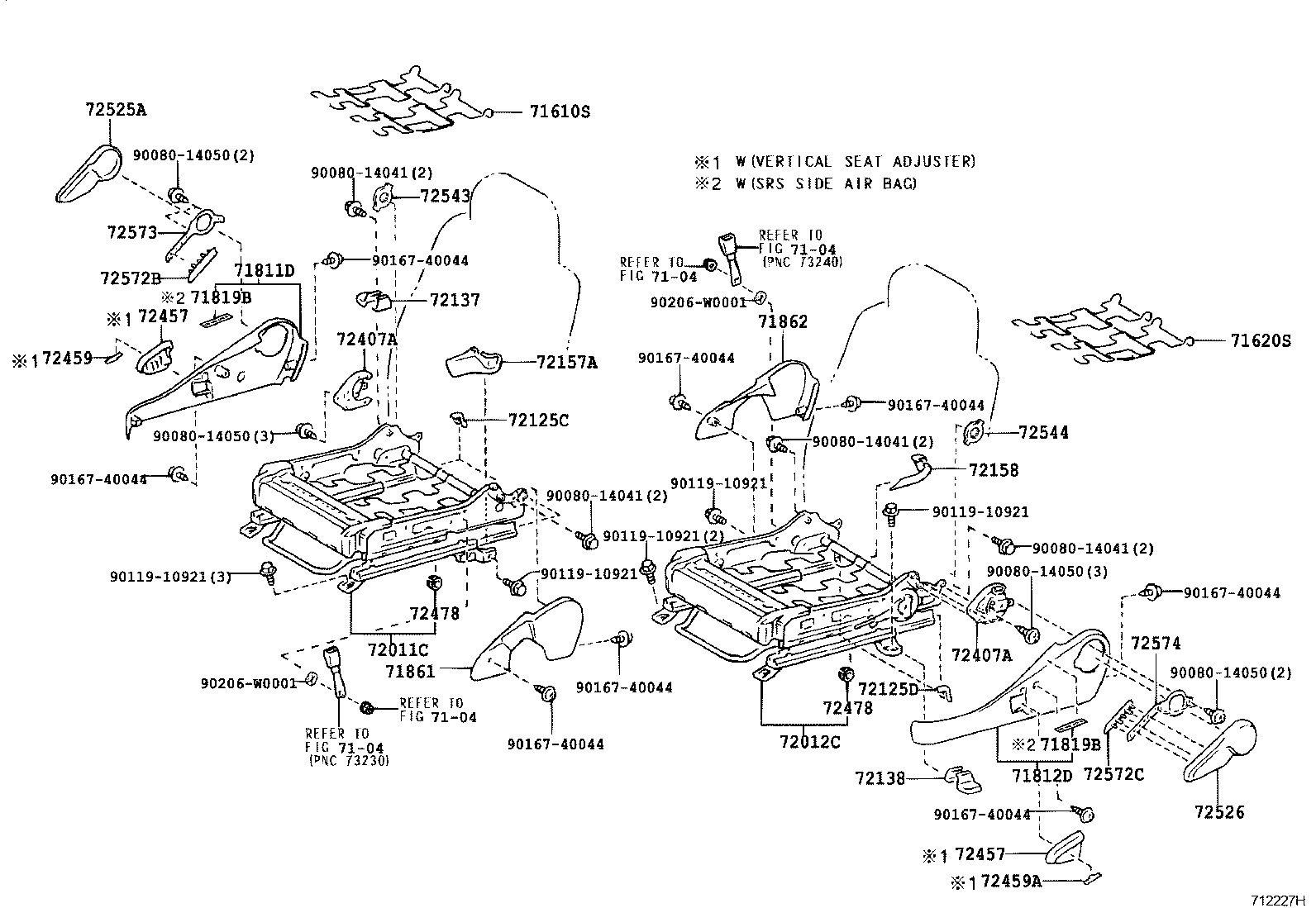

ILLUST NO. 2 OF 2(0111-0405)UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71051-02010 |
CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC) |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71051-02010 |
CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC) |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-02100B0 |
CDE120,ZZE12#..UKP..RHD DK.GRAY,TRIM1# |
1 | ||
| 71811-02120J0 |
CDE120,ZZE120,121..UKP..RHD..TERRA W(SRS SIDE AIR BAG),DK.BLUE,TRIM8# |
1 | ||
| 71811-02120B0 |
CDE120,NDE120,ZZE12#..UKP..RHD DK.GRAY,TRIM1# |
1 | ||
| 71811-02120B0 |
CDE120,ZZE12#..UKP..RHD W(SRS SIDE AIR BAG),DK.GRAY,TRIM1# |
1 | ||
| 71811-02100J0 |
CDE120,ZZE120,121..UKP..RHD..TERRA DK.BLUE,TRIM8# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-02110B0 |
CDE120,ZZE12#..UKP..RHD DK.GRAY,TRIM1# |
1 | ||
| 71812-02130B0 |
CDE120,ZZE12#..UKP..RHD W(SRS SIDE AIR BAG),DK.GRAY,TRIM1# |
1 | ||
| 71812-02130J0 |
CDE120,ZZE120,121..UKP..RHD..TERRA W(SRS SIDE AIR BAG),DK.BLUE,TRIM8# |
1 | ||
| 71812-02130B0 |
CDE120,NDE120,ZZE12#..UKP..RHD DK.GRAY,TRIM1# |
1 | ||
| 71812-02110J0 |
CDE120,ZZE120,121..UKP..RHD..TERRA DK.BLUE,TRIM8# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-02050J0 |
CDE120,ZZE120,121..UKP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 71861-02050B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 71861-02050B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-02050B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 71862-02050B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 71862-02050J0 |
CDE120,ZZE120,121..UKP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-02030 |
CDE120,ZZE12#..UKP..RHD |
1 | ||
| 72010-02090 |
CDE120,NDE120,ZZE120,121..UKP..RHD..5D |
1 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 72020-02160 |
CDE120,NDE120,ZZE120,121..UKP..RHD..5D |
1 | ||
| 72020-02050 |
CDE120,ZZE12#..UKP..RHD..5D |
1 | ||
| 72125C - COVER, SEAT TRACK LOCK PLATE, NO.1 | ||||
| 72125-02010 |
CDE120,NDE120,ZZE12#..UKP |
2 | ||
| 72125-02010 |
CDE120,ZZE12#..UKP |
2 | ||
| 72125D - COVER, SEAT TRACK, UPPER REAR NO.2 | ||||
| 72125-02010 |
CDE120,ZZE12#..UKP |
2 | ||
| 72125-02010 |
CDE120,NDE120,ZZE12#..UKP |
2 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-02040 |
CDE120,ZZE12#..UKP |
1 | ||
| 72137-02040 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-02040 |
CDE120,ZZE12#..UKP |
1 | ||
| 72138-02040 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-02040 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 72157-02040 |
CDE120,ZZE12#..UKP |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-02040 |
CDE120,ZZE12#..UKP |
1 | ||
| 72158-02040 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 72407A - HOUSING SUB-ASSY, FRONT SEAT RECLINING, LH | ||||
| 72407-02020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 72407-02020 |
CDE120,ZZE12#..UKP LH |
1 | ||
| 72407-02010 |
CDE120,ZZE12#..UKP RH |
1 | ||
| 72407A - HOUSING SUB-ASSY, FRONT SEAT RECLINING, LH | ||||
| 72407-02020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 72407-02020 |
CDE120,ZZE12#..UKP LH |
1 | ||
| 72407-02010 |
CDE120,ZZE12#..UKP RH |
1 | ||
| 72457 - KNOB, VERTICAL SEAT ADJUSTER | ||||
| 72457-02010B0 |
CDE120,ZZE12#..UKP..RHD..5D DK.GRAY,TRIM1#,TYPE A |
1 | ||
| 72457-02010J0 |
CDE120,ZZE120,121..UKP..RHD..5D..TERRA DK.BLUE,TRIM8#,TYPE A |
1 | ||
| 72457-02030J0 |
CDE120,ZZE120,121..UKP..RHD..TERRA DK.BLUE,TRIM8# |
1 | ||
| 72457-02030B0 |
CDE120,ZZE12#..UKP..RHD DK.GRAY,TRIM1# |
1 | ||
| 72457-0F010B0 |
CDE120,NDE120,ZZE12#..UKP..RHD DK.GRAY,TRIM1# |
1 | ||
| 72457 - KNOB, VERTICAL SEAT ADJUSTER | ||||
| 72457-02010B0 |
CDE120,ZZE12#..UKP..RHD..5D DK.GRAY,TRIM1#,TYPE A |
1 | ||
| 72457-02010J0 |
CDE120,ZZE120,121..UKP..RHD..5D..TERRA DK.BLUE,TRIM8#,TYPE A |
1 | ||
| 72457-02030J0 |
CDE120,ZZE120,121..UKP..RHD..TERRA DK.BLUE,TRIM8# |
1 | ||
| 72457-02030B0 |
CDE120,ZZE12#..UKP..RHD DK.GRAY,TRIM1# |
1 | ||
| 72457-0F010B0 |
CDE120,NDE120,ZZE12#..UKP..RHD DK.GRAY,TRIM1# |
1 | ||
| 72459 - CAP, VERTICAL SEAT ADJUSTER KNOB | ||||
| 72459-02010B1 |
CDE120,NDE120,ZZE12#..UKP..RHD DK.GRAY,TRIM1# |
1 | ||
| 72459-02010B1 |
CDE120,ZZE12#..UKP..RHD DK.GRAY,TRIM1# |
1 | ||
| 72459-02010J0 |
CDE120,ZZE120,121..UKP..RHD..TERRA DK.BLUE,TRIM8# |
1 | ||
| 72478 - BUSH, VERTICAL ADJUSTER | ||||
| 72478-02010 |
CDE120,ZZE12#..UKP |
2 | ||
| 72478 - BUSH, VERTICAL ADJUSTER | ||||
| 72478-02010 |
CDE120,ZZE12#..UKP |
2 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-0F010B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 72525-02040B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 72525-02041J0 |
CDE120,ZZE120,121..UKP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 72525-02040J0 |
CDE120,ZZE120,121..UKP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 72525-02041B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-02040B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 72526-02041B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 72526-02040J0 |
CDE120,ZZE120,121..UKP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 72526-0F010B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 72526-02041J0 |
CDE120,ZZE120,121..UKP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 72543 - PLATE, RECLINING CONTROL, RH | ||||
| 72543-02010 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 72543-02010 |
CDE120,ZZE12#..UKP |
1 | ||
| 72544 - PLATE, RECLINING CONTROL, LH | ||||
| 72543-02010 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 72543-02010 |
CDE120,ZZE12#..UKP |
1 | ||
| 72572B - CAP, RECLINING ADJUSTER KNOB, RH | ||||
| 72572-02010 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 72572-02010 |
CDE120,ZZE12#..UKP |
1 | ||
| 72572C - CAP, RECLINING ADJUSTER KNOB, LH | ||||
| 72572-02020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 72572-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 72573 - LEVER, RECLINING CONTROL, RH | ||||
| 72573-02010 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 72573-02010 |
CDE120,ZZE12#..UKP |
1 | ||
| 72574 - LEVER, RECLINING CONTROL, LH | ||||
| 72574-02010 |
CDE120,ZZE12#..UKP |
1 | ||
| 72574-02010 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| Common parts | ||||
| 90080-14041 | ||||
| 90080-14050 | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| 90206-W0001 | ||||
| Linked diagrams | ||||
| 7104 | ||||

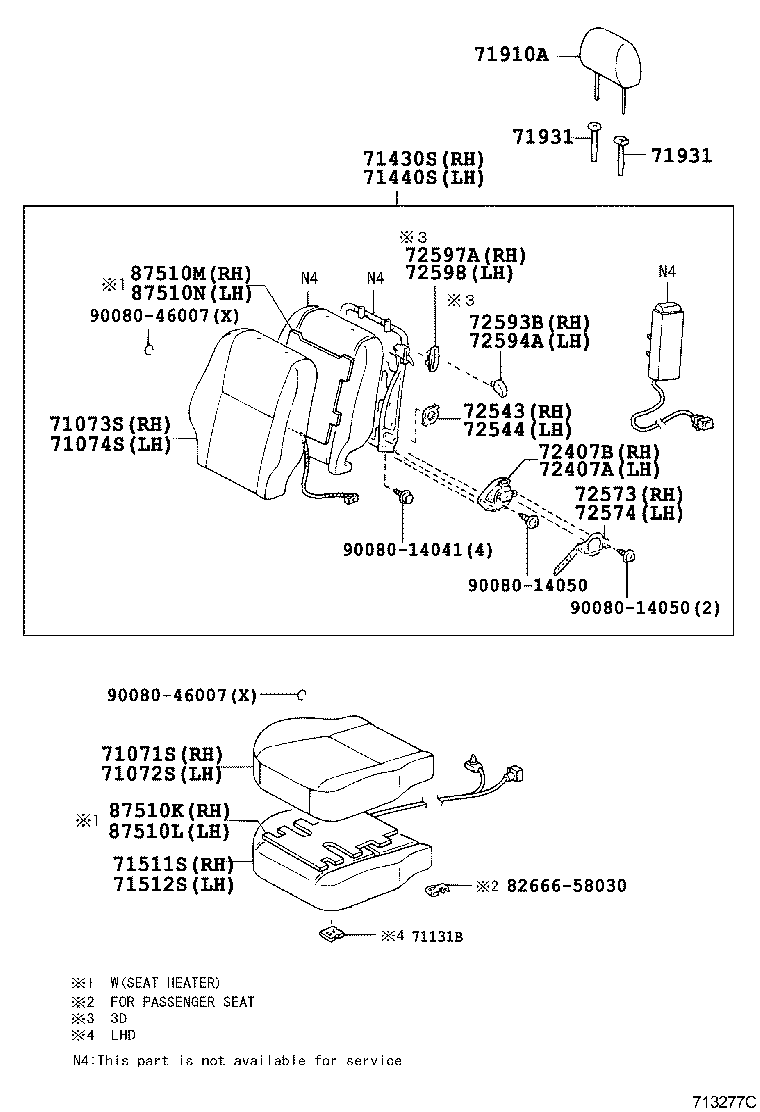

ILLUST NO. 1 OF 2(0405- )UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-02560B1 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71071-02560J0 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.BLUE,TRIM8# |
1 | ||
| 71071-02B90B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71071-02B70B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71071-02D90B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-02560J0 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.BLUE,TRIM8# |
1 | ||
| 71071-02560B1 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71071-02B90B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71071-02B70B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71071-02D90B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-02720J0 |
CDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104,DK.BLUE,TRIM8# |
1 | ||
| 71073-02720B1 |
CDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71073-02730J0 |
CDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104 & W(SIDE AIR BAG),DK.BLUE,TRIM8# |
1 | ||
| 71073-02730B1 |
CDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104 & W(SIDE AIR BAG),DK.GRAY,TRIM1# |
1 | ||
| 71073-02B20B0 |
CDE120,NDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71073-02B00B0 |
CDE120,NDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71073-02U80B0 |
CDE120,NDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-02720B1 |
CDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71073-02720J0 |
CDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104,DK.BLUE,TRIM8# |
1 | ||
| 71074-02600B1 |
CDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104 & W(SIDE AIR BAG),DK.GRAY,TRIM1# |
1 | ||
| 71074-02600J0 |
CDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104 & W(SIDE AIR BAG),DK.BLUE,TRIM8# |
1 | ||
| 71074-02C30B0 |
CDE120,NDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71074-02C10B0 |
CDE120,NDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71074-02U70B0 |
CDE120,NDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-02660B1 |
CDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104 & W(SIDE AIR BAG),DK.GRAY,TRIM1# |
1 | ||
| 71430-02660J0 |
CDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104 & W(SIDE AIR BAG),DK.BLUE,TRIM8# |
1 | ||
| 71430-02G00B0 |
CDE120,NDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71430-02F80B0 |
CDE120,NDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71430-02L10B0 |
CDE120,NDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-02620J0 |
CDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104 & W(SIDE AIR BAG),DK.BLUE,TRIM8# |
1 | ||
| 71440-02620B1 |
CDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104 & W(SIDE AIR BAG),DK.GRAY,TRIM1# |
1 | ||
| 71440-02D40B0 |
CDE120,NDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71440-02D20B0 |
CDE120,NDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71440-02G20B0 |
CDE120,NDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-02120 |
CDE120,ZZE12#..UKP |
1 | ||
| 71511-05060 |
CDE120,NDE120,ZZE120,121..UKP..RHD..5D |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-02120 |
CDE120,ZZE12#..UKP |
1 | ||
| 71502-05010 |
CDE120,NDE120,ZZE120,121..UKP..RHD |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-02360J1 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.BLUE,TRIM8# |
2 | ||
| 71910-02790B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE B OR TYPE D-*104,DK.GRAY,TRIM1# |
2 | ||
| 71910-02360B1 |
CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
2 | ||
| 71910-02790B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE B OR TYPE D-*104,DK.GRAY,TRIM1# |
2 | ||
| 71910-02770B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-02050J0 |
CDE120,ZZE120,121..UKP..TERRA W/O(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931-02050B0 |
CDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-02070J0 |
CDE120,ZZE120,121..UKP..TERRA W(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931-02050B0 |
CDE120,NDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-02070B0 |
CDE120,NDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-02070B0 |
CDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-02050J0 |
CDE120,ZZE120,121..UKP..TERRA W/O(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931-02050B0 |
CDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-02070J0 |
CDE120,ZZE120,121..UKP..TERRA W(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931-02050B0 |
CDE120,NDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-02070B0 |
CDE120,NDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-02070B0 |
CDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 72407A - HOUSING SUB-ASSY, FRONT SEAT RECLINING, LH | ||||
| 72407-02020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 72407-02020 |
CDE120,ZZE12#..UKP LH |
1 | ||
| 72407-02010 |
CDE120,ZZE12#..UKP RH |
1 | ||
| 72407B - HOUSING SUB-ASSY, FRONT SEAT RECLINING RH | ||||
| 72407-02010 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 72543 - PLATE, RECLINING CONTROL, RH | ||||
| 72543-02010 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 72543-02010 |
CDE120,ZZE12#..UKP |
1 | ||
| 72544 - PLATE, RECLINING CONTROL, LH | ||||
| 72543-02010 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 72543-02010 |
CDE120,ZZE12#..UKP |
1 | ||
| 72573 - LEVER, RECLINING CONTROL, RH | ||||
| 72573-02010 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 72573-02010 |
CDE120,ZZE12#..UKP |
1 | ||
| 72574 - LEVER, RECLINING CONTROL, LH | ||||
| 72574-02010 |
CDE120,ZZE12#..UKP |
1 | ||
| 72574-02010 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| Common parts | ||||
| 82666-58030 | ||||
| 90080-14041 | ||||
| 90080-14050 | ||||
| 90080-46007 | ||||
ILLUST NO. 2 OF 2(0405- )UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71051-02010 |
CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC) |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71051-02010 |
CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC) |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-02100B0 |
CDE120,ZZE12#..UKP..RHD DK.GRAY,TRIM1# |
1 | ||
| 71811-02120J0 |
CDE120,ZZE120,121..UKP..RHD..TERRA W(SRS SIDE AIR BAG),DK.BLUE,TRIM8# |
1 | ||
| 71811-02120B0 |
CDE120,NDE120,ZZE12#..UKP..RHD DK.GRAY,TRIM1# |
1 | ||
| 71811-02120B0 |
CDE120,ZZE12#..UKP..RHD W(SRS SIDE AIR BAG),DK.GRAY,TRIM1# |
1 | ||
| 71811-02100J0 |
CDE120,ZZE120,121..UKP..RHD..TERRA DK.BLUE,TRIM8# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-02110B0 |
CDE120,ZZE12#..UKP..RHD DK.GRAY,TRIM1# |
1 | ||
| 71812-02130B0 |
CDE120,ZZE12#..UKP..RHD W(SRS SIDE AIR BAG),DK.GRAY,TRIM1# |
1 | ||
| 71812-02130J0 |
CDE120,ZZE120,121..UKP..RHD..TERRA W(SRS SIDE AIR BAG),DK.BLUE,TRIM8# |
1 | ||
| 71812-02130B0 |
CDE120,NDE120,ZZE12#..UKP..RHD DK.GRAY,TRIM1# |
1 | ||
| 71812-02110J0 |
CDE120,ZZE120,121..UKP..RHD..TERRA DK.BLUE,TRIM8# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-02050J0 |
CDE120,ZZE120,121..UKP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 71861-02050B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 71861-02050B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-02050B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 71862-02050B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 71862-02050J0 |
CDE120,ZZE120,121..UKP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-02030 |
CDE120,ZZE12#..UKP..RHD |
1 | ||
| 72010-02090 |
CDE120,NDE120,ZZE120,121..UKP..RHD..5D |
1 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 72020-02160 |
CDE120,NDE120,ZZE120,121..UKP..RHD..5D |
1 | ||
| 72020-02050 |
CDE120,ZZE12#..UKP..RHD..5D |
1 | ||
| 72125C - COVER, SEAT TRACK LOCK PLATE, NO.1 | ||||
| 72125-02010 |
CDE120,NDE120,ZZE12#..UKP |
2 | ||
| 72125-02010 |
CDE120,ZZE12#..UKP |
2 | ||
| 72125D - COVER, SEAT TRACK, UPPER REAR NO.2 | ||||
| 72125-02010 |
CDE120,NDE120,ZZE12#..UKP |
2 | ||
| 72125-02010 |
CDE120,ZZE12#..UKP |
2 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-02040 |
CDE120,ZZE12#..UKP |
1 | ||
| 72137-02040 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-02040 |
CDE120,ZZE12#..UKP |
1 | ||
| 72138-02040 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-02040 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 72157-02040 |
CDE120,ZZE12#..UKP |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-02040 |
CDE120,ZZE12#..UKP |
1 | ||
| 72158-02040 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 72457 - KNOB, VERTICAL SEAT ADJUSTER | ||||
| 72457-02010B0 |
CDE120,ZZE12#..UKP..RHD..5D DK.GRAY,TRIM1#,TYPE A |
1 | ||
| 72457-02010J0 |
CDE120,ZZE120,121..UKP..RHD..5D..TERRA DK.BLUE,TRIM8#,TYPE A |
1 | ||
| 72457-02030J0 |
CDE120,ZZE120,121..UKP..RHD..TERRA DK.BLUE,TRIM8# |
1 | ||
| 72457-02030B0 |
CDE120,ZZE12#..UKP..RHD DK.GRAY,TRIM1# |
1 | ||
| 72457-0F010B0 |
CDE120,NDE120,ZZE12#..UKP..RHD DK.GRAY,TRIM1# |
1 | ||
| 72457 - KNOB, VERTICAL SEAT ADJUSTER | ||||
| 72457-02010B0 |
CDE120,ZZE12#..UKP..RHD..5D DK.GRAY,TRIM1#,TYPE A |
1 | ||
| 72457-02010J0 |
CDE120,ZZE120,121..UKP..RHD..5D..TERRA DK.BLUE,TRIM8#,TYPE A |
1 | ||
| 72457-02030J0 |
CDE120,ZZE120,121..UKP..RHD..TERRA DK.BLUE,TRIM8# |
1 | ||
| 72457-02030B0 |
CDE120,ZZE12#..UKP..RHD DK.GRAY,TRIM1# |
1 | ||
| 72457-0F010B0 |
CDE120,NDE120,ZZE12#..UKP..RHD DK.GRAY,TRIM1# |
1 | ||
| 72459 - CAP, VERTICAL SEAT ADJUSTER KNOB | ||||
| 72459-02010B1 |
CDE120,NDE120,ZZE12#..UKP..RHD DK.GRAY,TRIM1# |
1 | ||
| 72459-02010B1 |
CDE120,ZZE12#..UKP..RHD DK.GRAY,TRIM1# |
1 | ||
| 72459-02010J0 |
CDE120,ZZE120,121..UKP..RHD..TERRA DK.BLUE,TRIM8# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-0F010B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 72525-02040B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 72525-02041J0 |
CDE120,ZZE120,121..UKP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 72525-02040J0 |
CDE120,ZZE120,121..UKP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 72525-02041B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-02040B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 72526-02041B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 72526-02040J0 |
CDE120,ZZE120,121..UKP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 72526-0F010B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 72526-02041J0 |
CDE120,ZZE120,121..UKP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 72572B - CAP, RECLINING ADJUSTER KNOB, RH | ||||
| 72572-02010 |
CDE120,ZZE12#..UKP |
1 | ||
| 72572-02010 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 72572C - CAP, RECLINING ADJUSTER KNOB, LH | ||||
| 72572-02020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 72572-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| Common parts | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8421 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
