ZZE121R-DHPDKW (2001)
Toyota Corolla Hb (Ukp)

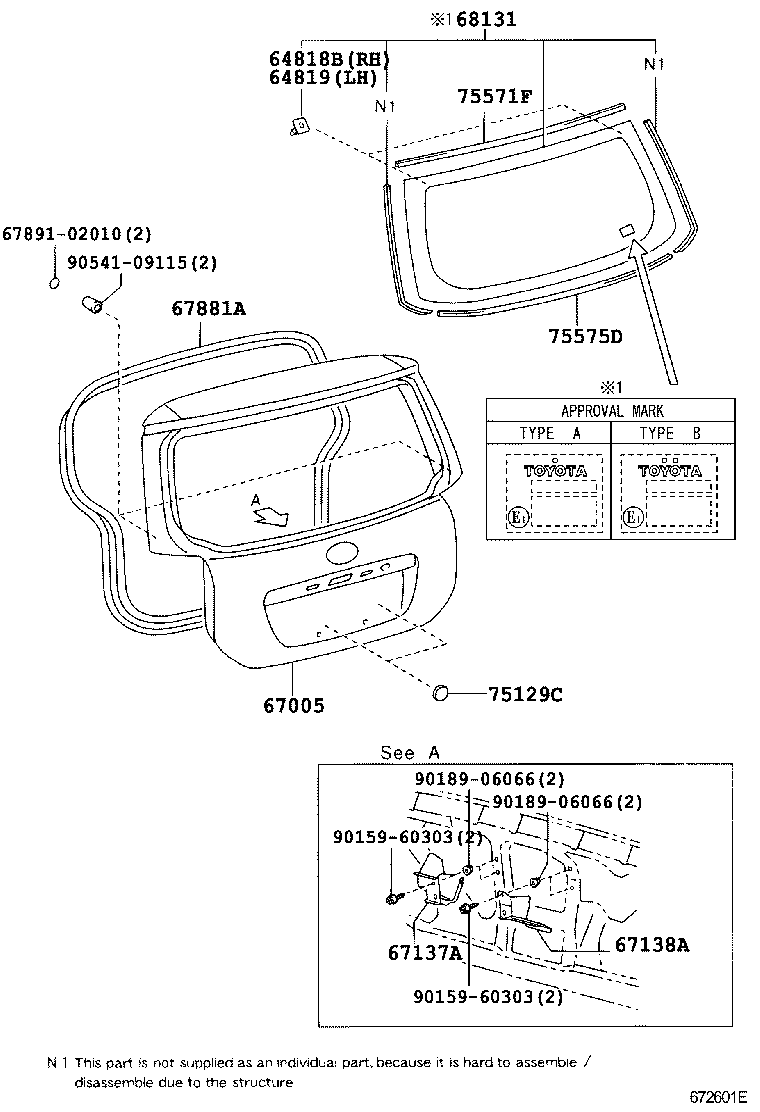

ILLUST NO. 2 OF 2(0111- )UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64818B - SPACER, BACK DOOR GLASS, NO.1 | ||||
| 64818-13060 |
CDE120,ZZE12#..UKP |
1 | ||
| 64818-13060 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 64819 - SPACER, BACK WINDOW GLASS, NO.2 | ||||
| 64819-13040 |
CDE120,ZZE12#..UKP |
1 | ||
| 64819-13040 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-02060 |
CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC) |
1 | ||
| 67005-02060 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 67137A - EXTENSION, BACK DOOR OUTER PANEL, RH | ||||
| 67137-13010 |
CDE120,ZZE12#..UKP..RHD |
1 | ||
| 67137-13010 |
CDE120,NDE120,ZZE12#..UKP..RHD |
1 | ||
| 67138A - EXTENSION, BACK DOOR OUTER PANEL, LH | ||||
| 67138-13010 |
CDE120,NDE120,ZZE12#..UKP..RHD |
1 | ||
| 67138-13010 |
CDE120,ZZE12#..UKP..RHD |
1 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-02051 |
CDE120,ZZE12#..UKP |
1 | ||
| 67881-02051 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 67881-02050 |
CDE120,ZZE12#..UKP |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68105-02030 |
CDE120,ZZE12#..UKP *EHT,T=3.1,GREEN,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 68105-02031 |
CDE120,NDE120,ZZE12#..UKP *EHT,T=3.1,GREEN,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 68105-02031 |
CDE120,ZZE12#..UKP *EHT,T=3.1,GREEN,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 75129C - CUSHION, REAR LICENCE PLATE | ||||
| 75129-40010 |
CDE120,NDE120,ZZE12#..UKP |
2 | ||
| 75129-40010 |
CDE120,ZZE12#..UKP |
2 | ||
| 75571F - MOULDIMG, BACK DOOR WINDOW | ||||
| 75571-02080 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 75571-02080 |
CDE120,ZZE12#..UKP |
1 | ||
| 75575D - MOULDING, BACK WINDOW, LOWER | ||||
| 75575-02040 |
CDE120,ZZE12#..UKP |
1 | ||
| 75575-02040 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| Common parts | ||||
| 67891-02010 | ||||
| 90159-60303 | ||||
| 90189-06066 | ||||
| 90541-09115 | ||||

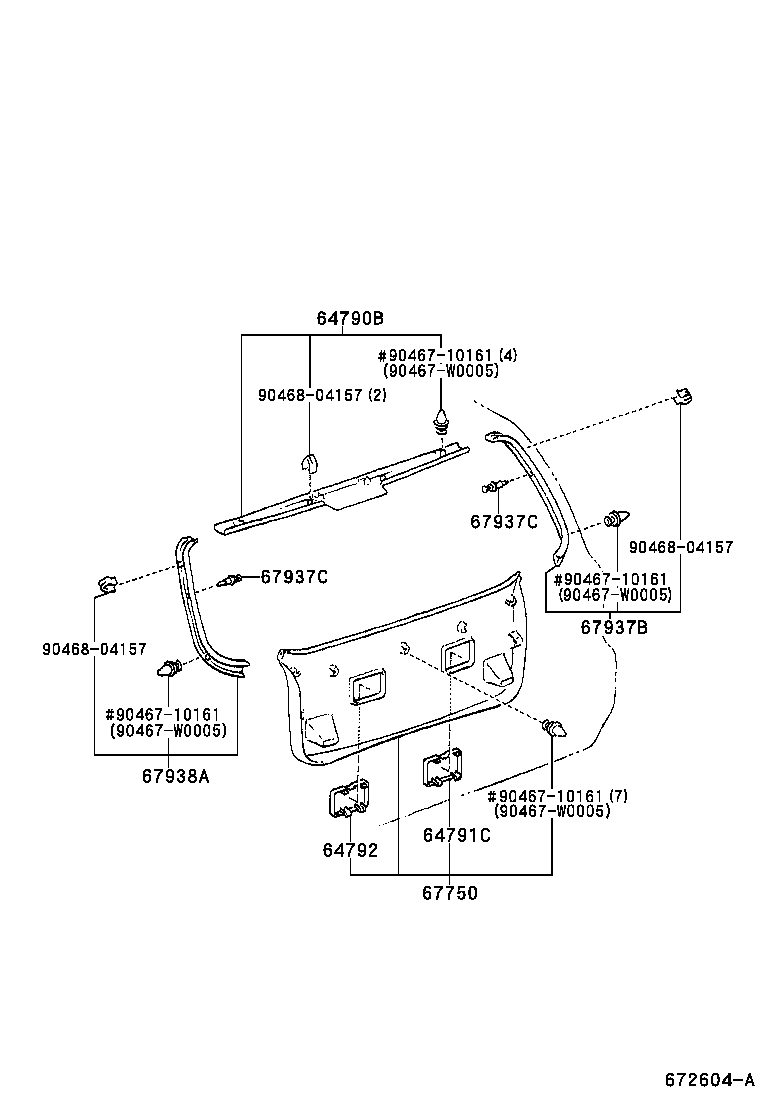

ILLUST NO. 1 OF 2(0111- )UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64790B - PANEL ASSY, BACK DOOR TRIM, UPPER | ||||
| 64790-02010B0 |
CDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1#,8# |
1 | ||
| 64790-02010B0 |
ZZE123..UKP;CDE120,NDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 64791C - COVER, BACK DOOR TRIM, RH | ||||
| 64791-02030B0 |
CDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1#,8# |
1 | ||
| 64791-02030B0 |
ZZE123..UKP;CDE120,NDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 64792 - COVER, BACK DOOR TRIM, LH | ||||
| 64791-02030B0 |
ZZE123..UKP;CDE120,NDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 64791-02030B0 |
CDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1#,8# |
1 | ||
| 67750 - BOARD ASSY, BACK DOOR TRIM | ||||
| 67750-02020B0 |
CDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1#,8# |
1 | ||
| 67750-02020B0 |
ZZE123..UKP;CDE120,NDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 67937B - GARNISH, BACK DOOR SIDE, RH | ||||
| 67937-02010B0 |
ZZE123..UKP;CDE120,NDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 67937-02010B0 |
CDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1#,8# |
1 | ||
| 67937C - CLIP(FOR BACK DOOR SIDE GARNISH) | ||||
| 64338-02010B0 |
CDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1#,8# |
2 | ||
| 64338-02010B0 |
ZZE123..UKP;CDE120,NDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1# |
2 | ||
| 67937C - CLIP(FOR BACK DOOR SIDE GARNISH) | ||||
| 64338-02010B0 |
CDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1#,8# |
2 | ||
| 64338-02010B0 |
ZZE123..UKP;CDE120,NDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1# |
2 | ||
| 67938A - GARNISH, BACK DOOR SIDE, LH | ||||
| 67938-02010B0 |
CDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1#,8# |
1 | ||
| 67938-02010B0 |
ZZE123..UKP;CDE120,NDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90467-10161 | ||||
| 90467-W0005 | ||||
| 90468-04157 | ||||
