ZZE121R-DHPDKW (2001)
Toyota Corolla Hb (Ukp)
(0111- )UKP..5D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

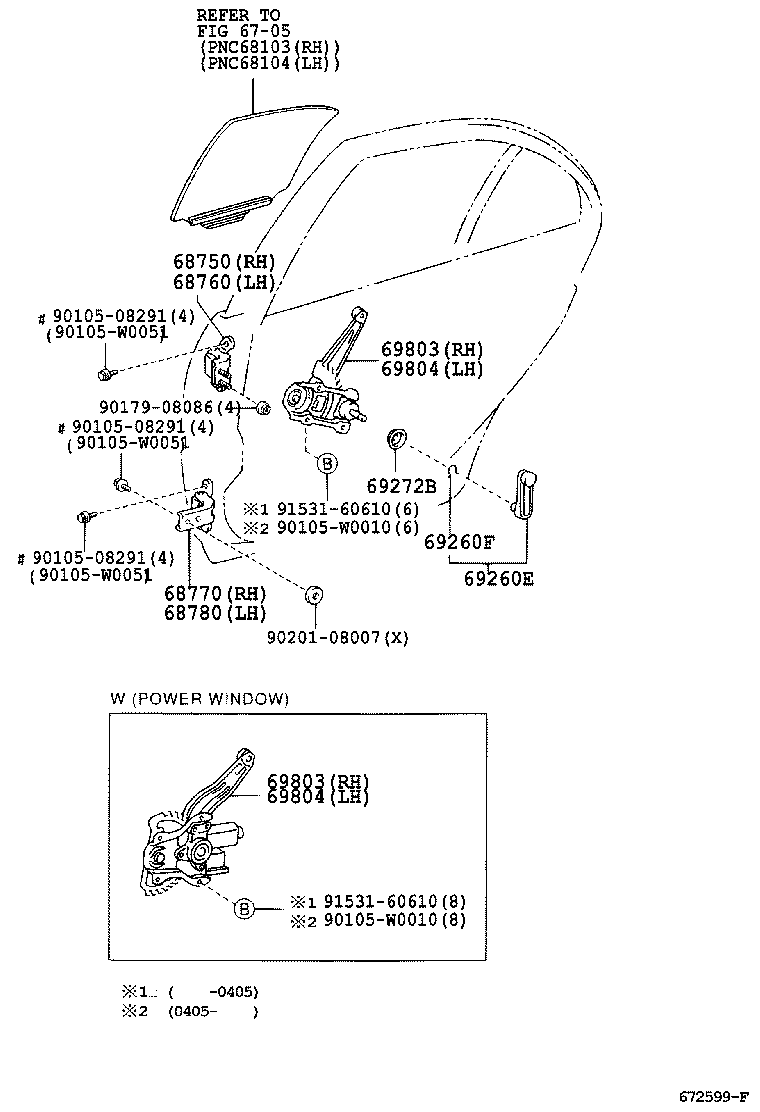

| 68750 - HINGE ASSY, REAR DOOR, UPPER RH | ||||
| 68750-0D010 |
CDE120,ZZE12#..UKP..5D FRAME NO.=EXXXXXX |
1 | ||
| 68750-0D010 |
CDE120,NDE120,ZZE12#..UKP..5D |
1 | ||
| 68750-02060 |
CDE120,ZZE12#..UKP..5D FRAME NO.=RXXXXXX |
1 | ||
| 68760 - HINGE ASSY, REAR DOOR, UPPER LH | ||||
| 68760-02060 |
CDE120,ZZE12#..UKP..5D FRAME NO.=RXXXXXX |
1 | ||
| 68760-0D010 |
CDE120,ZZE12#..UKP..5D FRAME NO.=EXXXXXX |
1 | ||
| 68760-0D010 |
CDE120,NDE120,ZZE12#..UKP..5D |
1 | ||
| 68770 - HINGE ASSY, REAR DOOR, LOWER RH | ||||
| 68770-52030 |
CDE120,ZZE12#..UKP..5D |
1 | ||
| 68770-05020 |
CDE120,ZZE12#..UKP..5D FRAME NO.=EXXXXXX |
1 | ||
| 68770-05020 |
CDE120,NDE120,ZZE12#..UKP..5D |
1 | ||
| 68770-52030 |
CDE120,ZZE12#..UKP..5D (J) |
1 | ||
| 68770-02060 |
CDE120,ZZE12#..UKP..5D FRAME NO.=RXXXXXX |
1 | ||
| 68780 - HINGE ASSY, REAR DOOR, LOWER LH | ||||
| 68780-02060 |
CDE120,ZZE12#..UKP..5D FRAME NO.=RXXXXXX |
1 | ||
| 68780-05020 |
CDE120,NDE120,ZZE12#..UKP..5D |
1 | ||
| 68780-52030 |
CDE120,ZZE12#..UKP..5D |
1 | ||
| 68780-05020 |
CDE120,ZZE12#..UKP..5D FRAME NO.=EXXXXXX |
1 | ||
| 68780-52030 |
CDE120,ZZE12#..UKP..5D (J) |
1 | ||
| 69260E - HANDLE ASSY, REAR DOOR WINDOW REGULATOR | ||||
| 69260-02020B2 |
CDE120,ZZE120,121..UKP..5D..TERRA DK.GRAY,TRIM1# |
2 | ||
| 69260-02020J0 |
CDE120,ZZE120,121..UKP..5D..TERRA DK.BLUE,TRIM8# |
2 | ||
| 69260-02020B2 |
NDE120..UKP..LHD..5D..TERRA;CDE120,ZZE120,121..UKP..5D..TERRA DK.GRAY,TRIM1# |
2 | ||
| 69260F - RING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE) | ||||
| 90080-52100 |
CDE120,ZZE120,121..UKP..5D..TERRA |
2 | ||
| 90080-52100 |
NDE120..UKP..LHD..5D..TERRA;CDE120,ZZE120,121..UKP..5D..TERRA |
2 | ||
| 69272B - PLATE, REAR DOOR REGULATOR INSIDE HANDLE | ||||
| 69268-02021 |
CDE120,ZZE120,121..UKP..5D..TERRA |
2 | ||
| 69268-02022 |
CDE120,ZZE120,121..UKP..5D..TERRA |
2 | ||
| 69268-02022 |
NDE120..UKP..LHD..5D..TERRA;CDE120,ZZE120,121..UKP..5D..TERRA |
2 | ||
| 69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH | ||||
| 69830-02090 |
CDE120,ZZE120,121..UKP..5D..TERRA |
1 | ||
| 69830-02090 |
CDE120,NDE120,ZZE120,121..UKP..5D..TERRA |
1 | ||
| 69830-02100 |
CDE120,NDE120,ZZE12#..UKP..5D W(POWER WINDOW) |
1 | ||
| 69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH | ||||
| 69830-02090 |
CDE120,ZZE120,121..UKP..5D..TERRA |
1 | ||
| 69830-02090 |
CDE120,NDE120,ZZE120,121..UKP..5D..TERRA |
1 | ||
| 69830-02100 |
CDE120,NDE120,ZZE12#..UKP..5D W(POWER WINDOW) |
1 | ||
| 69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH | ||||
| 69840-02090 |
CDE120,NDE120,ZZE120,121..UKP..5D..TERRA |
1 | ||
| 69840-02100 |
CDE120,NDE120,ZZE12#..UKP..5D W(POWER WINDOW) |
1 | ||
| 69840-02090 |
CDE120,ZZE120,121..UKP..5D..TERRA |
1 | ||
| 69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH | ||||
| 69840-02090 |
CDE120,NDE120,ZZE120,121..UKP..5D..TERRA |
1 | ||
| 69840-02100 |
CDE120,NDE120,ZZE12#..UKP..5D W(POWER WINDOW) |
1 | ||
| 69840-02090 |
CDE120,ZZE120,121..UKP..5D..TERRA |
1 | ||
| Common parts | ||||
| 90105-08291 | ||||
| 90105-W0010 | ||||
| 90105-W0051 | ||||
| 90179-08086 | ||||
| 90201-08007 | ||||
| 91531-60610 | ||||
| Linked diagrams | ||||
| 6705 | ||||
