ZZE121R-DHPDKW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - Feb 2007
Engine 3ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0111- )UKP

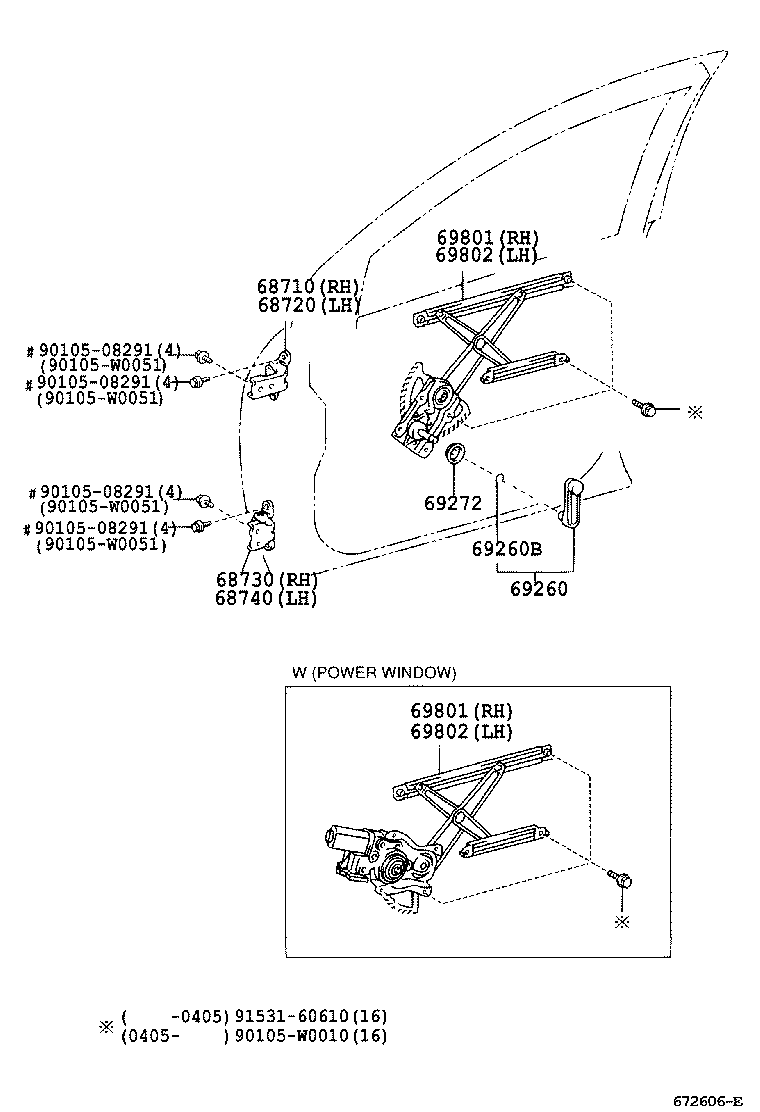

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69260 69260B 69272 69801 69801 69802 69802 9010508291 9010508291 9010508291 9010508291 90105W0010 90105W0051 90105W0051 90105W0051 90105W0051 9153160610
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-02040

CDE120,NDE120,ZZE12#..UKP

 1
68710-02040

CDE120,ZZE12#..UKP

FRAME NO.=EXXXXXX

 1
68710-02050

CDE120,ZZE12#..UKP..5D

FRAME NO.=RXXXXXX

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-02040

CDE120,NDE120,ZZE12#..UKP

 1
68720-02050

CDE120,ZZE12#..UKP..5D

FRAME NO.=RXXXXXX

 1
68720-02040

CDE120,ZZE12#..UKP

FRAME NO.=EXXXXXX

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-0D010

CDE120,ZZE12#..UKP

FRAME NO.=EXXXXXX

 1
68730-02040

CDE120,ZZE12#..UKP..5D

FRAME NO.=RXXXXXX

 1
68730-0D010

CDE120,NDE120,ZZE12#..UKP

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-0D010

CDE120,ZZE12#..UKP

FRAME NO.=EXXXXXX

 1
68740-0D010

CDE120,NDE120,ZZE12#..UKP

 1
68740-02040

CDE120,ZZE12#..UKP..5D

FRAME NO.=RXXXXXX

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-02020B2

CDE120,ZZE120,121..UKP..TERRA

DK.GRAY,TRIM1#

 2
69260-02020J0

CDE120,ZZE120,121..UKP..TERRA

DK.BLUE,TRIM8#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90080-52100

CDE120,ZZE120,121..UKP..5D..TERRA

 2
69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69268-02022

CDE120,ZZE120,121..UKP..TERRA

 2
69268-02021

CDE120,ZZE120,121..UKP..TERRA

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-02120

CDE120,ZZE120,121..UKP..TERRA

 1
69810-02130

CDE120,NDE120,ZZE12#..UKP

W(POWER WINDOW)

 1
69810-02130

CDE120,ZZE12#..UKP

W(POWER WINDOW)

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-02120

CDE120,ZZE120,121..UKP..TERRA

 1
69810-02130

CDE120,NDE120,ZZE12#..UKP

W(POWER WINDOW)

 1
69810-02130

CDE120,ZZE12#..UKP

W(POWER WINDOW)

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-02130

CDE120,NDE120,ZZE12#..UKP

W(POWER WINDOW)

 1
69820-02120

CDE120,ZZE120,121..UKP..TERRA

 1
69820-02130

CDE120,ZZE12#..UKP

W(POWER WINDOW)

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-02130

CDE120,NDE120,ZZE12#..UKP

W(POWER WINDOW)

 1
69820-02120

CDE120,ZZE120,121..UKP..TERRA

 1
69820-02130

CDE120,ZZE12#..UKP

W(POWER WINDOW)

 1
Common parts
90105-08291
90105-W0010
90105-W0051
91531-60610
