ZZE121R-DHPDKW (2001)
Toyota Corolla Hb (Ukp)
(0111- )UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

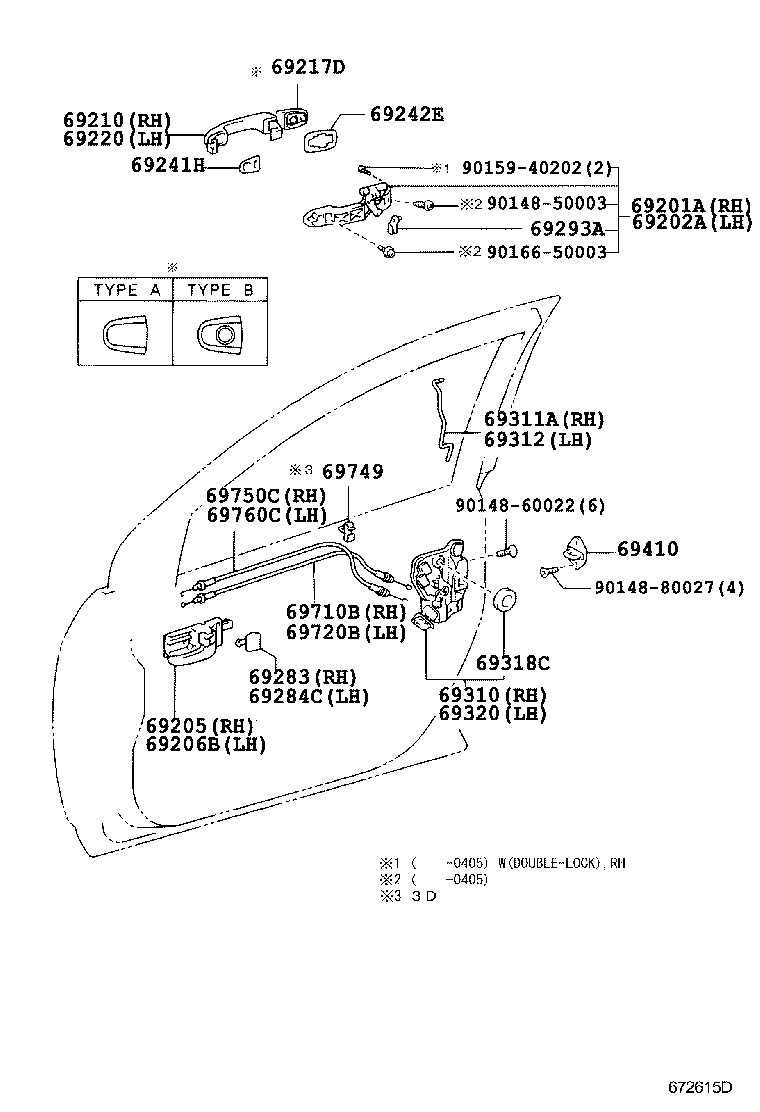

| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-02090 |
CDE120,NDE120,ZZE12#..UKP..RHD W(DOUBLE-LOCK) |
1 | ||
| 69201-05060 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 69201-02060 |
CDE120,ZZE12#..UKP |
1 | ||
| 69201-02070 |
CDE120,ZZE12#..UKP..RHD W(DOUBLE-LOCK) |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-02040 |
CDE120,ZZE12#..UKP |
1 | ||
| 69202-05020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-02080B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 69205-02080J0 |
CDE120,ZZE120,121..UKP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 69205-05040J0 |
CDE120,ZZE120,121..UKP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 69205-05040B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 69205-05040B0 |
CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC) DK.GRAY,TRIM1# |
1 | ||
| 69205-13020B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1#,(J) |
1 | ||
| 69205-05040B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1#,(L) |
1 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-02080B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 69206-05040J0 |
CDE120,ZZE120,121..UKP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 69206-02080J0 |
CDE120,ZZE120,121..UKP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 69206-05040B0 |
CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC) DK.GRAY,TRIM1# |
1 | ||
| 69206-05040B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 69206-05040B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1#,(L) |
1 | ||
| 69206-13020B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1#,(J) |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69211-05903 |
CDE120,NDE120,ZZE12#..UKP PAINT REQ. |
1 | ||
| 69211-02905 |
CDE120,ZZE12#..UKP LESS COLOR |
1 | ||
| 69211-05903 |
CDE120,ZZE12#..UKP PAINT REQ.,LESS COLOR |
1 | ||
| 69217D - COVER, FRONT DOOR OUTSIDE HANDLE | ||||
| 69217-02902 |
CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC) TYPE B:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),LESS COLOR |
1 | ||
| 69217-02902 |
CDE120,ZZE120,121..UKP..TERRA TYPE B:REFER TO ILLUSTRATION,LESS COLOR |
2 | ||
| 69217-02902 |
ZZE123..UKP..LHD;ZZE121..UKP..LHD..5D..SOL;CDE120,NDE120,ZZE120,121..UKP..TERRA TYPE B:REFER TO ILLUSTRATION,LESS COLOR |
2 | ||
| 69217-02903 |
CDE120,NDE120,ZZE12#..UKP TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),LESS COLOR |
1 | ||
| 69217-02902 |
CDE120,NDE120,ZZE12#..UKP TYPE B:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),LESS COLOR |
1 | ||
| 69217-02903 |
CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC) TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),LESS COLOR |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69211-05903 |
CDE120,NDE120,ZZE12#..UKP PAINT REQ. |
1 | ||
| 69211-02905 |
CDE120,ZZE12#..UKP LESS COLOR |
1 | ||
| 69211-05903 |
CDE120,ZZE12#..UKP PAINT REQ.,LESS COLOR |
1 | ||
| 69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-02040 |
CDE120,NDE120,ZZE12#..UKP |
2 | ||
| 69241-02040 |
CDE120,ZZE12#..UKP |
2 | ||
| 69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-02040 |
CDE120,ZZE12#..UKP |
2 | ||
| 69242-02040 |
CDE120,NDE120,ZZE12#..UKP |
2 | ||
| 69283 - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-30040J0 |
CDE120,ZZE120,121..UKP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 69283-30040P0 |
CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC) DK.GRAY,TRIM1# |
1 | ||
| 69283-30040P0 |
CDE120,NDE120,ZZE120,121..UKP DK.GRAY,TRIM1# |
1 | ||
| 69284C - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69283-30040P0 |
CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC) DK.GRAY,TRIM1# |
1 | ||
| 69283-30040P0 |
CDE120,NDE120,ZZE120,121..UKP DK.GRAY,TRIM1# |
1 | ||
| 69283-30040J0 |
CDE120,ZZE120,121..UKP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-33010 |
CDE120,ZZE12#..UKP RH |
1 | ||
| 69293-33020 |
CDE120,ZZE12#..UKP LH |
1 | ||
| 69293-33020 |
CDE120,NDE120,ZZE12#..UKP LH |
1 | ||
| 69293-33010 |
CDE120,NDE120,ZZE12#..UKP RH |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-02091 |
CDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 69030-02141 |
CDE120,NDE120,ZZE12#..UKP..RHD W(POWER DOOR LOCK) |
1 | ||
| 69030-02141 |
CDE120,ZZE12#..UKP..RHD W(POWER DOOR LOCK) |
1 | ||
| 69030-02171 |
CDE120,ZZE12#..UKP..RHD W(DOUBLE-LOCK) |
1 | ||
| 69030-02171 |
CDE120,NDE120,ZZE12#..UKP..RHD W(DOUBLE-LOCK) |
1 | ||
| 69030-02142 |
CDE120,NDE120,ZZE12#..UKP..RHD W(POWER DOOR LOCK) |
1 | ||
| 69311A - ROD, FRONT DOOR LOCK OPEN, RH | ||||
| 69311-02080 |
CDE120,ZZE12#..UKP..5D |
1 | ||
| 69311-02080 |
CDE120,NDE120,ZZE12#..UKP..5D |
1 | ||
| 69312 - ROD, FRONT DOOR LOCK OPEN, LH | ||||
| 69312-02080 |
CDE120,ZZE12#..UKP..5D |
1 | ||
| 69312-02080 |
CDE120,NDE120,ZZE12#..UKP..5D |
1 | ||
| 69318C - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-51010 |
NDE120..UKP..TERRA;CDE120,ZZE12#..UKP..RHD;CDE120,ZZE120,121..UKP..LHD..TERRA |
2 | ||
| 69318-51010 |
CDE120,ZZE12#..UKP |
2 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-02091 |
CDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 69040-02141 |
CDE120,NDE120,ZZE12#..UKP..RHD W(POWER DOOR LOCK & WIRELESS DOOR LOCK) |
1 | ||
| 69040-02141 |
CDE120,ZZE12#..UKP..RHD W(POWER DOOR LOCK & WIRELESS DOOR LOCK) |
1 | ||
| 69040-02132 |
CDE120,NDE120,ZZE120,121..UKP..RHD..TERRA W(POWER DOOR LOCK) |
1 | ||
| 69040-02131 |
CDE120,ZZE120,121..UKP..RHD..TERRA W(POWER DOOR LOCK) |
1 | ||
| 69040-02161 |
CDE120,ZZE12#..UKP..RHD W(DOUBLE-LOCK) |
1 | ||
| 69040-02131 |
CDE120,NDE120,ZZE120,121..UKP..RHD..TERRA W(POWER DOOR LOCK) |
1 | ||
| 69040-02142 |
CDE120,NDE120,ZZE12#..UKP..RHD W(POWER DOOR LOCK & WIRELESS DOOR LOCK) |
1 | ||
| 69040-02161 |
CDE120,NDE120,ZZE12#..UKP..RHD W(DOUBLE-LOCK) |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-33010 |
CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC) |
2 | ||
| 69410-33010 |
CDE120,NDE120,ZZE12#..UKP |
2 | ||
| 69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69710-02040 |
CDE120,ZZE12#..UKP..5D |
1 | ||
| 69710-02040 |
CDE120,NDE120,ZZE12#..UKP..5D |
1 | ||
| 69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69710-02040 |
CDE120,NDE120,ZZE12#..UKP..5D |
1 | ||
| 69710-02040 |
CDE120,ZZE12#..UKP..5D |
1 | ||
| 69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-02050 |
CDE120,ZZE12#..UKP..5D |
1 | ||
| 69750-02050 |
CDE120,NDE120,ZZE12#..UKP..5D |
1 | ||
| 69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH | ||||
| 69760-02050 |
CDE120,NDE120,ZZE12#..UKP..5D |
1 | ||
| 69760-02050 |
CDE120,ZZE12#..UKP..5D |
1 | ||
| Common parts | ||||
| 90148-50003 | ||||
| 90148-60022 | ||||
| 90148-80027 | ||||
| 90159-40202 | ||||
| 90166-50003 | ||||
