Toyota Corolla hb (ukp) ZZE121 FRONT DOOR PANEL & GLASS

ZZE121R-DHPDKW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - Feb 2007

Engine 3ZZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(0111-0405)UKP

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price

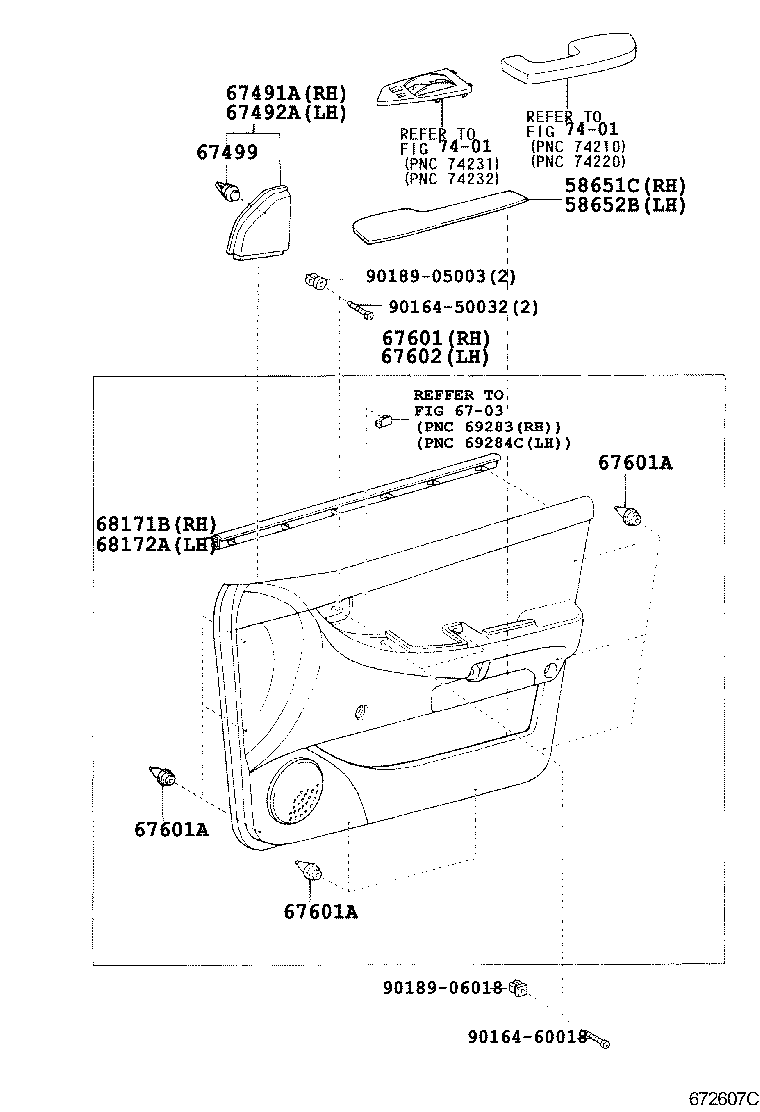

ILLUST NO. 1 OF 3(0111- )UKP..5D

Click highlighted areas on diagram

Part #	Description	Period	Qty
58651C - PLATE, FRONT DOOR MAT, RH
58651-02070B0	CDE120,ZZE12#..UKP..5D..(DCR,DCRL,HTWC,TWC) DK.GRAY,TRIM1#	11/2001 - 05/2004	1
58651-02070B0	CDE120,NDE120,ZZE12#..UKP..5D DK.GRAY,TRIM1#	05/2004 - 02/2007	1
58651-02070J0	CDE120,ZZE120,121..UKP..5D..TERRA DK.BLUE,TRIM8#	11/2001 - 05/2004	1
58652B - PLATE, FRONT DOOR MAT, LH
58652-02050B0	CDE120,ZZE12#..UKP..5D..(DCR,DCRL,HTWC,TWC) DK.GRAY,TRIM1#	11/2001 - 05/2004	1
58652-02050B0	CDE120,NDE120,ZZE12#..UKP..5D DK.GRAY,TRIM1#	05/2004 - 02/2007	1
58652-02050J0	CDE120,ZZE120,121..UKP..5D..TERRA DK.BLUE,TRIM8#	11/2001 - 05/2004	1
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-12470	CDE120,ZZE120,121..UKP..TERRA W(MANUAL REMOTE CONTOROL MIRROR)	11/2001 - 05/2004	1
67491-12460	CDE120,NDE120,ZZE120,121..UKP..TERRA	05/2004 - 12/2999	1
67491-12460	CDE120,ZZE120,121..UKP..TERRA	11/2001 - 05/2004	1
67491-12470	CDE120,NDE120,ZZE120,121..UKP..TERRA W(MANUAL REMOTE CONTOROL MIRROR)	05/2004 - 12/2999	1
67491-12480	CDE120,ZZE121..UKP..TERRA..(DCRL,HTWC) W(TWEETER)	05/2003 - 05/2004	1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-12460	CDE120,ZZE120,121..UKP..TERRA	11/2001 - 05/2004	1
67492-12480	CDE120,ZZE121..UKP..TERRA..(DCRL,HTWC) W(TWEETER)	05/2003 - 05/2004	1
67492-12470	CDE120,NDE120,ZZE120,121..UKP..TERRA W(MANUAL REMOTE CONTOROL MIRROR)	05/2004 - 12/2999	1
67492-12460	CDE120,NDE120,ZZE120,121..UKP..TERRA	05/2004 - 12/2999	1
67492-12470	CDE120,ZZE120,121..UKP..TERRA W(MANUAL REMOTE CONTOROL MIRROR)	11/2001 - 05/2004	1
67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67771-12060	CDE120,ZZE12#..UKP	11/2001 - 05/2004	2
67771-12060	CDE120,NDE120,ZZE120,121..UKP	05/2004 - 12/2999	2
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67650-02250B1	CDE120,ZZE120,121..UKP..5D..TERRA DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#	11/2001 - 05/2004	1
67650-02280B3	CDE120,NDE120,ZZE120,121..UKP..5D..TERRA DOOR TRIM=TYPE B OR TYPE D-*104,DK.GRAY,TRIM1#	05/2004 - 10/2005	1
67650-02260B1	CDE120,ZZE120,121..UKP..5D..TERRA DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1#	11/2001 - 05/2004	1
67650-02260J1	CDE120,ZZE120,121..UKP..5D..TERRA DOOR TRIM=TYPE A-*104,DK.BLUE,TRIM8#	11/2001 - 05/2004	1
67650-02250J1	CDE120,ZZE120,121..UKP..5D..TERRA DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),DK.BLUE,TRIM8#	11/2001 - 05/2004	1
67650-02280B3	CDE120,NDE120,ZZE120,121..UKP..5D..TERRA DOOR TRIM=TYPE A OR TYPE B OR TYPE D-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#	07/2006 - 02/2007	1
67650-02290B1	CDE120,NDE120,ZZE120,121..UKP..5D..TERRA DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#	05/2004 - 07/2006	1
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
90467-10161	CDE120,ZZE12#..UKP..5D (J)	06/2003 - 05/2004	8
90467-W0005	CDE120,ZZE12#..UKP..5D (L)	06/2003 - 05/2004	8
90467-10161	CDE120,ZZE12#..UKP..5D..(DCR,DCRL,HTWC,TWC)	11/2001 - 06/2003	16
90467-W0005	CDE120,NDE120,ZZE12#..UKP..5D	05/2004 - 12/2999	16
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
90467-10161	CDE120,ZZE12#..UKP..5D (J)	06/2003 - 05/2004	8
90467-W0005	CDE120,ZZE12#..UKP..5D (L)	06/2003 - 05/2004	8
90467-10161	CDE120,ZZE12#..UKP..5D..(DCR,DCRL,HTWC,TWC)	11/2001 - 06/2003	16
90467-W0005	CDE120,NDE120,ZZE12#..UKP..5D	05/2004 - 12/2999	16
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
90467-10161	CDE120,ZZE12#..UKP..5D (J)	06/2003 - 05/2004	8
90467-W0005	CDE120,ZZE12#..UKP..5D (L)	06/2003 - 05/2004	8
90467-10161	CDE120,ZZE12#..UKP..5D..(DCR,DCRL,HTWC,TWC)	11/2001 - 06/2003	16
90467-W0005	CDE120,NDE120,ZZE12#..UKP..5D	05/2004 - 12/2999	16
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67660-02260B1	CDE120,ZZE120,121..UKP..5D..TERRA DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#	11/2001 - 05/2004	1
67660-02260J1	CDE120,ZZE120,121..UKP..5D..TERRA DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),DK.BLUE,TRIM8#	11/2001 - 05/2004	1
67660-02270J1	CDE120,ZZE120,121..UKP..5D..TERRA DOOR TRIM=TYPE A-*104,DK.BLUE,TRIM8#	11/2001 - 05/2004	1
67660-02270B1	CDE120,ZZE120,121..UKP..5D..TERRA DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1#	11/2001 - 05/2004	1
67660-02300B1	CDE120,NDE120,ZZE120,121..UKP..5D..TERRA DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1#	05/2004 - 07/2006	1
67660-02290B3	CDE120,NDE120,ZZE120,121..UKP..5D..TERRA DOOR TRIM=TYPE B OR TYPE D-*104,DK.GRAY,TRIM1#	05/2004 - 10/2005	1
67660-02290B3	CDE120,NDE120,ZZE120,121..UKP..5D..TERRA DOOR TRIM=TYPE A OR TYPE B OR TYPE D-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#	07/2006 - 02/2007	1
68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68171-12290	CDE120,ZZE12#..UKP..5D	11/2001 - 01/2003	1
68171-12320	CDE120,NDE120,ZZE12#..UKP..5D	05/2004 - 12/2999	1
68171-12320	CDE120,ZZE12#..UKP..5D	01/2003 - 05/2004	1
68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH
68172-12210	CDE120,ZZE12#..UKP..5D	11/2001 - 01/2003	1
68172-12240	CDE120,NDE120,ZZE12#..UKP..5D	05/2004 - 12/2999	1
68172-12240	CDE120,ZZE12#..UKP..5D	01/2003 - 05/2004	1
Common parts
90164-50032
90164-60018
90189-05003
90189-06018
Linked diagrams
7401

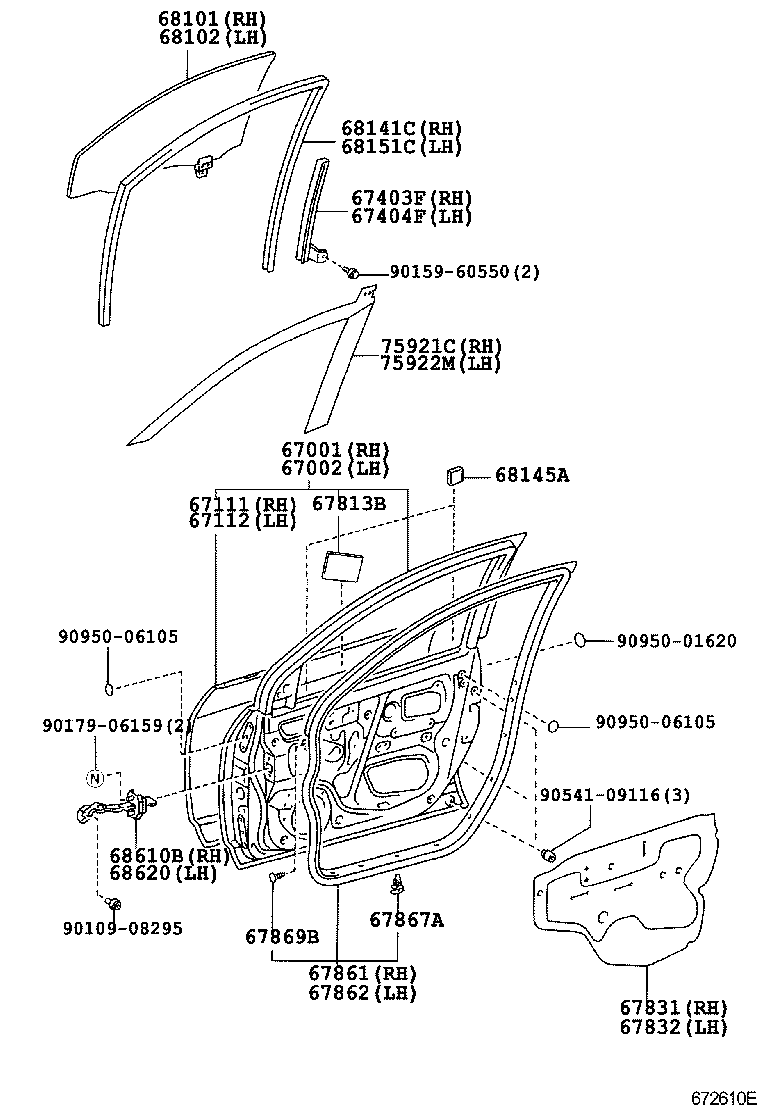

ILLUST NO. 2 OF 3(0111- )UKP..5D

Click highlighted areas on diagram

Part #	Description	Period	Qty
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-02171	CDE120,ZZE12#..UKP..5D..(DCR,DCRL,HTWC,TWC)	12/2001 - 05/2004	1
67001-02170	CDE120,ZZE12#..UKP..5D	11/2001 - 12/2001	1
67001-02171	CDE120,NDE120,ZZE12#..UKP..5D	05/2004 - 02/2007	1
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-02170	CDE120,ZZE12#..UKP..5D	11/2001 - 12/2001	1
67002-02171	CDE120,ZZE12#..UKP..5D..(DCR,DCRL,HTWC,TWC)	12/2001 - 05/2004	1
67002-02171	CDE120,NDE120,ZZE12#..UKP..5D	05/2004 - 02/2007	1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-02080	CDE120,ZZE12#..UKP..5D	11/2001 - 05/2004	1
67111-02080	CDE120,NDE120,ZZE12#..UKP..5D	05/2004 - 12/2999	1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-02080	CDE120,ZZE12#..UKP..5D	11/2001 - 05/2004	1
67112-02080	CDE120,NDE120,ZZE12#..UKP..5D	05/2004 - 12/2999	1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-12220	CDE120,ZZE12#..UKP..5D	11/2001 - 05/2004	1
67403-12220	CDE120,NDE120,ZZE12#..UKP..5D	05/2004 - 12/2999	1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-12200	CDE120,NDE120,ZZE12#..UKP..5D	05/2004 - 12/2999	1
67404-12200	CDE120,ZZE12#..UKP..5D	11/2001 - 05/2004	1
67813B - PACKING, DOOR PROTECTOR
67817-47010	CDE120..UKP..3D..DCRL;CDE120,ZZE12#..UKP..5D	12/2001 - 05/2004	2
67817-47010	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	2
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-02120	CDE120,NDE120,ZZE12#..UKP..5D	05/2004 - 12/2999	1
67831-02120	CDE120,ZZE12#..UKP..5D	11/2001 - 05/2004	1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-02120	CDE120,NDE120,ZZE12#..UKP..5D	05/2004 - 12/2999	1
67832-02120	CDE120,ZZE12#..UKP..5D	11/2001 - 05/2004	1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-02110	CDE120,ZZE12#..UKP..5D	11/2001 - 05/2004	1
67861-02111	CDE120,NDE120,ZZE12#..UKP..5D	04/2005 - 12/2999	1
67861-02110	CDE120,NDE120,ZZE12#..UKP..5D	05/2004 - 03/2005	1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-02110	CDE120,NDE120,ZZE12#..UKP..5D	05/2004 - 03/2005	1
67862-02110	CDE120,ZZE12#..UKP..5D	11/2001 - 05/2004	1
67862-02111	CDE120,NDE120,ZZE12#..UKP..5D	04/2005 - 12/2999	1
67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)
67867-12150	CDE120,NDE120,ZZE12#..UKP..5D	05/2004 - 03/2005	28
67867-12150	CDE120,ZZE12#..UKP..5D	11/2001 - 05/2004	28
67867-12150	CDE120,NDE120,ZZE12#..UKP..5D	04/2005 - 12/2999	28
67869B - CLIP, FRONT DOOR WEATHERSTRIP
67869-20030	CDE120,NDE120,ZZE12#..UKP	05/2004 - 03/2005	2
67869-20030	CDE120,NDE120,ZZE12#..UKP	04/2005 - 12/2999	2
67869-20030	CDE120,ZZE12#..UKP	11/2001 - 05/2004	2
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68101-02120	CDE120,ZZE12#..UKP..5D *TT,T=3.5,GREEN	11/2001 - 05/2004	1
68101-02120	CDE120,NDE120,ZZE12#..UKP..5D *TT,T=3.5,GREEN	05/2004 - 12/2999	1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68102-02120	CDE120,NDE120,ZZE12#..UKP..5D *TT,T=3.5,GREEN	05/2004 - 12/2999	1
68102-02120	CDE120,ZZE12#..UKP..5D *TT,T=3.5,GREEN	11/2001 - 05/2004	1
68141C - RUN, FRONT DOOR GLASS, RH
68141-02070	CDE120,ZZE12#..UKP..5D	11/2001 - 02/2002	1
68141-02072	CDE120,NDE120,ZZE12#..UKP..5D	03/2006 - 12/2999	1
68141-02071	CDE120,ZZE12#..UKP..5D	02/2002 - 05/2004	1
68141-02071	CDE120,NDE120,ZZE12#..UKP..5D	05/2004 - 03/2006	1
68145A - CUSHION, FRONT DOOR WINDOW
69759-12110	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	4
69759-12110	CDE120,ZZE12#..UKP	11/2001 - 05/2004	4
68151C - RUN, FRONT DOOR GLASS, LH
68151-02061	CDE120,ZZE12#..UKP..5D	02/2002 - 05/2004	1
68151-02061	CDE120,NDE120,ZZE12#..UKP..5D	05/2004 - 03/2006	1
68151-02060	CDE120,ZZE12#..UKP..5D	11/2001 - 02/2002	1
68151-02062	CDE120,NDE120,ZZE12#..UKP..5D	03/2006 - 12/2999	1
68610B - CHECK ASSY, FRONT DOOR, RH
68610-12170	CDE120,ZZE12#..UKP..5D	11/2001 - 05/2004	1
68610-12170	CDE120,NDE120,ZZE12#..UKP..5D	05/2004 - 12/2999	1
68620 - CHECK ASSY, FRONT DOOR, LH
68620-12100	CDE120,NDE120,ZZE12#..UKP..5D	05/2004 - 12/2999	1
68620-12100	CDE120,ZZE12#..UKP..5D	11/2001 - 05/2004	1
75921C - TAPE, BLACK OUT, NO.1 RH
75921-02020	CDE120,ZZE12#..UKP..5D	11/2001 - 12/2001	1
75921-02060	CDE120,NDE120,ZZE12#..UKP..5D	11/2004 - 12/2999	1
75921-02021	CDE120,ZZE12#..UKP..5D	12/2001 - 01/2003	1
75922M - TAPE, BLACK OUT, NO.1 LH
75922-02021	CDE120,ZZE12#..UKP..5D	12/2001 - 01/2003	1
75922-02020	CDE120,ZZE12#..UKP..5D	11/2001 - 12/2001	1
75922-02060	CDE120,NDE120,ZZE12#..UKP..5D	11/2004 - 12/2999	1
Common parts
90109-08295
90159-60550
90179-06159
90541-09116
90950-01620
90950-06105

ILLUST NO. 3 OF 3(0405- )UKP

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
