ZZE121R-DHPDKW (2001)
Toyota Corolla Hb (Ukp)

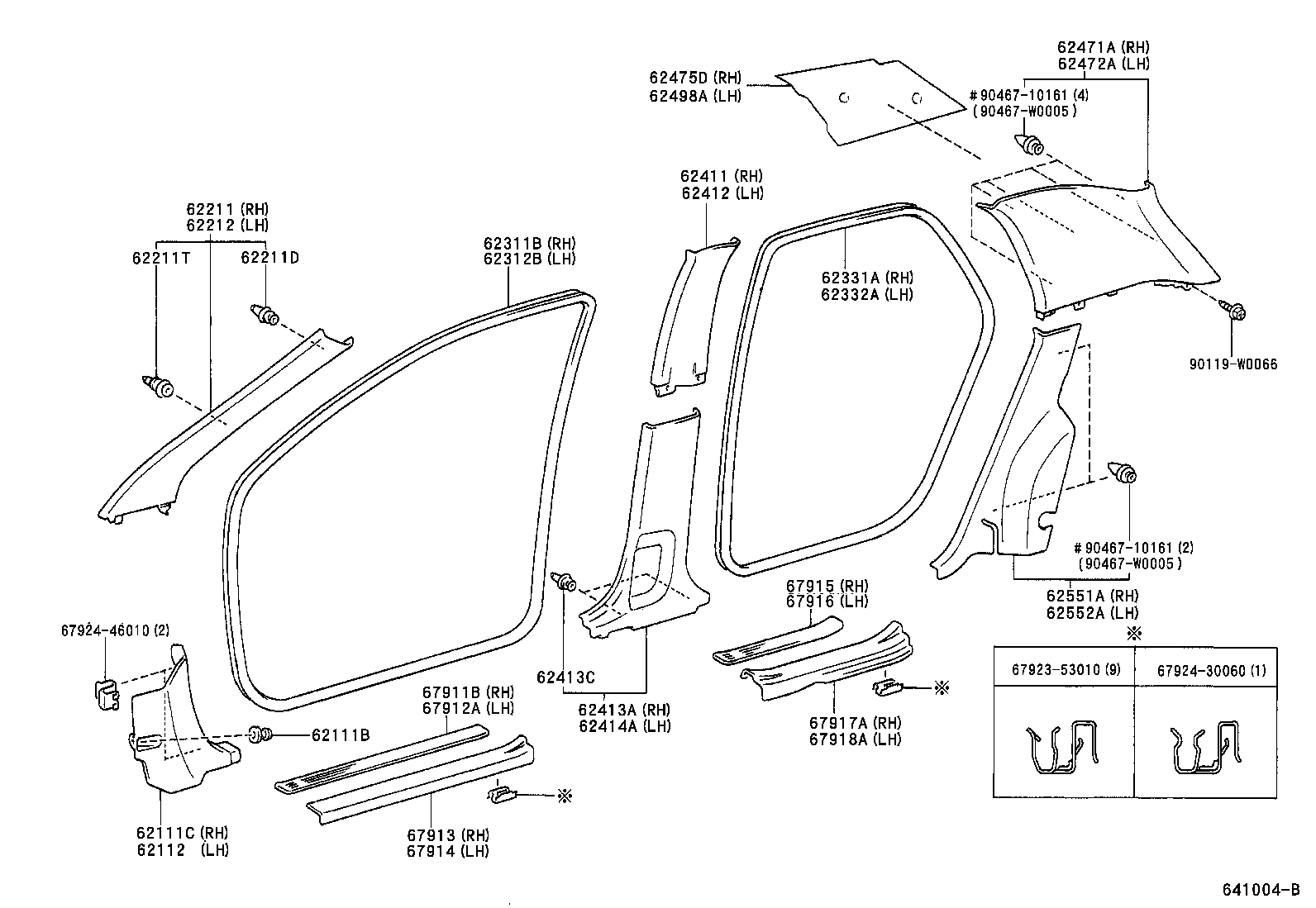

(0111- )UKP..5D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-06191 |
CDE120,NDE120,ZZE12#..UKP |
2 | ||
| 90467-06191 |
CDE120,ZZE12#..UKP |
2 | ||
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-02080J0 |
CDE120,ZZE120,121..UKP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 62111-02080B0 |
ZZE121..UKP..RHD;ZZE121..UKP..LHD..3D;ZZE121..UKP..LHD..5D..SOL;CDE120,NDE120,ZZE120,123..UKP;ZZE121..UKP..LHD..5D..5F..TERRA DK.GRAY,TRIM15 |
1 | ||
| 62111-02080B0 |
CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC) DK.GRAY,TRIM1# |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-02080J0 |
CDE120,ZZE120,121..UKP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 62112-02080B0 |
ZZE121..UKP..RHD;ZZE121..UKP..LHD..3D;ZZE121..UKP..LHD..5D..SOL;CDE120,NDE120,ZZE120,123..UKP;ZZE121..UKP..LHD..5D..5F..TERRA DK.GRAY,TRIM15 |
1 | ||
| 62112-02080B0 |
CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC) DK.GRAY,TRIM1# |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-02060B0 |
ZZE120,121..UKP..TERRA LT.GRAY,TRIM1#,8# |
1 | ||
| 62211-02060B0 |
ZZE12#..UKP LT.GRAY,TRIM1# |
1 | ||
| 62211-02120B1 |
ZZE120,121..UKP..TERRA W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM15,80 |
1 | ||
| 62211-02120B1 |
ZZE12#..UKP W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1# |
1 | ||
| 62211D - CLIP(FOR FRONT BODY PILLAR GARNISH) | ||||
| 90467-W0005 |
CDE120,ZZE12#..UKP (L) |
2 | ||
| 90467-10161 |
CDE120,ZZE12#..UKP (J) |
2 | ||
| 90467-W0005 |
CDE120,NDE120,ZZE12#..UKP (L) |
2 | ||
| 90467-10161 |
CDE120,ZZE12#..UKP |
2 | ||
| 90467-10161 |
CDE120,NDE120,ZZE12#..UKP (J) |
2 | ||
| 62211T - CLIP(FOR FRONT PILLAR GARNISH) | ||||
| 62217-13010 |
CDE120,ZZE12#..UKP |
2 | ||
| 62217-13010 |
CDE120,NDE120,ZZE12#..UKP |
2 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-02060B0 |
ZZE12#..UKP LT.GRAY,TRIM1# |
1 | ||
| 62212-02060B0 |
ZZE120,121..UKP..TERRA LT.GRAY,TRIM1#,8# |
1 | ||
| 62212-02120B1 |
ZZE120,121..UKP..TERRA W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM15,80 |
1 | ||
| 62212-02120B1 |
ZZE12#..UKP W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1# |
1 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-12120J0 |
CDE120,ZZE120,121..UKP..5D..TERRA DK.BLUE,TRIM8#,(J) |
1 | ||
| 62311-12120B0 |
CDE120,ZZE12#..UKP..5D DK.GRAY,TRIM1#,(J) |
1 | ||
| 62311-02040J0 |
CDE120,ZZE120,121..UKP..5D..TERRA DK.BLUE,TRIM8#,(L) |
1 | ||
| 62311-02040B0 |
CDE120,ZZE12#..UKP..5D DK.GRAY,TRIM1#,(L) |
1 | ||
| 62311-02040B0 |
CDE120,NDE120,ZZE12#..UKP..5D DK.GRAY,TRIM1# |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-12120B0 |
CDE120,ZZE12#..UKP..5D DK.GRAY,TRIM1#,(J) |
1 | ||
| 62312-12120J0 |
CDE120,ZZE120,121..UKP..5D..TERRA DK.BLUE,TRIM8#,(J) |
1 | ||
| 62312-02040B0 |
CDE120,ZZE12#..UKP..5D DK.GRAY,TRIM1#,(L) |
1 | ||
| 62312-02040J0 |
CDE120,ZZE120,121..UKP..5D..TERRA DK.BLUE,TRIM8#,(L) |
1 | ||
| 62312-02040B0 |
CDE120,NDE120,ZZE12#..UKP..5D DK.GRAY,TRIM1# |
1 | ||
| 62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH | ||||
| 62331-12080B0 |
CDE120,ZZE12#..UKP..5D DK.GRAY,TRIM1#,(J) |
1 | ||
| 62331-02030B0 |
CDE120,ZZE12#..UKP..5D DK.GRAY,TRIM1#,(L) |
1 | ||
| 62331-02030J0 |
CDE120,ZZE120,121..UKP..5D..TERRA DK.BLUE,TRIM8#,(L) |
1 | ||
| 62331-12080J0 |
CDE120,ZZE120,121..UKP..5D..TERRA DK.BLUE,TRIM8#,(J) |
1 | ||
| 62331-12170B0 |
CDE120,NDE120,ZZE12#..UKP..5D DK.GRAY,TRIM1# |
1 | ||
| 62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH | ||||
| 62332-12080J0 |
CDE120,ZZE120,121..UKP..5D..TERRA DK.BLUE,TRIM8#,(J) |
1 | ||
| 62332-12170B0 |
CDE120,NDE120,ZZE12#..UKP..5D DK.GRAY,TRIM1# |
1 | ||
| 62332-02030J0 |
CDE120,ZZE120,121..UKP..5D..TERRA DK.BLUE,TRIM8#,(L) |
1 | ||
| 62332-02030B0 |
CDE120,ZZE12#..UKP..5D DK.GRAY,TRIM1#,(L) |
1 | ||
| 62332-12080B0 |
CDE120,ZZE12#..UKP..5D DK.GRAY,TRIM1#,(J) |
1 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62410-02030B0 |
CDE120,NDE120,ZZE12#..UKP..5D W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1# |
1 | ||
| 62411-02070B0 |
CDE120,ZZE120,121..UKP..5D..TERRA LT.GRAY,TRIM1#,8# |
1 | ||
| 62410-02030A0 |
CDE120,ZZE12#..UKP..5D..(DCR,DCRL,HTWC,TWC) W(SRS CURTAIN SHIELD AIR BAG),IVORY,TRIM0# |
1 | ||
| 62410-02030B0 |
CDE120,ZZE12#..UKP..5D..(DCR,DCRL,HTWC,TWC) W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1# |
1 | ||
| 62411-02070B0 |
CDE120,NDE120,ZZE12#..UKP..5D LT.GRAY,TRIM1# |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62420-02030A0 |
CDE120,ZZE12#..UKP..5D..(DCR,DCRL,HTWC,TWC) W(SRS CURTAIN SHIELD AIR BAG),IVORY,TRIM0# |
1 | ||
| 62412-02060B0 |
CDE120,ZZE120,121..UKP..5D..TERRA LT.GRAY,TRIM1#,8# |
1 | ||
| 62420-02030B0 |
CDE120,NDE120,ZZE12#..UKP..5D W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1# |
1 | ||
| 62420-02030B0 |
CDE120,ZZE12#..UKP..5D..(DCR,DCRL,HTWC,TWC) W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1# |
1 | ||
| 62412-02060B0 |
CDE120,NDE120,ZZE12#..UKP..5D LT.GRAY,TRIM1# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-02070B0 |
CDE120,ZZE12#..UKP..5D..(DCR,DCRL,HTWC,TWC) DK.GRAY,TRIM1# |
1 | ||
| 62413-02070B0 |
CDE120,NDE120,ZZE12#..UKP..5D DK.GRAY,TRIM15 |
1 | ||
| 62413-02070B1 |
CDE120,NDE120,ZZE12#..UKP..5D LT.GRAY,TRIM15 |
1 | ||
| 62413-02070J0 |
CDE120,ZZE120,121..UKP..5D..TERRA DK.BLUE,TRIM8# |
1 | ||
| 62413C - CLIP (FOR CENTER LOWER GARNISH) | ||||
| 90467-10161 |
CDE120,ZZE12#..UKP..5D |
4 | ||
| 90467-10161 |
CDE120,ZZE12#..UKP..5D (J) |
4 | ||
| 90467-W0005 |
CDE120,ZZE12#..UKP..5D (L) |
4 | ||
| 90467-10161 |
CDE120,NDE120,ZZE12#..UKP..5D (J) |
4 | ||
| 90467-W0005 |
CDE120,NDE120,ZZE12#..UKP..5D (L) |
4 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-02070J0 |
CDE120,ZZE120,121..UKP..5D..TERRA DK.BLUE,TRIM8# |
1 | ||
| 62414-02070B0 |
CDE120,ZZE12#..UKP..5D..(DCR,DCRL,HTWC,TWC) DK.GRAY,TRIM1# |
1 | ||
| 62414-02070B0 |
CDE120,NDE120,ZZE12#..UKP..5D DK.GRAY,TRIM15 |
1 | ||
| 62414-02070B1 |
CDE120,NDE120,ZZE12#..UKP..5D LT.GRAY,TRIM15 |
1 | ||
| 62471A - GARNISH, ROOF SIDE, INNER RH | ||||
| 62471-02130B1 |
CDE120,ZZE120,121..UKP..5D..TERRA LT.GRAY,TRIM1#,8# |
1 | ||
| 62470-02050B0 |
CDE120,NDE120,ZZE12#..UKP..5D W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1# |
1 | ||
| 62471-02130B1 |
CDE120,NDE120,ZZE12#..UKP..5D LT.GRAY,TRIM1# |
1 | ||
| 62472A - GARNISH, ROOF SIDE, INNER LH | ||||
| 62472-02130B1 |
CDE120,NDE120,ZZE12#..UKP..5D LT.GRAY,TRIM1# |
1 | ||
| 62480-02040B0 |
CDE120,NDE120,ZZE12#..UKP..5D W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1# |
1 | ||
| 62472-02130B1 |
CDE120,ZZE120,121..UKP..5D..TERRA LT.GRAY,TRIM1#,8# |
1 | ||
| 62475D - PAD, ROOF SIDE INNER GARNISH, RH | ||||
| 62475-02040 |
CDE120,ZZE12#..UKP..5D |
1 | ||
| 62475-02040 |
CDE120,NDE120,ZZE12#..UKP..5D |
1 | ||
| 62498A - PAD, ROOF SIDE INNER GARNISH, LH | ||||
| 62475-02040 |
CDE120,NDE120,ZZE12#..UKP..5D |
1 | ||
| 62475-02040 |
CDE120,ZZE12#..UKP..5D |
1 | ||
| 62551A - COVER, REAR SEAT SIDE, RH | ||||
| 62551-02020B0 |
CDE120,ZZE12#..UKP..5D..(DCR,DCRL,HTWC,TWC) DK.GRAY,TRIM1# |
1 | ||
| 62551-02020B0 |
CDE120,NDE120,ZZE12#..UKP..5D DK.GRAY,TRIM1# |
1 | ||
| 62551-02020J0 |
CDE120,ZZE120,121..UKP..5D..TERRA DK.BLUE,TRIM8# |
1 | ||
| 62552A - COVER, REAR SEAT SIDE, LH | ||||
| 62552-02020J0 |
CDE120,ZZE120,121..UKP..5D..TERRA DK.BLUE,TRIM8# |
1 | ||
| 62552-02020B0 |
CDE120,NDE120,ZZE12#..UKP..5D DK.GRAY,TRIM1# |
1 | ||
| 62552-02020B0 |
CDE120,ZZE12#..UKP..5D..(DCR,DCRL,HTWC,TWC) DK.GRAY,TRIM1# |
1 | ||
| 67911B - PLATE, FRONT DOOR SCUFF, OUTSIDE, RH | ||||
| 67911-02030 |
CDE120,ZZE12#..UKP..5D |
1 | ||
| 67911-02030 |
CDE120,NDE120,ZZE120,121..UKP..5D |
1 | ||
| 67912A - PLATE, FRONT DOOR SCUFF, OUTSIDE LH | ||||
| 67912-02030 |
CDE120,NDE120,ZZE120,121..UKP..5D |
1 | ||
| 67912-02030 |
CDE120,ZZE12#..UKP..5D |
1 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-02080B0 |
CDE120,ZZE12#..UKP..5D..(DCR,DCRL,HTWC,TWC) DK.GRAY,TRIM1# |
1 | ||
| 67913-02080J0 |
CDE120,ZZE120,121..UKP..5D..TERRA DK.BLUE,TRIM8# |
1 | ||
| 67913-02080B0 |
CDE120,NDE120,ZZE12#..UKP..5D DK.GRAY,TRIM1# |
1 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-02080J0 |
CDE120,ZZE120,121..UKP..5D..TERRA DK.BLUE,TRIM8# |
1 | ||
| 67914-02080B0 |
CDE120,ZZE12#..UKP..5D..(DCR,DCRL,HTWC,TWC) DK.GRAY,TRIM1# |
1 | ||
| 67914-02080B0 |
CDE120,NDE120,ZZE12#..UKP..5D DK.GRAY,TRIM1# |
1 | ||
| 67915 - PLATE, REAR DOOR SCUFF, OUTSIDE RH | ||||
| 67915-02020 |
CDE120,ZZE12#..UKP..5D |
1 | ||
| 67915-02020 |
CDE120,NDE120,ZZE12#..UKP..5D |
1 | ||
| 67916 - PLATE, REAR DOOR SCUFF, OUTSIDE LH | ||||
| 67916-02020 |
CDE120,ZZE12#..UKP..5D |
1 | ||
| 67916-02020 |
CDE120,NDE120,ZZE12#..UKP..5D |
1 | ||
| 67917A - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-02070J0 |
CDE120,ZZE120,121..UKP..5D..TERRA DK.BLUE,TRIM8# |
1 | ||
| 67917-02070B0 |
CDE120,ZZE12#..UKP..5D..(DCR,DCRL,HTWC,TWC) DK.GRAY,TRIM1# |
1 | ||
| 67917-02070B0 |
CDE120,NDE120,ZZE12#..UKP..5D DK.GRAY,TRIM1# |
1 | ||
| 67918A - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-02070B0 |
CDE120,ZZE12#..UKP..5D..(DCR,DCRL,HTWC,TWC) DK.GRAY,TRIM1# |
1 | ||
| 67918-02070J0 |
CDE120,ZZE120,121..UKP..5D..TERRA DK.BLUE,TRIM8# |
1 | ||
| 67918-02070B0 |
CDE120,NDE120,ZZE12#..UKP..5D DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 67923-53010 | ||||
| 67924-30060 | ||||
| 67924-46010 | ||||
| 90119-W0066 | ||||
| 90467-10161 | ||||
| 90467-W0005 | ||||

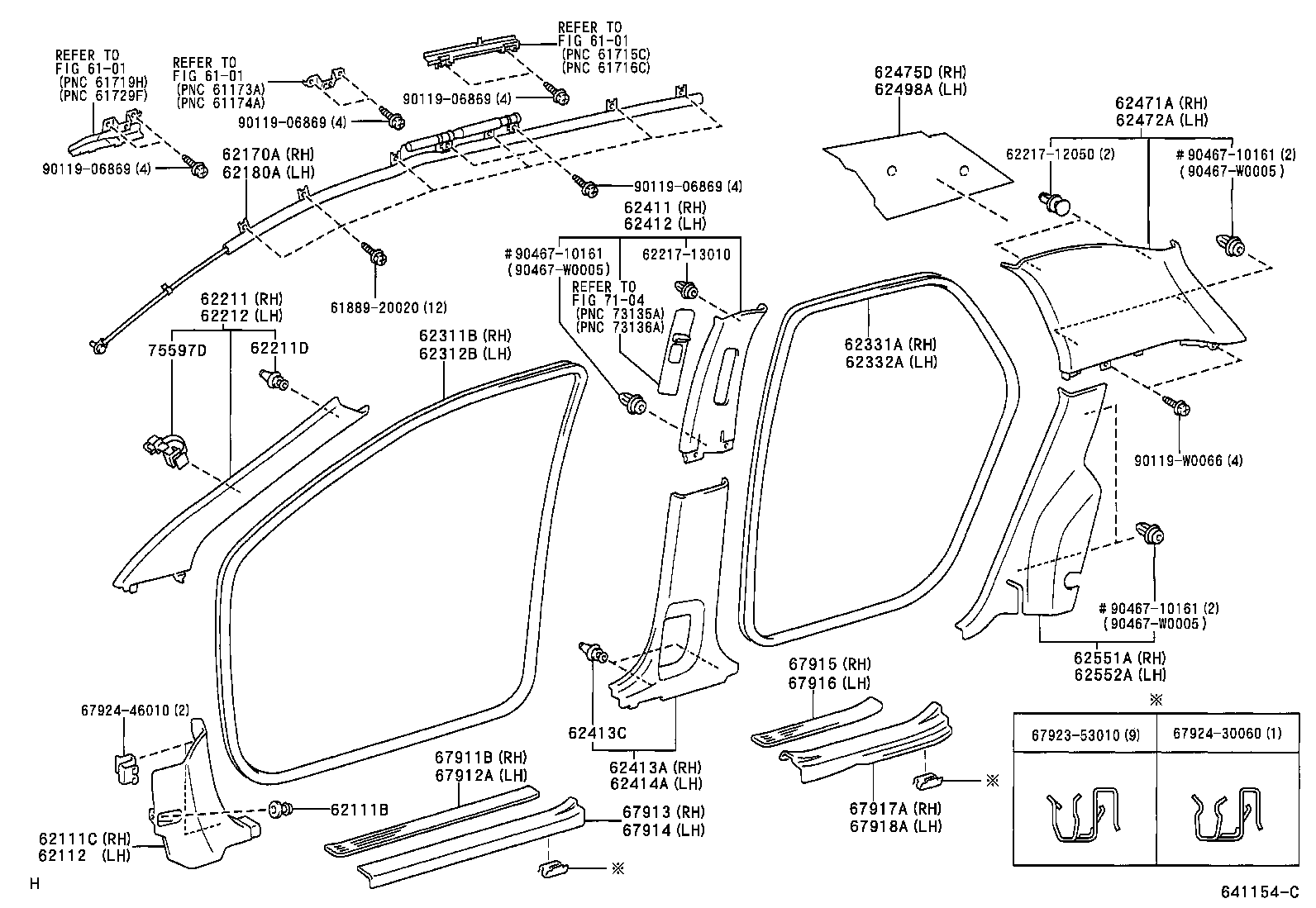

(0301- )UKP..5D
W(CURTAIN SHIELD AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-06191 |
CDE120,NDE120,ZZE12#..UKP |
2 | ||
| 90467-06191 |
CDE120,ZZE12#..UKP |
2 | ||
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-02080J0 |
CDE120,ZZE120,121..UKP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 62111-02080B0 |
ZZE121..UKP..RHD;ZZE121..UKP..LHD..3D;ZZE121..UKP..LHD..5D..SOL;CDE120,NDE120,ZZE120,123..UKP;ZZE121..UKP..LHD..5D..5F..TERRA DK.GRAY,TRIM15 |
1 | ||
| 62111-02080B0 |
CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC) DK.GRAY,TRIM1# |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-02080J0 |
CDE120,ZZE120,121..UKP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 62112-02080B0 |
ZZE121..UKP..RHD;ZZE121..UKP..LHD..3D;ZZE121..UKP..LHD..5D..SOL;CDE120,NDE120,ZZE120,123..UKP;ZZE121..UKP..LHD..5D..5F..TERRA DK.GRAY,TRIM15 |
1 | ||
| 62112-02080B0 |
CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC) DK.GRAY,TRIM1# |
1 | ||
| 62170A - AIR BAG ASSY, CURTAIN SHIELD, RH | ||||
| 62170-02020 |
CDE120,ZZE12#..UKP..5D |
1 | ||
| 62170-02030 |
CDE120,ZZE12#..UKP..5D W(MOON ROOF) |
1 | ||
| 62170-02030 |
CDE120,NDE120,ZZE12#..UKP..5D W(MOON ROOF) |
1 | ||
| 62170-02020 |
CDE120,NDE120,ZZE12#..UKP..5D |
1 | ||
| 62180A - AIR BAG ASSY, CURTAIN SHIELD, LH | ||||
| 62180-02020 |
CDE120,ZZE12#..UKP..5D |
1 | ||
| 62180-02030 |
CDE120,ZZE12#..UKP..5D W(MOON ROOF) |
1 | ||
| 62180-02020 |
CDE120,NDE120,ZZE12#..UKP..5D |
1 | ||
| 62180-02030 |
CDE120,NDE120,ZZE12#..UKP..5D W(MOON ROOF) |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-02060B0 |
ZZE120,121..UKP..TERRA LT.GRAY,TRIM1#,8# |
1 | ||
| 62211-02060B0 |
ZZE12#..UKP LT.GRAY,TRIM1# |
1 | ||
| 62211-02120B1 |
ZZE120,121..UKP..TERRA W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM15,80 |
1 | ||
| 62211-02120B1 |
ZZE12#..UKP W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1# |
1 | ||
| 62211D - CLIP(FOR FRONT BODY PILLAR GARNISH) | ||||
| 90467-W0005 |
CDE120,ZZE12#..UKP (L) |
2 | ||
| 90467-10161 |
CDE120,ZZE12#..UKP (J) |
2 | ||
| 90467-W0005 |
CDE120,NDE120,ZZE12#..UKP (L) |
2 | ||
| 90467-10161 |
CDE120,ZZE12#..UKP |
2 | ||
| 90467-10161 |
CDE120,NDE120,ZZE12#..UKP (J) |
2 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-02060B0 |
ZZE12#..UKP LT.GRAY,TRIM1# |
1 | ||
| 62212-02060B0 |
ZZE120,121..UKP..TERRA LT.GRAY,TRIM1#,8# |
1 | ||
| 62212-02120B1 |
ZZE120,121..UKP..TERRA W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM15,80 |
1 | ||
| 62212-02120B1 |
ZZE12#..UKP W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1# |
1 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-12120J0 |
CDE120,ZZE120,121..UKP..5D..TERRA DK.BLUE,TRIM8#,(J) |
1 | ||
| 62311-12120B0 |
CDE120,ZZE12#..UKP..5D DK.GRAY,TRIM1#,(J) |
1 | ||
| 62311-02040J0 |
CDE120,ZZE120,121..UKP..5D..TERRA DK.BLUE,TRIM8#,(L) |
1 | ||
| 62311-02040B0 |
CDE120,ZZE12#..UKP..5D DK.GRAY,TRIM1#,(L) |
1 | ||
| 62311-02040B0 |
CDE120,NDE120,ZZE12#..UKP..5D DK.GRAY,TRIM1# |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-12120B0 |
CDE120,ZZE12#..UKP..5D DK.GRAY,TRIM1#,(J) |
1 | ||
| 62312-12120J0 |
CDE120,ZZE120,121..UKP..5D..TERRA DK.BLUE,TRIM8#,(J) |
1 | ||
| 62312-02040B0 |
CDE120,ZZE12#..UKP..5D DK.GRAY,TRIM1#,(L) |
1 | ||
| 62312-02040J0 |
CDE120,ZZE120,121..UKP..5D..TERRA DK.BLUE,TRIM8#,(L) |
1 | ||
| 62312-02040B0 |
CDE120,NDE120,ZZE12#..UKP..5D DK.GRAY,TRIM1# |
1 | ||
| 62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH | ||||
| 62331-12080B0 |
CDE120,ZZE12#..UKP..5D DK.GRAY,TRIM1#,(J) |
1 | ||
| 62331-02030B0 |
CDE120,ZZE12#..UKP..5D DK.GRAY,TRIM1#,(L) |
1 | ||
| 62331-02030J0 |
CDE120,ZZE120,121..UKP..5D..TERRA DK.BLUE,TRIM8#,(L) |
1 | ||
| 62331-12080J0 |
CDE120,ZZE120,121..UKP..5D..TERRA DK.BLUE,TRIM8#,(J) |
1 | ||
| 62331-12170B0 |
CDE120,NDE120,ZZE12#..UKP..5D DK.GRAY,TRIM1# |
1 | ||
| 62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH | ||||
| 62332-12080J0 |
CDE120,ZZE120,121..UKP..5D..TERRA DK.BLUE,TRIM8#,(J) |
1 | ||
| 62332-12170B0 |
CDE120,NDE120,ZZE12#..UKP..5D DK.GRAY,TRIM1# |
1 | ||
| 62332-02030J0 |
CDE120,ZZE120,121..UKP..5D..TERRA DK.BLUE,TRIM8#,(L) |
1 | ||
| 62332-02030B0 |
CDE120,ZZE12#..UKP..5D DK.GRAY,TRIM1#,(L) |
1 | ||
| 62332-12080B0 |
CDE120,ZZE12#..UKP..5D DK.GRAY,TRIM1#,(J) |
1 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62410-02030B0 |
CDE120,NDE120,ZZE12#..UKP..5D W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1# |
1 | ||
| 62411-02070B0 |
CDE120,ZZE120,121..UKP..5D..TERRA LT.GRAY,TRIM1#,8# |
1 | ||
| 62410-02030A0 |
CDE120,ZZE12#..UKP..5D..(DCR,DCRL,HTWC,TWC) W(SRS CURTAIN SHIELD AIR BAG),IVORY,TRIM0# |
1 | ||
| 62410-02030B0 |
CDE120,ZZE12#..UKP..5D..(DCR,DCRL,HTWC,TWC) W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1# |
1 | ||
| 62411-02070B0 |
CDE120,NDE120,ZZE12#..UKP..5D LT.GRAY,TRIM1# |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62420-02030A0 |
CDE120,ZZE12#..UKP..5D..(DCR,DCRL,HTWC,TWC) W(SRS CURTAIN SHIELD AIR BAG),IVORY,TRIM0# |
1 | ||
| 62412-02060B0 |
CDE120,ZZE120,121..UKP..5D..TERRA LT.GRAY,TRIM1#,8# |
1 | ||
| 62420-02030B0 |
CDE120,NDE120,ZZE12#..UKP..5D W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1# |
1 | ||
| 62420-02030B0 |
CDE120,ZZE12#..UKP..5D..(DCR,DCRL,HTWC,TWC) W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1# |
1 | ||
| 62412-02060B0 |
CDE120,NDE120,ZZE12#..UKP..5D LT.GRAY,TRIM1# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-02070B0 |
CDE120,ZZE12#..UKP..5D..(DCR,DCRL,HTWC,TWC) DK.GRAY,TRIM1# |
1 | ||
| 62413-02070B0 |
CDE120,NDE120,ZZE12#..UKP..5D DK.GRAY,TRIM15 |
1 | ||
| 62413-02070B1 |
CDE120,NDE120,ZZE12#..UKP..5D LT.GRAY,TRIM15 |
1 | ||
| 62413-02070J0 |
CDE120,ZZE120,121..UKP..5D..TERRA DK.BLUE,TRIM8# |
1 | ||
| 62413C - CLIP (FOR CENTER LOWER GARNISH) | ||||
| 90467-10161 |
CDE120,ZZE12#..UKP..5D |
4 | ||
| 90467-10161 |
CDE120,ZZE12#..UKP..5D (J) |
4 | ||
| 90467-W0005 |
CDE120,ZZE12#..UKP..5D (L) |
4 | ||
| 90467-10161 |
CDE120,NDE120,ZZE12#..UKP..5D (J) |
4 | ||
| 90467-W0005 |
CDE120,NDE120,ZZE12#..UKP..5D (L) |
4 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-02070J0 |
CDE120,ZZE120,121..UKP..5D..TERRA DK.BLUE,TRIM8# |
1 | ||
| 62414-02070B0 |
CDE120,ZZE12#..UKP..5D..(DCR,DCRL,HTWC,TWC) DK.GRAY,TRIM1# |
1 | ||
| 62414-02070B0 |
CDE120,NDE120,ZZE12#..UKP..5D DK.GRAY,TRIM15 |
1 | ||
| 62414-02070B1 |
CDE120,NDE120,ZZE12#..UKP..5D LT.GRAY,TRIM15 |
1 | ||
| 62471A - GARNISH, ROOF SIDE, INNER RH | ||||
| 62471-02130B1 |
CDE120,ZZE120,121..UKP..5D..TERRA LT.GRAY,TRIM1#,8# |
1 | ||
| 62470-02050B0 |
CDE120,NDE120,ZZE12#..UKP..5D W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1# |
1 | ||
| 62471-02130B1 |
CDE120,NDE120,ZZE12#..UKP..5D LT.GRAY,TRIM1# |
1 | ||
| 62472A - GARNISH, ROOF SIDE, INNER LH | ||||
| 62472-02130B1 |
CDE120,NDE120,ZZE12#..UKP..5D LT.GRAY,TRIM1# |
1 | ||
| 62480-02040B0 |
CDE120,NDE120,ZZE12#..UKP..5D W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1# |
1 | ||
| 62472-02130B1 |
CDE120,ZZE120,121..UKP..5D..TERRA LT.GRAY,TRIM1#,8# |
1 | ||
| 62475D - PAD, ROOF SIDE INNER GARNISH, RH | ||||
| 62475-02040 |
CDE120,ZZE12#..UKP..5D |
1 | ||
| 62475-02040 |
CDE120,NDE120,ZZE12#..UKP..5D |
1 | ||
| 62498A - PAD, ROOF SIDE INNER GARNISH, LH | ||||
| 62475-02040 |
CDE120,NDE120,ZZE12#..UKP..5D |
1 | ||
| 62475-02040 |
CDE120,ZZE12#..UKP..5D |
1 | ||
| 62551A - COVER, REAR SEAT SIDE, RH | ||||
| 62551-02020B0 |
CDE120,ZZE12#..UKP..5D..(DCR,DCRL,HTWC,TWC) DK.GRAY,TRIM1# |
1 | ||
| 62551-02020B0 |
CDE120,NDE120,ZZE12#..UKP..5D DK.GRAY,TRIM1# |
1 | ||
| 62551-02020J0 |
CDE120,ZZE120,121..UKP..5D..TERRA DK.BLUE,TRIM8# |
1 | ||
| 62552A - COVER, REAR SEAT SIDE, LH | ||||
| 62552-02020J0 |
CDE120,ZZE120,121..UKP..5D..TERRA DK.BLUE,TRIM8# |
1 | ||
| 62552-02020B0 |
CDE120,NDE120,ZZE12#..UKP..5D DK.GRAY,TRIM1# |
1 | ||
| 62552-02020B0 |
CDE120,ZZE12#..UKP..5D..(DCR,DCRL,HTWC,TWC) DK.GRAY,TRIM1# |
1 | ||
| 67911B - PLATE, FRONT DOOR SCUFF, OUTSIDE, RH | ||||
| 67911-02030 |
CDE120,ZZE12#..UKP..5D |
1 | ||
| 67911-02030 |
CDE120,NDE120,ZZE120,121..UKP..5D |
1 | ||
| 67912A - PLATE, FRONT DOOR SCUFF, OUTSIDE LH | ||||
| 67912-02030 |
CDE120,NDE120,ZZE120,121..UKP..5D |
1 | ||
| 67912-02030 |
CDE120,ZZE12#..UKP..5D |
1 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-02080B0 |
CDE120,ZZE12#..UKP..5D..(DCR,DCRL,HTWC,TWC) DK.GRAY,TRIM1# |
1 | ||
| 67913-02080J0 |
CDE120,ZZE120,121..UKP..5D..TERRA DK.BLUE,TRIM8# |
1 | ||
| 67913-02080B0 |
CDE120,NDE120,ZZE12#..UKP..5D DK.GRAY,TRIM1# |
1 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-02080J0 |
CDE120,ZZE120,121..UKP..5D..TERRA DK.BLUE,TRIM8# |
1 | ||
| 67914-02080B0 |
CDE120,ZZE12#..UKP..5D..(DCR,DCRL,HTWC,TWC) DK.GRAY,TRIM1# |
1 | ||
| 67914-02080B0 |
CDE120,NDE120,ZZE12#..UKP..5D DK.GRAY,TRIM1# |
1 | ||
| 67915 - PLATE, REAR DOOR SCUFF, OUTSIDE RH | ||||
| 67915-02020 |
CDE120,ZZE12#..UKP..5D |
1 | ||
| 67915-02020 |
CDE120,NDE120,ZZE12#..UKP..5D |
1 | ||
| 67916 - PLATE, REAR DOOR SCUFF, OUTSIDE LH | ||||
| 67916-02020 |
CDE120,ZZE12#..UKP..5D |
1 | ||
| 67916-02020 |
CDE120,NDE120,ZZE12#..UKP..5D |
1 | ||
| 67917A - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-02070J0 |
CDE120,ZZE120,121..UKP..5D..TERRA DK.BLUE,TRIM8# |
1 | ||
| 67917-02070B0 |
CDE120,ZZE12#..UKP..5D..(DCR,DCRL,HTWC,TWC) DK.GRAY,TRIM1# |
1 | ||
| 67917-02070B0 |
CDE120,NDE120,ZZE12#..UKP..5D DK.GRAY,TRIM1# |
1 | ||
| 67918A - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-02070B0 |
CDE120,ZZE12#..UKP..5D..(DCR,DCRL,HTWC,TWC) DK.GRAY,TRIM1# |
1 | ||
| 67918-02070J0 |
CDE120,ZZE120,121..UKP..5D..TERRA DK.BLUE,TRIM8# |
1 | ||
| 67918-02070B0 |
CDE120,NDE120,ZZE12#..UKP..5D DK.GRAY,TRIM1# |
1 | ||
| 75597D - CLIP, ROOF SIDE GARNISH | ||||
| 75597-05010 |
CDE120,ZZE12#..UKP |
2 | ||
| 75597-0F010 |
CDE120,NDE120,ZZE12#..UKP |
2 | ||
| 75597-0F010 |
CDE120,ZZE12#..UKP |
2 | ||
| Common parts | ||||
| 61889-20020 | ||||
| 62217-12050 | ||||
| 62217-13010 | ||||
| 67923-53010 | ||||
| 67924-30060 | ||||
| 67924-46010 | ||||
| 90119-06869 | ||||
| 90119-W0066 | ||||
| 90467-10161 | ||||
| 90467-W0005 | ||||
| Linked diagrams | ||||
| 6101 | ||||
| 7104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
