Toyota Corolla hb (ukp) ZZE121 ROOF PANEL & BACK WINDOW GLASS

Manufacturers Home
Toyota
EU
COROLLA HB (UKP)
ZZE121R-DHPDKW (2001)
6104 - ROOF PANEL & BACK WINDOW GLASS

ZZE121R-DHPDKW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - Feb 2007

Engine 3ZZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0111-0405)UKP

Click highlighted areas on diagram

MOON ROOF

Part #	Description	Period	Qty
63201G - GLASS SUB-ASSY, SLIDING ROOF
63201-02040	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
63201-02040	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
63202H - RAIL SUB-ASSY, SLIDE ROOF
63202-02900B0	CDE120,ZZE120,121..UKP..TERRA LT.GRAY,TRIM1#,8#	11/2001 - 05/2004	1
63203F - HOUSING SUB-ASSY, SLIDING ROOF
63200-02041B1	CDE120,ZZE120,121..UKP..TERRA LT.GRAY,TRIM1#,8#	10/2003 - 12/2003	1
63200-02040B1	CDE120,ZZE120,121..UKP..TERRA LT.GRAY,TRIM1#,8#	11/2001 - 10/2003	1
63200-02060B0	CDE120,NDE120,ZZE12#..UKP LT.GRAY,TRIM1#	05/2004 - 02/2007	1
63200-02042B1	CDE120,ZZE120,121..UKP..TERRA LT.GRAY,TRIM1#,8#	12/2003 - 05/2004	1
63214F - CHANNEL, ROOF DRIP, REAR
63214-02040	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
63214-02040	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
63218H - HOSE, SLIDING ROOF DRAIN
63249-02090	CDE120,ZZE12#..UKP	11/2001 - 10/2003	2
63249-02091	CDE120,ZZE12#..UKP	10/2003 - 05/2004	2
63249-02091	CDE120,NDE120,ZZE12#..UKP	05/2004 - 09/2006	2
63249-02092	CDE120,NDE120,ZZE12#..UKP	10/2006 - 12/2999	2
63241B - BRACKET, SLIDING ROOF HOUSING, NO.1
63241-02040	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	4
63241-02040	CDE120,ZZE12#..UKP	11/2001 - 05/2004	4
63241B - BRACKET, SLIDING ROOF HOUSING, NO.1
63241-02040	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	4
63241-02040	CDE120,ZZE12#..UKP	11/2001 - 05/2004	4
63249E - HOSE, SLIDING ROOF DRAIN
63249-02101	CDE120,NDE120,ZZE12#..UKP	05/2004 - 09/2006	2
63249-02101	CDE120,ZZE12#..UKP	10/2003 - 05/2004	2
63249-02100	CDE120,ZZE12#..UKP	11/2001 - 10/2003	2
63249-02102	CDE120,NDE120,ZZE12#..UKP	10/2006 - 12/2999	2
63251H - WEATHERSTRIP, SLIDING ROOF
63251-02040	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
63251-02040	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE
63260-02020	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
63260-02050	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
Common parts
90080-46315
90119-06033
90119-06098
90179-06274
90467-14001
90480-26026
90959-01566
90959-01620
Linked diagrams
6402

ILLUST NO. 1 OF 2(0111- )UKP

Click highlighted areas on diagram

Part #	Description	Period	Qty
63102 - REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT
63102-12150	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
63102-13090	CDE120,NDE120,ZZE12#..UKP W(MOON ROOF)	05/2004 - 12/2999	1
63102-13090	CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC) W(MOON ROOF)	11/2001 - 05/2004	1
63102-12150	CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC)	11/2001 - 05/2004	1
63102 - REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT
63102-12150	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
63102-13090	CDE120,NDE120,ZZE12#..UKP W(MOON ROOF)	05/2004 - 12/2999	1
63102-13090	CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC) W(MOON ROOF)	11/2001 - 05/2004	1
63102-12150	CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC)	11/2001 - 05/2004	1
63105A - FRAME SUB-ASSY, BACK DOOR OPENING
63105-13200	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
63105-13200	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
63105A - FRAME SUB-ASSY, BACK DOOR OPENING
63105-13200	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
63105-13200	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
63111 - PANEL, ROOF
63111-02130	CDE120,ZZE12#..UKP W(MOON ROOF)	11/2001 - 05/2004	1
63111-02130	CDE120,NDE120,ZZE12#..UKP W(MOON ROOF)	05/2004 - 12/2999	1
63111-02120	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
63111-02120	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
63111 - PANEL, ROOF
63111-02130	CDE120,ZZE12#..UKP W(MOON ROOF)	11/2001 - 05/2004	1
63111-02130	CDE120,NDE120,ZZE12#..UKP W(MOON ROOF)	05/2004 - 12/2999	1
63111-02120	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
63111-02120	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
63118 - SUPPORT, ROOF PANEL, RH
63118-12100	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
63118-12100	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
63119 - SUPPORT, ROOF PANEL, LH
63118-12100	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
63118-12100	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
63126B - REINFORCEMENT, ROOF PANEL, REAR NO.2
63126-13010	CDE120,NDE120,ZZE12#..UKP (J)	05/2004 - 12/2999	1
63126-13010	CDE120,ZZE12#..UKP (J)	11/2001 - 05/2004	1
63126-02010	CDE120,ZZE12#..UKP (L)	01/2003 - 05/2004	1
63126-02010	CDE120,NDE120,ZZE12#..UKP (L)	05/2004 - 12/2999	1
63126B - REINFORCEMENT, ROOF PANEL, REAR NO.2
63126-13010	CDE120,NDE120,ZZE12#..UKP (J)	05/2004 - 12/2999	1
63126-13010	CDE120,ZZE12#..UKP (J)	11/2001 - 05/2004	1
63126-02010	CDE120,ZZE12#..UKP (L)	01/2003 - 05/2004	1
63126-02010	CDE120,NDE120,ZZE12#..UKP (L)	05/2004 - 12/2999	1
63138 - BRACKET, DOME LAMP, NO.2
63138-12011	CDE120,ZZE12#..UKP	11/2001 - 05/2004	2
63138-12011	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	2
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63141-13080	CDE120,ZZE12#..UKP (J)	11/2001 - 05/2004	1
63141-13080	CDE120,NDE120,ZZE12#..UKP (J)	05/2004 - 12/2999	1
63141-02050	CDE120,NDE120,ZZE12#..UKP (L)	05/2004 - 12/2999	1
63141-02050	CDE120,ZZE12#..UKP (L)	01/2003 - 05/2004	1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63103-02010	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
63103-02010	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-12100	CDE120,ZZE12#..UKP (J)	01/2003 - 05/2004	1
63143-12100	CDE120,ZZE12#..UKP	11/2001 - 01/2003	1
63143-02020	CDE120,ZZE12#..UKP (L)	01/2003 - 05/2004	1
63143-02020	CDE120,NDE120,ZZE12#..UKP (L)	05/2004 - 12/2999	1
63143-12100	CDE120,NDE120,ZZE12#..UKP (J)	05/2004 - 12/2999	1
63144A - REINFORCEMENT, ROOF PANEL, NO.4
63144-13030	CDE120,ZZE12#..UKP (J)	11/2001 - 05/2004	1
63144-02030	CDE120,ZZE12#..UKP (L)	01/2003 - 05/2004	1
63144-02030	CDE120,NDE120,ZZE12#..UKP (L)	05/2004 - 12/2999	1
63144-13030	CDE120,NDE120,ZZE12#..UKP (J)	05/2004 - 12/2999	1
63148A - REINFORCEMENT, ROOF PANEL, NO.7
63148-02020	CDE120,NDE120,ZZE12#..UKP (L)	05/2004 - 12/2999	1
63148-02020	CDE120,ZZE12#..UKP (L)	01/2003 - 05/2004	1
63148-13030	CDE120,ZZE12#..UKP (J)	11/2001 - 05/2004	1
63148-13030	CDE120,NDE120,ZZE12#..UKP (J)	05/2004 - 12/2999	1
63148A - REINFORCEMENT, ROOF PANEL, NO.7
63148-02020	CDE120,NDE120,ZZE12#..UKP (L)	05/2004 - 12/2999	1
63148-02020	CDE120,ZZE12#..UKP (L)	01/2003 - 05/2004	1
63148-13030	CDE120,ZZE12#..UKP (J)	11/2001 - 05/2004	1
63148-13030	CDE120,NDE120,ZZE12#..UKP (J)	05/2004 - 12/2999	1
63175A - REINFORCEMENT, BACK DOOR HINGE FEMALE, RH
63175-52020	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
63175-52020	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
63175A - REINFORCEMENT, BACK DOOR HINGE FEMALE, RH
63175-52020	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
63175-52020	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
63176A - REINFORCEMENT, BACK DOOR HINGE FEMALE, LH
63176-52020	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
63176-52020	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
63176A - REINFORCEMENT, BACK DOOR HINGE FEMALE, LH
63176-52020	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
63176-52020	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
Common parts
90080-10276
90179-06274
91511-B0610

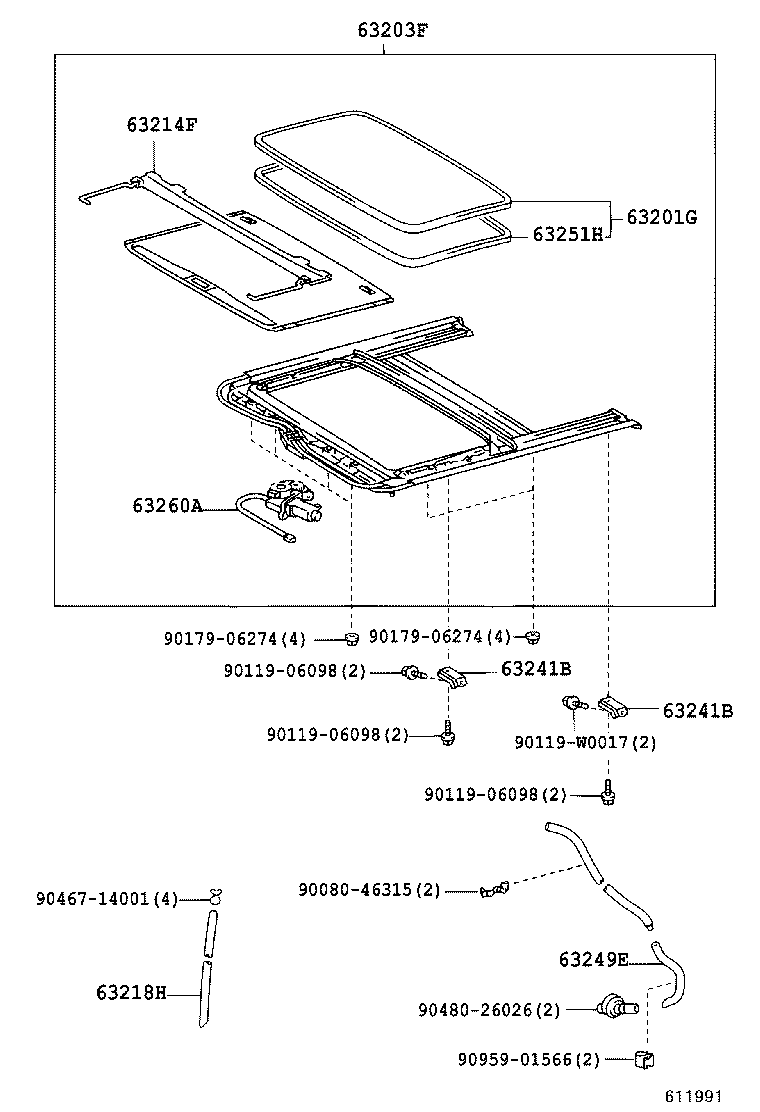

ILLUST NO. 2 OF 2(0405- )UKP

Click highlighted areas on diagram

MOON ROOF

Part #	Description	Period	Qty
63201G - GLASS SUB-ASSY, SLIDING ROOF
63201-02040	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
63201-02040	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
63203F - HOUSING SUB-ASSY, SLIDING ROOF
63200-02041B1	CDE120,ZZE120,121..UKP..TERRA LT.GRAY,TRIM1#,8#	10/2003 - 12/2003	1
63200-02040B1	CDE120,ZZE120,121..UKP..TERRA LT.GRAY,TRIM1#,8#	11/2001 - 10/2003	1
63200-02060B0	CDE120,NDE120,ZZE12#..UKP LT.GRAY,TRIM1#	05/2004 - 02/2007	1
63200-02042B1	CDE120,ZZE120,121..UKP..TERRA LT.GRAY,TRIM1#,8#	12/2003 - 05/2004	1
63214F - CHANNEL, ROOF DRIP, REAR
63214-02040	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
63214-02040	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
63218H - HOSE, SLIDING ROOF DRAIN
63249-02090	CDE120,ZZE12#..UKP	11/2001 - 10/2003	2
63249-02091	CDE120,ZZE12#..UKP	10/2003 - 05/2004	2
63249-02091	CDE120,NDE120,ZZE12#..UKP	05/2004 - 09/2006	2
63249-02092	CDE120,NDE120,ZZE12#..UKP	10/2006 - 12/2999	2
63241B - BRACKET, SLIDING ROOF HOUSING, NO.1
63241-02040	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	4
63241-02040	CDE120,ZZE12#..UKP	11/2001 - 05/2004	4
63241B - BRACKET, SLIDING ROOF HOUSING, NO.1
63241-02040	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	4
63241-02040	CDE120,ZZE12#..UKP	11/2001 - 05/2004	4
63249E - HOSE, SLIDING ROOF DRAIN
63249-02101	CDE120,NDE120,ZZE12#..UKP	05/2004 - 09/2006	2
63249-02101	CDE120,ZZE12#..UKP	10/2003 - 05/2004	2
63249-02100	CDE120,ZZE12#..UKP	11/2001 - 10/2003	2
63249-02102	CDE120,NDE120,ZZE12#..UKP	10/2006 - 12/2999	2
63251H - WEATHERSTRIP, SLIDING ROOF
63251-02040	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
63251-02040	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE
63260-02020	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
63260-02050	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
Common parts
90080-46315
90119-06098
90119-W0017
90179-06274
90467-14001
90480-26026
90959-01566

ZZE121R-DHPDKW (2001)

ILLUST NO. 2 OF 2(0111-0405)UKP

ILLUST NO. 1 OF 2(0111- )UKP

ILLUST NO. 2 OF 2(0405- )UKP
