ZZE121R-DHPDKW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - Feb 2007
Engine 3ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0111- )UKP

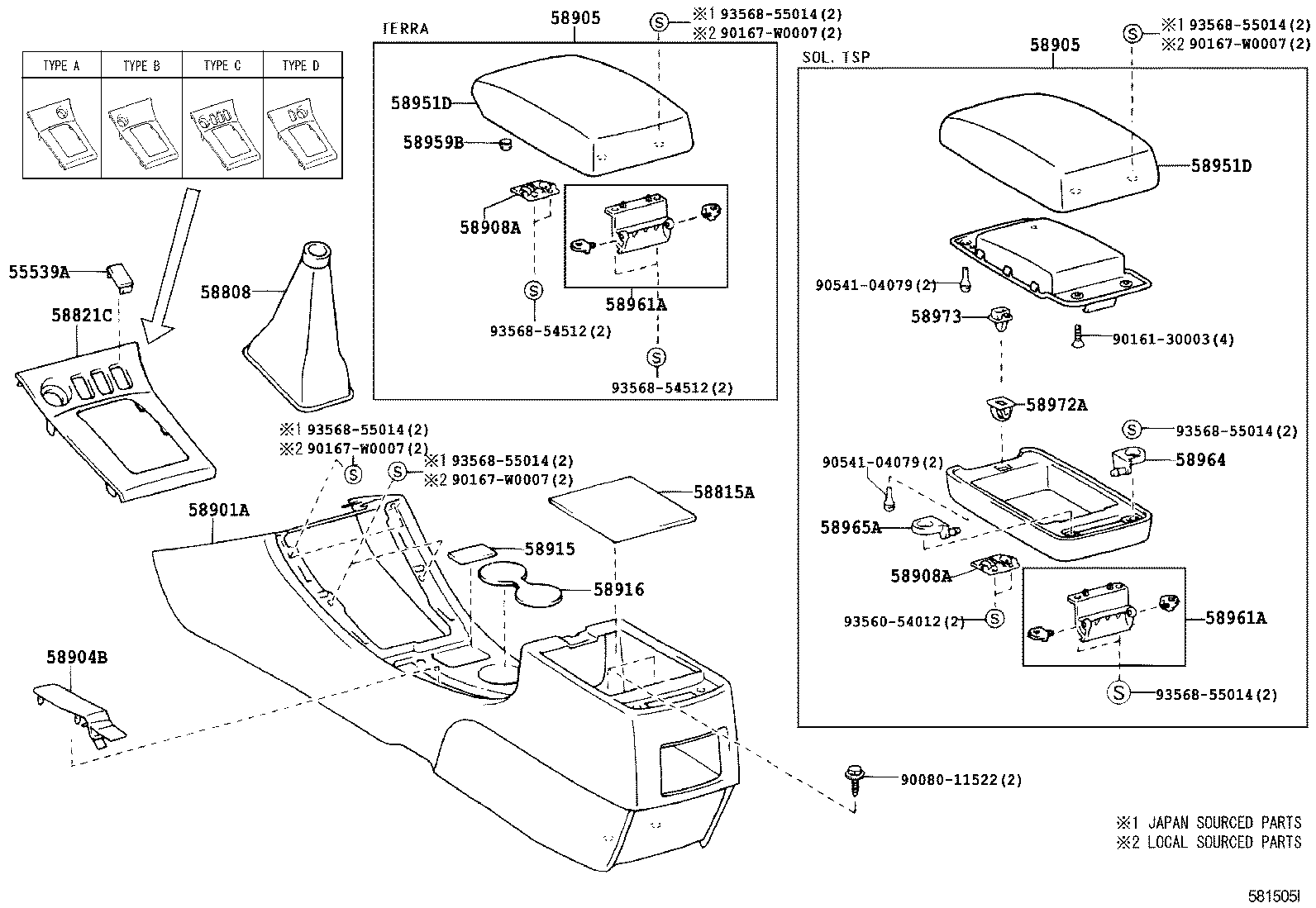

Click highlighted areas on diagram

diagram 55539A 58808 58815A 58821C 58901A 58904B 58905 58905 58908A 58908A 58915 58916 58951D 58951D 58959B 58961A 58961A 58964 58965A 58972A 58973 9008011522 9016130003 90167W0007 90167W0007 90167W0007 90167W0007 9054104079 9054104079 9356054012 9356854512 9356854512 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014
Part # Description Qty Price
55539A - COVER, SPARE SWITCH HOLE
55539-02080J0

CDE120..UKP..LHD..TERRA..DCRL;CDE120,ZZE120,121..UKP..TERRA..(DCR,HTWC)

DK.BLUE,TRIM8#

 1
55539-02080B0

CDE120..UKP..LHD..DCRL;CDE120,ZZE12#..UKP..(DCR,HDCR,HTWC,TWC)

DK.GRAY,TRIM1#

 1
58815A - CARPET, CONSOLE BOX
58815-02020

CDE120,NDE120,ZZE12#..UKP

 1
58815-02020

CDE120,ZZE12#..UKP

 1
58821C - PANEL, CONSOLE, UPPER
58821-02110B0

CDE120,ZZE120,121..UKP..RHD..TERRA

TYPE A:REFER TO ILLUSTRATION,DARK GRAY,TRIM1#,8#

 1
58821-02120B1

CDE120,NDE120,ZZE120,121..UKP..RHD..(4FC,5F)..TERRA

TYPE A:REFER TO ILLUSTRATION & TRIM = TYPE B-*104,DARK GRAY ME.22GY34,TRIM1#

 1
58821-02110B0

CDE120,NDE120,ZZE120,121..UKP..RHD..(4FC,5F)..TERRA

TYPE A:REFER TO ILLUSTRATION & TRIM = TYPE A-*104,DARK GRAY,TRIM1#

 1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-02060B0

CDE120,ZZE12#..UKP..RHD..(DCR,DCRL,HTWC,TWC)

DK.GRAY,TRIM1#

 1
58901-02060J0

CDE120,ZZE120,121..UKP..RHD..TERRA

DK.BLUE,TRIM8#

 1
58901-02060B0

CDE120,NDE120,ZZE12#..UKP..RHD

DK.GRAY,TRIM1#

 1
58904B - COVER SUB-ASSY, PARKING BRAKE HOLE
58904-02030B0

CDE120,ZZE12#..UKP..RHD..(DCR,DCRL,HTWC,TWC)

DK.GRAY,TRIM1#

 1
58904-02030B0

CDE120,NDE120,ZZE12#..UKP..RHD

DK.GRAY,TRIM1#

 1
58904-02030J0

CDE120,ZZE120,121..UKP..RHD..TERRA

DK.BLUE,TRIM8#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-02170J0

CDE120,ZZE120,121..UKP..TERRA

DK.BLUE,TRIM8#

 1
58905-02170B0

CDE120,ZZE120,121..UKP..TERRA

DK.GRAY,TRIM1#

 1
58905-02170B0

CDE120,NDE120,ZZE120,121..UKP..TERRA

DK.GRAY,TRIM1#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-02170J0

CDE120,ZZE120,121..UKP..TERRA

DK.BLUE,TRIM8#

 1
58905-02170B0

CDE120,ZZE120,121..UKP..TERRA

DK.GRAY,TRIM1#

 1
58905-02170B0

CDE120,NDE120,ZZE120,121..UKP..TERRA

DK.GRAY,TRIM1#

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-33030

CDE120,ZZE12#..UKP

 1
58908-33030

CDE120,NDE120,ZZE12#..UKP

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-33030

CDE120,ZZE12#..UKP

 1
58908-33030

CDE120,NDE120,ZZE12#..UKP

 1
58915 - PANEL, BOX BOTTOM
58915-02010J0

CDE120,ZZE120,121..UKP..TERRA

DK.BLUE,TRIM8#

 1
58915-02010B0

CDE120,NDE120,ZZE12#..UKP

DK.GRAY,TRIM1#

 1
58915-02010B0

CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC)

DK.GRAY,TRIM1#

 1
58916 - MAT, BOX BOTTOM
58916-02050B0

CDE120,NDE120,ZZE12#..UKP

DK.GRAY,TRIM1#

 1
58916-02050B0

CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC)

DK.GRAY,TRIM1#

 1
58916-02050J0

CDE120,ZZE120,121..UKP..TERRA

DK.BLUE,TRIM8#

 1
58951D - DOOR, CONSOLE COMPARTMENT, OUTER
58951-02120J0

CDE120,ZZE120,121..UKP..TERRA

DK.BLUE,TRIM8#

 1
58951-02120B0

CDE120,ZZE120,121..UKP..TERRA

DK.GRAY,TRIM1#

 1
58951-02120B0

CDE120,NDE120,ZZE120,121..UKP..TERRA

DK.GRAY,TRIM1#

 1
58951D - DOOR, CONSOLE COMPARTMENT, OUTER
58951-02120J0

CDE120,ZZE120,121..UKP..TERRA

DK.BLUE,TRIM8#

 1
58951-02120B0

CDE120,ZZE120,121..UKP..TERRA

DK.GRAY,TRIM1#

 1
58951-02120B0

CDE120,NDE120,ZZE120,121..UKP..TERRA

DK.GRAY,TRIM1#

 1
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
58959-16020

CDE120,NDE120,ZZE120,121..UKP..TERRA

 2
58959-16020

CDE120,ZZE120,121..UKP..TERRA

 2
58961A - HINGE, CONSOLE COMPARTMENT DOOR MALE
58907-12050

CDE120,ZZE12#..UKP

 1
58907-12050

CDE120,NDE120,ZZE12#..UKP

 1
58961A - HINGE, CONSOLE COMPARTMENT DOOR MALE
58907-12050

CDE120,ZZE12#..UKP

 1
58907-12050

CDE120,NDE120,ZZE12#..UKP

 1
Common parts
90080-11522
90161-30003
90167-W0007
90541-04079
93560-54012
93568-54512
93568-55014
