ZZE121R-DHPDKW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - Feb 2007
Engine 3ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0111- )UKP

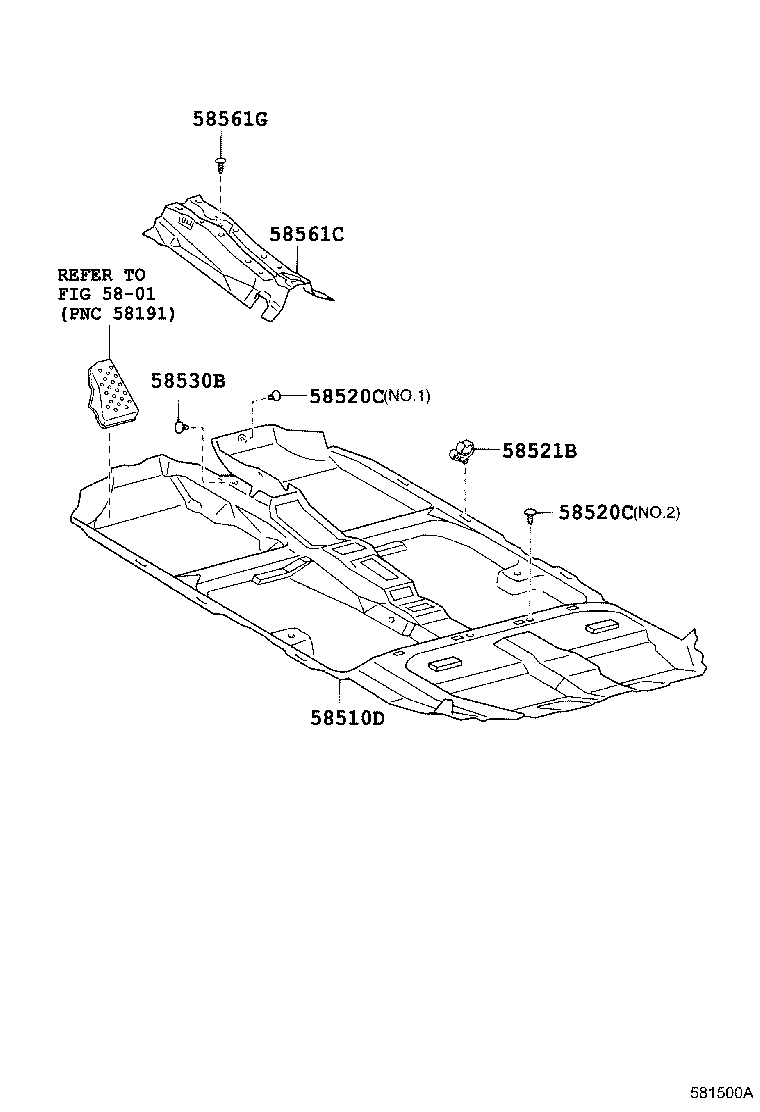

Click highlighted areas on diagram

diagram 5801 58510D 58520C 58520C 58521B 58530B 58561C 58561G
Part # Description Qty Price
58510D - CARPET ASSY, FLOOR, FRONT
58510-02370B0

CDE120,ZZE12#..UKP..RHD..5D

DK.GRAY,TRIM1#

 1
58510-02370J0

CDE120,ZZE120,121..UKP..RHD..5D..TERRA

DK.BLUE,TRIM8#

 1
58510-02750B0

CDE120,NDE120,ZZE120,121..UKP..RHD..5D

DK.GRAY,TRIM1#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-07049B7

CDE120,ZZE120,121..UKP..TERRA

DK.GRAY,TRIM1#,8#,NO.2

 2
90467-06001B3

CDE120,ZZE120,121..UKP..TERRA

DK.GRAY,TRIM1#,8#,NO.1

 1
90467-06001B3

CDE120,NDE120,ZZE12#..UKP

DK.GRAY,TRIM1#,NO.1

 1
90467-07049B7

CDE120,NDE120,ZZE12#..UKP

DK.GRAY,TRIM1#,NO.2

 2
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-07049B7

CDE120,ZZE120,121..UKP..TERRA

DK.GRAY,TRIM1#,8#,NO.2

 2
90467-06001B3

CDE120,ZZE120,121..UKP..TERRA

DK.GRAY,TRIM1#,8#,NO.1

 1
90467-06001B3

CDE120,NDE120,ZZE12#..UKP

DK.GRAY,TRIM1#,NO.1

 1
90467-07049B7

CDE120,NDE120,ZZE12#..UKP

DK.GRAY,TRIM1#,NO.2

 2
58521B - HOOK, FLOOR CARPET
58521-13020

CDE120,ZZE12#..UKP

 6
58521-13020

CDE120,NDE120,ZZE12#..UKP

 6
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-09118

CDE120,ZZE12#..UKP

 2
90467-07090B3

ZZE123..UKP;CDE120,NDE120,ZZE120,121..UKP..TERRA

DK.GRAY,TRIM1#

 2
90467-07090B3

CDE120,ZZE120,121..UKP..TERRA

DK.GRAY,TRIM1#,8#

 2
58561C - SILENCER, FRONT FLOOR, NO.1
58561-02031

CDE120,ZZE12#..UKP

 1
58561-05031

ZZE12#..UKP

 1
58561-02030

CDE120,ZZE12#..UKP

 1
58561-05033

ZZE12#..UKP

 1
58561G - CLIP(FOR FRONT FLOOR SILENCER)
90467-06020B6

CDE120,ZZE120,121..UKP..TERRA

DK.GRAY,TRIM1#,8#

 2
Linked diagrams
5801
