ZZE121R-DHPDKW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - Feb 2007
Engine 3ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0111- )UKP

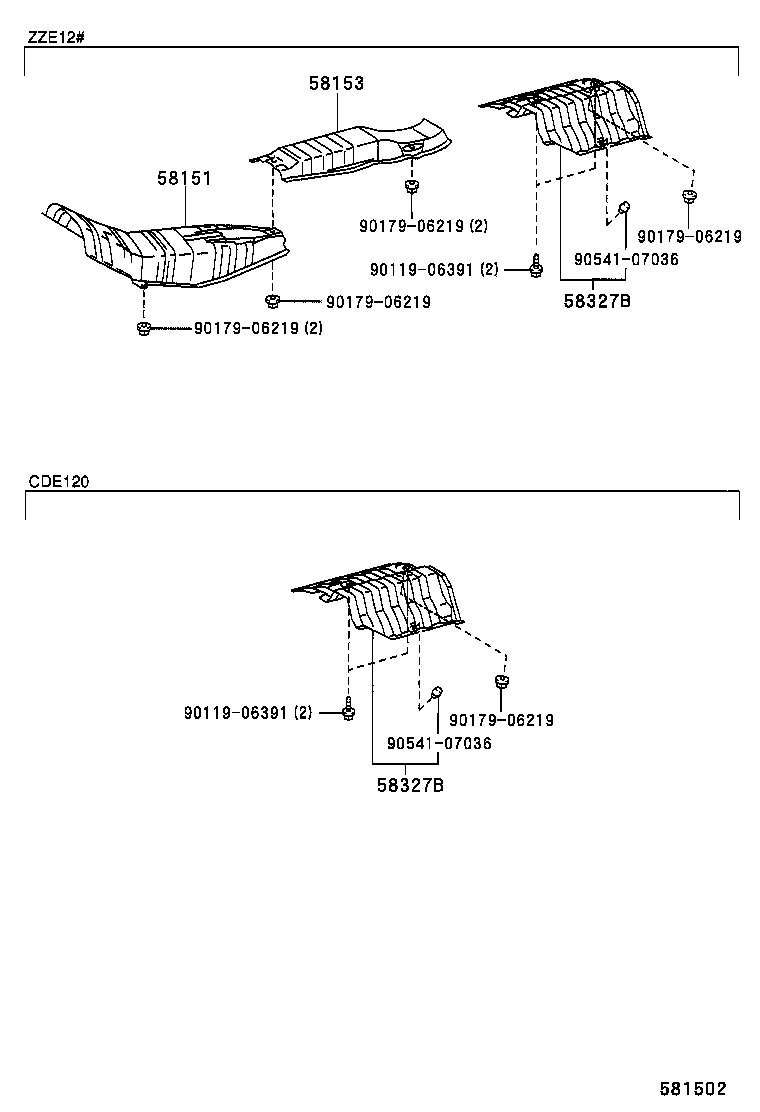

Click highlighted areas on diagram

diagram 58151 58153 58327B 58327B 9011906391 9011906391 9017906219 9017906219 9017906219 9017906219 9017906219 9054107036 9054107036
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-02040

ZZE12#..UKP

 1
58151-02040

ZZE12#..UKP

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-02040

ZZE12#..UKP

 1
58153-02040

ZZE12#..UKP

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-02020

CDE120,ZZE12#..UKP

 1
58327-02020

CDE120,NDE120,ZZE12#..UKP

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-02020

CDE120,ZZE12#..UKP

 1
58327-02020

CDE120,NDE120,ZZE12#..UKP

 1
Common parts
90119-06391
90179-06219
90541-07036
