ZZE121R-DHPDKW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - Feb 2007
Engine 3ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0111- )UKP..RHD

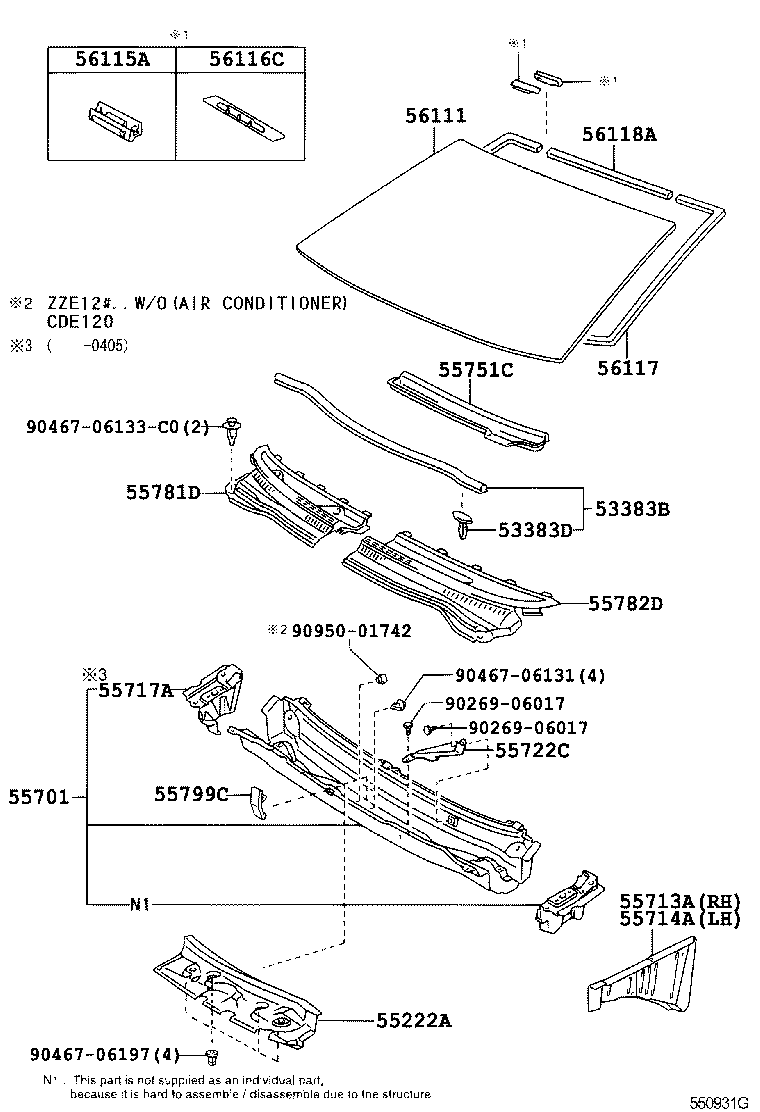

Click highlighted areas on diagram

diagram 53383B 53383D 55222A 55701 55713A 55714A 55717A 55722C 55751C 55781D 55782D 55799C 56111 56115A 56116C 56117 56118A 9026906017 9026906017 9046706131 9046706133C0 9046706197 9095001742
Part # Description Qty Price
53383B - SEAL, HOOD TO COWL TOP
53383-02060

CDE120,NDE120,ZZE12#..UKP

 1
53383-02060

CDE120,ZZE12#..UKP

 1
53383D - CLIP(FOR HOOD TO COWL TOP SEAL)
90467-08108

CDE120,ZZE12#..UKP

 8
90467-08108

CDE120,NDE120,ZZE12#..UKP

 8
55222A - INSULATOR, DASH PANEL, OUTER CENTER
55224-02011

CDE120,NDE120,ZZE12#..UKP

 1
55224-02010

CDE120,ZZE12#..UKP

 1
55224-02011

CDE120,ZZE12#..UKP

 1
55701 - PANEL SUB-ASSY, COWL
55700-02211

CDE120,NDE120,ZZE12#..UKP..RHD

 1
55700-02210

CDE120,ZZE12#..UKP..RHD..(DCR,DCRL,HTWC,TWC)

 1
55700-02350

CDE120,NDE120,ZZE12#..UKP..RHD

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-02030

CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC)

 1
55713-02030

CDE120,NDE120,ZZE12#..UKP

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-02030

CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC)

 1
55714-02030

CDE120,NDE120,ZZE12#..UKP

 1
55722C - BRACE, COWL TOP TO COWL, INNER
55721-12110

CDE120,ZZE12#..UKP..RHD

 1
55721-12110

CDE120,NDE120,ZZE12#..UKP..RHD

 1
55751C - SHIELD, COWL VENTILATOR SPLASH
55751-02030

CDE120,NDE120,ZZE12#..UKP..RHD

 1
55751-02030

CDE120,ZZE12#..UKP..RHD

 1
55781D - LOUVER, COWL TOP VENTILATOR, RH
55708-02140

CDE120,ZZE12#..UKP..RHD

 1
55708-02140

CDE120,NDE120,ZZE12#..UKP..RHD

 1
55782D - LOUVER, COWL TOP VENTILATOR, LH
55709-02060

ZZE12#..UKP..RHD

 1
55709-02060

CDE120,ZZE12#..UKP..RHD

 1
55799C - CLIP, COWL TOP VENTILATOR LOUVER
55799-13020

CDE120,ZZE12#..UKP

 1
55799-13020

CDE120,NDE120,ZZE12#..UKP

 1
56111 - GLASS, WINDSHIELD
56101-02040

ZZE120,121..UKP..TERRA

*LAM,T=4.96,GREEN

 1
56101-02040

CDE120,ZZE12#..UKP

*LAM,T=4.96,GREEN

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-30100

CDE120,ZZE12#..UKP

 2
56115-30100

CDE120,NDE120,ZZE12#..UKP

 2
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-22050

CDE120,NDE120,ZZE12#..UKP

 2
56116-22050

CDE120,ZZE12#..UKP

 2
56117 - DAM, FRONT PILLAR, OUTER
56117-02040

CDE120,NDE120,ZZE12#..UKP

 1
56117-02040

CDE120,ZZE12#..UKP

 1
56118A - DAM, WINDOW GLASS ADHESIVE, NO.2
56117-02040

CDE120,ZZE12#..UKP

*D,L=686

 1
56117-02040

CDE120,NDE120,ZZE12#..UKP

*D,L=686

 1
Common parts
90269-06017
90467-06131
90467-06133C0
90467-06197
90950-01742
