ZZE121R-DHPDKW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - Feb 2007
Engine 3ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0111- )UKP

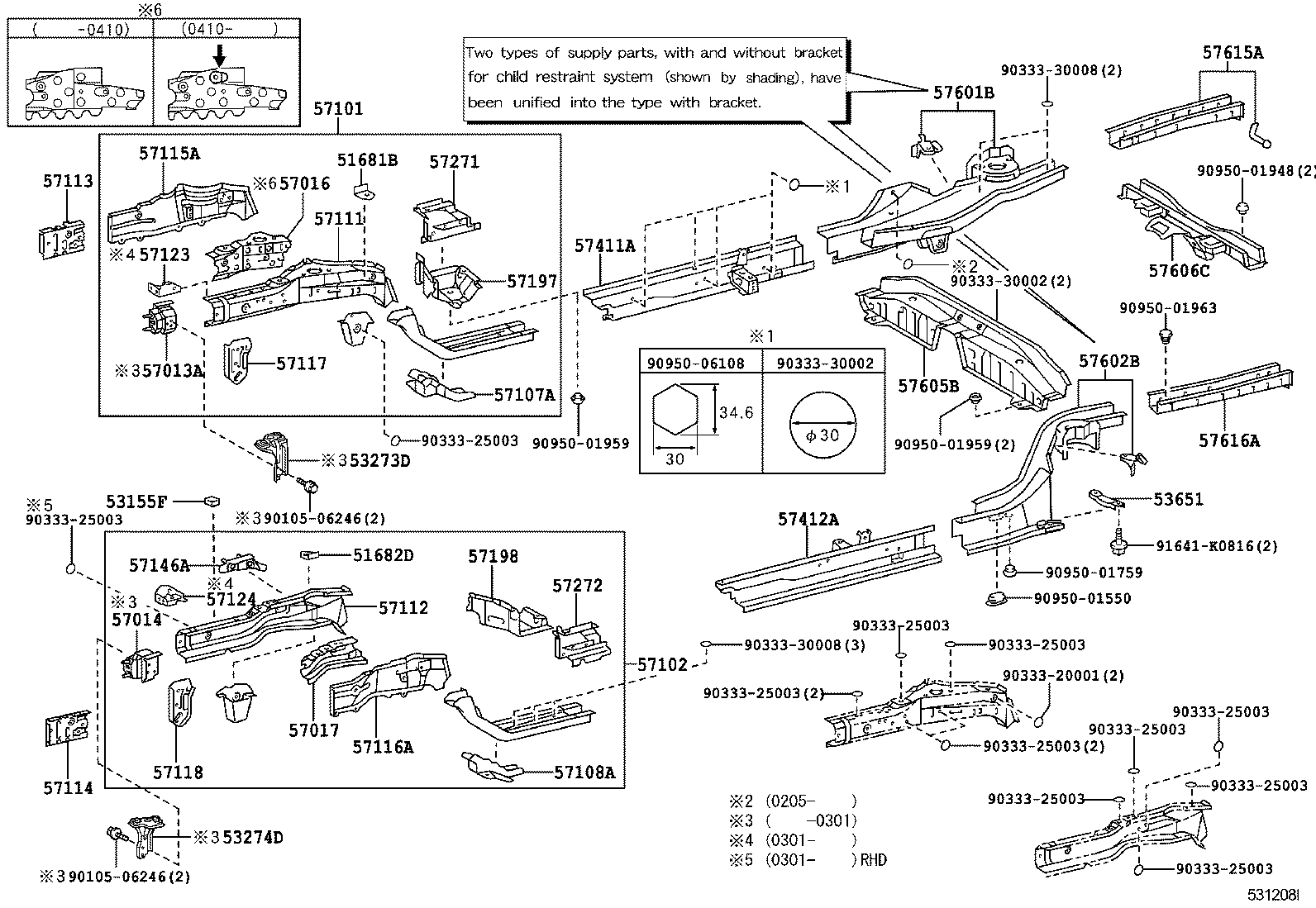

Click highlighted areas on diagram

diagram 51681B 51682D 53155F 53273D 53274D 53651 57013A 57014 57016 57017 57101 57102 57107A 57108A 57111 57112 57113 57114 57115A 57116A 57117 57118 57123 57124 57146A 57197 57198 57271 57272 57411A 57412A 57601B 57602B 57605B 57606C 57615A 57616A 9010506246 9010506246 9033320001 9033325003 9033325003 9033325003 9033325003 9033325003 9033325003 9033325003 9033325003 9033325003 9033325003 9033325003 9033330002 9033330002 9033330008 9033330008 9095001550 9095001759 9095001948 9095001959 9095001959 9095001963 9095006108 91641K0816
Part # Description Qty Price
51681B - PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH
51681-32050

CDE120,NDE120,ZZE12#..UKP

 1
51681-32050

CDE120,ZZE12#..UKP

 1
51682D - PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH
51682-32040

CDE120,NDE120,ZZE12#..UKP

 1
51682-32040

CDE120,ZZE12#..UKP

 1
53155F - SEAL, FRONT SIDE MEMBER
53155-02020

CDE120,NDE120,ZZE12#..UKP

 1
53155-02020

CDE120,ZZE12#..UKP

 1
53273D - BRACKET, FRONT BUMPER ARM MOUNTING, RH
53273-13020

CDE120,ZZE12#..UKP

 1
53274D - BRACKET, FRONT BUMPER ARM MOUNTING, LH
53274-13020

CDE120,ZZE12#..UKP

 1
53651 - BRACE, REAR FLOOR SIDE MEMBER
53651-32010

CDE120,ZZE12#..UKP

 2
53651-32010

CDE120,NDE120,ZZE12#..UKP

 2
57013A - MEMBER SUB-ASSY, FLOOR, FRONT RH
52011-13030

CDE120,ZZE12#

 1
57014 - MEMBER SUB-ASSY, FLOOR, FRONT LH
52012-13030

CDE120,ZZE12#

 1
57016 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH
57016-02040

ZZE12#..UKP

 1
57016-05010

ZZE12#..UKP

 1
57016-05011

NDE120,ZZE12#..UKP

 1
57017 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH
57017-05010

ZZE12#..UKP

 1
57017-05010

ZZE12#..UKP

 1
57017-02020

ZZE12#..UKP

 1
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-02150

ZZE12#..UKP

 1
57101-05050

ZZE12#..UKP

 1
57101-05080

NDE120,ZZE12#..UKP

 1
57101-05051

NDE120,ZZE12#..UKP

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-02200

ZZE12#..UKP

 1
57102-05070

ZZE12#..UKP

 1
57102-05050

ZZE12#..UKP

 1
57102-05050

ZZE12#..UKP

 1
57107A - PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH
57107-05010

CDE120,NDE120,ZZE12#..UKP

 1
57108A - PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH
57108-05010

CDE120,NDE120,ZZE12#..UKP

 1
57111 - MEMBER, FRONT SIDE, RH
57111-13030

ZZE12#..UKP

 1
57111-13031

ZZE12#..UKP

 1
57111-05030

ZZE12#..UKP

 1
57111-05031

NDE120,ZZE12#..UKP

 1
57112 - MEMBER, FRONT SIDE, LH
57112-05030

CDE120,NDE120,ZZE12#..UKP

 1
57112-05030

CDE120,ZZE12#..UKP

 1
57112-13040

CDE120,ZZE12#..UKP

 1
57113 - EXTENSION, FRONT SIDE MEMBER, RH
57113-13010

CDE120,ZZE12#..UKP

 1
57113-05020

CDE120,ZZE12#..UKP

 1
57113-05020

CDE120,NDE120,ZZE12#..UKP

 1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57114-13010

CDE120,ZZE12#..UKP

 1
57114-05020

CDE120,ZZE12#..UKP

 1
57114-05020

CDE120,NDE120,ZZE12#..UKP

 1
57115A - PLATE, FRONT SIDE MEMBER, OUTER RH
57115-02010

CDE120,ZZE12#..UKP

 1
57115-02010

CDE120,NDE120,ZZE12#..UKP

 1
57116A - PLATE, FRONT SIDE MEMBER, OUTER LH
57116-02010

CDE120,ZZE12#..UKP

 1
57116-02010

CDE120,NDE120,ZZE12#..UKP

 1
57117 - PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH
57117-12130

CDE120,ZZE12#..UKP

 1
57117-05020

CDE120,NDE120,ZZE12#..UKP

 1
57117-05020

CDE120,ZZE12#..UKP

 1
57118 - PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH
57118-12130

CDE120,ZZE12#..UKP

 1
57118-05020

CDE120,NDE120,ZZE12#..UKP

 1
57118-05020

CDE120,ZZE12#..UKP

 1
57123 - SUPPORT, FRONT SIDE MEMBER, RH
57123-05010

CDE120,NDE120,ZZE12#..UKP

 1
57123-05010

CDE120,ZZE12#..UKP

 1
57124 - SUPPORT, FRONT SIDE MEMBER, LH
57124-05010

CDE120,NDE120,ZZE12#..UKP

 1
57124-05010

CDE120,ZZE12#..UKP

 1
57146A - REINFORCEMENT, FRONT SIDE MEMBER, REAR LH
57146-12020

CDE120,ZZE12#..UKP

 1
57146-12020

CDE120,NDE120,ZZE12#..UKP

 1
57197 - BOX, TORQUE, FRONT RH
57197-02010

CDE120,ZZE12#..UKP

 1
57197-02010

CDE120,NDE120,ZZE12#..UKP

 1
57198 - BOX, TORQUE, FRONT LH
57198-02030

CDE120,NDE120,ZZE12#..UKP

 1
57198-02030

CDE120,ZZE12#..UKP

 1
57271 - EXTENSION, STEERING GEAR BOX SUPPORT MEMBER, RH
57271-05020

CDE120,NDE120,ZZE12#..UKP

 1
57271-13020

CDE120,ZZE12#..UKP

 1
57271-05020

CDE120,ZZE12#..UKP

 1
57272 - EXTENSION, STEERING GEAR BOX SUPORT MEMBER, LH
57272-05020

CDE120,ZZE12#..UKP

 1
57272-05020

CDE120,NDE120,ZZE12#..UKP

 1
57272-13020

CDE120,ZZE12#..UKP

 1
57411A - MEMBER, FLOOR SIDE, INNER RH
57401-02070

CDE120,NDE120,ZZE12#..UKP..5D

 1
57401-02070

CDE120,ZZE12#..UKP..5D..(DCR,DCRL,HTWC,TWC)

 1
57412A - MEMBER, FLOOR SIDE, INNER LH
57402-02070

CDE120,ZZE12#..UKP..5D..(DCR,DCRL,HTWC,TWC)

 1
57402-02070

CDE120,NDE120,ZZE12#..UKP..5D

 1
57601B - MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH
57601-02210

CDE120,NDE120,ZZE120,121..UKP

 1
57403-02900

CDE120,ZZE12#..UKP

 1
57403-02905

CDE120,NDE120,ZZE120,121..UKP

 1
57602B - MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH
57602-02210

CDE120,NDE120,ZZE120,121..UKP

 1
57404-02905

CDE120,NDE120,ZZE120,121..UKP

 1
57404-02900

CDE120,ZZE12#..UKP

 1
57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57605-02050

CDE120,NDE120,ZZE12#..UKP

 1
57605-02050

CDE120,ZZE12#..UKP

 1
57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57606-02030

CDE120,ZZE12#..UKP

 1
57606-02030

CDE120,NDE120,ZZE12#..UKP

 1
57615A - MEMBER, REAR FLOOR SIDE, REAR RH
57615-02907

CDE120,ZZE12#..UKP

 1
57603-02080

CDE120,NDE120,ZZE120,121..UKP

 1
57615-02907

CDE120,NDE120,ZZE120,121..UKP

 1
57616A - MEMBER, REAR FLOOR SIDE, REAR LH
57616-02906

CDE120,NDE120,ZZE120,121..UKP

 1
57616-02906

CDE120,ZZE12#..UKP

 1
57604-02050

CDE120,NDE120,ZZE120,121..UKP

 1
Common parts
90105-06246
90333-20001
90333-25003
90333-30002
90333-30008
90950-01550
90950-01759
90950-01948
90950-01959
90950-01963
90950-06108
91641-K0816
