ZZE121R-DHPDKW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - Feb 2007
Engine 3ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0111- )UKP..RHD

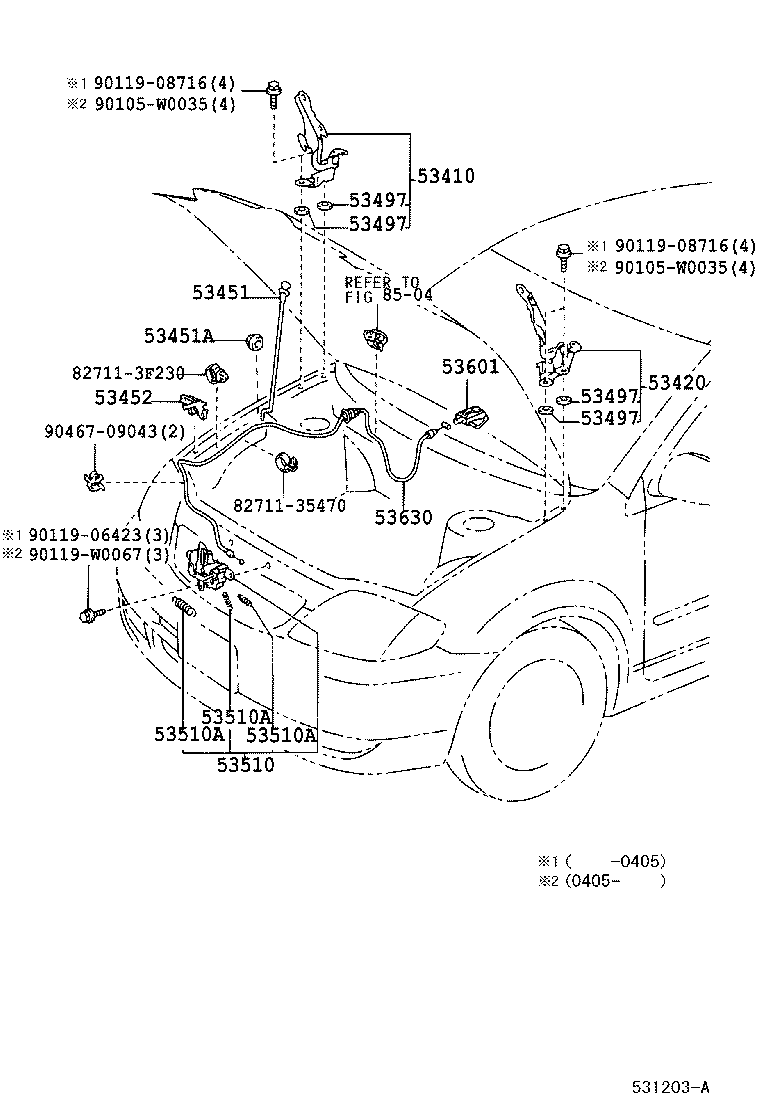

Click highlighted areas on diagram

diagram 53410 53420 53451 53451A 53452 53497 53497 53497 53497 53510 53510A 53510A 53510A 53601 53630 8271135470 827113F230 8504 90105W0035 90105W0035 9011906423 9011908716 9011908716 90119W0067 9046709043
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-02050

CDE120,NDE120,ZZE12#..UKP

 1
53410-02050

CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC)

 1
53420 - HINGE ASSY, HOOD, LH
53420-02050

CDE120,NDE120,ZZE12#..UKP

 1
53420-02050

CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC)

 1
53451 - ROD, HOOD SUPPORT
53440-12030

CDE120,NDE120,ZZE12#..UKP

 1
53440-12030

CDE120,ZZE12#..UKP

 1
53451A - GROMMET(FOR HOOD SUPPORT ROD)
90480-15034

CDE120,ZZE12#..UKP

 1
90480-15034

CDE120,NDE120,ZZE12#..UKP

 1
53452 - HOLDER, HOOD STAY
53452-02020

CDE120,ZZE12#..UKP

 1
53452-02020

CDE120,NDE120,ZZE12#..UKP

 1
53497 - PAD, HOOD HINGE, NO.1
53497-05010

CDE120,NDE120,ZZE12#..UKP

T=1.0

 4
53497-05010

CDE120,ZZE12#..UKP

T=1.0

 4
53497 - PAD, HOOD HINGE, NO.1
53497-05010

CDE120,NDE120,ZZE12#..UKP

T=1.0

 4
53497-05010

CDE120,ZZE12#..UKP

T=1.0

 4
53497 - PAD, HOOD HINGE, NO.1
53497-05010

CDE120,NDE120,ZZE12#..UKP

T=1.0

 4
53497-05010

CDE120,ZZE12#..UKP

T=1.0

 4
53497 - PAD, HOOD HINGE, NO.1
53497-05010

CDE120,NDE120,ZZE12#..UKP

T=1.0

 4
53497-05010

CDE120,ZZE12#..UKP

T=1.0

 4
53510 - LOCK ASSY, HOOD
53510-02190

CDE120,ZZE12#..UKP..RHD

 1
53510-02190

CDE120,NDE120,ZZE12#..UKP..RHD

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90080-50266

CDE120,ZZE12#..UKP

WD=0.9,CW=20.75

 1
90080-50365

CDE120,NDE120,ZZE12#..UKP..RHD

WD=1.8,CW=16

 1
90080-50265

CDE120,ZZE12#..UKP

WD=1.2,CW=8.5

 1
90080-50365

CDE120,ZZE12#..UKP

WD=1.8,CW=16

 1
90080-50258

CDE120,ZZE12#..UKP

WD=1.6,CW=15

 1
90080-50265

CDE120,NDE120,ZZE12#..UKP..RHD

WD=1.2,CW=8.5

 1
90080-50266

CDE120,NDE120,ZZE12#..UKP..RHD

WD=0.9,CW=20.75

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90080-50266

CDE120,ZZE12#..UKP

WD=0.9,CW=20.75

 1
90080-50365

CDE120,NDE120,ZZE12#..UKP..RHD

WD=1.8,CW=16

 1
90080-50265

CDE120,ZZE12#..UKP

WD=1.2,CW=8.5

 1
90080-50365

CDE120,ZZE12#..UKP

WD=1.8,CW=16

 1
90080-50258

CDE120,ZZE12#..UKP

WD=1.6,CW=15

 1
90080-50265

CDE120,NDE120,ZZE12#..UKP..RHD

WD=1.2,CW=8.5

 1
90080-50266

CDE120,NDE120,ZZE12#..UKP..RHD

WD=0.9,CW=20.75

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90080-50266

CDE120,ZZE12#..UKP

WD=0.9,CW=20.75

 1
90080-50365

CDE120,NDE120,ZZE12#..UKP..RHD

WD=1.8,CW=16

 1
90080-50265

CDE120,ZZE12#..UKP

WD=1.2,CW=8.5

 1
90080-50365

CDE120,ZZE12#..UKP

WD=1.8,CW=16

 1
90080-50258

CDE120,ZZE12#..UKP

WD=1.6,CW=15

 1
90080-50265

CDE120,NDE120,ZZE12#..UKP..RHD

WD=1.2,CW=8.5

 1
90080-50266

CDE120,NDE120,ZZE12#..UKP..RHD

WD=0.9,CW=20.75

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-52010J0

CDE120,ZZE120,121..UKP..TERRA

DK.BLUE,TRIM8#

 1
53601-05030B0

CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC)

DK.GRAY,TRIM1#,(L)

 1
53601-52010J0

CDE120,ZZE120,121..UKP..TERRA

DK.BLUE,TRIM8#,(J)

 1
53601-52010B3

CDE120,ZZE12#..UKP

DK.GRAY,TRIM1#

 1
53601-05030J0

CDE120,ZZE120,121..UKP..TERRA

DK.BLUE,TRIM8#,(L)

 1
53601-05030B0

CDE120,NDE120,ZZE12#..UKP

DK.GRAY,TRIM1#

 1
53601-52010B3

CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC)

DK.GRAY,TRIM1#,(J)

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-12510

CDE120,ZZE12#..UKP

(J)

 1
53630-02110

CDE120,ZZE12#..UKP

(L)

 1
53630-02110

CDE120,NDE120,ZZE12#..UKP

 1
53630-12510

CDE120,ZZE12#..UKP

 1
53630-02100

CDE120,NDE120,ZZE12#..UKP

 1
Common parts
82711-35470
82711-3F230
90105-W0035
90119-06423
90119-08716
90119-W0067
90467-09043
Linked diagrams
8504
