Toyota Corolla hb (ukp) ZZE121 SUSPENSION CROSSMEMBER & UNDER COVER

Manufacturers Home
Toyota
EU
COROLLA HB (UKP)
ZZE121R-DHPDKW (2001)
5102 - SUSPENSION CROSSMEMBER & UNDER COVER

ZZE121R-DHPDKW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - Feb 2007

Engine 3ZZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

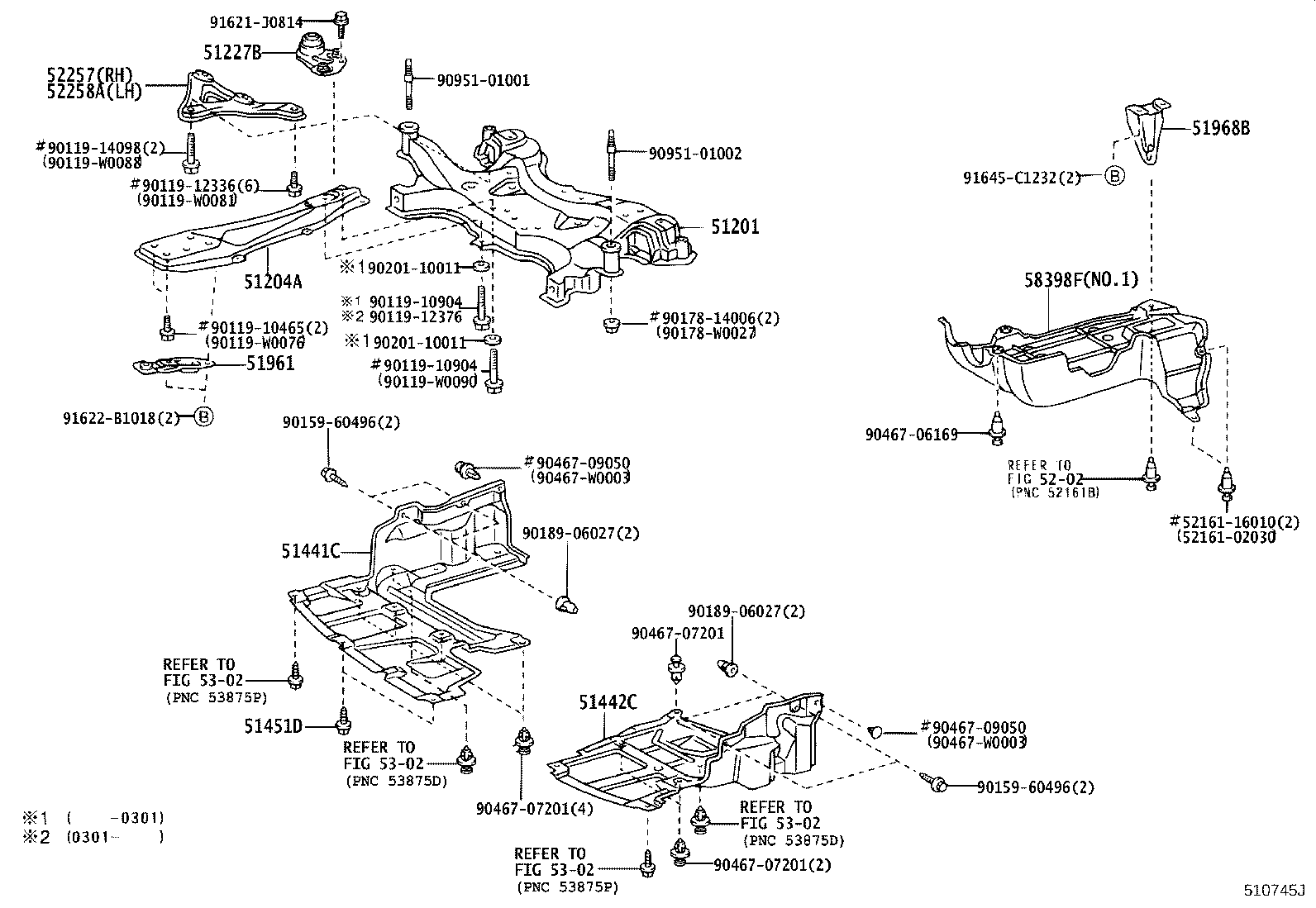

(0111-0405)UKP..DCR,HDCR,HTWC,TWC

Click highlighted areas on diagram

Part #	Description	Period	Qty
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-02082	CDE120,ZZE12#..UKP	04/2003 - 05/2004	1
51201-02081	CDE120,ZZE12#..UKP	09/2002 - 04/2003	1
51201-02080	CDE120,ZZE12#..UKP	11/2001 - 09/2002	1
51201-02082	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER
51204-05050	CDE120,ZZE120,121..UKP	01/2003 - 02/2004	1
51204-05051	CDE120,ZZE120,121..UKP	02/2004 - 05/2004	1
51204-02041	CDE120,ZZE12#..UKP	11/2001 - 01/2003	1
51204-05051	CDE120,NDE120,ZZE120,121..UKP	05/2004 - 12/2999	1
51441C - COVER, ENGINE UNDER, RH
51441-02080	ZZE120,121..UKP	11/2001 - 05/2004	1
51441-02080	ZZE120,121..UKP	05/2004 - 02/2007	1
51442C - COVER, ENGINE UNDER, LH
51442-02120	ZZE121..UKP..4FC	05/2004 - 12/2999	1
51442-02120	ZZE121..UKP..4FC	11/2001 - 05/2004	1
51451D - SCREW, NO.1
90159-60488	CDE120,NDE120,ZZE12#..UKP	05/2004 - 02/2007	2
90159-60488	CDE120,ZZE12#..UKP	11/2001 - 05/2004	2
51961 - HOOK, NO.1
51960-02020	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
51960-02020	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
51968B - HOOK, TRANSPORT, REAR LH
51968-02020	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
51968-02020	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH
52257-02020	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
52257-02020	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH
52258-02020	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
52258-02020	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
58398F - COVER, FLOOR UNDER, NO.1
58398-02010	CDE120,NDE120,ZZE120,121..UKP NO.1	05/2004 - 12/2999	1
58398-02010	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
Common parts
52161-02030
52161-16010
90119-10465
90119-10904
90119-12336
90119-12376
90119-14098
90119-W0076
90119-W0081
90119-W0088
90119-W0090
90159-60496
90178-14006
90178-W0027
90189-06027
90201-10011
90467-06169
90467-07201
90467-09050
90467-W0003
90951-01001
90951-01002
91621-J0814
91622-B1018
91645-C1232
Linked diagrams
5202
5302

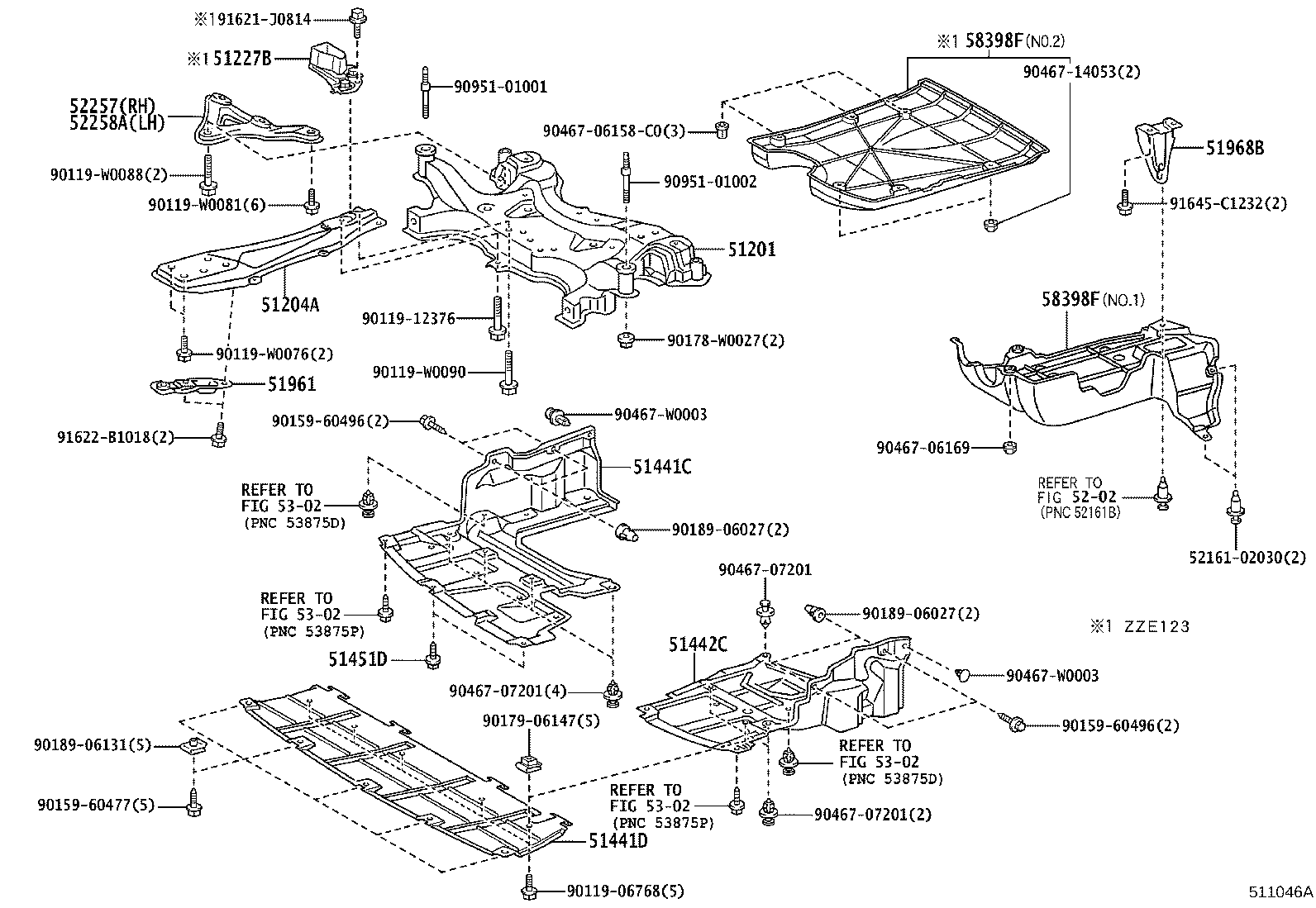

(0405- )ZZE12#..UKP

Click highlighted areas on diagram

Part #	Description	Period	Qty
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-02082	CDE120,ZZE12#..UKP	04/2003 - 05/2004	1
51201-02081	CDE120,ZZE12#..UKP	09/2002 - 04/2003	1
51201-02080	CDE120,ZZE12#..UKP	11/2001 - 09/2002	1
51201-02082	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER
51204-05050	CDE120,ZZE120,121..UKP	01/2003 - 02/2004	1
51204-05051	CDE120,ZZE120,121..UKP	02/2004 - 05/2004	1
51204-02041	CDE120,ZZE12#..UKP	11/2001 - 01/2003	1
51204-05051	CDE120,NDE120,ZZE120,121..UKP	05/2004 - 12/2999	1
51441C - COVER, ENGINE UNDER, RH
51441-02080	ZZE120,121..UKP	11/2001 - 05/2004	1
51441-02080	ZZE120,121..UKP	05/2004 - 02/2007	1
51442C - COVER, ENGINE UNDER, LH
51442-02120	ZZE121..UKP..4FC	05/2004 - 12/2999	1
51442-02120	ZZE121..UKP..4FC	11/2001 - 05/2004	1
51451D - SCREW, NO.1
90159-60488	CDE120,NDE120,ZZE12#..UKP	05/2004 - 02/2007	2
90159-60488	CDE120,ZZE12#..UKP	11/2001 - 05/2004	2
51961 - HOOK, NO.1
51960-02020	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
51960-02020	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
51968B - HOOK, TRANSPORT, REAR LH
51968-02020	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
51968-02020	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH
52257-02020	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
52257-02020	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH
52258-02020	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
52258-02020	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
58398F - COVER, FLOOR UNDER, NO.1
58398-02010	CDE120,NDE120,ZZE120,121..UKP NO.1	05/2004 - 12/2999	1
58398-02010	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
58398F - COVER, FLOOR UNDER, NO.1
58398-02010	CDE120,NDE120,ZZE120,121..UKP NO.1	05/2004 - 12/2999	1
58398-02010	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
Common parts
52161-02030
90119-06768
90119-12376
90119-W0076
90119-W0081
90119-W0088
90119-W0090
90159-60477
90159-60496
90178-W0027
90179-06147
90189-06027
90189-06131
90467-06158C0
90467-06169
90467-07201
90467-14053
90467-W0003
90951-01001
90951-01002
91621-J0814
91622-B1018
91645-C1232
Linked diagrams
5202
5302

ZZE121R-DHPDKW (2001)

(0111-0405)UKP..DCR,HDCR,HTWC,TWC

(0405- )ZZE12#..UKP
