ZZE121R-DHPDKW (2001)
Toyota Corolla Hb (Ukp)
(0111-0405)UKP ; (0405- )CDE120,NDE120,ZZE120,121..UKP

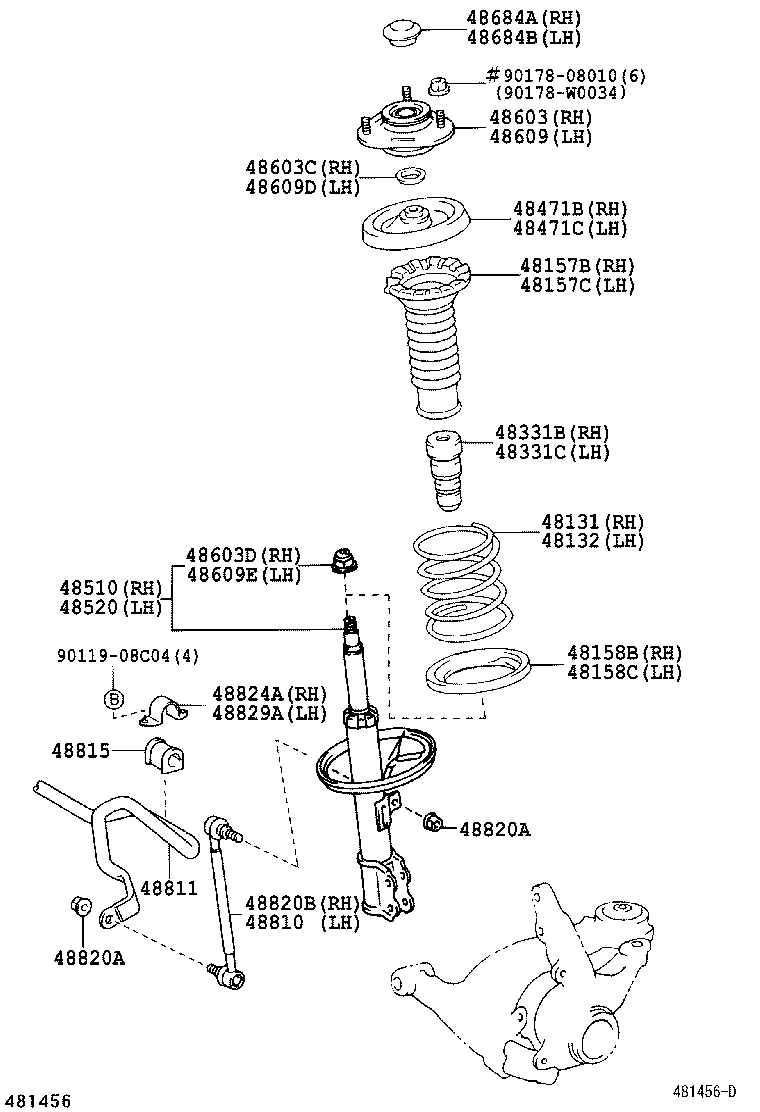

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-02840 |
ZZE121..UKP..4FC L=317.0 |
1 | ||
| 48131-02841 |
NDE120..UKP;ZZE121..UKP..4FC |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-02840 |
ZZE121..UKP..4FC L=317.0 |
1 | ||
| 48131-02841 |
NDE120..UKP;ZZE121..UKP..4FC |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-02060 |
CDE120,ZZE12#..UKP |
1 | ||
| 48157-02060 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-02060 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 48157-02060 |
CDE120,ZZE12#..UKP |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-02050 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 48158-02050 |
CDE120,ZZE12#..UKP |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-02050 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 48158-02050 |
CDE120,ZZE12#..UKP |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-02050 |
CDE120,ZZE12#..UKP |
1 | ||
| 48331-02050 |
CDE120,NDE120,ZZE120,121..UKP |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-02050 |
CDE120,NDE120,ZZE120,121..UKP |
1 | ||
| 48331-02050 |
CDE120,ZZE12#..UKP |
1 | ||
| 48471B - SEAT, FRONT COIL SPRING, UPPER RH | ||||
| 48044-02030 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 48044-02030 |
CDE120,ZZE12#..UKP |
1 | ||
| 48471C - SEAT, FRONT COIL SPRING, UPPER LH | ||||
| 48044-02030 |
CDE120,ZZE12#..UKP |
1 | ||
| 48044-02030 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-09570 |
ZZE120,121..UKP MARK 48510-02200 |
1 | ||
| 48510-09A70 |
ZZE120,121..UKP MARK 48510-02201 |
1 | ||
| 48510-09A70 |
NDE120,ZZE120,121..UKP MARK 48510-02201 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-09470 |
ZZE120,121..UKP MARK 48520-02200 |
1 | ||
| 48520-09890 |
ZZE120,121..UKP MARK 48520-02201 |
1 | ||
| 48520-09890 |
NDE120,ZZE120,121..UKP MARK 48520-02201 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-02100 |
CDE120,ZZE12#..UKP |
1 | ||
| 48609-02130 |
CDE120,ZZE12#..UKP |
1 | ||
| 48609-02130 |
CDE120,NDE120,ZZE120,121..UKP |
1 | ||
| 48603C - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH) | ||||
| 90303-22002 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 90303-22002 |
CDE120,ZZE12#..UKP |
1 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 90179-14015 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 90179-14015 |
CDE120,ZZE12#..UKP |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-02130 |
CDE120,ZZE12#..UKP |
1 | ||
| 48609-02100 |
CDE120,ZZE12#..UKP |
1 | ||
| 48609-02130 |
CDE120,NDE120,ZZE120,121..UKP |
1 | ||
| 48609D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH) | ||||
| 90303-22002 |
CDE120,ZZE12#..UKP |
1 | ||
| 90303-22002 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 90179-14015 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 90179-14015 |
CDE120,ZZE12#..UKP |
1 | ||
| 48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH | ||||
| 48684-05020 |
CDE120,ZZE12#..UKP |
1 | ||
| 48684-05020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH | ||||
| 48684-05020 |
CDE120,ZZE12#..UKP |
1 | ||
| 48684-05020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 48820-02020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-02110 |
CDE120,ZZE12#..UKP |
1 | ||
| 48811-02110 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-02110 |
CDE120,ZZE12#..UKP |
2 | ||
| 48815-02110 |
CDE120,NDE120,ZZE12#..UKP |
2 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-10183 |
CDE120,ZZE12#..UKP |
4 | ||
| 90179-10183 |
CDE120,NDE120,ZZE12#..UKP |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-10183 |
CDE120,ZZE12#..UKP |
4 | ||
| 90179-10183 |
CDE120,NDE120,ZZE12#..UKP |
4 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-02020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 48820-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-12150 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 48824-12150 |
CDE120,ZZE12#..UKP |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-12150 |
CDE120,ZZE12#..UKP |
1 | ||
| 48824-12150 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| Common parts | ||||
| 90119-08C04 | ||||
| 90178-08010 | ||||
| 90178-W0034 | ||||
