ZZE121R-DHPDKW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - Feb 2007
Engine 3ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0111- )UKP

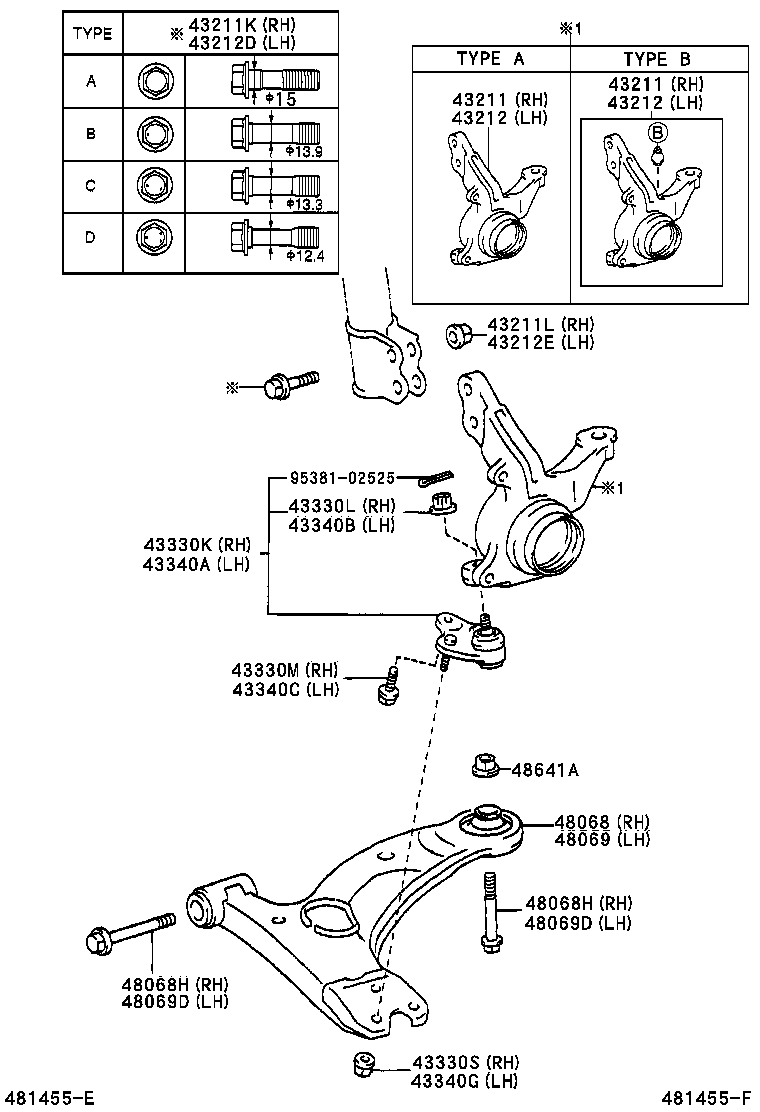

Click highlighted areas on diagram

diagram 43211 43211 43211K 43211L 43212 43212 43212D 43212E 43330K 43330L 43330M 43330S 43340A 43340B 43340C 43340G 48068 48068H 48068H 48069 48069D 48069D 48641A 9538102525
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-02080

CDE120,ZZE12#..UKP

TYPE A:REFER TO ILLUSTRATION

 1
43211-19015

CDE120,ZZE12#..UKP

TYPE B:REFER TO ILLUSTRATION

 1
43211-02080

CDE120,ZZE12#..UKP

TYPE A:REFER TO ILLUSTRATION

 1
43211-02080

CDE120,NDE120,ZZE12#..UKP

TYPE A:REFER TO ILLUSTRATION

 1
43211 - KNUCKLE, STEERING, RH
43211-02080

CDE120,ZZE12#..UKP

TYPE A:REFER TO ILLUSTRATION

 1
43211-19015

CDE120,ZZE12#..UKP

TYPE B:REFER TO ILLUSTRATION

 1
43211-02080

CDE120,ZZE12#..UKP

TYPE A:REFER TO ILLUSTRATION

 1
43211-02080

CDE120,NDE120,ZZE12#..UKP

TYPE A:REFER TO ILLUSTRATION

 1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-15006

CDE120,ZZE12#..UKP

OD=12.4,TYPE D:REFER ILLUST.

 1
90105-15001

CDE120,ZZE12#..UKP

OD=15.0,TYPE A:REFER ILLUST.

 2
90105-15005

CDE120,ZZE12#..UKP

OD=13.3,TYPE C:REFER ILLUST.

 1
90105-15004

CDE120,ZZE12#..UKP

OD=13.9,TYPE B:REFER ILLUST.

 1
90105-15001

CDE120,ZZE12#..UKP

OD=15.0,(J),T/P A:REF.ILLUST

 2
90105-15004

CDE120,NDE120,ZZE12#..UKP

OD=13.9,TYPE B:REFER ILLUST.

 1
90105-15005

CDE120,NDE120,ZZE12#..UKP

OD=13.3,TYPE C:REFER ILLUST.

 1
90105-W0069

CDE120,ZZE12#..UKP

OD=15.0,(L),T/P A:REF.ILLUST

 2
90105-W0069

CDE120,NDE120,ZZE12#..UKP

OD=15.0,TYPE A:REFER ILLUST.

 2
90105-15006

CDE120,NDE120,ZZE12#..UKP

OD=12.4,TYPE D:REFER ILLUST.

 1
43211L - NUT (FOR STEERING KNUCKLE RH)
90178-W0046

CDE120,ZZE12#..UKP

(L)

 2
90178-W0046

CDE120,NDE120,ZZE12#..UKP

 2
90179-15006

CDE120,ZZE12#..UKP

 2
90179-15006

CDE120,ZZE12#..UKP

(J)

 2
43212 - KNUCKLE, STEERING, LH
43212-19015

CDE120,ZZE12#..UKP

TYPE B:REFER TO ILLUSTRATION

 1
43212-02080

CDE120,ZZE12#..UKP

TYPE A:REFER TO ILLUSTRATION

 1
43212-02080

CDE120,NDE120,ZZE12#..UKP

TYPE A:REFER TO ILLUSTRATION

 1
43212-02080

CDE120,ZZE12#..UKP

TYPE A:REFER TO ILLUSTRATION

 1
43212 - KNUCKLE, STEERING, LH
43212-19015

CDE120,ZZE12#..UKP

TYPE B:REFER TO ILLUSTRATION

 1
43212-02080

CDE120,ZZE12#..UKP

TYPE A:REFER TO ILLUSTRATION

 1
43212-02080

CDE120,NDE120,ZZE12#..UKP

TYPE A:REFER TO ILLUSTRATION

 1
43212-02080

CDE120,ZZE12#..UKP

TYPE A:REFER TO ILLUSTRATION

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-15006

CDE120,ZZE12#..UKP

OD=12.4,TYPE D:REFER ILLUST.

 1
90105-15004

CDE120,NDE120,ZZE12#..UKP

OD=13.9,TYPE B:REFER ILLUST.

 1
90105-15001

CDE120,ZZE12#..UKP

OD=15.0,TYPE A:REFER ILLUST.

 2
90105-15004

CDE120,ZZE12#..UKP

OD=13.9,TYPE B:REFER ILLUST.

 1
90105-W0069

CDE120,NDE120,ZZE12#..UKP

OD=15.0,TYPE A:REFER ILLUST.

 2
90105-W0069

CDE120,ZZE12#..UKP

OD=15.0,(L),T/P A:REF.ILLUST

 2
90105-15005

CDE120,ZZE12#..UKP

OD=13.3,TYPE C:REFER ILLUST.

 1
90105-15005

CDE120,NDE120,ZZE12#..UKP

OD=13.3,TYPE C:REFER ILLUST.

 1
90105-15006

CDE120,NDE120,ZZE12#..UKP

OD=12.4,TYPE D:REFER ILLUST.

 1
90105-15001

CDE120,ZZE12#..UKP

OD=15.0,(J),T/P A:REF.ILLUST

 2
43212E - NUT (FOR STEERING KNUCKLE LH)
90179-15006

CDE120,ZZE12#..UKP

(J)

 2
90179-15006

CDE120,ZZE12#..UKP

 2
90178-W0046

CDE120,NDE120,ZZE12#..UKP

 2
90178-W0046

CDE120,ZZE12#..UKP

(L)

 2
43330K - JOINT ASSY, LOWER BALL, FRONT RH
43330-09090

CDE120,ZZE12#..UKP

 1
43330-09090

CDE120,NDE120,ZZE12#..UKP

 1
43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
90171-14003

CDE120,ZZE12#..UKP

 1
90171-14003

CDE120,NDE120,ZZE12#..UKP

 1
43330M - BOLT (FOR FRONT LOWER BALL JOINT RH)
90105-12336

CDE120,ZZE12#..UKP

(J)

 1
90105-12156

CDE120,ZZE12#..UKP

 1
90105-W0067

CDE120,NDE120,ZZE12#..UKP

 1
90105-12336

CDE120,ZZE12#..UKP

 1
90105-W0067

CDE120,ZZE12#..UKP

(L)

 1
43330S - NUT (FOR FRONT LOWER BALL JOINT RH)
90178-W0037

CDE120,ZZE12#..UKP

(L)

 2
90178-12015

CDE120,ZZE12#..UKP

(J)

 2
90178-W0037

CDE120,NDE120,ZZE12#..UKP

 2
90179-12070

CDE120,ZZE12#..UKP

 2
90178-12015

CDE120,ZZE12#..UKP

 2
43340A - JOINT ASSY, LOWER BALL, FRONT LH
43330-09090

CDE120,ZZE12#..UKP

 1
43330-09090

CDE120,NDE120,ZZE12#..UKP

 1
43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
90171-14003

CDE120,ZZE12#..UKP

 1
90171-14003

CDE120,NDE120,ZZE12#..UKP

 1
43340C - BOLT (FOR FRONT LOWER BALL JOINT LH)
90105-12336

CDE120,ZZE12#..UKP

 1
90105-12336

CDE120,ZZE12#..UKP

(J)

 1
90105-12156

CDE120,ZZE12#..UKP

 1
90105-W0067

CDE120,NDE120,ZZE12#..UKP

 1
90105-W0067

CDE120,ZZE12#..UKP

(L)

 1
43340G - NUT (FOR FRONT LOWER BALL JOINT LH)
90179-12070

CDE120,ZZE12#..UKP

 2
90178-12015

CDE120,ZZE12#..UKP

(J)

 2
90178-12015

CDE120,ZZE12#..UKP

 2
90178-W0037

CDE120,ZZE12#..UKP

(L)

 2
90178-W0037

CDE120,NDE120,ZZE12#..UKP

 2
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-02070

CDE120,ZZE12#..UKP

 1
48068-02030

CDE120,ZZE12#..UKP

 1
48068-02070

CDE120,NDE120,ZZE120,121..UKP

 1
48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90119-14086

CDE120,ZZE12#..UKP

 2
90119-W0086

CDE120,ZZE12#..UKP

 2
90119-14086

CDE120,NDE120,ZZE12#..UKP

(J)

 2
90119-14086

CDE120,ZZE12#..UKP

(J)

 2
90119-W0086

CDE120,ZZE12#..UKP

(L)

 2
90119-W0086

CDE120,NDE120,ZZE12#..UKP

(L)

 2
48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90119-14086

CDE120,ZZE12#..UKP

 2
90119-W0086

CDE120,ZZE12#..UKP

 2
90119-14086

CDE120,NDE120,ZZE12#..UKP

(J)

 2
90119-14086

CDE120,ZZE12#..UKP

(J)

 2
90119-W0086

CDE120,ZZE12#..UKP

(L)

 2
90119-W0086

CDE120,NDE120,ZZE12#..UKP

(L)

 2
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-02070

CDE120,NDE120,ZZE120,121..UKP

 1
48069-02070

CDE120,ZZE12#..UKP

 1
48069-02030

CDE120,ZZE12#..UKP

 1
48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90119-W0086

CDE120,ZZE12#..UKP

 2
90119-14086

CDE120,ZZE12#..UKP

(J)

 2
90119-14086

CDE120,NDE120,ZZE12#..UKP

(J)

 2
90119-W0086

CDE120,ZZE12#..UKP

(L)

 2
90119-14086

CDE120,ZZE12#..UKP

 2
90119-W0086

CDE120,NDE120,ZZE12#..UKP

(L)

 2
48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90119-W0086

CDE120,ZZE12#..UKP

 2
90119-14086

CDE120,ZZE12#..UKP

(J)

 2
90119-14086

CDE120,NDE120,ZZE12#..UKP

(J)

 2
90119-W0086

CDE120,ZZE12#..UKP

(L)

 2
90119-14086

CDE120,ZZE12#..UKP

 2
90119-W0086

CDE120,NDE120,ZZE12#..UKP

(L)

 2
48641A - NUT(FOR SUSPENSION LOWER ARM SHAFT)
90179-14068

CDE120,ZZE12#..UKP

 2
90179-14068

CDE120,NDE120,ZZE12#..UKP

 2
Common parts
95381-02525
