Toyota Corolla hb (ukp) ZZE121 BRAKE TUBE & CLAMP

ZZE121R-DHPDKW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - Feb 2007

Engine 3ZZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

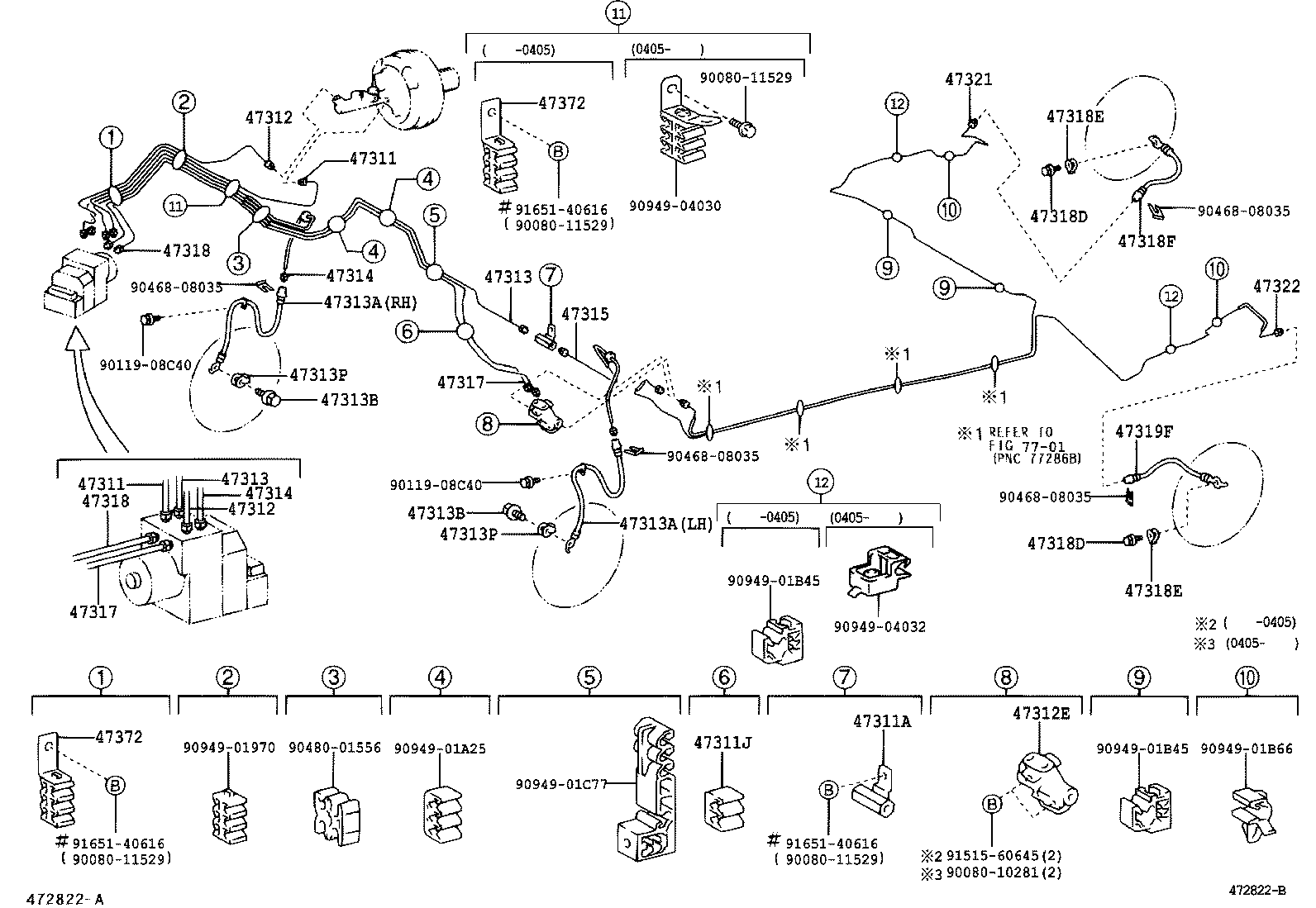

ILLUST NO. 1 OF 2(0111- )UKP..RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-02200	CDE120,ZZE120,121..UKP..RHD	11/2001 - 05/2004	1
47311-02200	CDE120,NDE120,ZZE120,121..UKP..RHD	05/2004 - 12/2999	1
47311-02210	ZZE121,123..UKP..RHD W(VSC)	11/2001 - 05/2004	1
47311-02430	CDE120,NDE120,ZZE120,121..UKP..RHD W(VSC)	05/2004 - 10/2005	1
47311 - TUBE, FRONT BRAKE, NO.1
47311-02200	CDE120,ZZE120,121..UKP..RHD	11/2001 - 05/2004	1
47311-02200	CDE120,NDE120,ZZE120,121..UKP..RHD	05/2004 - 12/2999	1
47311-02210	ZZE121,123..UKP..RHD W(VSC)	11/2001 - 05/2004	1
47311-02430	CDE120,NDE120,ZZE120,121..UKP..RHD W(VSC)	05/2004 - 10/2005	1
47311A - WAY(FOR FRONT BRAKE TUBE)
90412-10667	CDE120,ZZE12#..UKP..RHD	11/2001 - 05/2004	1
90412-10667	CDE120,NDE120,ZZE12#..UKP..RHD	05/2004 - 01/2005	1
90412-10227	CDE120,NDE120,ZZE12#..UKP..RHD	02/2005 - 12/2999	1
47311J - GROMMET, NO.1(FOR FRONT BRAKE TUBE)
90480-01620	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
90480-01620	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-02080	CDE120,ZZE120,121..UKP..RHD	11/2001 - 05/2004	1
47312-02090	ZZE121,123..UKP..RHD W(VSC)	11/2001 - 05/2004	1
47312-02300	CDE120,NDE120,ZZE120,121..UKP..RHD W(VSC)	05/2004 - 10/2005	1
47312-02080	CDE120,NDE120,ZZE120,121..UKP..RHD	05/2004 - 12/2999	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-02080	CDE120,ZZE120,121..UKP..RHD	11/2001 - 05/2004	1
47312-02090	ZZE121,123..UKP..RHD W(VSC)	11/2001 - 05/2004	1
47312-02300	CDE120,NDE120,ZZE120,121..UKP..RHD W(VSC)	05/2004 - 10/2005	1
47312-02080	CDE120,NDE120,ZZE120,121..UKP..RHD	05/2004 - 12/2999	1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90904-12082	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
90904-12082	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-02170	CDE120,ZZE120,121..UKP..RHD..(DCR,HDCR,HTWC)	11/2001 - 05/2004	1
47313-02380	CDE120,NDE120,ZZE120,121..UKP..RHD W(VSC)	05/2004 - 10/2005	1
47313-02170	NDE120,ZZE120,121..UKP..RHD	05/2004 - 12/2999	1
47313-02180	ZZE121,123..UKP..RHD W(VSC)	11/2001 - 05/2004	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-02170	CDE120,ZZE120,121..UKP..RHD..(DCR,HDCR,HTWC)	11/2001 - 05/2004	1
47313-02380	CDE120,NDE120,ZZE120,121..UKP..RHD W(VSC)	05/2004 - 10/2005	1
47313-02170	NDE120,ZZE120,121..UKP..RHD	05/2004 - 12/2999	1
47313-02180	ZZE121,123..UKP..RHD W(VSC)	11/2001 - 05/2004	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90080-94131	CDE120,ZZE12#..UKP RH,(L)	11/2001 - 05/2002	1
90947-02D23	CDE120,ZZE12#..UKP LH,(J)	11/2001 - 05/2004	1
90080-94199	CDE120,ZZE12#..UKP RH,(L)	05/2002 - 05/2004	1
90080-94199	CDE120,NDE120,ZZE12#..UKP RH	05/2004 - 02/2006	1
90080-94200	CDE120,NDE120,ZZE12#..UKP LH	05/2004 - 02/2006	1
90947-02D22	CDE120,NDE120,ZZE12#..UKP (J),RH	02/2006 - 12/2999	1
90080-94200	CDE120,NDE120,ZZE12#..UKP (L),LH	02/2006 - 10/2006	1
90080-94200	CDE120,ZZE12#..UKP LH,(L)	05/2002 - 05/2004	1
90080-94199	CDE120,NDE120,ZZE12#..UKP (L),RH	02/2006 - 10/2006	1
90947-02D23	CDE120,NDE120,ZZE12#..UKP (J),LH	02/2006 - 12/2999	1
90080-94132	CDE120,ZZE12#..UKP LH,(L)	11/2001 - 05/2002	1
90947-02D22	CDE120,ZZE12#..UKP RH,(J)	11/2001 - 05/2004	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90080-94131	CDE120,ZZE12#..UKP RH,(L)	11/2001 - 05/2002	1
90947-02D23	CDE120,ZZE12#..UKP LH,(J)	11/2001 - 05/2004	1
90080-94199	CDE120,ZZE12#..UKP RH,(L)	05/2002 - 05/2004	1
90080-94199	CDE120,NDE120,ZZE12#..UKP RH	05/2004 - 02/2006	1
90080-94200	CDE120,NDE120,ZZE12#..UKP LH	05/2004 - 02/2006	1
90947-02D22	CDE120,NDE120,ZZE12#..UKP (J),RH	02/2006 - 12/2999	1
90080-94200	CDE120,NDE120,ZZE12#..UKP (L),LH	02/2006 - 10/2006	1
90080-94200	CDE120,ZZE12#..UKP LH,(L)	05/2002 - 05/2004	1
90080-94199	CDE120,NDE120,ZZE12#..UKP (L),RH	02/2006 - 10/2006	1
90947-02D23	CDE120,NDE120,ZZE12#..UKP (J),LH	02/2006 - 12/2999	1
90080-94132	CDE120,ZZE12#..UKP LH,(L)	11/2001 - 05/2002	1
90947-02D22	CDE120,ZZE12#..UKP RH,(J)	11/2001 - 05/2004	1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	CDE120,ZZE12#..UKP	11/2001 - 05/2004	2
90401-10058	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	CDE120,ZZE12#..UKP	11/2001 - 05/2004	2
90401-10058	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	2
47389-50020	CDE120,ZZE12#..UKP	11/2001 - 05/2004	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	2
47389-50020	CDE120,ZZE12#..UKP	11/2001 - 05/2004	2
47314 - TUBE, FRONT BRAKE, NO.4
47314-02190	CDE120,ZZE120,121..UKP	11/2001 - 05/2004	1
47314-02190	CDE120,NDE120,ZZE120,121..UKP	05/2004 - 12/2999	1
47314-02210	CDE120,NDE120,ZZE120,121..UKP..RHD W(VSC)	05/2004 - 10/2005	1
47314-02210	ZZE121,123..UKP..RHD W(VSC)	11/2001 - 05/2004	1
47314 - TUBE, FRONT BRAKE, NO.4
47314-02190	CDE120,ZZE120,121..UKP	11/2001 - 05/2004	1
47314-02190	CDE120,NDE120,ZZE120,121..UKP	05/2004 - 12/2999	1
47314-02210	CDE120,NDE120,ZZE120,121..UKP..RHD W(VSC)	05/2004 - 10/2005	1
47314-02210	ZZE121,123..UKP..RHD W(VSC)	11/2001 - 05/2004	1
47315 - TUBE, FRONT BRAKE, NO.5
47315-02160	CDE120,NDE120,ZZE12#..UKP..RHD	05/2004 - 12/2999	1
47315-02160	CDE120,ZZE12#..UKP..RHD	11/2001 - 05/2004	1
47317 - TUBE, FRONT BRAKE, NO.7
47317-02120	CDE120,ZZE120,121..UKP..RHD..(DCR,HDCR,HTWC)	11/2001 - 05/2004	1
47317-02130	ZZE121,123..UKP..RHD W(VSC)	11/2001 - 05/2004	1
47317-02290	CDE120,NDE120,ZZE120,121..UKP..RHD W(VSC)	05/2004 - 10/2005	1
47317-02120	NDE120,ZZE120,121..UKP..RHD	05/2004 - 12/2999	1
47317 - TUBE, FRONT BRAKE, NO.7
47317-02120	CDE120,ZZE120,121..UKP..RHD..(DCR,HDCR,HTWC)	11/2001 - 05/2004	1
47317-02130	ZZE121,123..UKP..RHD W(VSC)	11/2001 - 05/2004	1
47317-02290	CDE120,NDE120,ZZE120,121..UKP..RHD W(VSC)	05/2004 - 10/2005	1
47317-02120	NDE120,ZZE120,121..UKP..RHD	05/2004 - 12/2999	1
47318 - TUBE, FRONT BRAKE, NO.8
47318-02120	CDE120,ZZE120,121..UKP..RHD..(DCR,HDCR,HTWC)	11/2001 - 05/2004	1
47318-02130	ZZE121,123..UKP..RHD W(VSC)	11/2001 - 05/2004	1
47318-02120	NDE120,ZZE120,121..UKP..RHD	05/2004 - 12/2999	1
47318-02310	CDE120,NDE120,ZZE120,121..UKP..RHD W(VSC)	05/2004 - 10/2005	1
47318 - TUBE, FRONT BRAKE, NO.8
47318-02120	CDE120,ZZE120,121..UKP..RHD..(DCR,HDCR,HTWC)	11/2001 - 05/2004	1
47318-02130	ZZE121,123..UKP..RHD W(VSC)	11/2001 - 05/2004	1
47318-02120	NDE120,ZZE120,121..UKP..RHD	05/2004 - 12/2999	1
47318-02310	CDE120,NDE120,ZZE120,121..UKP..RHD W(VSC)	05/2004 - 10/2005	1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10045	CDE120,ZZE12#..UKP	11/2001 - 05/2004	2
90401-10045	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10045	CDE120,ZZE12#..UKP	11/2001 - 05/2004	2
90401-10045	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020	CDE120,ZZE12#..UKP	11/2001 - 05/2004	2
47389-50020	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020	CDE120,ZZE12#..UKP	11/2001 - 05/2004	2
47389-50020	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02E88	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
90947-02E88	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02E88	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
90947-02E88	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
47321 - TUBE, REAR BRAKE, NO.1
47321-02120	CDE120,NDE120,ZZE12#..UKP	05/2004 - 02/2007	1
47321-02120	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
47322 - TUBE, REAR BRAKE, NO.2
47322-02120	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
47322-02120	CDE120,NDE120,ZZE12#..UKP	05/2004 - 02/2007	1
47372 - CLAMP, BRAKE TUBE, NO.2
47374-12050	CDE120,NDE120,ZZE120,121..UKP..RHD	05/2004 - 12/2999	1
47374-12050	CDE120,ZZE120,121..UKP	11/2001 - 05/2004	2
47372 - CLAMP, BRAKE TUBE, NO.2
47374-12050	CDE120,NDE120,ZZE120,121..UKP..RHD	05/2004 - 12/2999	1
47374-12050	CDE120,ZZE120,121..UKP	11/2001 - 05/2004	2
Common parts
90080-10281
90080-11529
90119-08C40
90468-08035
90480-01556
90949-01970
90949-01A25
90949-01B45
90949-01B66
90949-01C77
90949-04030
91515-60645
91651-40616
Linked diagrams
7701

ILLUST NO. 1 OF 2(0111-0405)ZZE121,123..UKP..RHD ; (0405- )CDE120,ZZE12#..UKP..RHD ; (0408- )N

Click highlighted areas on diagram

W(VSC)

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-02200	CDE120,ZZE120,121..UKP..RHD	11/2001 - 05/2004	1
47311-02200	CDE120,NDE120,ZZE120,121..UKP..RHD	05/2004 - 12/2999	1
47311-02210	ZZE121,123..UKP..RHD W(VSC)	11/2001 - 05/2004	1
47311-02430	CDE120,NDE120,ZZE120,121..UKP..RHD W(VSC)	05/2004 - 10/2005	1
47311 - TUBE, FRONT BRAKE, NO.1
47311-02200	CDE120,ZZE120,121..UKP..RHD	11/2001 - 05/2004	1
47311-02200	CDE120,NDE120,ZZE120,121..UKP..RHD	05/2004 - 12/2999	1
47311-02210	ZZE121,123..UKP..RHD W(VSC)	11/2001 - 05/2004	1
47311-02430	CDE120,NDE120,ZZE120,121..UKP..RHD W(VSC)	05/2004 - 10/2005	1
47311A - WAY(FOR FRONT BRAKE TUBE)
90412-10667	CDE120,ZZE12#..UKP..RHD	11/2001 - 05/2004	1
90412-10667	CDE120,NDE120,ZZE12#..UKP..RHD	05/2004 - 01/2005	1
90412-10227	CDE120,NDE120,ZZE12#..UKP..RHD	02/2005 - 12/2999	1
47311J - GROMMET, NO.1(FOR FRONT BRAKE TUBE)
90480-01620	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
90480-01620	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-02080	CDE120,ZZE120,121..UKP..RHD	11/2001 - 05/2004	1
47312-02090	ZZE121,123..UKP..RHD W(VSC)	11/2001 - 05/2004	1
47312-02300	CDE120,NDE120,ZZE120,121..UKP..RHD W(VSC)	05/2004 - 10/2005	1
47312-02080	CDE120,NDE120,ZZE120,121..UKP..RHD	05/2004 - 12/2999	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-02080	CDE120,ZZE120,121..UKP..RHD	11/2001 - 05/2004	1
47312-02090	ZZE121,123..UKP..RHD W(VSC)	11/2001 - 05/2004	1
47312-02300	CDE120,NDE120,ZZE120,121..UKP..RHD W(VSC)	05/2004 - 10/2005	1
47312-02080	CDE120,NDE120,ZZE120,121..UKP..RHD	05/2004 - 12/2999	1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90904-12082	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
90904-12082	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-02170	CDE120,ZZE120,121..UKP..RHD..(DCR,HDCR,HTWC)	11/2001 - 05/2004	1
47313-02380	CDE120,NDE120,ZZE120,121..UKP..RHD W(VSC)	05/2004 - 10/2005	1
47313-02170	NDE120,ZZE120,121..UKP..RHD	05/2004 - 12/2999	1
47313-02180	ZZE121,123..UKP..RHD W(VSC)	11/2001 - 05/2004	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-02170	CDE120,ZZE120,121..UKP..RHD..(DCR,HDCR,HTWC)	11/2001 - 05/2004	1
47313-02380	CDE120,NDE120,ZZE120,121..UKP..RHD W(VSC)	05/2004 - 10/2005	1
47313-02170	NDE120,ZZE120,121..UKP..RHD	05/2004 - 12/2999	1
47313-02180	ZZE121,123..UKP..RHD W(VSC)	11/2001 - 05/2004	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90080-94131	CDE120,ZZE12#..UKP RH,(L)	11/2001 - 05/2002	1
90947-02D23	CDE120,ZZE12#..UKP LH,(J)	11/2001 - 05/2004	1
90080-94199	CDE120,ZZE12#..UKP RH,(L)	05/2002 - 05/2004	1
90080-94199	CDE120,NDE120,ZZE12#..UKP RH	05/2004 - 02/2006	1
90080-94200	CDE120,NDE120,ZZE12#..UKP LH	05/2004 - 02/2006	1
90947-02D22	CDE120,NDE120,ZZE12#..UKP (J),RH	02/2006 - 12/2999	1
90080-94200	CDE120,NDE120,ZZE12#..UKP (L),LH	02/2006 - 10/2006	1
90080-94200	CDE120,ZZE12#..UKP LH,(L)	05/2002 - 05/2004	1
90080-94199	CDE120,NDE120,ZZE12#..UKP (L),RH	02/2006 - 10/2006	1
90947-02D23	CDE120,NDE120,ZZE12#..UKP (J),LH	02/2006 - 12/2999	1
90080-94132	CDE120,ZZE12#..UKP LH,(L)	11/2001 - 05/2002	1
90947-02D22	CDE120,ZZE12#..UKP RH,(J)	11/2001 - 05/2004	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90080-94131	CDE120,ZZE12#..UKP RH,(L)	11/2001 - 05/2002	1
90947-02D23	CDE120,ZZE12#..UKP LH,(J)	11/2001 - 05/2004	1
90080-94199	CDE120,ZZE12#..UKP RH,(L)	05/2002 - 05/2004	1
90080-94199	CDE120,NDE120,ZZE12#..UKP RH	05/2004 - 02/2006	1
90080-94200	CDE120,NDE120,ZZE12#..UKP LH	05/2004 - 02/2006	1
90947-02D22	CDE120,NDE120,ZZE12#..UKP (J),RH	02/2006 - 12/2999	1
90080-94200	CDE120,NDE120,ZZE12#..UKP (L),LH	02/2006 - 10/2006	1
90080-94200	CDE120,ZZE12#..UKP LH,(L)	05/2002 - 05/2004	1
90080-94199	CDE120,NDE120,ZZE12#..UKP (L),RH	02/2006 - 10/2006	1
90947-02D23	CDE120,NDE120,ZZE12#..UKP (J),LH	02/2006 - 12/2999	1
90080-94132	CDE120,ZZE12#..UKP LH,(L)	11/2001 - 05/2002	1
90947-02D22	CDE120,ZZE12#..UKP RH,(J)	11/2001 - 05/2004	1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	CDE120,ZZE12#..UKP	11/2001 - 05/2004	2
90401-10058	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	CDE120,ZZE12#..UKP	11/2001 - 05/2004	2
90401-10058	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	2
47389-50020	CDE120,ZZE12#..UKP	11/2001 - 05/2004	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	2
47389-50020	CDE120,ZZE12#..UKP	11/2001 - 05/2004	2
47314 - TUBE, FRONT BRAKE, NO.4
47314-02190	CDE120,ZZE120,121..UKP	11/2001 - 05/2004	1
47314-02190	CDE120,NDE120,ZZE120,121..UKP	05/2004 - 12/2999	1
47314-02210	CDE120,NDE120,ZZE120,121..UKP..RHD W(VSC)	05/2004 - 10/2005	1
47314-02210	ZZE121,123..UKP..RHD W(VSC)	11/2001 - 05/2004	1
47314 - TUBE, FRONT BRAKE, NO.4
47314-02190	CDE120,ZZE120,121..UKP	11/2001 - 05/2004	1
47314-02190	CDE120,NDE120,ZZE120,121..UKP	05/2004 - 12/2999	1
47314-02210	CDE120,NDE120,ZZE120,121..UKP..RHD W(VSC)	05/2004 - 10/2005	1
47314-02210	ZZE121,123..UKP..RHD W(VSC)	11/2001 - 05/2004	1
47315 - TUBE, FRONT BRAKE, NO.5
47315-02160	CDE120,NDE120,ZZE12#..UKP..RHD	05/2004 - 12/2999	1
47315-02160	CDE120,ZZE12#..UKP..RHD	11/2001 - 05/2004	1
47317 - TUBE, FRONT BRAKE, NO.7
47317-02120	CDE120,ZZE120,121..UKP..RHD..(DCR,HDCR,HTWC)	11/2001 - 05/2004	1
47317-02130	ZZE121,123..UKP..RHD W(VSC)	11/2001 - 05/2004	1
47317-02290	CDE120,NDE120,ZZE120,121..UKP..RHD W(VSC)	05/2004 - 10/2005	1
47317-02120	NDE120,ZZE120,121..UKP..RHD	05/2004 - 12/2999	1
47317 - TUBE, FRONT BRAKE, NO.7
47317-02120	CDE120,ZZE120,121..UKP..RHD..(DCR,HDCR,HTWC)	11/2001 - 05/2004	1
47317-02130	ZZE121,123..UKP..RHD W(VSC)	11/2001 - 05/2004	1
47317-02290	CDE120,NDE120,ZZE120,121..UKP..RHD W(VSC)	05/2004 - 10/2005	1
47317-02120	NDE120,ZZE120,121..UKP..RHD	05/2004 - 12/2999	1
47318 - TUBE, FRONT BRAKE, NO.8
47318-02120	CDE120,ZZE120,121..UKP..RHD..(DCR,HDCR,HTWC)	11/2001 - 05/2004	1
47318-02130	ZZE121,123..UKP..RHD W(VSC)	11/2001 - 05/2004	1
47318-02120	NDE120,ZZE120,121..UKP..RHD	05/2004 - 12/2999	1
47318-02310	CDE120,NDE120,ZZE120,121..UKP..RHD W(VSC)	05/2004 - 10/2005	1
47318 - TUBE, FRONT BRAKE, NO.8
47318-02120	CDE120,ZZE120,121..UKP..RHD..(DCR,HDCR,HTWC)	11/2001 - 05/2004	1
47318-02130	ZZE121,123..UKP..RHD W(VSC)	11/2001 - 05/2004	1
47318-02120	NDE120,ZZE120,121..UKP..RHD	05/2004 - 12/2999	1
47318-02310	CDE120,NDE120,ZZE120,121..UKP..RHD W(VSC)	05/2004 - 10/2005	1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10045	CDE120,ZZE12#..UKP	11/2001 - 05/2004	2
90401-10045	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10045	CDE120,ZZE12#..UKP	11/2001 - 05/2004	2
90401-10045	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020	CDE120,ZZE12#..UKP	11/2001 - 05/2004	2
47389-50020	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020	CDE120,ZZE12#..UKP	11/2001 - 05/2004	2
47389-50020	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02E88	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
90947-02E88	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02E88	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
90947-02E88	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
47321 - TUBE, REAR BRAKE, NO.1
47321-02120	CDE120,NDE120,ZZE12#..UKP	05/2004 - 02/2007	1
47321-02120	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
47322 - TUBE, REAR BRAKE, NO.2
47322-02120	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
47322-02120	CDE120,NDE120,ZZE12#..UKP	05/2004 - 02/2007	1
47372 - CLAMP, BRAKE TUBE, NO.2
47374-12050	CDE120,NDE120,ZZE120,121..UKP..RHD	05/2004 - 12/2999	1
47374-12050	CDE120,ZZE120,121..UKP	11/2001 - 05/2004	2
47374B - CLAMP, BRAKE TUBE, NO.4
47374-13020	ZZE121,123..UKP	11/2001 - 05/2004	2
47374-13020	CDE120,NDE120,ZZE120,121..UKP..RHD	05/2004 - 10/2005	1
Common parts
90080-10281
90080-11529
90119-08C40
90468-08035
90480-01556
90949-01A25
90949-01B45
90949-01B66
90949-01C76
90949-01C77
90949-04029
90949-04032
91515-60645
91651-40616
Linked diagrams
7701

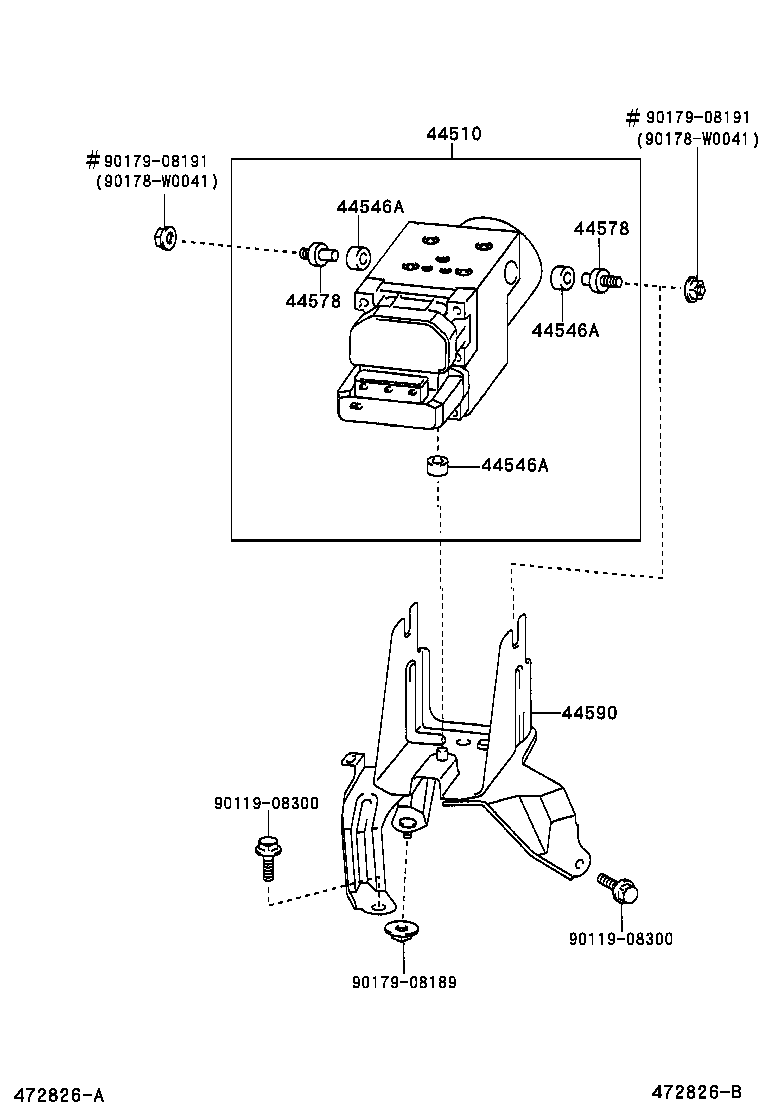

ILLUST NO. 2 OF 2(0111- )UKP

Click highlighted areas on diagram

Part #	Description	Period	Qty
44510 - ACTUATOR ASSY, BRAKE
44050-02051	ZZE121,123..UKP W(VSC)	01/2003 - 05/2004	1
44050-02030	CDE120,ZZE120,121..UKP	11/2001 - 05/2004	1
44050-02030	CDE120,NDE120,ZZE120,121..UKP	05/2004 - 12/2999	1
44050-02100	CDE120,ZZE121..UKP..RHD W(VSC)	05/2004 - 10/2005	1
44050-02050	ZZE121,123..UKP W(VSC)	11/2001 - 01/2003	1
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12100	ZZE121,123..UKP W(VSC)	11/2001 - 01/2003	3
44546-05020	CDE120,ZZE120,121..UKP	11/2001 - 05/2004	3
44546-05020	CDE120,NDE120,ZZE120,121..UKP	05/2004 - 12/2999	3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12100	ZZE121,123..UKP W(VSC)	11/2001 - 01/2003	3
44546-05020	CDE120,ZZE120,121..UKP	11/2001 - 05/2004	3
44546-05020	CDE120,NDE120,ZZE120,121..UKP	05/2004 - 12/2999	3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12100	ZZE121,123..UKP W(VSC)	11/2001 - 01/2003	3
44546-05020	CDE120,ZZE120,121..UKP	11/2001 - 05/2004	3
44546-05020	CDE120,NDE120,ZZE120,121..UKP	05/2004 - 12/2999	3
44578 - BOLT, BRAKE ACTUATOR CUSHION
44578-05020	CDE120,ZZE120,121..UKP	11/2001 - 05/2004	2
44578-05020	CDE120,NDE120,ZZE120,121..UKP	05/2004 - 12/2999	2
44578 - BOLT, BRAKE ACTUATOR CUSHION
44578-05020	CDE120,ZZE120,121..UKP	11/2001 - 05/2004	2
44578-05020	CDE120,NDE120,ZZE120,121..UKP	05/2004 - 12/2999	2
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-02020	CDE120,ZZE120,121..UKP	11/2001 - 05/2004	1
44590-05030	CDE120,NDE120,ZZE120,121..UKP..RHD W(VSC)	05/2004 - 10/2005	1
44590-02020	CDE120,NDE120,ZZE120,121..UKP	05/2004 - 12/2999	1
44590-05030	ZZE121,123..UKP W(VSC)	01/2003 - 05/2004	1
44590-02030	ZZE121,123..UKP W(VSC)	11/2001 - 01/2003	1
Common parts
90119-08300
90178-W0041
90179-08189
90179-08191

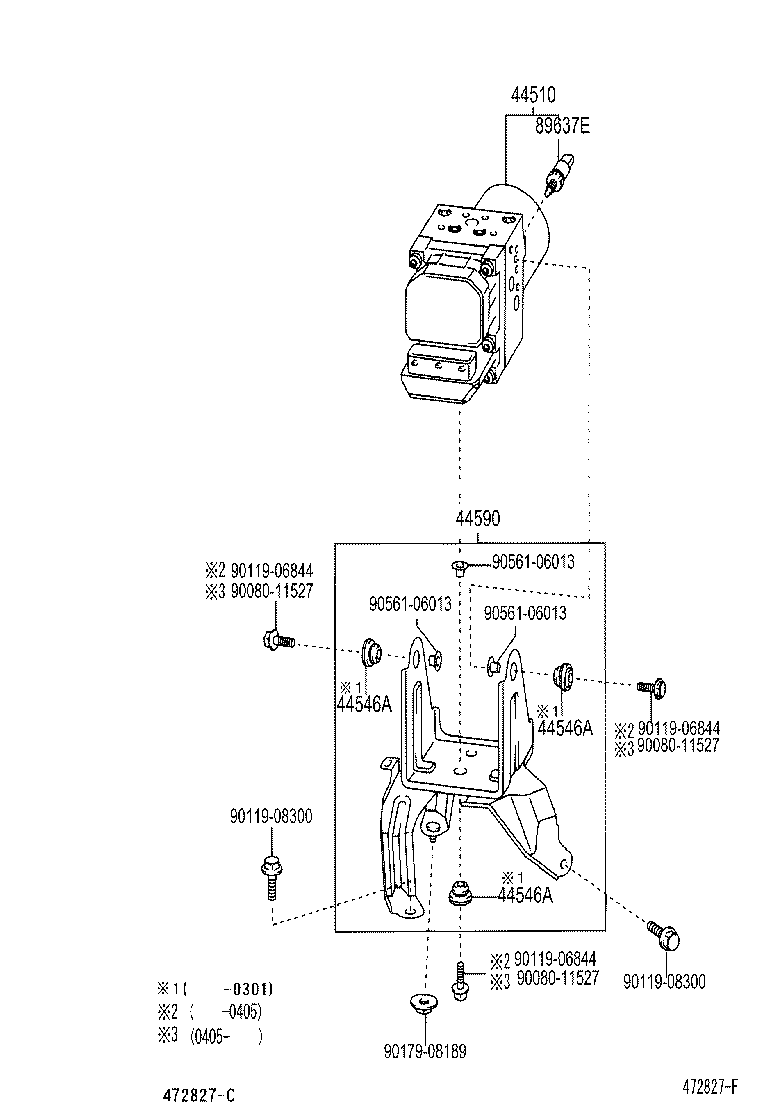

ILLUST NO. 2 OF 2(0111-0405)ZZE121,123..UKP ; (0405- )CDE120,ZZE12#..UKP ; (0408- )NDE120..UKP

Click highlighted areas on diagram

W(VSC)

Part #	Description	Period	Qty
44510 - ACTUATOR ASSY, BRAKE
44050-02051	ZZE121,123..UKP W(VSC)	01/2003 - 05/2004	1
44050-02030	CDE120,ZZE120,121..UKP	11/2001 - 05/2004	1
44050-02030	CDE120,NDE120,ZZE120,121..UKP	05/2004 - 12/2999	1
44050-02100	CDE120,ZZE121..UKP..RHD W(VSC)	05/2004 - 10/2005	1
44050-02050	ZZE121,123..UKP W(VSC)	11/2001 - 01/2003	1
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12100	ZZE121,123..UKP W(VSC)	11/2001 - 01/2003	3
44546-05020	CDE120,ZZE120,121..UKP	11/2001 - 05/2004	3
44546-05020	CDE120,NDE120,ZZE120,121..UKP	05/2004 - 12/2999	3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12100	ZZE121,123..UKP W(VSC)	11/2001 - 01/2003	3
44546-05020	CDE120,ZZE120,121..UKP	11/2001 - 05/2004	3
44546-05020	CDE120,NDE120,ZZE120,121..UKP	05/2004 - 12/2999	3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12100	ZZE121,123..UKP W(VSC)	11/2001 - 01/2003	3
44546-05020	CDE120,ZZE120,121..UKP	11/2001 - 05/2004	3
44546-05020	CDE120,NDE120,ZZE120,121..UKP	05/2004 - 12/2999	3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-02020	CDE120,ZZE120,121..UKP	11/2001 - 05/2004	1
44590-05030	CDE120,NDE120,ZZE120,121..UKP..RHD W(VSC)	05/2004 - 10/2005	1
44590-02020	CDE120,NDE120,ZZE120,121..UKP	05/2004 - 12/2999	1
44590-05030	ZZE121,123..UKP W(VSC)	01/2003 - 05/2004	1
44590-02030	ZZE121,123..UKP W(VSC)	11/2001 - 01/2003	1
89637E - SENSOR, OIL PRESSURE
89637-07010	CDE120,NDE120,ZZE120,121..UKP..RHD	05/2004 - 10/2005	1
89637-07010	ZZE121,123..UKP	11/2001 - 05/2004	1
Common parts
90080-11527
90119-06844
90119-08300
90179-08189
90561-06013

ZZE121R-DHPDKW (2001)

ILLUST NO. 1 OF 2(0111- )UKP..RHD

ILLUST NO. 1 OF 2(0111-0405)ZZE121,123..UKP..RHD ; (0405- )CDE120,ZZE12#..UKP..RHD ; (0408- )N

ILLUST NO. 2 OF 2(0111- )UKP

ILLUST NO. 2 OF 2(0111-0405)ZZE121,123..UKP ; (0405- )CDE120,ZZE12#..UKP ; (0408- )NDE120..UKP

Part Price Details
