ZZE121R-DHPDKW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - Feb 2007
Engine 3ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0111- )UKP

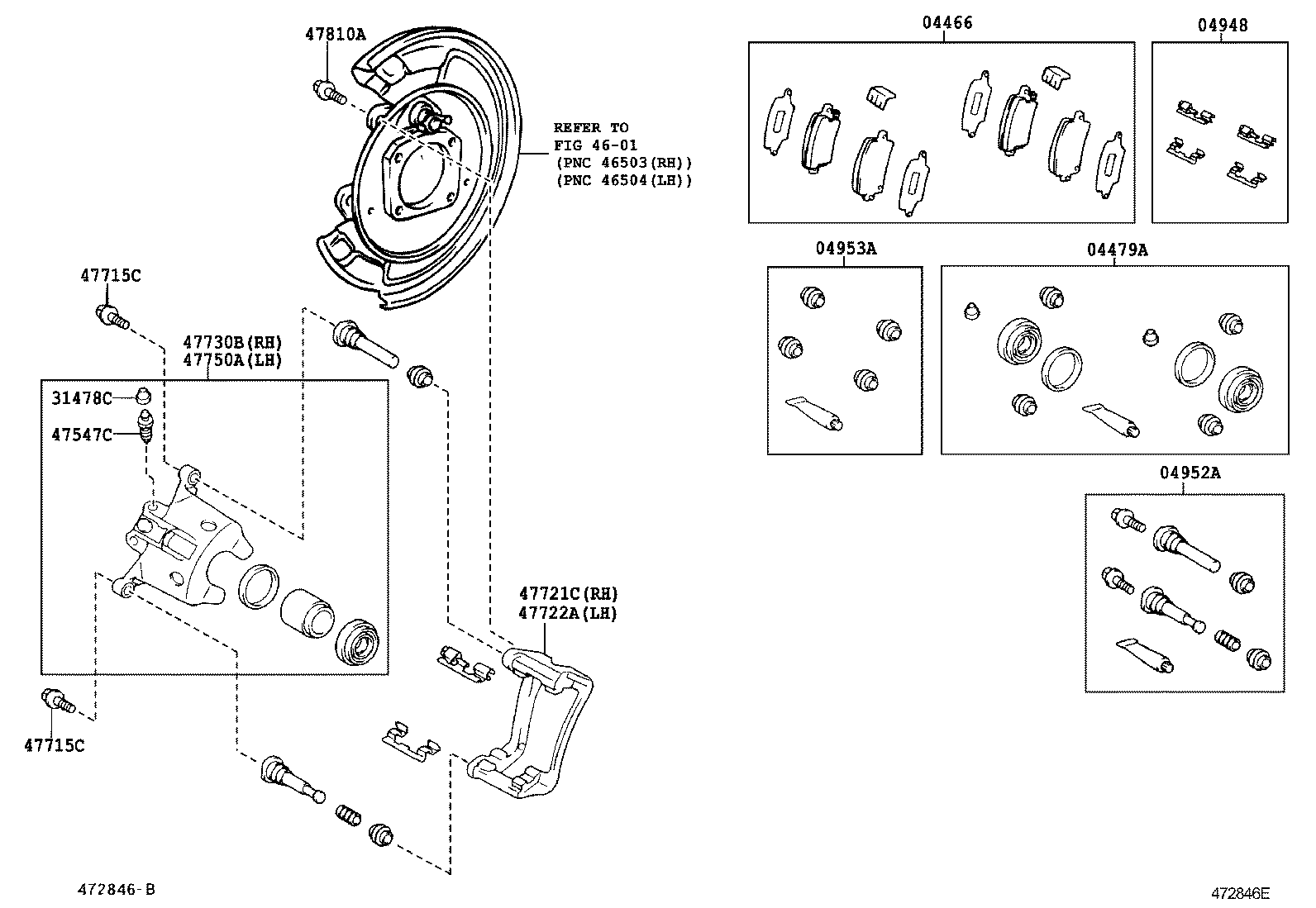

Click highlighted areas on diagram

diagram 04466 04479A 04948 04952A 04953A 31478C 4601 47547C 47715C 47715C 47721C 47722A 47730B 47750A 47810A
Part # Description Qty Price
04466 - PAD KIT, DISC BRAKE, REAR
04466-02070

CDE120,ZZE12#..UKP

MARK TRW FER 4088F

 1
04466-02070

CDE120,NDE120,ZZE12#..UKP

MARK TRW FER 4088F

 1
04479A - CYLINDER KIT, DISC BRAKE, REAR
04479-02090

CDE120,ZZE12#..UKP

 1
04479-02090

CDE120,NDE120,ZZE12#..UKP

 1
04948 - FITTING KIT, DISC BRAKE, REAR
04948-02030

CDE120,ZZE12#..UKP

 1
04948-02030

CDE120,NDE120,ZZE12#..UKP

 1
04952A - PIN KIT, REAR DISC BRAKE CYLINDER SLIDE
04956-09020

CDE120,NDE120,ZZE12#..UKP

 2
04952-02040

CDE120,ZZE12#..UKP

 2
04953A - BOOT KIT, REAR DISC BRAKE CYLINDER SLIDE PIN
04953-02020

CDE120,NDE120,ZZE12#..UKP

 1
04953-02040

CDE120,ZZE12#..UKP

 1
31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
47548-02010

CDE120,NDE120,ZZE12#..UKP

 2
47548-02010

CDE120,ZZE12#..UKP

 2
47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE)
47547-05012

CDE120,NDE120,ZZE12#..UKP

 2
47547-05011

CDE120,NDE120,ZZE12#..UKP

 2
90080-93014

CDE120,NDE120,ZZE12#..UKP

 2
47547-05011

CDE120,ZZE12#..UKP

 2
47715C - PIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)
47715-02091

CDE120,NDE120,ZZE12#..UKP

 4
47715-02090

CDE120,ZZE12#..UKP

 4
47715-02090

CDE120,NDE120,ZZE12#..UKP

 4
47715C - PIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)
47715-02091

CDE120,NDE120,ZZE12#..UKP

 4
47715-02090

CDE120,ZZE12#..UKP

 4
47715-02090

CDE120,NDE120,ZZE12#..UKP

 4
47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH
47721-02110

CDE120,ZZE12#..UKP

 1
47721-02111

CDE120,NDE120,ZZE12#..UKP

 1
47721-02110

CDE120,NDE120,ZZE12#..UKP

 1
47721-02110

CDE120,NDE120,ZZE12#..UKP

 1
47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH
47722-02110

CDE120,ZZE12#..UKP

 1
47722-02111

CDE120,NDE120,ZZE12#..UKP

 1
47722-02110

CDE120,NDE120,ZZE12#..UKP

 1
47730B - CYLINDER ASSY, REAR DISC BRAKE, RH
47730-02111

CDE120,NDE120,ZZE12#..UKP

 1
47730-02110

CDE120,NDE120,ZZE12#..UKP

 1
47730-02110

CDE120,NDE120,ZZE12#..UKP

 1
47730-02110

CDE120,ZZE12#..UKP

 1
47750A - CYLINDER ASSY, DISC BRAKE, REAR LH
47750-02110

CDE120,ZZE12#..UKP

 1
47750-02110

CDE120,NDE120,ZZE12#..UKP

 1
47750-02111

CDE120,NDE120,ZZE12#..UKP

 1
47810A - BOLT, HEXAGON(FOR REAR CALIPER)
90105-10263

CDE120,NDE120,ZZE12#..UKP

 4
90105-10263

CDE120,ZZE12#..UKP

 4
