Toyota Corolla hb (ukp) ZZE121 FRONT DISC BRAKE CALIPER & DUST COVER

Manufacturers Home
Toyota
EU
COROLLA HB (UKP)
ZZE121R-DHPDKW (2001)
4705 - FRONT DISC BRAKE CALIPER & DUST COVER

ZZE121R-DHPDKW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - Feb 2007

Engine 3ZZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

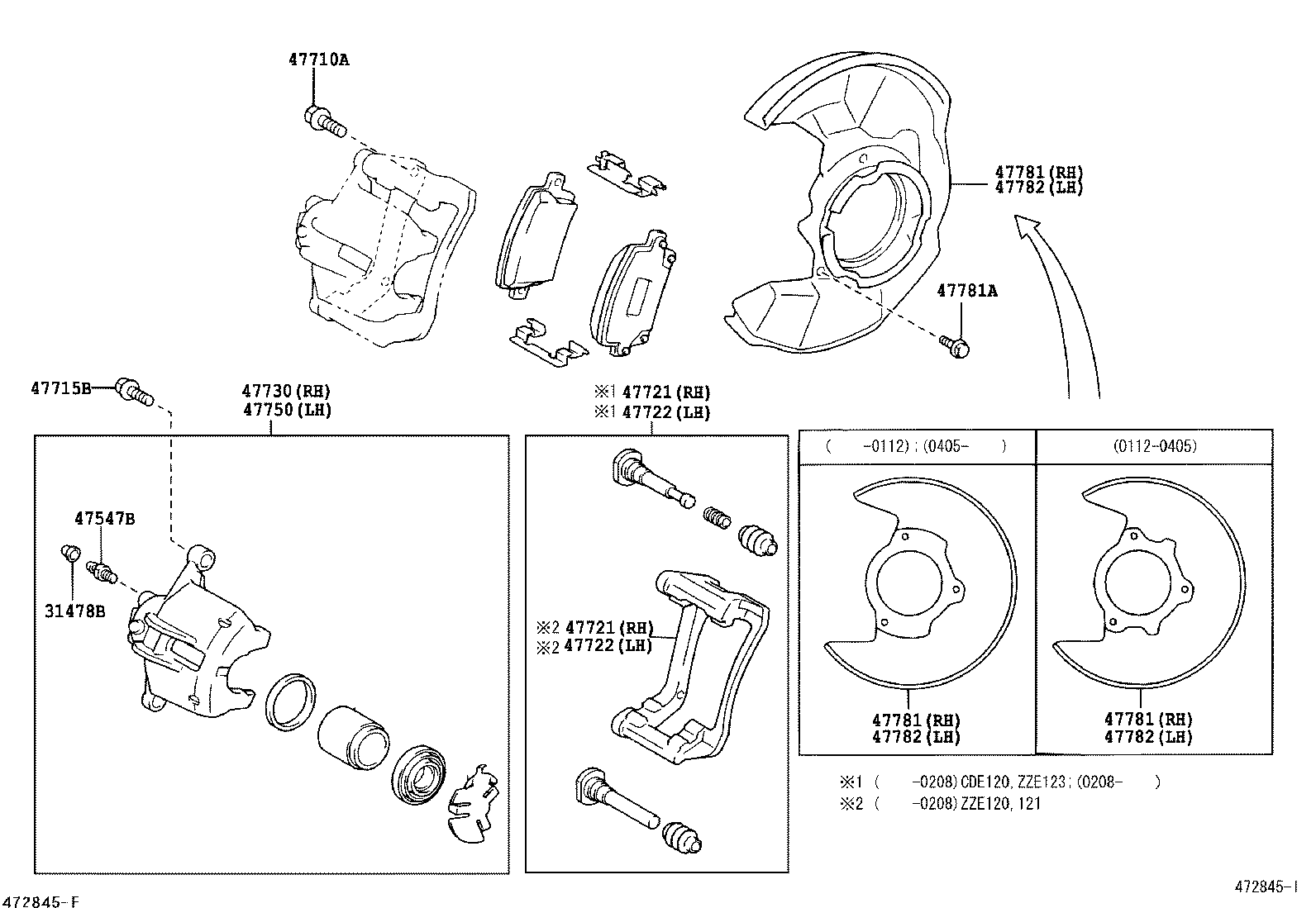

ILLUST NO. 1 OF 2(0111- )UKP

Click highlighted areas on diagram

Part #	Description	Period	Qty
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
47548-02010	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	2
47548-02010	CDE120,ZZE12#..UKP	11/2001 - 05/2004	2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
90080-93014	CDE120,ZZE12#..UKP	11/2001 - 05/2004	2
47547-05011	CDE120,NDE120,ZZE12#..UKP	10/2004 - 11/2006	2
47547-05012	CDE120,NDE120,ZZE12#..UKP	12/2006 - 12/2999	2
90080-93014	CDE120,NDE120,ZZE12#..UKP	05/2004 - 10/2004	2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-12208	CDE120,NDE120,ZZE12#..UKP *12-1.25PX29.5-23	05/2004 - 02/2007	4
90105-12208	CDE120,ZZE12#..UKP *12-1.25PX29.5-23	11/2001 - 05/2004	4
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90080-10190	CDE120,NDE120,ZZE12#..UKP	05/2004 - 11/2006	4
90080-10190	CDE120,ZZE12#..UKP	11/2001 - 05/2004	4
47715-02091	CDE120,NDE120,ZZE12#..UKP	12/2006 - 12/2999	4
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-09160	ZZE120,121..UKP	08/2002 - 05/2004	1
47721-02090	ZZE120,121..UKP	11/2001 - 08/2002	1
47721-09160	ZZE120,121..UKP	05/2004 - 12/2006	1
47721-09400	ZZE120,121..UKP	12/2006 - 12/2999	1
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-09160	ZZE120,121..UKP	08/2002 - 05/2004	1
47721-02090	ZZE120,121..UKP	11/2001 - 08/2002	1
47721-09160	ZZE120,121..UKP	05/2004 - 12/2006	1
47721-09400	ZZE120,121..UKP	12/2006 - 12/2999	1
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47721-09170	ZZE120,121..UKP	08/2002 - 05/2004	1
47721-02170	ZZE120,121..UKP	11/2001 - 08/2002	1
47721-09410	ZZE120,121..UKP	12/2006 - 12/2999	1
47721-09170	ZZE120,121..UKP	05/2004 - 12/2006	1
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47721-09170	ZZE120,121..UKP	08/2002 - 05/2004	1
47721-02170	ZZE120,121..UKP	11/2001 - 08/2002	1
47721-09410	ZZE120,121..UKP	12/2006 - 12/2999	1
47721-09170	ZZE120,121..UKP	05/2004 - 12/2006	1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-02100	CDE120,ZZE12#..UKP	08/2002 - 05/2004	1
47730-02190	ZZE120,121..UKP	11/2001 - 08/2002	1
47730-02100	CDE120,NDE120,ZZE12#..UKP	05/2004 - 11/2006	1
47730-02101	CDE120,NDE120,ZZE12#..UKP	12/2006 - 12/2999	1
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-02190	ZZE120,121..UKP	11/2001 - 08/2002	1
47750-02100	CDE120,NDE120,ZZE12#..UKP	05/2004 - 11/2006	1
47750-02100	CDE120,ZZE12#..UKP	08/2002 - 05/2004	1
47750-02101	CDE120,NDE120,ZZE12#..UKP	12/2006 - 12/2999	1
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-02040	CDE120,NDE120,ZZE12#..UKP	05/2004 - 02/2007	1
47781-12240	CDE120,ZZE12#..UKP	12/2001 - 05/2004	1
47781-02040	CDE120,ZZE12#..UKP	11/2001 - 12/2001	1
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-02040	CDE120,NDE120,ZZE12#..UKP	05/2004 - 02/2007	1
47781-12240	CDE120,ZZE12#..UKP	12/2001 - 05/2004	1
47781-02040	CDE120,ZZE12#..UKP	11/2001 - 12/2001	1
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-02040	CDE120,NDE120,ZZE12#..UKP	05/2004 - 02/2007	1
47781-12240	CDE120,ZZE12#..UKP	12/2001 - 05/2004	1
47781-02040	CDE120,ZZE12#..UKP	11/2001 - 12/2001	1
47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90080-11525	CDE120,ZZE12#..UKP (L)	11/2001 - 05/2004	6
90080-11525	CDE120,NDE120,ZZE12#..UKP	05/2004 - 02/2007	6
90119-06227	CDE120,ZZE12#..UKP (J)	11/2001 - 05/2004	6
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-02040	CDE120,ZZE12#..UKP	11/2001 - 12/2001	1
47782-02040	CDE120,NDE120,ZZE12#..UKP	05/2004 - 02/2007	1
47782-12240	CDE120,ZZE12#..UKP	12/2001 - 05/2004	1
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-02040	CDE120,ZZE12#..UKP	11/2001 - 12/2001	1
47782-02040	CDE120,NDE120,ZZE12#..UKP	05/2004 - 02/2007	1
47782-12240	CDE120,ZZE12#..UKP	12/2001 - 05/2004	1
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-02040	CDE120,ZZE12#..UKP	11/2001 - 12/2001	1
47782-02040	CDE120,NDE120,ZZE12#..UKP	05/2004 - 02/2007	1
47782-12240	CDE120,ZZE12#..UKP	12/2001 - 05/2004	1

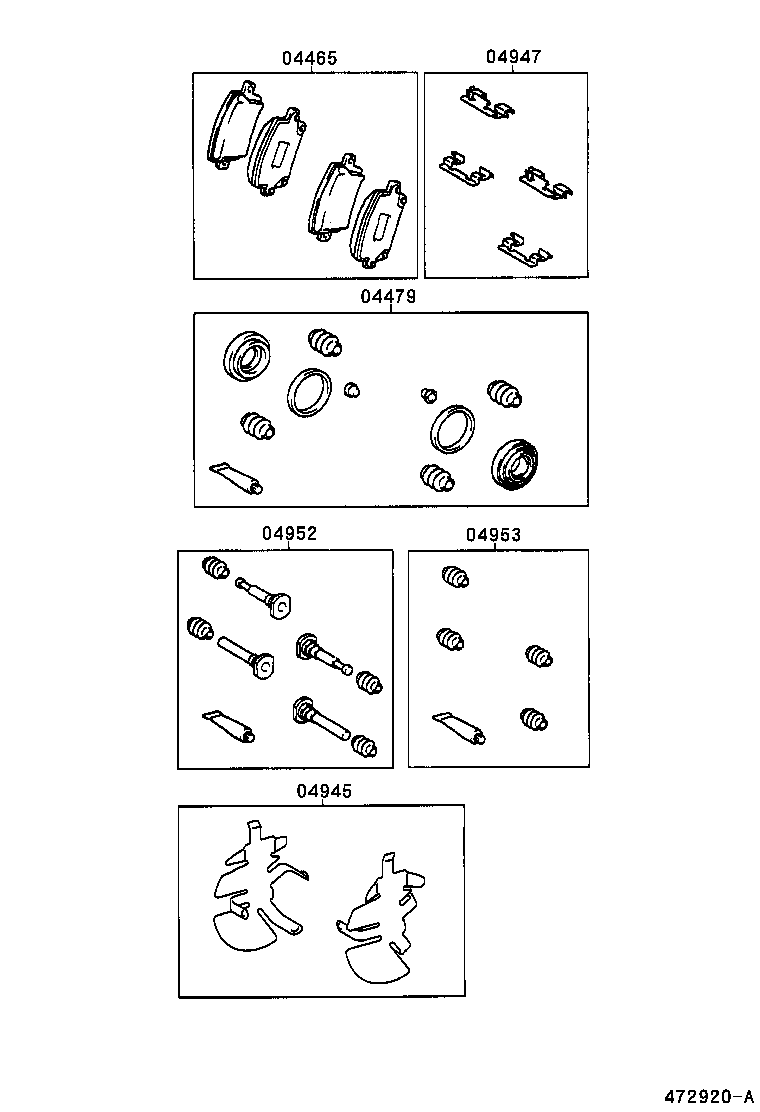

ILLUST NO. 2 OF 2(0111- )UKP

Click highlighted areas on diagram

Part #	Description	Period	Qty
04465 - PAD KIT, DISC BRAKE, FRONT
04465-02130	CDE120,ZZE12#..UKP MARK TRW PAGID 648	11/2001 - 05/2004	1
04465-02130	CDE120,NDE120,ZZE12#..UKP MARK TRW PAGID 648	05/2004 - 12/2999	1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-02080	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
04479-02080	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-02070	ZZE120,121..UKP	11/2001 - 05/2004	1
04945-02070	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-02050	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
04947-02050	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
04952 - PIN KIT, FRONT DISC BRAKE CYLINDER SLIDE
04952-02030	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
04952-02230	CDE120,NDE120,ZZE12#..UKP	12/2006 - 12/2999	1
04952-02030	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2006	1
04953 - BOOT KIT, FRONT DISC BRAKE CYLINDER SLIDE PIN
04953-02030	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
04953-02030	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1

ZZE121R-DHPDKW (2001)

ILLUST NO. 1 OF 2(0111- )UKP

ILLUST NO. 2 OF 2(0111- )UKP
