ZZE121R-DHPDKW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - Feb 2007
Engine 3ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0111- )UKP

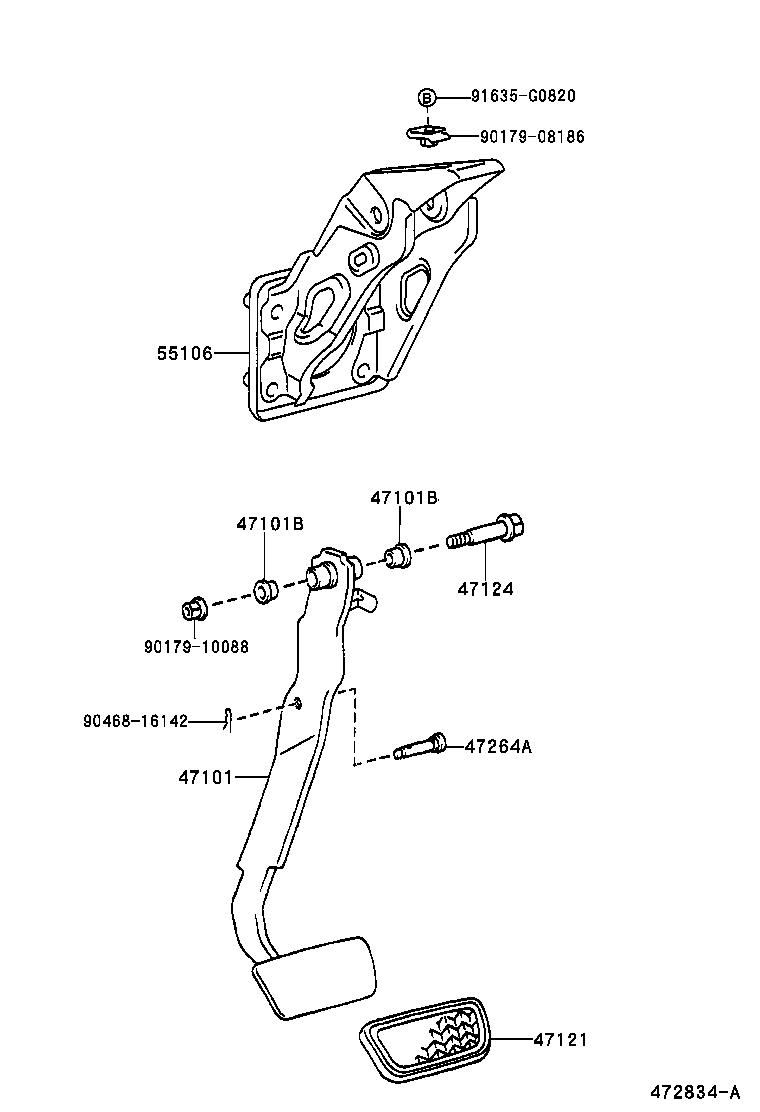

Click highlighted areas on diagram

diagram 47101 47101B 47101B 47121 47124 47264A 55106 9017908186 9017910088 9046816142 91635G0820
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-02100

NDE120,ZZE121..UKP..RHD..(4FC,5FS)

 1
47101-02100

ZZE121..RHD..4FC..TERRA;ZZE121..RHD..5D..4FC..SOL

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

CDE120,NDE120,ZZE12#..UKP

 2
90386-13015

ZZE120..UKP;ZZE123..UKP..3D;ZZE121..UKP..5D..SOL;CDE120..UKP..5D..DCRL;ZZE121..UKP..RHD..TERRA;ZZE121..UKP..LHD..3D..SOL;CDE120..UKP..LHD..3D..DCRL;ZZE121..UKP..LHD..5F..TERRA;ZZE121,123..UKP..LHD..5D..(4FC,6F)..(TERRA,TSP)

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

CDE120,NDE120,ZZE12#..UKP

 2
90386-13015

ZZE120..UKP;ZZE123..UKP..3D;ZZE121..UKP..5D..SOL;CDE120..UKP..5D..DCRL;ZZE121..UKP..RHD..TERRA;ZZE121..UKP..LHD..3D..SOL;CDE120..UKP..LHD..3D..DCRL;ZZE121..UKP..LHD..5F..TERRA;ZZE121,123..UKP..LHD..5D..(4FC,6F)..(TERRA,TSP)

 2
47121 - PAD, BRAKE PEDAL
47121-52010

NDE120,ZZE121..UKP..(4FC,5FS)

 1
47121-52010

ZZE121..UKP..5D..4FC..SOL;ZZE121..UKP..RHD..4FC..TERRA;ZZE121..UKP..LHD..3D..4FC..SOL;ZZE121..UKP..LHD..5D..4FC..TERRA

 1
47124 - SHAFT, BRAKE PEDAL
90109-10174

CDE120,NDE120,ZZE12#..UKP

 1
90109-10174

ZZE120..UKP;ZZE123..UKP..3D;ZZE121..UKP..5D..SOL;CDE120..UKP..5D..DCRL;ZZE121..UKP..RHD..TERRA;ZZE121..UKP..LHD..3D..SOL;CDE120..UKP..LHD..3D..DCRL;ZZE121..UKP..LHD..5F..TERRA;ZZE121,123..UKP..LHD..5D..(4FC,6F)..(TERRA,TSP)

 1
47264A - PIN(FOR PUSH ROD)
47148-12070

CDE120,NDE120,ZZE12#..UKP

 1
47148-12070

ZZE120..UKP;ZZE123..UKP..3D;ZZE121..UKP..5D..SOL;CDE120..UKP..5D..DCRL;ZZE121..UKP..RHD..TERRA;ZZE121..UKP..LHD..3D..SOL;CDE120..UKP..LHD..3D..DCRL;ZZE121..UKP..LHD..5F..TERRA;ZZE121,123..UKP..LHD..5D..(4FC,6F)..(TERRA,TSP)

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-02050

CDE120,ZZE12#..UKP..RHD

 1
55106-02050

CDE120,NDE120,ZZE12#..UKP..RHD

 1
Common parts
90179-08186
90179-10088
90468-16142
91635-G0820
