ZZE121R-DHPDKW (2001)
Toyota Corolla Hb (Ukp)

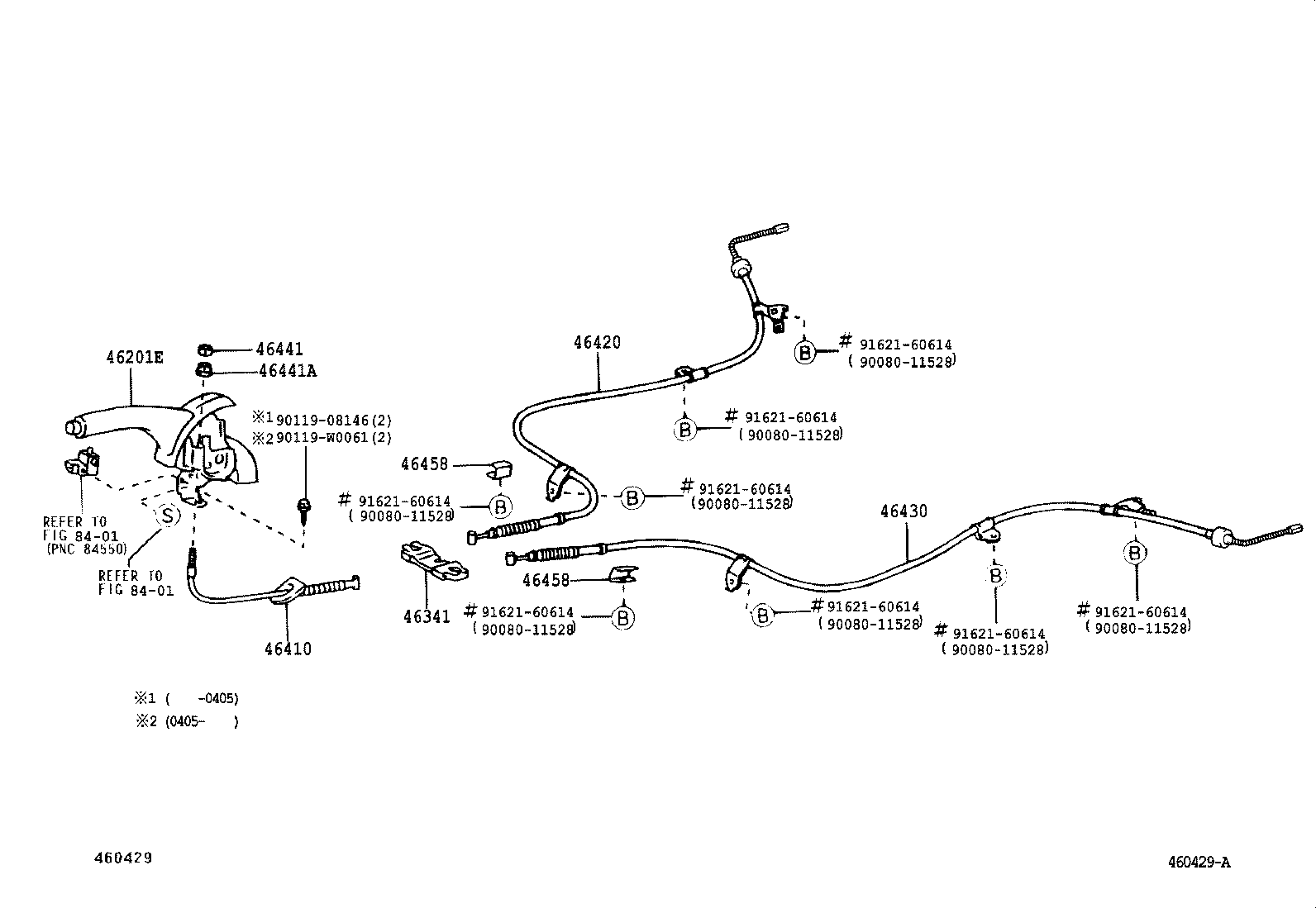

ILLUST NO. 1 OF 2(0111- )UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-02120B0 |
CDE120,ZZE120,121..UKP..RHD..TERRA DK.GRAY,TRIM1#,8# |
1 | ||
| 46201-02180B0 |
CDE120,ZZE120,121..UKP..RHD..TERRA FRAME NO.=RXXXXXX,DK.GRAY,TRIM1#,8# |
1 | ||
| 46201-02121B0 |
CDE120,ZZE120,121..UKP..RHD..TERRA DK.GRAY,TRIM1#,8# |
1 | ||
| 46201-02121B0 |
CDE120,ZZE120,121..UKP..RHD..TERRA FRAME NO.=EXXXXXX,DK.GRAY,TRIM1#,8# |
1 | ||
| 46201-02121B0 |
CDE120,NDE120,ZZE12#..UKP..RHD..(TERRA,TSP) DK.GRAY,TRIM1# |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-20070 |
CDE120,ZZE12#..UKP (J) |
1 | ||
| 46341-02040 |
CDE120,ZZE12#..UKP (L) |
1 | ||
| 46341-20070 |
CDE120,ZZE12#..UKP |
1 | ||
| 46341-20070 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-12270 |
CDE120,ZZE12#..UKP |
1 | ||
| 46410-02070 |
CDE120,ZZE12#..UKP (L) |
1 | ||
| 46410-12270 |
CDE120,ZZE12#..UKP (J) |
1 | ||
| 46410-12270 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-02110 |
CDE120,ZZE12#..UKP FRAME NO.=EXXXXXX |
1 | ||
| 46420-02111 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 46420-02090 |
CDE120,ZZE12#..UKP FRAME NO.=RXXXXXX |
1 | ||
| 46420-12541 |
CDE120,ZZE12#..UKP (J) |
1 | ||
| 46420-12540 |
CDE120,ZZE12#..UKP |
1 | ||
| 46420-02090 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 46420-02111 |
CDE120,ZZE12#..UKP FRAME NO.=EXXXXXX |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-12440 |
CDE120,ZZE12#..UKP |
1 | ||
| 46430-12441 |
CDE120,ZZE12#..UKP (J) |
1 | ||
| 46430-02111 |
CDE120,ZZE12#..UKP FRAME NO.=EXXXXXX |
1 | ||
| 46430-02090 |
CDE120,ZZE12#..UKP FRAME NO.=RXXXXXX |
1 | ||
| 46430-02110 |
CDE120,ZZE12#..UKP FRAME NO.=EXXXXXX |
1 | ||
| 46430-02090 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 46430-02111 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 90179-06299 |
CDE120,ZZE12#..UKP (J) |
1 | ||
| 90179-06299 |
CDE120,ZZE12#..UKP |
1 | ||
| 90080-17171 |
CDE120,ZZE12#..UKP (L) |
1 | ||
| 90178-W0019 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 46441A - NUT, WIRE ADJUSTING, NO.2 | ||||
| 90179-06171 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 90179-06171 |
CDE120,ZZE12#..UKP |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-28010 |
CDE120,ZZE12#..UKP |
2 | ||
| 46458-28010 |
CDE120,NDE120,ZZE12#..UKP |
2 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-28010 |
CDE120,ZZE12#..UKP |
2 | ||
| 46458-28010 |
CDE120,NDE120,ZZE12#..UKP |
2 | ||
| Common parts | ||||
| 90080-11528 | ||||
| 90119-08146 | ||||
| 90119-W0061 | ||||
| 91621-60614 | ||||
| Linked diagrams | ||||
| 8401 | ||||

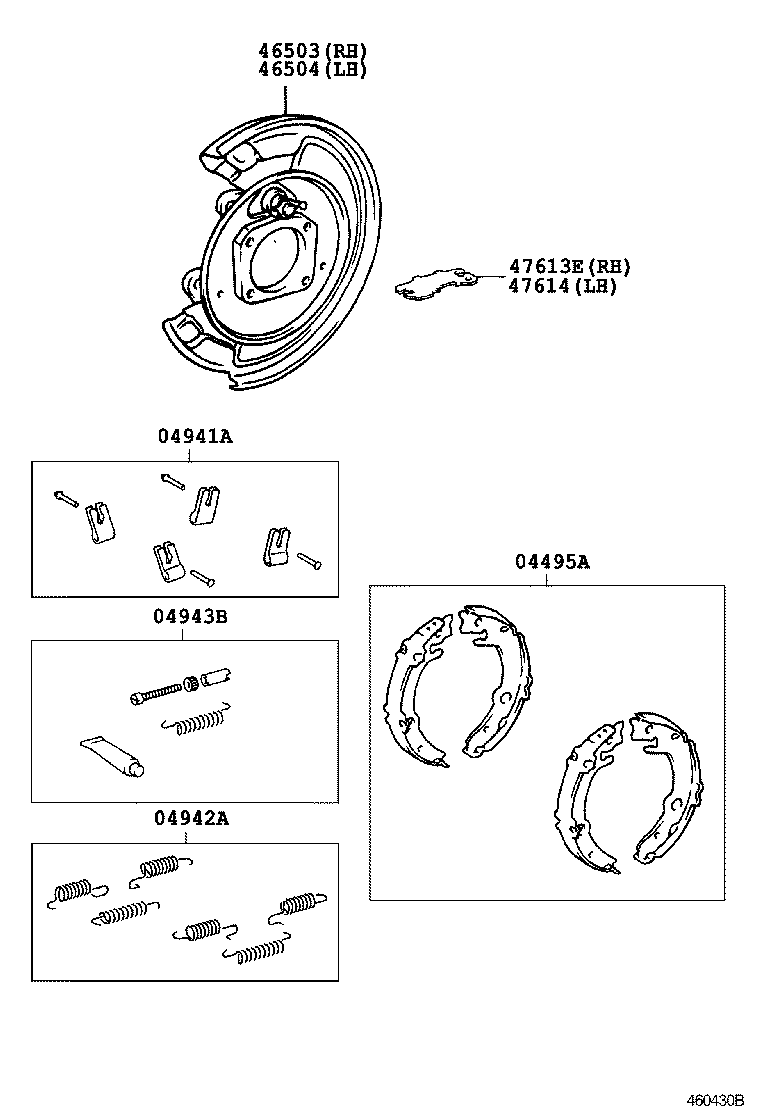

ILLUST NO. 2 OF 2(0111-0405)UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04495A - SHOE KIT, PARKING BRAKE | ||||
| 04495-02120 |
CDE120,ZZE12#..UKP |
1 | ||
| 04495-02120 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 04495-02180 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 04941A - SPRING KIT, PARKING BRAKE SHOE HOLD DOWN | ||||
| 04941-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 04942A - SPRING KIT, PARKING BRAKE | ||||
| 04942-02050 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 04942-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 04942-02110 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 04943B - ADJUSTER KIT, PARKING BRAKE | ||||
| 04943-02020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 04943-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 04943-02060 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-02020 |
ZZE120,121..UKP |
1 | ||
| 46503-02020 |
ZZE120,121..UKP |
1 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-02020 |
ZZE120,121..UKP |
1 | ||
| 46504-02020 |
ZZE120,121..UKP |
1 | ||
| 47613E - STRUT, PARKING BRAKE SHOE, RH | ||||
| 47613-02050 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 47613-02050 |
CDE120,ZZE12#..UKP |
1 | ||
| 47614 - STRUT, PARKING BRAKE SHOE, LH | ||||
| 47613-02050 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 47613-02050 |
CDE120,ZZE12#..UKP |
1 | ||

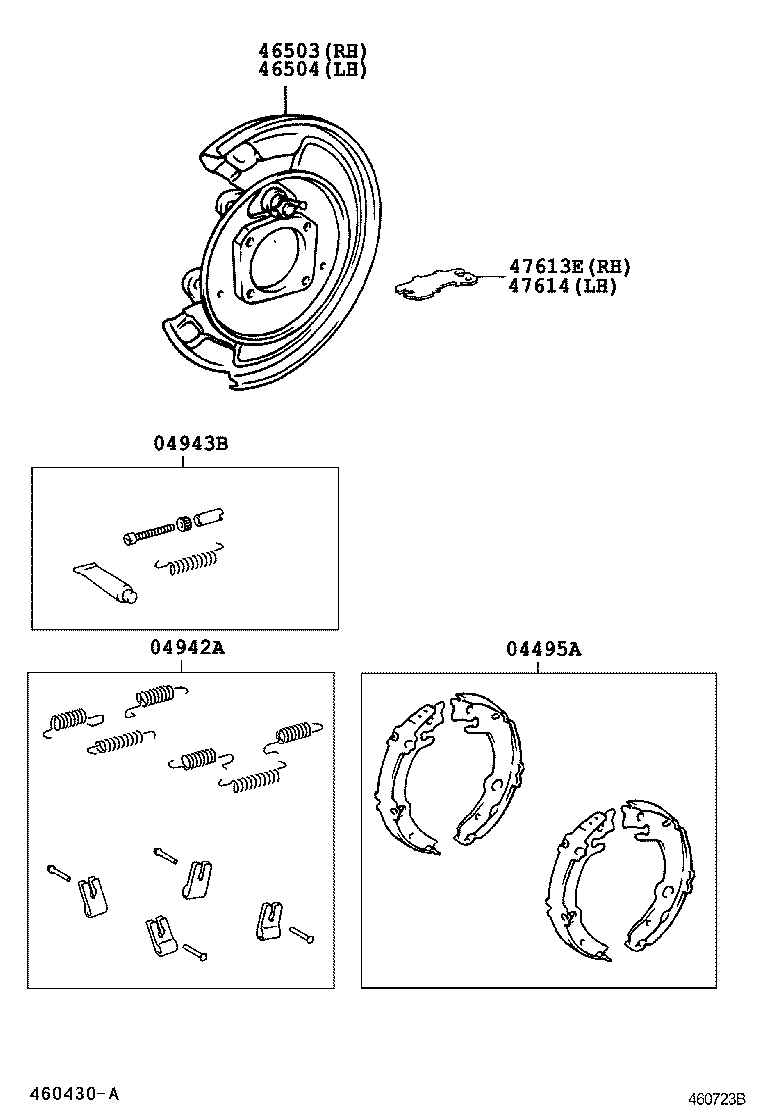

ILLUST NO. 2 OF 2(0405- )UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04495A - SHOE KIT, PARKING BRAKE | ||||
| 04495-02120 |
CDE120,ZZE12#..UKP |
1 | ||
| 04495-02120 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 04495-02180 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 04942A - SPRING KIT, PARKING BRAKE | ||||
| 04942-02050 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 04942-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 04942-02110 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 04943B - ADJUSTER KIT, PARKING BRAKE | ||||
| 04943-02020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 04943-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 04943-02060 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-02020 |
ZZE120,121..UKP |
1 | ||
| 46503-02020 |
ZZE120,121..UKP |
1 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-02020 |
ZZE120,121..UKP |
1 | ||
| 46504-02020 |
ZZE120,121..UKP |
1 | ||
| 47613E - STRUT, PARKING BRAKE SHOE, RH | ||||
| 47613-02050 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 47613-02050 |
CDE120,ZZE12#..UKP |
1 | ||
| 47614 - STRUT, PARKING BRAKE SHOE, LH | ||||
| 47613-02050 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 47613-02050 |
CDE120,ZZE12#..UKP |
1 | ||
