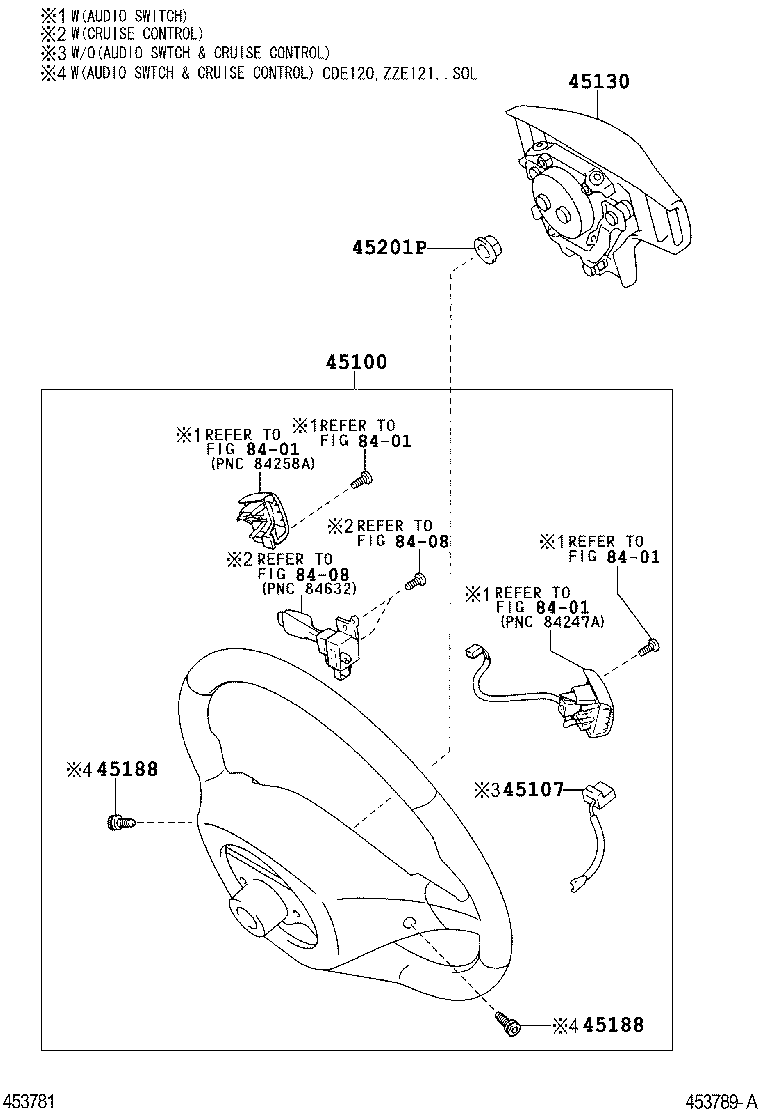

ZZE121R-DHPDKW (2001)
Toyota Corolla Hb (Ukp)
(0111-0405)UKP
3-SPOKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-02200B0 |
CDE120,ZZE120,121..UKP..TERRA 3-SPOKE,URETHANE,DK.GRAY,TRIM1#,8# |
1 | ||
| 45100-02230B0 |
CDE120,ZZE120,121..UKP..TERRA 3-SPOKE,URETHANE,W(AUDIO SWITCH),DK.GRAY,TRIM1#,8# |
1 | ||
| 45100-02240B0 |
CDE120,ZZE121..UKP..TERRA..(DCRL,HTWC) 3-SPOKE,LEATHER,W(AUDIO SWITCH),DK.GRAY,TRIM1#,8# |
1 | ||
| 45100-02410B0 |
NDE120..UKP..LHD..TERRA;ZZE120,121..UKP..5D..TERRA;ZZE120,121..UKP..LHD..3D..TERRA 3-SPOKE,LEATHER,W(AUDIO SWITCH),DK.GRAY,TRIM1# |
1 | ||
| 45100-02390B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA 3-SPOKE,URETHANE,DK.GRAY,TRIM1# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-02160B0 |
CDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1#,8# |
1 | ||
| 45130-02270B0 |
CDE120..UKP..TERRA;NDE120..UKP..LHD..TERRA;ZZE120,121..UKP..5D..TERRA;ZZE120,121..UKP..LHD..3D..TERRA W(AUDIO SWITCH),DK.GRAY,TRIM1# |
1 | ||
| 45130-02260B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 45130-02230B0 |
CDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1#,8# |
1 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 90080-14018 |
CDE120,ZZE12#..UKP L=15.5 |
2 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 90080-14018 |
CDE120,ZZE12#..UKP L=15.5 |
2 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90178-W0030 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 90179-12071 |
CDE120,ZZE12#..UKP |
1 | ||
| Linked diagrams | ||||
| 8601 | ||||

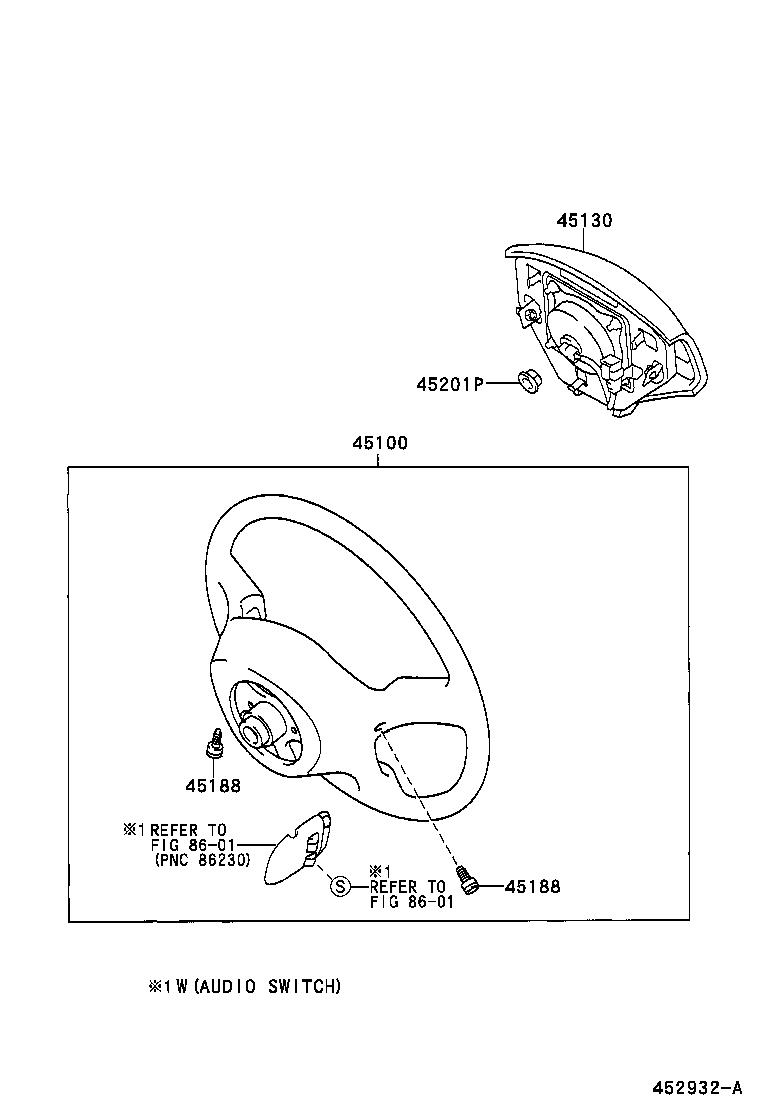

(0405- )UKP
3-SPOKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-02200B0 |
CDE120,ZZE120,121..UKP..TERRA 3-SPOKE,URETHANE,DK.GRAY,TRIM1#,8# |
1 | ||
| 45100-02230B0 |
CDE120,ZZE120,121..UKP..TERRA 3-SPOKE,URETHANE,W(AUDIO SWITCH),DK.GRAY,TRIM1#,8# |
1 | ||
| 45100-02240B0 |
CDE120,ZZE121..UKP..TERRA..(DCRL,HTWC) 3-SPOKE,LEATHER,W(AUDIO SWITCH),DK.GRAY,TRIM1#,8# |
1 | ||
| 45100-02410B0 |
NDE120..UKP..LHD..TERRA;ZZE120,121..UKP..5D..TERRA;ZZE120,121..UKP..LHD..3D..TERRA 3-SPOKE,LEATHER,W(AUDIO SWITCH),DK.GRAY,TRIM1# |
1 | ||
| 45100-02390B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA 3-SPOKE,URETHANE,DK.GRAY,TRIM1# |
1 | ||
| 45107 - WIRE SUB-ASSY, HORN BUTTON | ||||
| 45107-02010 |
CDE120,NDE120,ZZE120,121..UKP |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-02160B0 |
CDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1#,8# |
1 | ||
| 45130-02270B0 |
CDE120..UKP..TERRA;NDE120..UKP..LHD..TERRA;ZZE120,121..UKP..5D..TERRA;ZZE120,121..UKP..LHD..3D..TERRA W(AUDIO SWITCH),DK.GRAY,TRIM1# |
1 | ||
| 45130-02260B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 45130-02230B0 |
CDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1#,8# |
1 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 90080-14018 |
CDE120,ZZE12#..UKP L=15.5 |
2 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 90080-14018 |
CDE120,ZZE12#..UKP L=15.5 |
2 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90178-W0030 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 90179-12071 |
CDE120,ZZE12#..UKP |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||
| 8408 | ||||
