ZZE121R-DHPDKW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - Feb 2007
Engine 3ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0111- )UKP

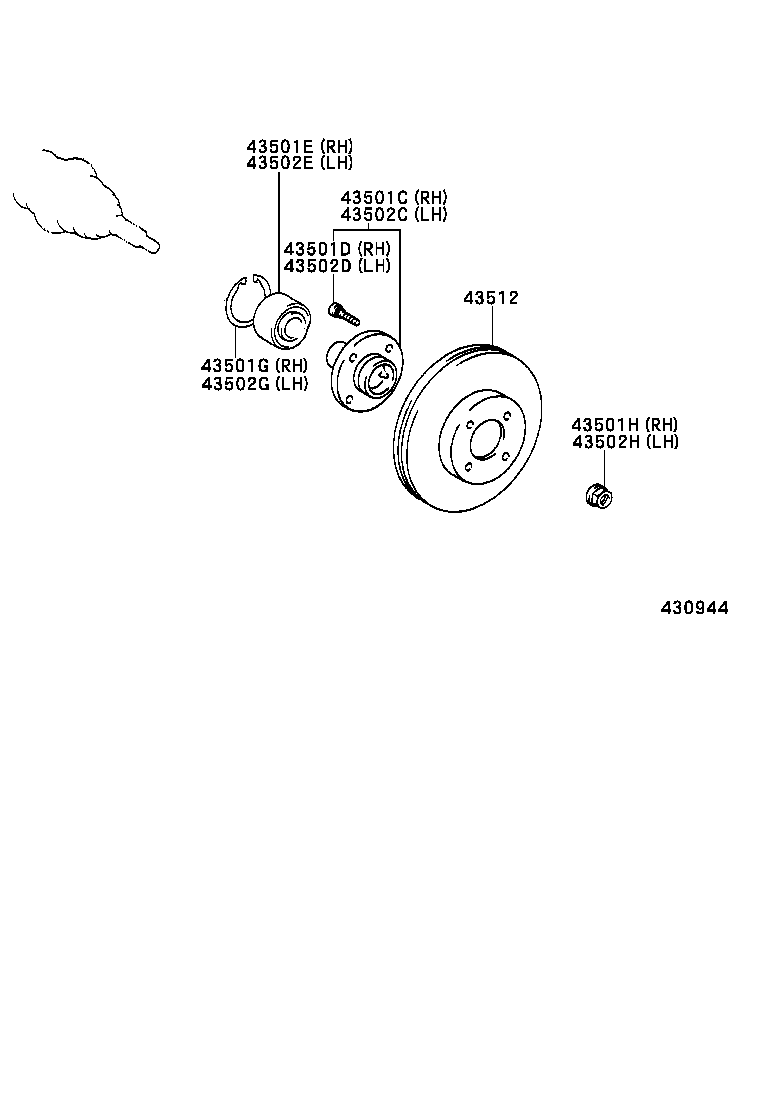

Click highlighted areas on diagram

diagram 43501C 43501D 43501E 43501G 43501H 43502C 43502D 43502E 43502G 43502H 43512
Part # Description Qty Price
43501C - HUB SUB-ASSY, FRONT AXLE, RH
43502-02021

CDE120,ZZE12#..UKP

 1
43502-02021

CDE120,NDE120,ZZE12#..UKP

 1
43502-12140

CDE120,ZZE12#..UKP

(J)

 1
43502-02021

CDE120,ZZE12#..UKP

(L)

 1
43502-02021

CDE120,ZZE12#..UKP

 1
43501D - BOLT, HUB (FOR FRONT AXLE RH)
90942-02049

CDE120,ZZE12#..UKP

 4
90942-02049

CDE120,NDE120,ZZE12#..UKP

 4
43501E - BEARING (FOR FRONT AXLE HUB RH)
90080-36087

CDE120,ZZE12#..UKP

 1
90080-36087

CDE120,NDE120,ZZE12#..UKP

 1
43501G - RING, HOLE SNAP (FOR FRONT AXLE HUB RH)
90521-79002

CDE120,NDE120,ZZE12#..UKP

 1
90521-79002

CDE120,ZZE12#..UKP

 1
43501H - NUT (FOR FRONT AXLE SHAFT RH)
90177-22001

CDE120,ZZE12#..UKP

 1
90177-22001

CDE120,NDE120,ZZE12#..UKP

 1
43502C - HUB SUB-ASSY, FRONT AXLE, LH
43502-02021

CDE120,ZZE12#..UKP

(L)

 1
43502-02021

CDE120,NDE120,ZZE12#..UKP

 1
43502-02021

CDE120,ZZE12#..UKP

 1
43502-02021

CDE120,ZZE12#..UKP

 1
43502-12140

CDE120,ZZE12#..UKP

(J)

 1
43502D - BOLT, HUB (FOR FRONT AXLE LH)
90942-02049

CDE120,NDE120,ZZE12#..UKP

 4
90942-02049

CDE120,ZZE12#..UKP

 4
43502E - BEARING (FOR FRONT AXLE HUB LH)
90080-36087

CDE120,NDE120,ZZE12#..UKP

 1
90080-36087

CDE120,ZZE12#..UKP

 1
43502G - RING, HOLE SNAP (FOR FRONT AXLE HUB LH)
90521-79002

CDE120,ZZE12#..UKP

 1
90521-79002

CDE120,NDE120,ZZE12#..UKP

 1
43502H - NUT (FOR FRONT AXLE SHAFT LH)
90177-22001

CDE120,NDE120,ZZE12#..UKP

 1
90177-22001

CDE120,ZZE12#..UKP

 1
43512 - DISC, FRONT
43512-02070

ZZE120,121..UKP

 2
43512-02070

ZZE120,121..UKP

 2
