ZZE121R-DHPDKW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - Feb 2007
Engine 3ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

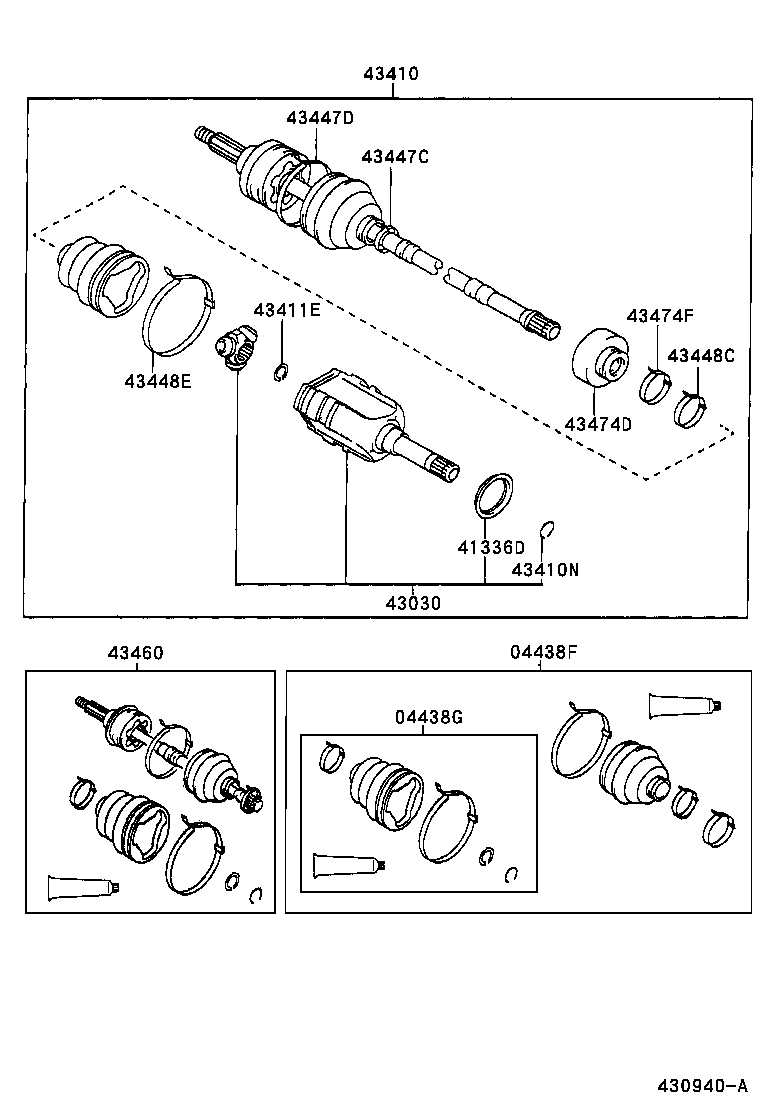

(0111- )ZZE120,121..UKP

Click highlighted areas on diagram

RH

diagram 04438F 04438G 41336D 43030 43410 43410N 43411E 43447C 43447D 43448C 43448E 43460 43474D 43474F
Part # Description Qty Price
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04438-02081

ZZE120,121..UKP

 1
04427-05060

ZZE120,121..UKP

 1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04438-02111

ZZE120,121..UKP

 1
04438-02111

ZZE120,121..UKP

 1
41336D - COVER, FRONT DRIVE SHAFT DUST, RH
41336-05010

ZZE120,121..UKP

 1
41336-05010

ZZE120,121..UKP

 1
43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH
43040-02030

ZZE120,121..UKP

 1
43040-02030

ZZE120,121..UKP

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-02240

ZZE120,121..UKP

 1
43410-02240

ZZE120,121..UKP

 1
43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
90080-52056

ZZE120,121..UKP

 1
90080-52056

ZZE120,121..UKP

 1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
90080-52093

ZZE120,121..UKP

 1
90080-52093

ZZE120,121..UKP

 1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-05070

ZZE120,121..UKP

 1
42345-05070

ZZE120,121..UKP

ID=29.5

 1
43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-05080

ZZE120,121..UKP

 1
42345-05080

ZZE120,121..UKP

ID=87.5

 1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-05040

ZZE120,121..UKP

 1
42345-05040

ZZE120,121..UKP

 1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-05030

ZZE120,121..UKP

 1
42345-05030

ZZE120,121..UKP

 1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43460-09601

ZZE120,121..UKP

 1
43460-09601

ZZE120,121..UKP

 1
43474D - DAMPER, FRONT DRIVE SHAFT, RH
43474-02080

ZZE120,121..UKP

 1
43474-02080

ZZE120,121..UKP

 1
43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-05110

ZZE120,121..UKP

 1
42345-05220

ZZE120,121..UKP

 1
42345-05220

ZZE120,121..UKP

 1

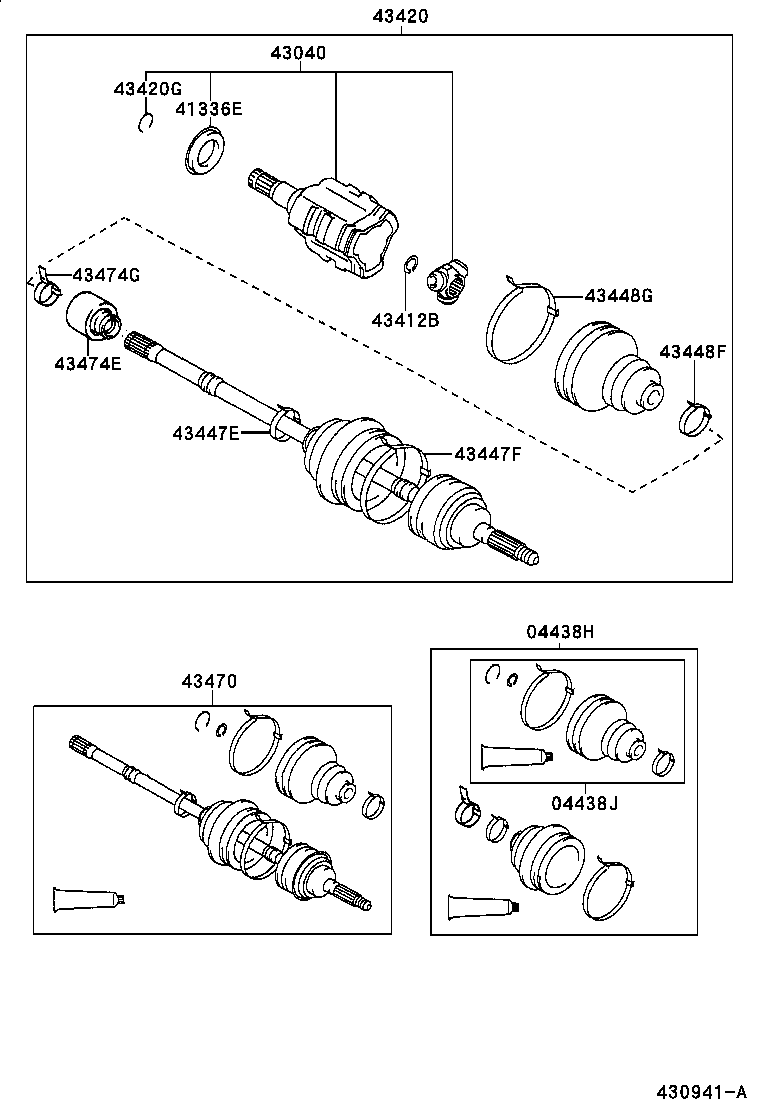

(0111- )ZZE120,121..UKP

Click highlighted areas on diagram

LH

diagram 04438H 04438J 41336E 43040 43412B 43420 43420G 43447E 43447F 43448F 43448G 43470 43474E 43474G
Part # Description Qty Price
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04438-02170

ZZE120,121..UKP

 1
04438-02081

ZZE120,121..UKP

 1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04438-02111

ZZE120,121..UKP

 1
04438-02111

ZZE120,121..UKP

 1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-05010

ZZE120,121..UKP

 1
41336-05010

ZZE120,121..UKP

 1
43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH
43040-02030

ZZE120,121..UKP

 1
43040-02030

ZZE120,121..UKP

 1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
90080-52093

ZZE120,121..UKP

 1
90080-52093

ZZE120,121..UKP

 1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-02270

ZZE120,121..UKP

 1
43420-02270

ZZE120,121..UKP

 1
43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
90080-52056

ZZE120,121..UKP

 1
90080-52056

ZZE120,121..UKP

 1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-05070

ZZE120,121..UKP

 1
42345-05070

ZZE120,121..UKP

ID=29.5

 1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-05080

ZZE120,121..UKP

ID=87.5

 1
42345-05080

ZZE120,121..UKP

 1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-05040

ZZE120,121..UKP

 1
42345-05040

ZZE120,121..UKP

 1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-05030

ZZE120,121..UKP

 1
42345-05030

ZZE120,121..UKP

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-09A14

ZZE120,121..UKP

 1
43470-09A14

ZZE120,121..UKP

 1
43474E - DAMPER, FRONT DRIVE SHAFT, LH
43474-02130

ZZE120,121..UKP

 1
43474-02130

ZZE120,121..UKP

 1
43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-02150

ZZE120,121..UKP

 1
42345-02150

ZZE120,121..UKP

 1
