Toyota Corolla hb (ukp) ZZE121 DISC WHEEL & WHEEL CAP

ZZE121R-DHPDKW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - Feb 2007

Engine 3ZZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

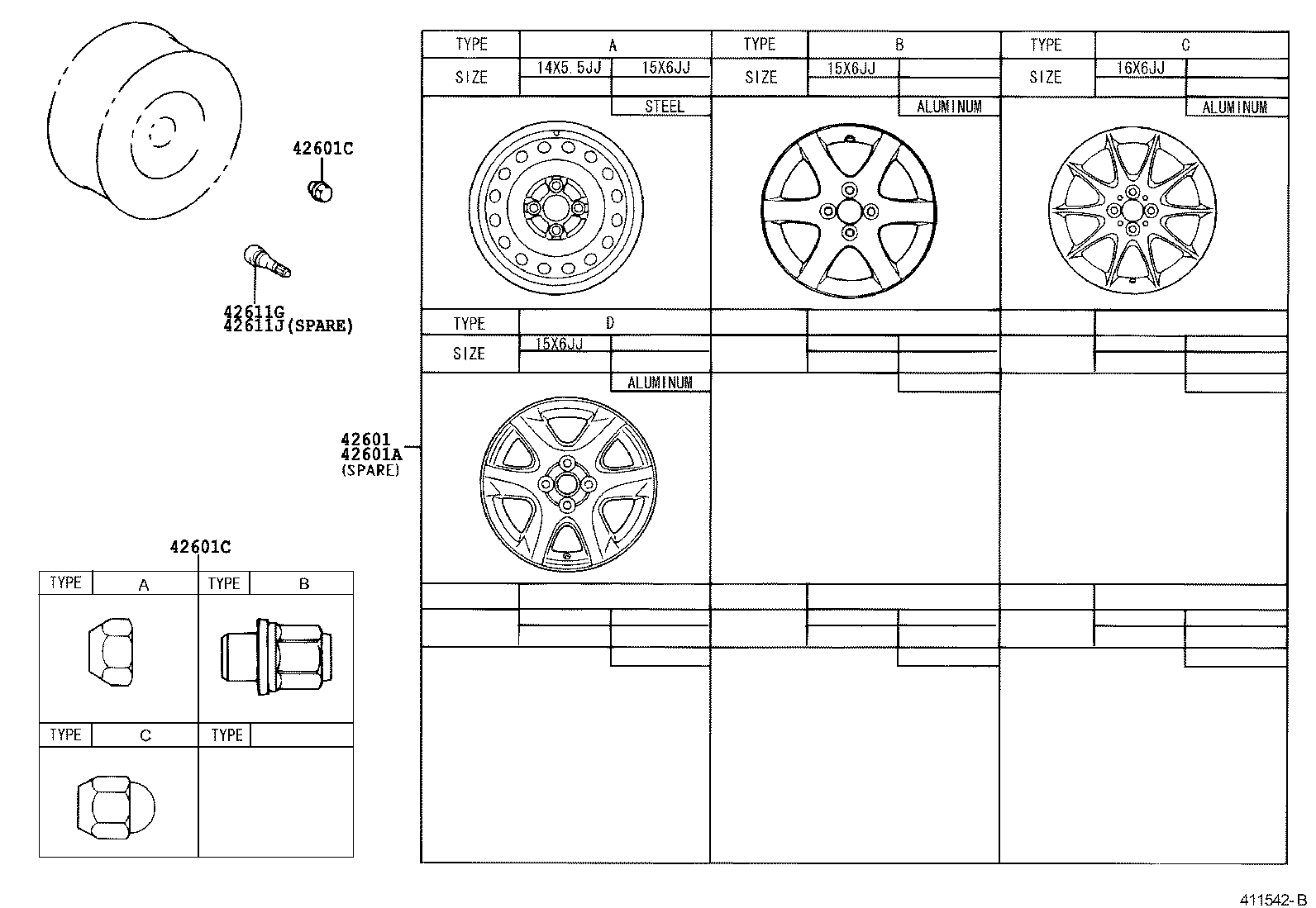

ILLUST NO. 1 OF 4(0111- )UKP

Click highlighted areas on diagram

Part #	Description	Period	Qty
42601 - WHEEL, DISC
42611-02430	CDE120,ZZE120,121..UKP 15X6JJ, #,TYPE B:REFER TO ILLUSTRATION	11/2001 - 05/2004	4
42611-02420	CDE120,NDE120,ZZE120,121..UKP 15X6JJ,TYPE A:REFER TO ILLUSTRATION	05/2004 - 02/2007	4
42611-02420	CDE120,ZZE120,121..UKP 15X6JJ,TYPE A:REFER TO ILLUSTRATION	11/2001 - 05/2004	4
42611-02430	CDE120,NDE120,ZZE120,121..UKP 15X6JJ, #,TYPE B:REFER TO ILLUSTRATION	05/2004 - 02/2007	4
42601A - WHEEL, DISC (FOR SPARE)
42611-02420	CDE120,ZZE120,121..UKP 15X6JJ,TYPE A:REFER TO ILLUSTRATION	11/2001 - 05/2004	1
42611-02420	CDE120,NDE120,ZZE120,121..UKP 15X6JJ,TYPE A:REFER TO ILLUSTRATION	05/2004 - 12/2999	1
42601C - NUT, HUB (FOR AXLE)
90942-01007	CDE120,ZZE120,121..UKP TYPE A:REFER TO ILLUSTRATION	11/2001 - 05/2004	16
90942-01021	CDE120,NDE120,ZZE120,121..UKP..TERRA TYPE C:REFER TO ILLUSTRATION	05/2004 - 10/2005	16
90942-01033	CDE120,ZZE12#..UKP TYPE B:REFER TO ILLUSTRATION	11/2001 - 05/2004	16
90942-01033	CDE120,NDE120,ZZE12#..UKP TYPE B:REFER TO ILLUSTRATION	05/2004 - 12/2999	16
90942-01007	CDE120,NDE120,ZZE120,121..UKP TYPE A:REFER TO ILLUSTRATION	05/2004 - 12/2999	16
42601C - NUT, HUB (FOR AXLE)
90942-01007	CDE120,ZZE120,121..UKP TYPE A:REFER TO ILLUSTRATION	11/2001 - 05/2004	16
90942-01021	CDE120,NDE120,ZZE120,121..UKP..TERRA TYPE C:REFER TO ILLUSTRATION	05/2004 - 10/2005	16
90942-01033	CDE120,ZZE12#..UKP TYPE B:REFER TO ILLUSTRATION	11/2001 - 05/2004	16
90942-01033	CDE120,NDE120,ZZE12#..UKP TYPE B:REFER TO ILLUSTRATION	05/2004 - 12/2999	16
90942-01007	CDE120,NDE120,ZZE120,121..UKP TYPE A:REFER TO ILLUSTRATION	05/2004 - 12/2999	16
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	4
90942-05009	CDE120,ZZE12#..UKP	11/2001 - 05/2004	4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
90942-05009	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1

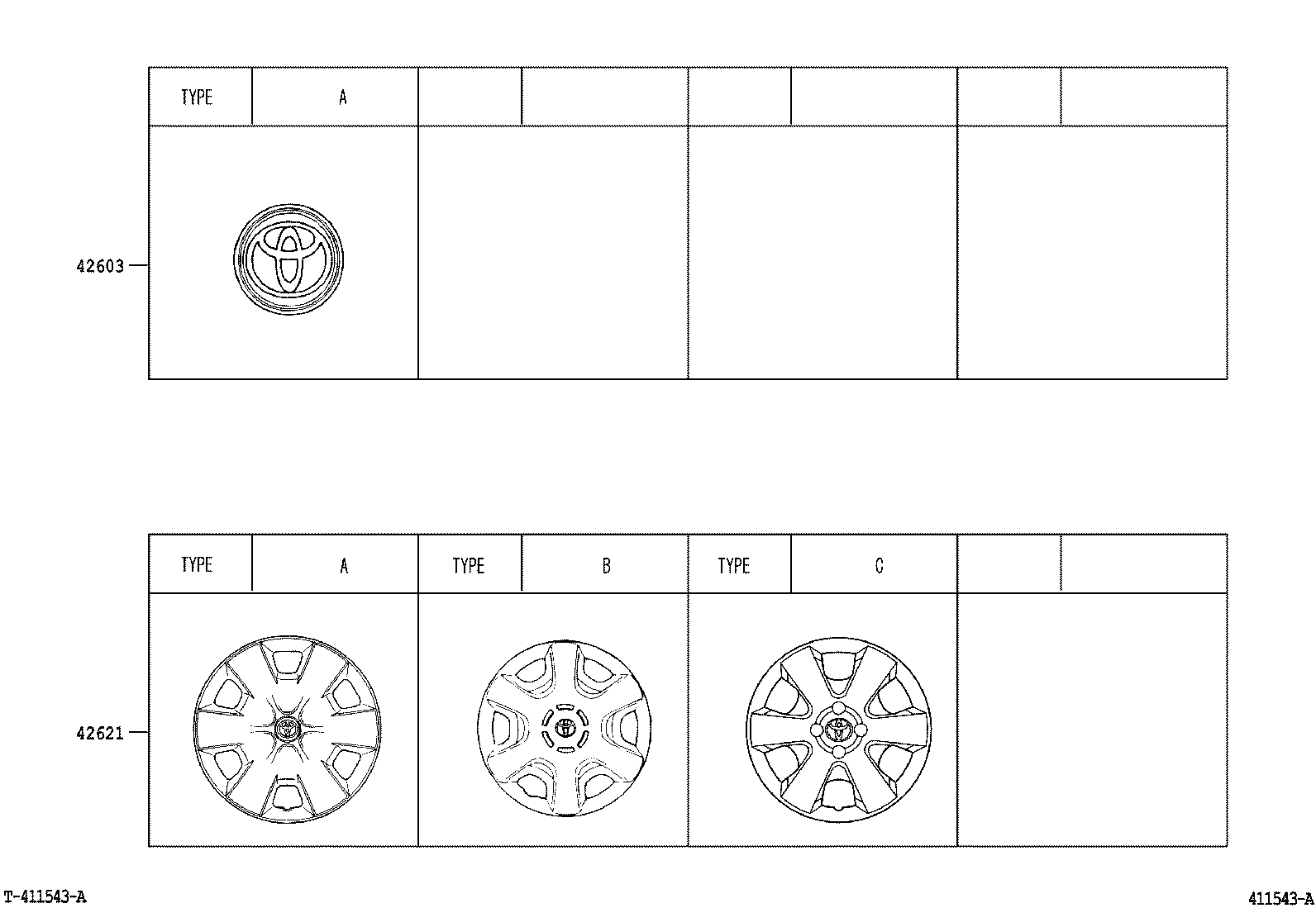

ILLUST NO. 2 OF 4(0111- )UKP

Click highlighted areas on diagram

Part #	Description	Period	Qty
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-02150	CDE120,ZZE12#..UKP *ALU,TYPE A:REFER TO ILLUSTRATION	11/2001 - 05/2004	4
42603-02150	CDE120,NDE120,ZZE12#..UKP *ALU,TYPE A:REFER TO ILLUSTRATION	05/2004 - 12/2999	4
42621 - CAP, WHEEL
42602-02160	CDE120,ZZE120,121..UKP TYPE A:REFER TO ILLUSTRATION	11/2001 - 05/2004	4
42602-02200	CDE120,NDE120,ZZE120,121..UKP..TERRA TYPE C:REFER ILLUST.	05/2004 - 10/2005	4
42602-02160	CDE120,NDE120,ZZE120,121..UKP TYPE A:REFER TO ILLUSTRATION	05/2004 - 12/2999	4

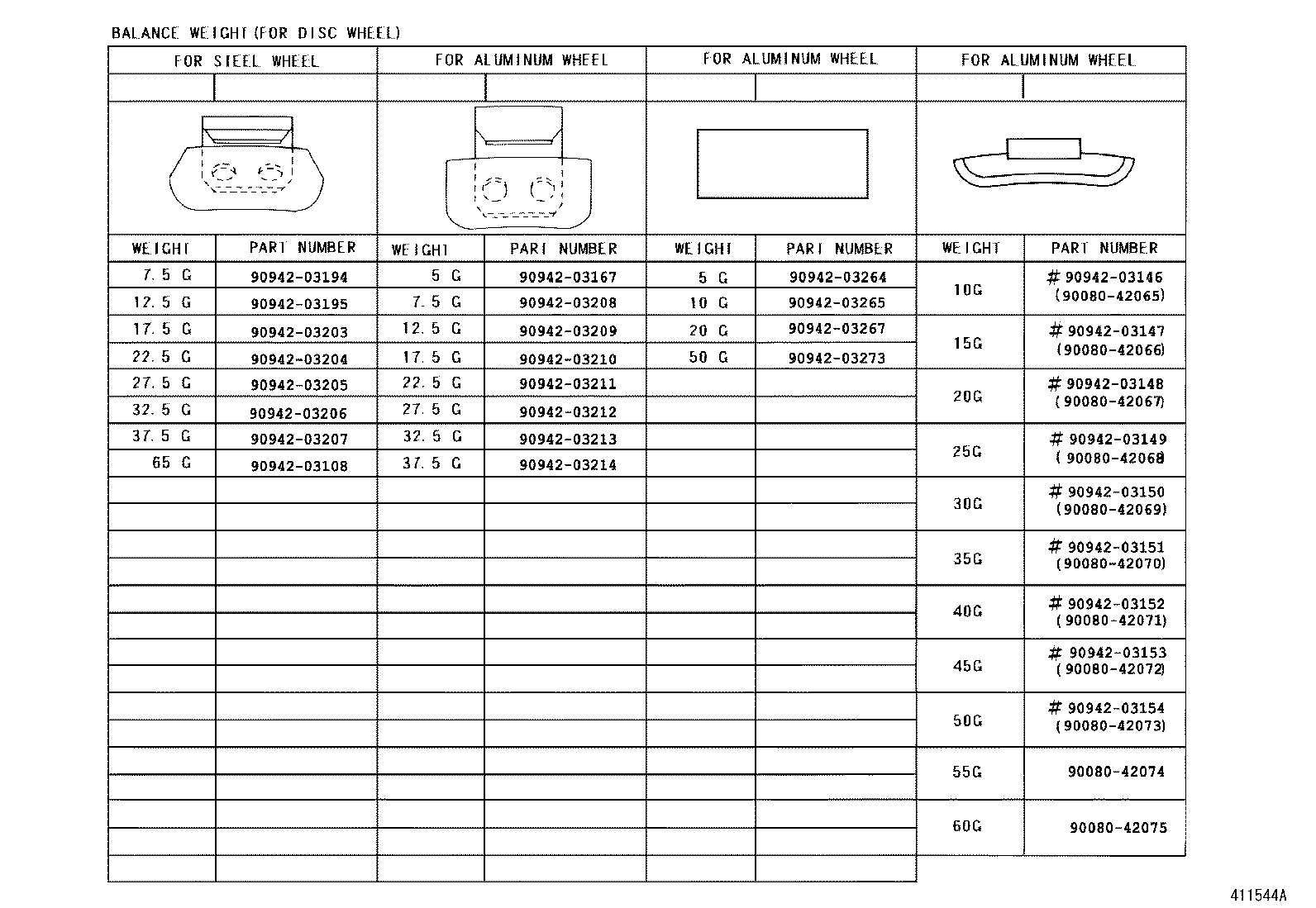

ILLUST NO. 3 OF 4(0111- )UKP

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90080-42065
90080-42066
90080-42067
90080-42068
90080-42069
90080-42070
90080-42071
90080-42072
90080-42073
90080-42074
90080-42075
90942-03108
90942-03146
90942-03147
90942-03148
90942-03149
90942-03150
90942-03151
90942-03152
90942-03153
90942-03154
90942-03167
90942-03194
90942-03195
90942-03203
90942-03204
90942-03205
90942-03206
90942-03207
90942-03208
90942-03209
90942-03210
90942-03211
90942-03212
90942-03213
90942-03214
90942-03264
90942-03265
90942-03267
90942-03273

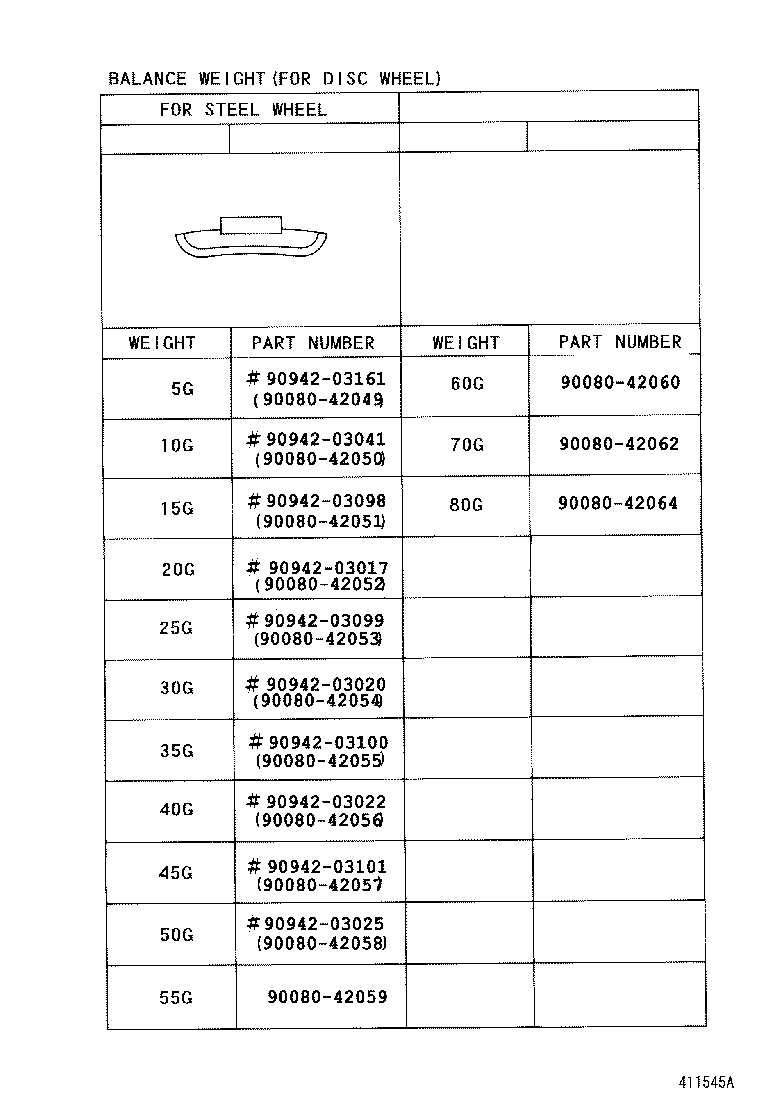

ILLUST NO. 4 OF 4(0111- )UKP

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90080-42049
90080-42050
90080-42051
90080-42052
90080-42053
90080-42054
90080-42055
90080-42056
90080-42057
90080-42058
90080-42059
90080-42060
90080-42062
90080-42064
90942-03017
90942-03020
90942-03022
90942-03025
90942-03041
90942-03098
90942-03099
90942-03100
90942-03101
90942-03161
