ZZE121R-DHPDKW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - Feb 2007
Engine 3ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0111- )UKP

Click highlighted areas on diagram

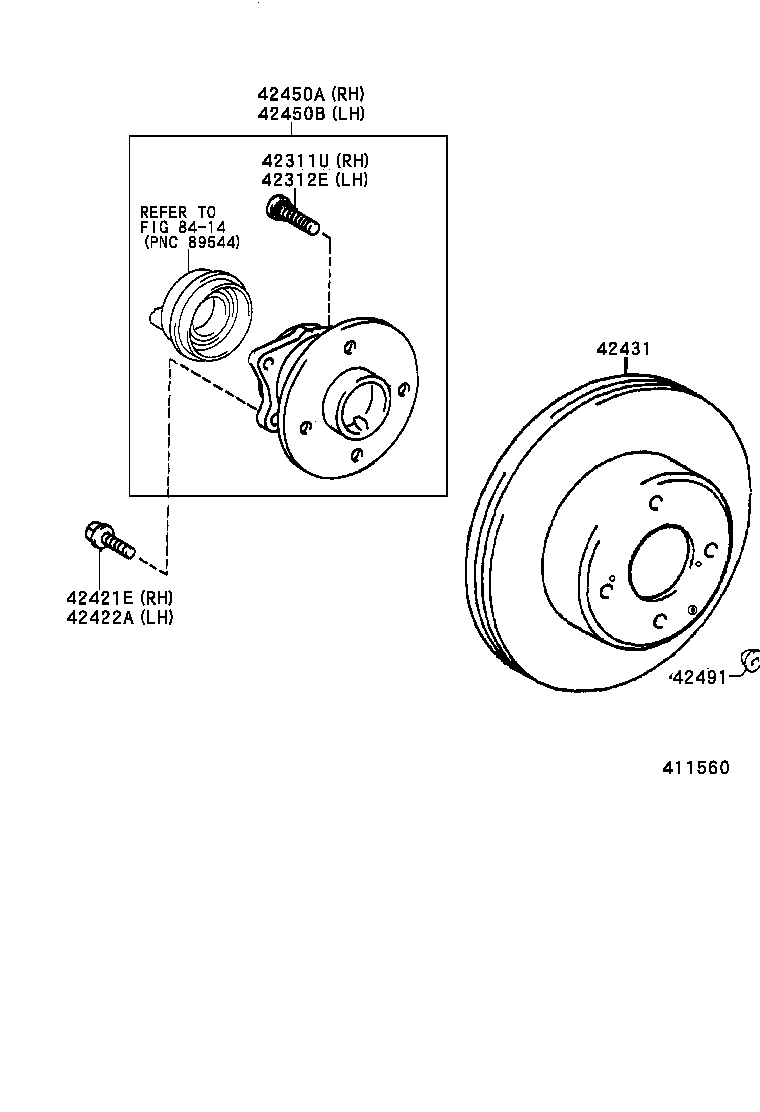

diagram 42311U 42312E 42421E 42422A 42431 42450A 42450B 42491 8414
Part # Description Qty Price
42311U - BOLT, HUB (FOR REAR AXLE RH)
90942-02049

CDE120,NDE120,ZZE12#..UKP

 8
90942-02049

CDE120,ZZE12#..UKP

 4
42312E - BOLT, HUB (FOR REAR AXLE LH)
90942-02049

CDE120,NDE120,ZZE12#..UKP

 8
90942-02049

CDE120,ZZE12#..UKP

 4
42421E - BOLT (FOR REAR AXLE BEARING CASE RH)
90105-10507

CDE120,NDE120,ZZE12#..UKP

 4
90105-10470

CDE120,ZZE12#..UKP

 4
90105-10507

CDE120,ZZE12#..UKP

 4
42422A - BOLT (FOR REAR AXLE BEARING CASE LH)
90105-10470

CDE120,ZZE12#..UKP

 4
90105-10507

CDE120,ZZE12#..UKP

 4
90105-10507

CDE120,NDE120,ZZE12#..UKP

 4
42431 - DISC, REAR
42431-02070

ZZE120,121..UKP

 2
42431-02070

ZZE120,121..UKP

 2
42450A - HUB & BEARING ASSY, REAR AXLE, RH
42450-02060

CDE120,ZZE12#..UKP

 1
42450-02060

CDE120,NDE120,ZZE12#..UKP

 1
42450B - HUB & BEARING ASSY, REAR AXLE, LH
42450-02060

CDE120,NDE120,ZZE12#..UKP

 1
42450-02060

CDE120,ZZE12#..UKP

 1
42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)
47491-22020

CDE120,ZZE12#..UKP

 2
47491-05010

CDE120,ZZE12#..UKP

(L)

 2
47491-22020

CDE120,ZZE12#..UKP

(J)

 2
47491-05010

CDE120,NDE120,ZZE12#..UKP

 2
Linked diagrams
8414
