ZZE121R-DHPDKW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - Feb 2007
Engine 3ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0111- )UKP..4FC

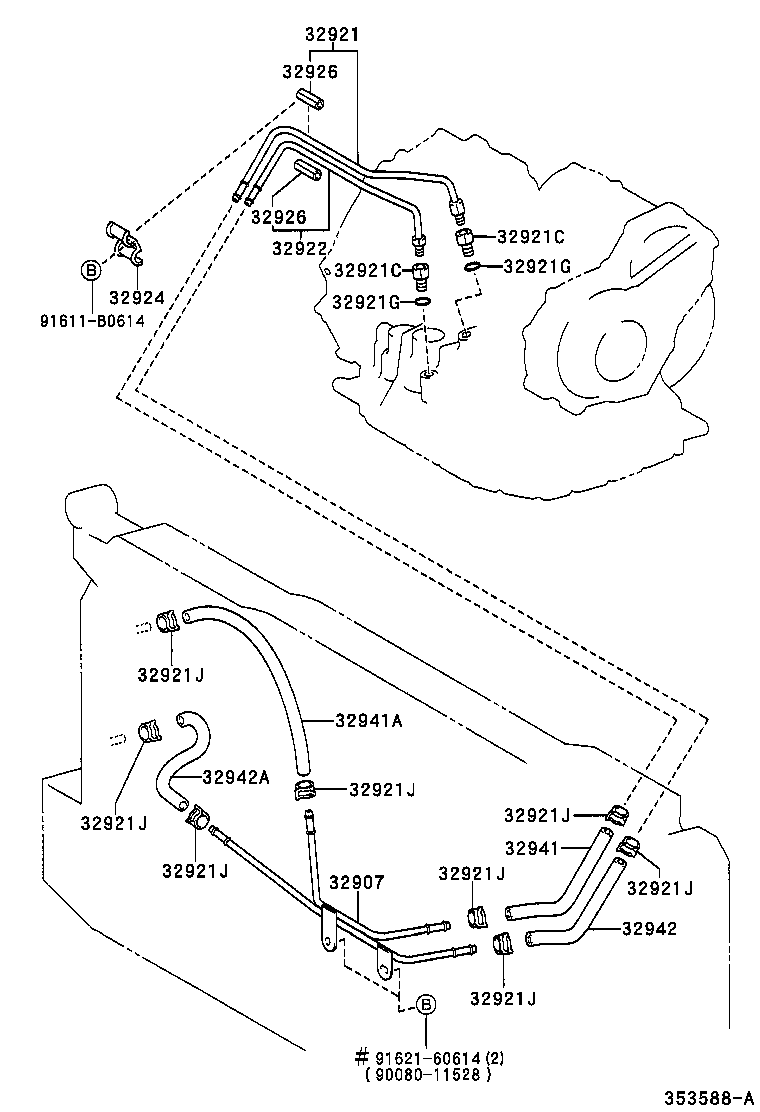

Click highlighted areas on diagram

A246E

diagram 32907 32921 32921C 32921C 32921G 32921G 32921J 32921J 32921J 32921J 32921J 32921J 32921J 32921J 32922 32924 32926 32926 32941 32941A 32942 32942A 9008011528 91611B0614 9162160614
Part # Description Qty Price
32907 - TUBE SUB-ASSY, OIL COOLER OUTLET, NO.2
32907-13010

ZZE121..UKP..4FC

 1
32907-13010

ZZE121..UKP..4FC

 1
32921 - TUBE, OIL COOLER INLET, NO.1
32921-12490

ZZE121..UKP..4FC

 1
32921-12490

ZZE121..UKP..4FC

 1
32921-12430

ZZE121..UKP..4FC

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-14019

ZZE121..UKP..4FC

 2
90404-14019

ZZE121..UKP..4FC

 2
32921C - UNION(FOR OIL COOLER TUBE)
90404-14019

ZZE121..UKP..4FC

 2
90404-14019

ZZE121..UKP..4FC

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

ZZE121..UKP..4FC

 2
90301-11006

ZZE121..UKP..4FC

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

ZZE121..UKP..4FC

 2
90301-11006

ZZE121..UKP..4FC

 2
32921J - CLIP(FOR OIL COOLER HOSE)
96135-51300

ZZE121..UKP..4FC

 8
96135-51300

ZZE121..UKP..4FC

 8
32921J - CLIP(FOR OIL COOLER HOSE)
96135-51300

ZZE121..UKP..4FC

 8
96135-51300

ZZE121..UKP..4FC

 8
32921J - CLIP(FOR OIL COOLER HOSE)
96135-51300

ZZE121..UKP..4FC

 8
96135-51300

ZZE121..UKP..4FC

 8
32921J - CLIP(FOR OIL COOLER HOSE)
96135-51300

ZZE121..UKP..4FC

 8
96135-51300

ZZE121..UKP..4FC

 8
32921J - CLIP(FOR OIL COOLER HOSE)
96135-51300

ZZE121..UKP..4FC

 8
96135-51300

ZZE121..UKP..4FC

 8
32921J - CLIP(FOR OIL COOLER HOSE)
96135-51300

ZZE121..UKP..4FC

 8
96135-51300

ZZE121..UKP..4FC

 8
32921J - CLIP(FOR OIL COOLER HOSE)
96135-51300

ZZE121..UKP..4FC

 8
96135-51300

ZZE121..UKP..4FC

 8
32921J - CLIP(FOR OIL COOLER HOSE)
96135-51300

ZZE121..UKP..4FC

 8
96135-51300

ZZE121..UKP..4FC

 8
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-12420

ZZE121..UKP..4FC

 1
32922-12300

ZZE121..UKP..4FC

 1
32922-12420

ZZE121..UKP..4FC

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
90462-10127

ZZE121..UKP..4FC

 1
90462-10127

ZZE121..UKP..4FC

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-10010

ZZE121..UKP..4FC

L=30,ID=8

 2
32926-10010

ZZE121..UKP..4FC

L=30,ID=8

 2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-10010

ZZE121..UKP..4FC

L=30,ID=8

 2
32926-10010

ZZE121..UKP..4FC

L=30,ID=8

 2
32941 - HOSE, OIL COOLER INLET, NO.1
90445-15050

ZZE121..UKP..4FC

 1
90445-15050

ZZE121..UKP..4FC

 1
32941A - HOSE, OIL COOLER INLET, NO.2
90445-15058

ZZE121..UKP..4FC

 1
90445-15058

ZZE121..UKP..4FC

 1
32942 - HOSE, OIL COOLER OUTLET, NO.1
90445-15050

ZZE121..UKP..4FC

 1
90445-15050

ZZE121..UKP..4FC

 1
32942A - HOSE, OIL COOLER OUTLET, NO.2
90445-15050

ZZE121..UKP..4FC

 1
90445-15050

ZZE121..UKP..4FC

 1
Common parts
90080-11528
91611-B0614
91621-60614
