ZZE121R-DHPDKW (2001)
Toyota Corolla Hb (Ukp)
ILLUST NO. 2 OF 2(0111- )2ZZGE,3ZZFE,4ZZFE..UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 7701 | ||||

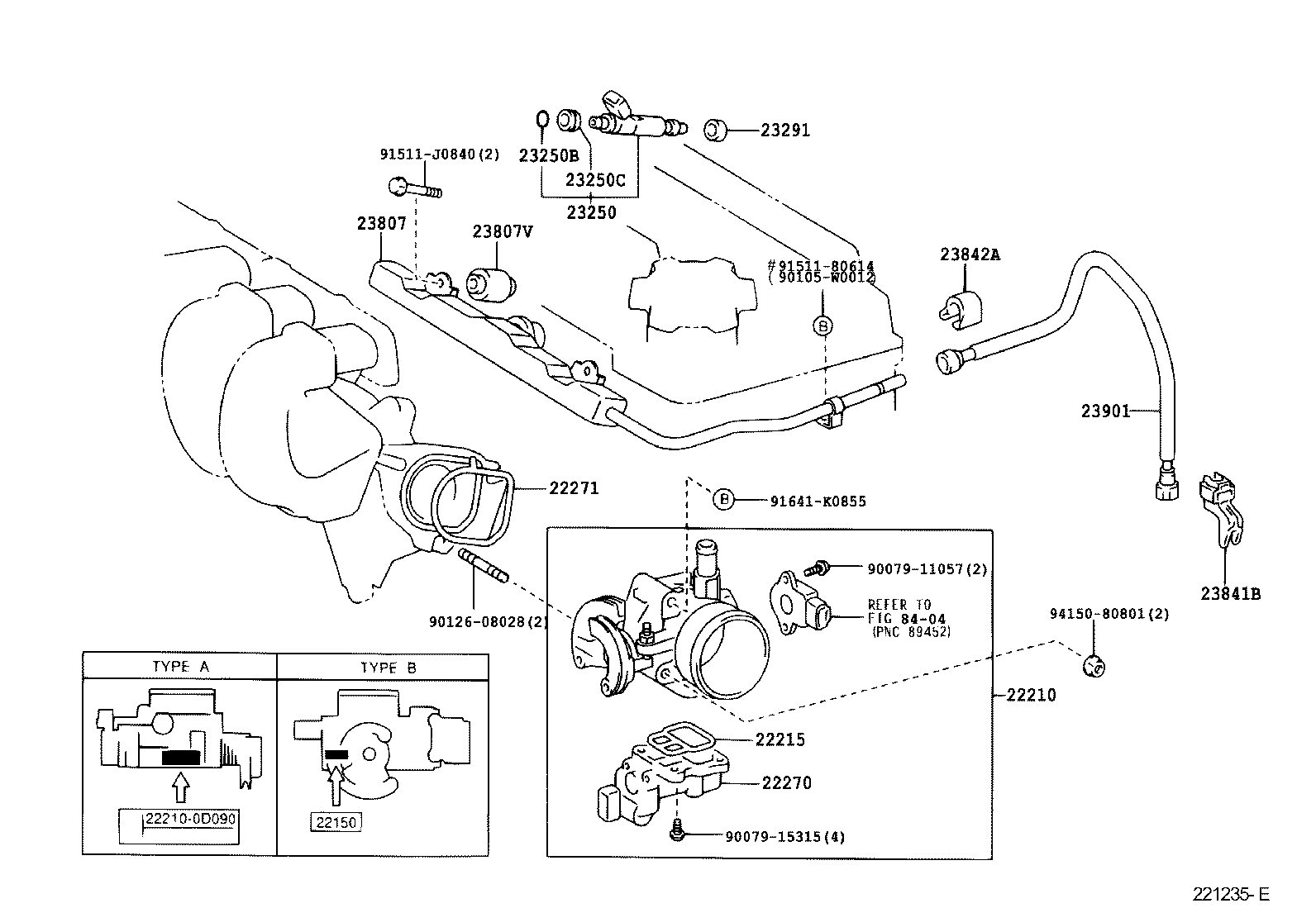

ILLUST NO. 1 OF 2(0111-0405)3ZZFE,4ZZFE..UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22030-0D020 |
3ZZFE..ZZE121..UKP (L) |
1 | ||
| 22210-0D090 |
3ZZFE,4ZZFE..ZZE120,121..UKP TYPE A:REFER TO ILLUSTRATION,(L) |
1 | ||
| 22030-22050 |
3ZZFE..ZZE121..UKP (J) |
1 | ||
| 22210-22150 |
3ZZFE,4ZZFE..ZZE120,121..UKP TYPE B:REFER TO ILLUSTRATION,(J) |
1 | ||
| 22030-22051 |
3ZZFE..ZZE121..UKP (J) |
1 | ||
| 22030-0D021 |
3ZZFE..ZZE121..UKP (L) |
1 | ||
| 22215 - GASKET, THROTTLE BODY COVER | ||||
| 22215-74400 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-22050 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-0D060 |
3ZZFE..ZZE121..UKP (L) |
1 | ||
| 22271-21060 |
3ZZFE..ZZE121..UKP (J) |
1 | ||
| 22271-0D040 |
3ZZFE,4ZZFE..ZZE120,121..UKP (L) |
1 | ||
| 22271-22070 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 22271-22070 |
3ZZFE,4ZZFE..ZZE120,121..UKP (J) |
2 | ||
| 22271-0D060 |
3ZZFE..ZZE121..UKP |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-0D020 |
3ZZFE,4ZZFE..ZZE120,121..UKP BOSCH |
4 | ||
| 23209-0D030 |
3ZZFE,4ZZFE..ZZE120,121..UKP DENSO |
4 | ||
| 23209-0D020 |
3ZZFE,4ZZFE..ZZE120,121..UKP BOSCH |
4 | ||
| 23209-0D030 |
3ZZFE,4ZZFE..ZZE120,121..UKP DENSO |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07030 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
4 | ||
| 90301-07030 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
4 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90080-48058 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
4 | ||
| 90080-48058 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
4 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-22010 |
3ZZFE,4ZZFE..ZZE120,121..UKP (J) |
4 | ||
| 23291-22010 |
3ZZFE,4ZZFE..ZZE120,121..UKP (J) |
4 | ||
| 23291-0D010 |
3ZZFE,4ZZFE..ZZE120,121..UKP (L) |
4 | ||
| 23291-0D010 |
3ZZFE,4ZZFE..ZZE120,121..UKP (L) |
4 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-22030 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 23807-22030 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 90561-08055 |
3ZZFE,4ZZFE..ZZE120,121..UKP (J) |
2 | ||
| 90080-56052 |
3ZZFE,4ZZFE..ZZE120,121..UKP (L) |
2 | ||
| 90561-08055 |
3ZZFE,4ZZFE..ZZE120,121..UKP (J) |
2 | ||
| 90080-56052 |
3ZZFE,4ZZFE..ZZE120,121..UKP (L) |
2 | ||
| 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) | ||||
| 23841-28010 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
1 | ||
| 23841-28010 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
1 | ||
| 23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI) | ||||
| 23842-22020 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 23842-28010 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 23901 - TUBE SUB-ASSY, FUEL | ||||
| 23901-22140 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 23901-0D030 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 23901-0D030 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| Common parts | ||||
| 90079-11057 | ||||
| 90079-15315 | ||||
| 90105-W0012 | ||||
| 90126-08028 | ||||
| 91511-80614 | ||||
| 91511-J0840 | ||||
| 91641-K0855 | ||||
| 94150-80801 | ||||
| Linked diagrams | ||||
| 8404 | ||||

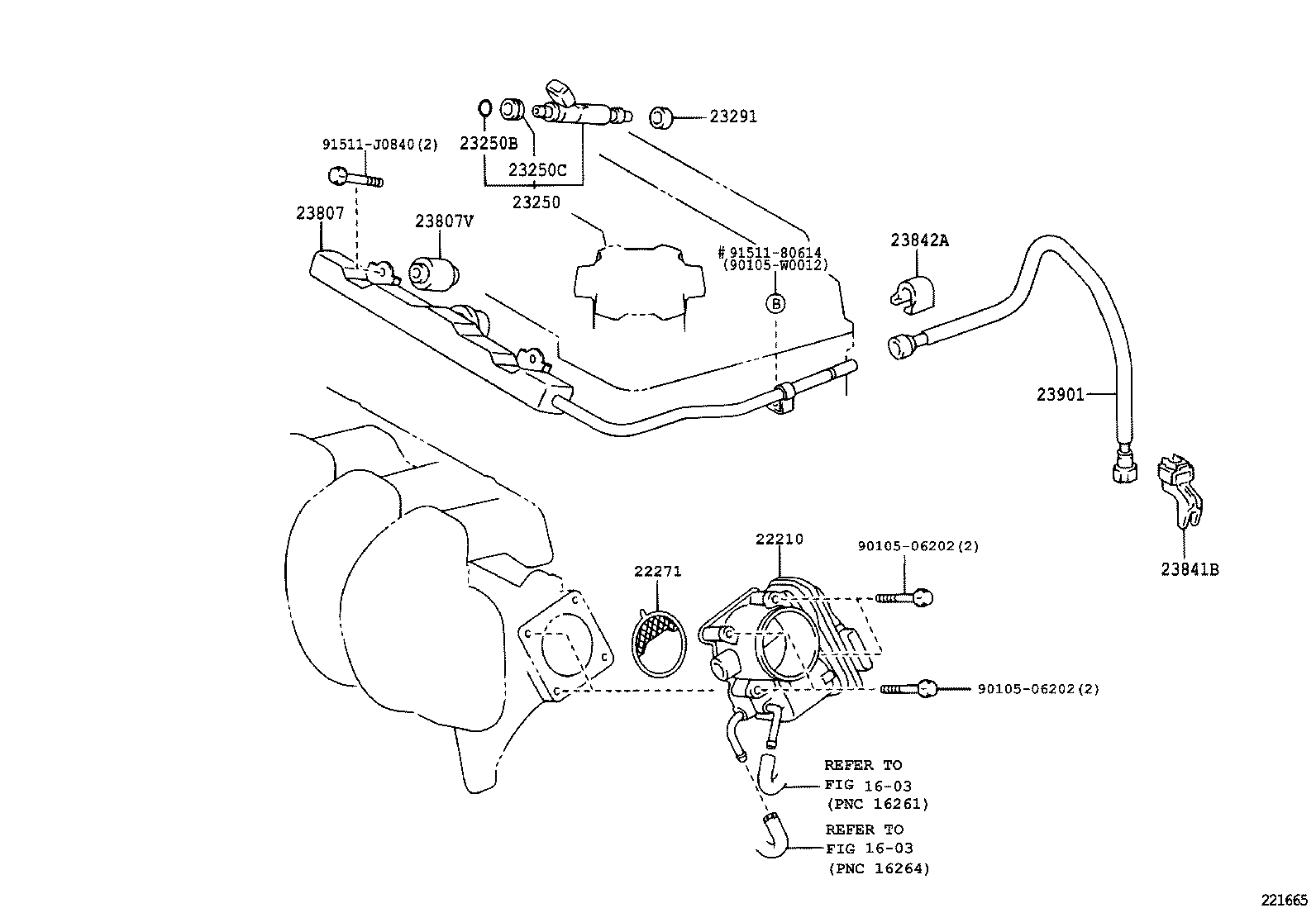

ILLUST NO. 1 OF 2(0405- )3ZZFE..UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22030-0D020 |
3ZZFE..ZZE121..UKP (L) |
1 | ||
| 22210-0D090 |
3ZZFE,4ZZFE..ZZE120,121..UKP TYPE A:REFER TO ILLUSTRATION,(L) |
1 | ||
| 22030-22050 |
3ZZFE..ZZE121..UKP (J) |
1 | ||
| 22210-22150 |
3ZZFE,4ZZFE..ZZE120,121..UKP TYPE B:REFER TO ILLUSTRATION,(J) |
1 | ||
| 22030-22051 |
3ZZFE..ZZE121..UKP (J) |
1 | ||
| 22030-0D021 |
3ZZFE..ZZE121..UKP (L) |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-0D060 |
3ZZFE..ZZE121..UKP (L) |
1 | ||
| 22271-21060 |
3ZZFE..ZZE121..UKP (J) |
1 | ||
| 22271-0D040 |
3ZZFE,4ZZFE..ZZE120,121..UKP (L) |
1 | ||
| 22271-22070 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 22271-22070 |
3ZZFE,4ZZFE..ZZE120,121..UKP (J) |
2 | ||
| 22271-0D060 |
3ZZFE..ZZE121..UKP |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-0D020 |
3ZZFE,4ZZFE..ZZE120,121..UKP BOSCH |
4 | ||
| 23209-0D030 |
3ZZFE,4ZZFE..ZZE120,121..UKP DENSO |
4 | ||
| 23209-0D020 |
3ZZFE,4ZZFE..ZZE120,121..UKP BOSCH |
4 | ||
| 23209-0D030 |
3ZZFE,4ZZFE..ZZE120,121..UKP DENSO |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07030 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
4 | ||
| 90301-07030 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
4 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90080-48058 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
4 | ||
| 90080-48058 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
4 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-22010 |
3ZZFE,4ZZFE..ZZE120,121..UKP (J) |
4 | ||
| 23291-22010 |
3ZZFE,4ZZFE..ZZE120,121..UKP (J) |
4 | ||
| 23291-0D010 |
3ZZFE,4ZZFE..ZZE120,121..UKP (L) |
4 | ||
| 23291-0D010 |
3ZZFE,4ZZFE..ZZE120,121..UKP (L) |
4 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-22030 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 23807-22030 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 90561-08055 |
3ZZFE,4ZZFE..ZZE120,121..UKP (J) |
2 | ||
| 90080-56052 |
3ZZFE,4ZZFE..ZZE120,121..UKP (L) |
2 | ||
| 90561-08055 |
3ZZFE,4ZZFE..ZZE120,121..UKP (J) |
2 | ||
| 90080-56052 |
3ZZFE,4ZZFE..ZZE120,121..UKP (L) |
2 | ||
| 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) | ||||
| 23841-28010 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
1 | ||
| 23841-28010 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
1 | ||
| 23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI) | ||||
| 23842-22020 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 23842-28010 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 23901 - TUBE SUB-ASSY, FUEL | ||||
| 23901-22140 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 23901-0D030 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 23901-0D030 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| Common parts | ||||
| 90105-06202 | ||||
| 90105-W0012 | ||||
| 91511-80614 | ||||
| 91511-J0840 | ||||
| Linked diagrams | ||||
| 1603 | ||||
