ZZE121R-DHPDKW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - Feb 2007
Engine 3ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0111- )3ZZFE,4ZZFE..UKP

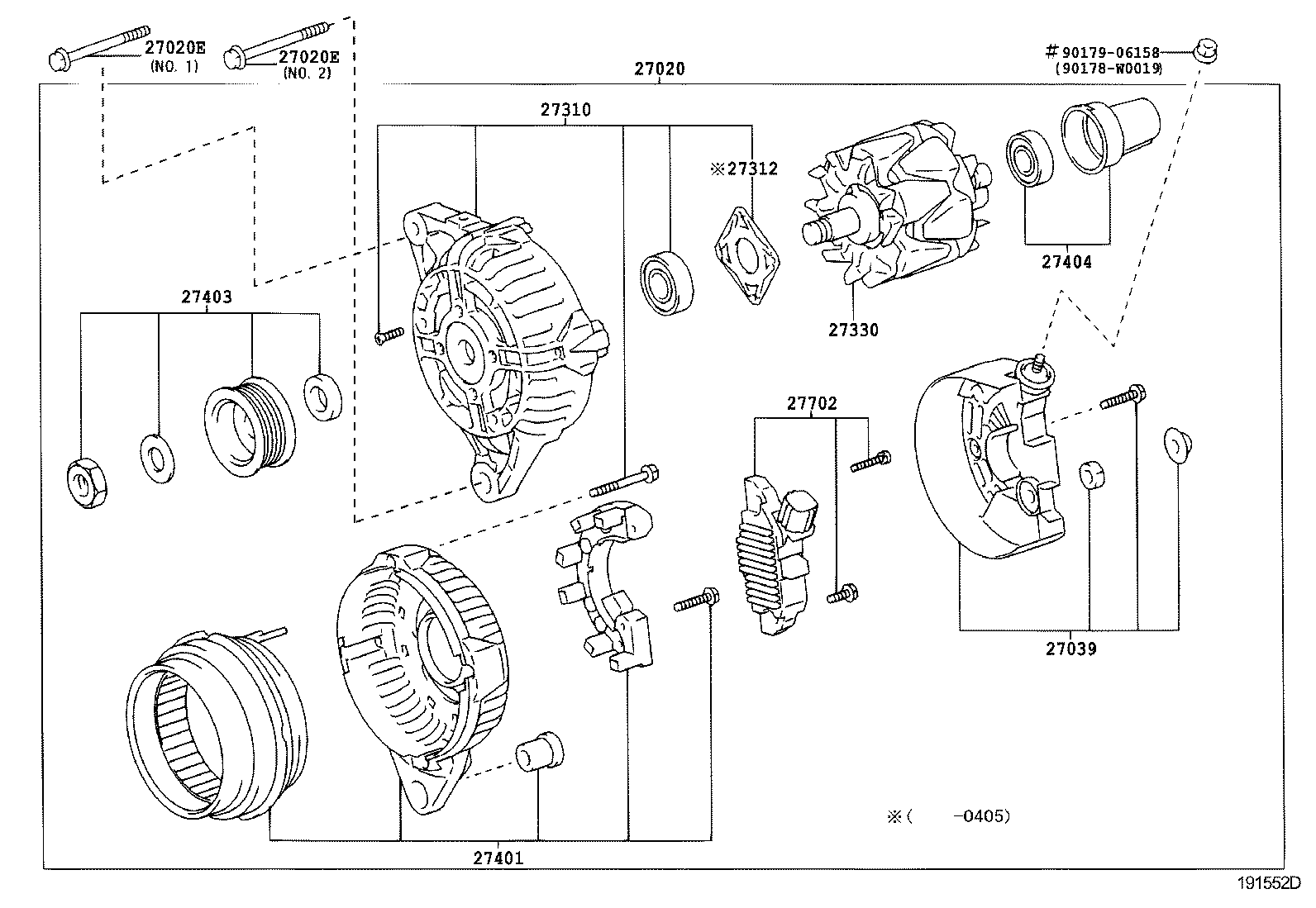

Click highlighted areas on diagram

12V 80A,90A

diagram 27020 27020E 27020E 27039 27310 27312 27330 27401 27403 27404 27702 90178W0019 9017906158
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-0D140

3ZZFE,4ZZFE..ZZE120,121..UKP

12V 90A

 1
27060-0D030

3ZZFE,4ZZFE..ZZE120,121..UKP

12V 80A

 1
27020E - BOLT(FOR ALTERNATOR)
90105-10075

3ZZFE,4ZZFE..ZZE120,121..UKP

NO.2

 1
90105-10075

3ZZFE,4ZZFE..ZZE120,121..UKP

NO.2

 1
91511-80830

3ZZFE,4ZZFE..ZZE120,121..UKP

NO.1

 1
91511-80830

3ZZFE,4ZZFE..ZZE120,121..UKP

NO.1

 1
27020E - BOLT(FOR ALTERNATOR)
90105-10075

3ZZFE,4ZZFE..ZZE120,121..UKP

NO.2

 1
90105-10075

3ZZFE,4ZZFE..ZZE120,121..UKP

NO.2

 1
91511-80830

3ZZFE,4ZZFE..ZZE120,121..UKP

NO.1

 1
91511-80830

3ZZFE,4ZZFE..ZZE120,121..UKP

NO.1

 1
27039 - COVER, ALTERNATOR REAR END
27039-0D030

3ZZFE,4ZZFE..ZZE120,121..UKP

 1
27039-0D030

3ZZFE,4ZZFE..ZZE120,121..UKP

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-0D020

3ZZFE,4ZZFE..ZZE120,121..UKP

 1
27310-0D020

3ZZFE,4ZZFE..ZZE120,121..UKP

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-0D020

3ZZFE,4ZZFE..ZZE120,121..UKP

 1
27330-0D110

3ZZFE,4ZZFE..ZZE120,121..UKP

 1
27401 - STATOR SUB-ASSY ALTERNATOR W/RECTIFIER
27401-0D010

3ZZFE,4ZZFE..ZZE120,121..UKP

 1
27401-0D010

3ZZFE,4ZZFE..ZZE120,121..UKP

 1
27403 - PULLEY SET, ALTERNATOR
27403-0D010

3ZZFE,4ZZFE..ZZE120,121..UKP

 1
27403-0D010

3ZZFE,4ZZFE..ZZE120,121..UKP

 1
27404 - BEARING SET, ALTERNATOR
27404-0D010

3ZZFE,4ZZFE..ZZE120,121..UKP

 1
27404-0D010

3ZZFE,4ZZFE..ZZE120,121..UKP

 1
27702 - REGULATOR SUB-ASSY GENERATOR W/BRUSH
27702-0D010

3ZZFE,4ZZFE..ZZE120,121..UKP

 1
27702-0D010

3ZZFE,4ZZFE..ZZE120,121..UKP

 1
Common parts
90178-W0019
90179-06158
