ZZE121R-DHPDKW (2001)
Toyota Corolla Hb (Ukp)

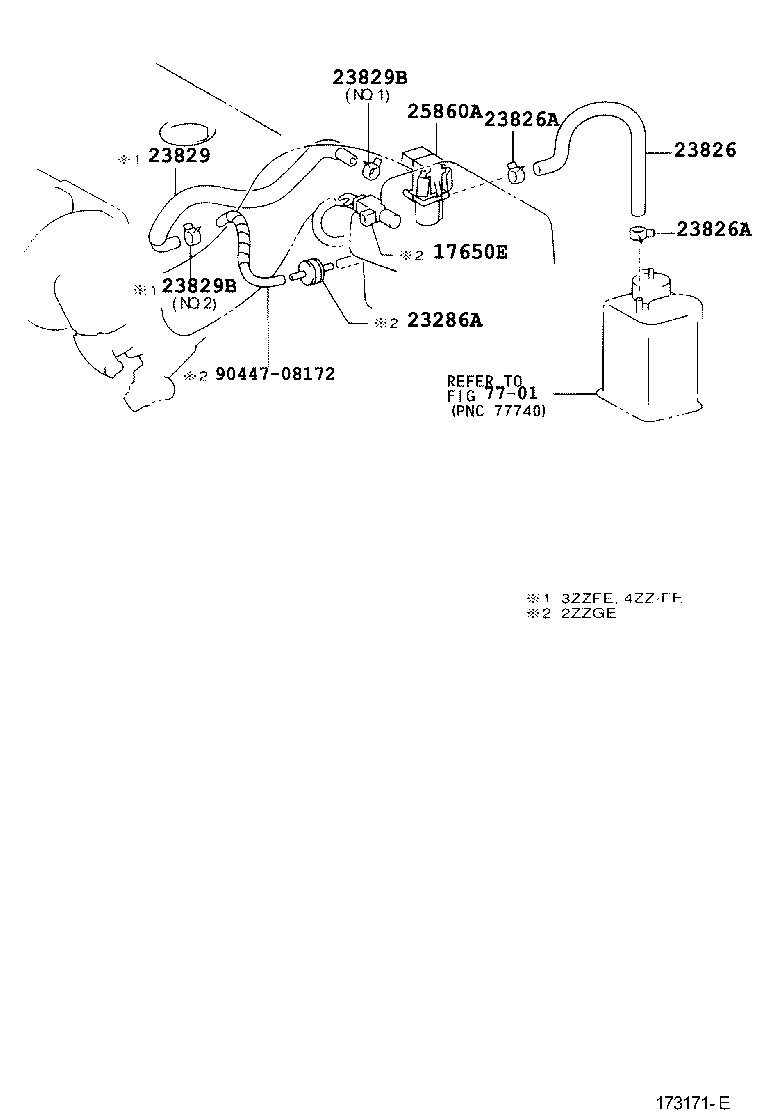

(0111-0405)2ZZGE,3ZZFE,4ZZFE..UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23826 - HOSE, FUEL VAPOR FEED, NO.1 | ||||
| 23826-21030 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
1 | ||
| 23826-22140 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) | ||||
| 96132-51100 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
2 | ||
| 96132-51100 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
2 | ||
| 23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) | ||||
| 96132-51100 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
2 | ||
| 96132-51100 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
2 | ||
| 23829 - HOSE, FUEL VAPOR FEED, NO.3 | ||||
| 23829-22080 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 23829-0D080 |
3ZZFE,4ZZFE..ZZE120,121..UKP (L) |
1 | ||
| 23829-22080 |
3ZZFE,4ZZFE..ZZE120,121..UKP (J) |
1 | ||
| 23829-22050 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 23829-0D080 |
3ZZFE,4ZZFE..ZZE120,121..UKP (L) |
1 | ||
| 23829-22080 |
3ZZFE,4ZZFE..ZZE120,121..UKP (J) |
1 | ||
| 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) | ||||
| 90467-14043 |
3ZZFE,4ZZFE..ZZE120,121..UKP NO.2 |
1 | ||
| 90466-W0005 |
3ZZFE,4ZZFE..ZZE120,121..UKP NO.1,NO.2 |
1 | ||
| 96132-51300 |
3ZZFE,4ZZFE..ZZE120,121..UKP NO.2 |
1 | ||
| 96132-51300 |
3ZZFE,4ZZFE..ZZE120,121..UKP NO.1 |
1 | ||
| 90466-W0005 |
3ZZFE,4ZZFE..ZZE120,121..UKP NO.1,NO.2 |
1 | ||
| 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) | ||||
| 90467-14043 |
3ZZFE,4ZZFE..ZZE120,121..UKP NO.2 |
1 | ||
| 90466-W0005 |
3ZZFE,4ZZFE..ZZE120,121..UKP NO.1,NO.2 |
1 | ||
| 96132-51300 |
3ZZFE,4ZZFE..ZZE120,121..UKP NO.2 |
1 | ||
| 96132-51300 |
3ZZFE,4ZZFE..ZZE120,121..UKP NO.1 |
1 | ||
| 90466-W0005 |
3ZZFE,4ZZFE..ZZE120,121..UKP NO.1,NO.2 |
1 | ||
| 25860A - VALVE, VACUUM SWITCHING, NO.1 | ||||
| 90080-91218 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
1 | ||
| Common parts | ||||
| 90447-08172 | ||||
| Linked diagrams | ||||
| 7701 | ||||

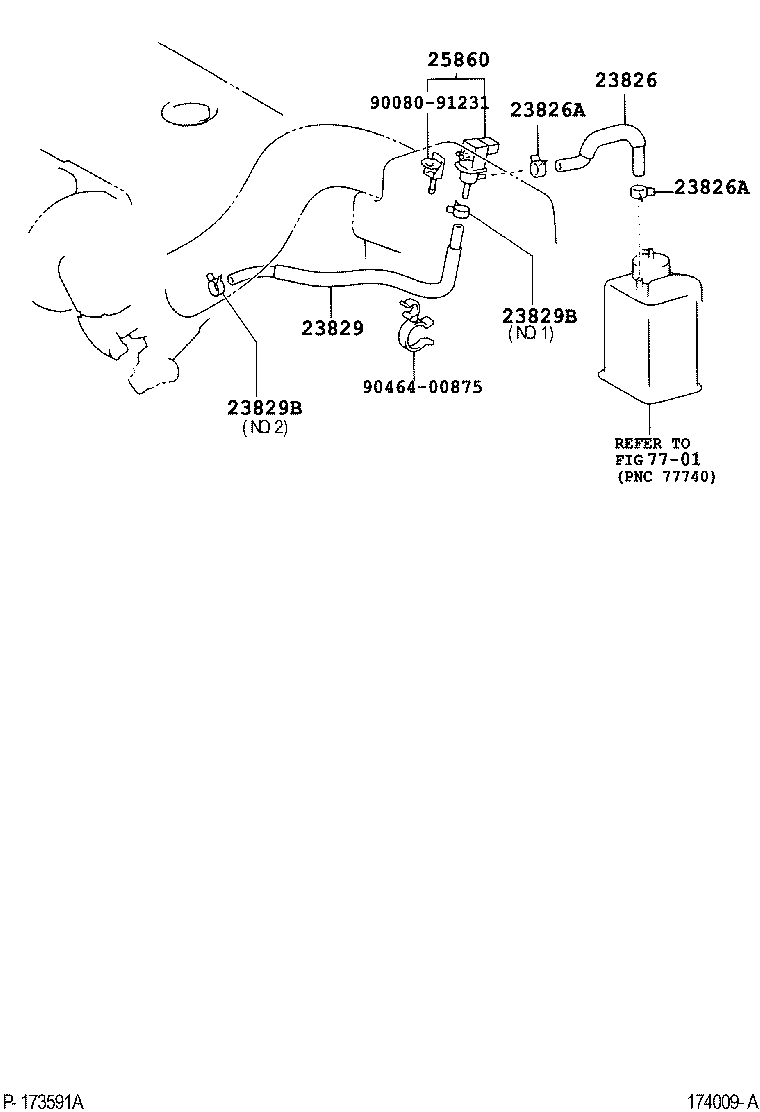

(0405- )3ZZFE,4ZZFE..UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23826 - HOSE, FUEL VAPOR FEED, NO.1 | ||||
| 23826-21030 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
1 | ||
| 23826-22140 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) | ||||
| 96132-51100 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
2 | ||
| 96132-51100 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
2 | ||
| 23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) | ||||
| 96132-51100 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
2 | ||
| 96132-51100 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
2 | ||
| 23829 - HOSE, FUEL VAPOR FEED, NO.3 | ||||
| 23829-22080 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 23829-0D080 |
3ZZFE,4ZZFE..ZZE120,121..UKP (L) |
1 | ||
| 23829-22080 |
3ZZFE,4ZZFE..ZZE120,121..UKP (J) |
1 | ||
| 23829-22050 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 23829-0D080 |
3ZZFE,4ZZFE..ZZE120,121..UKP (L) |
1 | ||
| 23829-22080 |
3ZZFE,4ZZFE..ZZE120,121..UKP (J) |
1 | ||
| 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) | ||||
| 90467-14043 |
3ZZFE,4ZZFE..ZZE120,121..UKP NO.2 |
1 | ||
| 90466-W0005 |
3ZZFE,4ZZFE..ZZE120,121..UKP NO.1,NO.2 |
1 | ||
| 96132-51300 |
3ZZFE,4ZZFE..ZZE120,121..UKP NO.2 |
1 | ||
| 96132-51300 |
3ZZFE,4ZZFE..ZZE120,121..UKP NO.1 |
1 | ||
| 90466-W0005 |
3ZZFE,4ZZFE..ZZE120,121..UKP NO.1,NO.2 |
1 | ||
| 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) | ||||
| 90467-14043 |
3ZZFE,4ZZFE..ZZE120,121..UKP NO.2 |
1 | ||
| 90466-W0005 |
3ZZFE,4ZZFE..ZZE120,121..UKP NO.1,NO.2 |
1 | ||
| 96132-51300 |
3ZZFE,4ZZFE..ZZE120,121..UKP NO.2 |
1 | ||
| 96132-51300 |
3ZZFE,4ZZFE..ZZE120,121..UKP NO.1 |
1 | ||
| 90466-W0005 |
3ZZFE,4ZZFE..ZZE120,121..UKP NO.1,NO.2 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-0D040 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| Common parts | ||||
| 90080-91231 | ||||
| 90464-00875 | ||||
| Linked diagrams | ||||
| 7701 | ||||
