ZZE121R-DHPDKW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - Feb 2007
Engine 3ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0111-0405)3ZZFE,4ZZFE..UKP

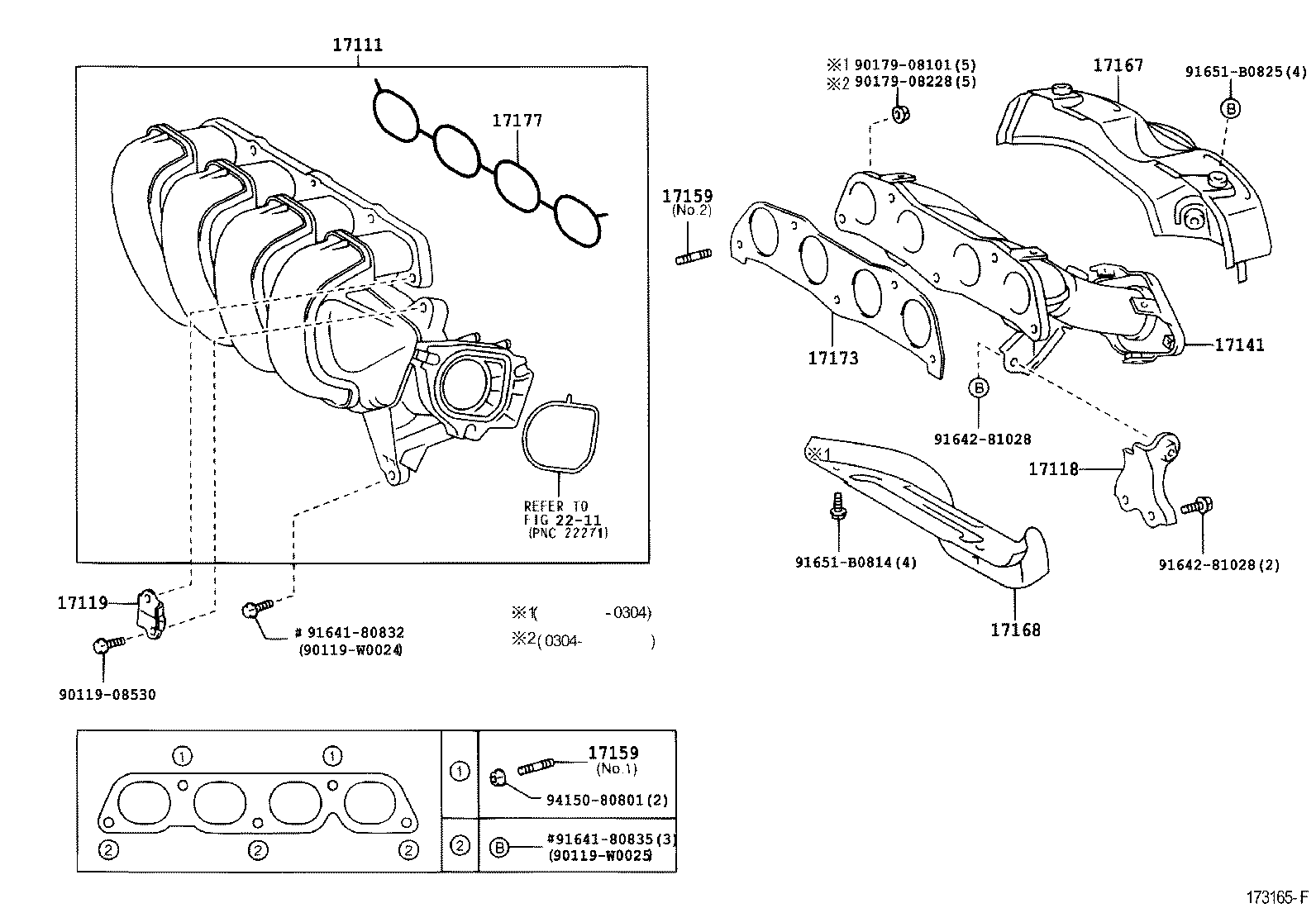

Click highlighted areas on diagram

diagram 17111 17118 17119 17141 17159 17159 17167 17168 17173 17177 2211 9011908530 90119W0024 90119W0025 9017908101 9017908228 9164180832 9164180835 9164281028 9164281028 91651B0814 91651B0825 9415080801
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17120-0D031

3ZZFE,4ZZFE..ZZE120,121..UKP

(J)

 1
17120-0D030

3ZZFE,4ZZFE..ZZE120,121..UKP

(L)

 1
17120-0D031

3ZZFE,4ZZFE..ZZE120,121..UKP

(L)

 1
17120-0D070

3ZZFE..ZZE121..UKP

 1
17118 - STAY, MANIFOLD
17118-0D050

3ZZFE,4ZZFE..ZZE120,121..UKP

(L)

 1
17118-22020

3ZZFE,4ZZFE..ZZE120,121..UKP

(J)

 1
17118-22090

3ZZFE,4ZZFE..ZZE120,121..UKP

 1
17119 - STAY, MANIFOLD, NO.2
17139-22050

3ZZFE,4ZZFE..ZZE120,121..UKP

NO.1

 1
17119-22070

3ZZFE,4ZZFE..ZZE120,121..UKP

NO.2

 1
17139-22050

3ZZFE,4ZZFE..ZZE120,121..UKP

 1
17141 - MANIFOLD, EXHAUST
17104-22100

3ZZFE,4ZZFE..ZZE120,121..UKP

(J)

 1
17104-0D031

3ZZFE,4ZZFE..ZZE120,121..UKP

(L)

 1
17104-0D101

3ZZFE,4ZZFE..ZZE120,121..UKP

*114=TOYOTA/ZZ005/Y

 1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08043

3ZZFE..ZZE121..UKP

NO.2

 10
90126-08026

3ZZFE,4ZZFE..ZZE120,121..UKP

NO.1

 2
90126-08043

3ZZFE,4ZZFE..ZZE120,121..UKP

NO.2

 5
90126-08026

3ZZFE..ZZE121..UKP

NO.1

 4
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08043

3ZZFE..ZZE121..UKP

NO.2

 10
90126-08026

3ZZFE,4ZZFE..ZZE120,121..UKP

NO.1

 2
90126-08043

3ZZFE,4ZZFE..ZZE120,121..UKP

NO.2

 5
90126-08026

3ZZFE..ZZE121..UKP

NO.1

 4
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-22080

3ZZFE,4ZZFE..ZZE120,121..UKP

(J)

 1
17167-0D040

3ZZFE,4ZZFE..ZZE120,121..UKP

(L)

 1
17167-0D052

3ZZFE,4ZZFE..ZZE120,121..UKP

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-22080

3ZZFE,4ZZFE..ZZE120,121..UKP

(J)

 1
17168-0D030

3ZZFE,4ZZFE..ZZE120,121..UKP

(L)

 1
17168-22120

3ZZFE,4ZZFE..ZZE120,121..UKP

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-22010

3ZZFE,4ZZFE..ZZE120,121..UKP

 1
17173-22010

3ZZFE,4ZZFE..ZZE120,121..UKP

 1
17173-0D010

3ZZFE,4ZZFE..ZZE120,121..UKP

(L)

 1
17173-22010

3ZZFE,4ZZFE..ZZE120,121..UKP

(J)

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17171-22030

3ZZFE,4ZZFE..ZZE120,121..UKP

 1
17171-22030

3ZZFE,4ZZFE..ZZE120,121..UKP

(J)

 1
17171-0D030

3ZZFE,4ZZFE..ZZE120,121..UKP

(L)

 1
17171-0D030

3ZZFE,4ZZFE..ZZE120,121..UKP

(L)

 1
17171-22030

3ZZFE,4ZZFE..ZZE120,121..UKP

(J)

 1
Common parts
90119-08530
90119-W0024
90119-W0025
90179-08101
90179-08228
91641-80832
91641-80835
91642-81028
91651-B0814
91651-B0825
94150-80801
Linked diagrams
2211

(0405- )3ZZFE..UKP

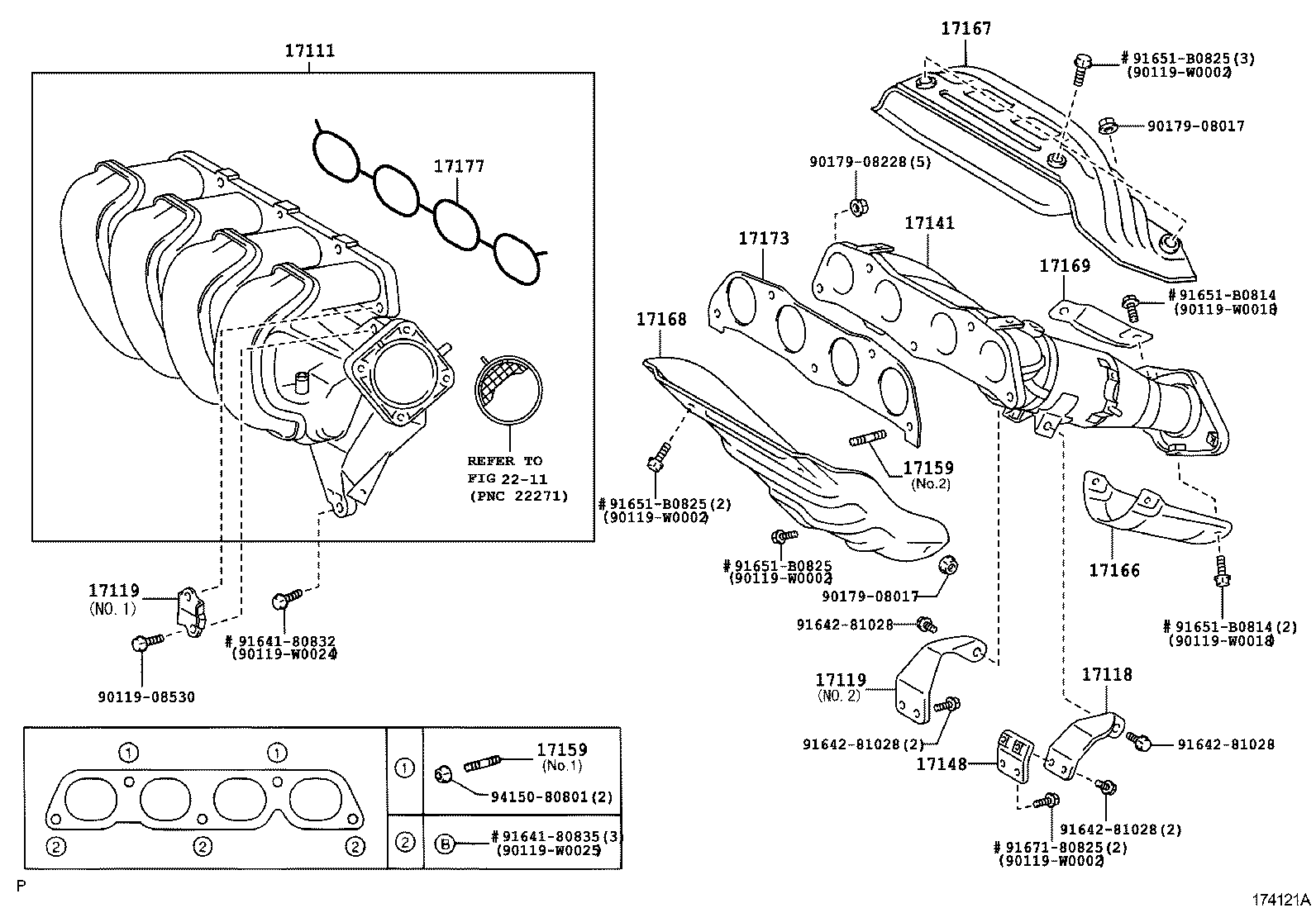

Click highlighted areas on diagram

diagram 17111 17118 17119 17119 17141 17148 17159 17159 17166 17167 17168 17169 17173 17177 2211 9011908530 90119W0002 90119W0002 90119W0002 90119W0002 90119W0018 90119W0018 90119W0024 90119W0025 9017908017 9017908017 9017908228 9164180832 9164180835 9164281028 9164281028 9164281028 9164281028 91651B0814 91651B0814 91651B0825 91651B0825 91651B0825 9167180825 9415080801
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17120-0D031

3ZZFE,4ZZFE..ZZE120,121..UKP

(J)

 1
17120-0D030

3ZZFE,4ZZFE..ZZE120,121..UKP

(L)

 1
17120-0D031

3ZZFE,4ZZFE..ZZE120,121..UKP

(L)

 1
17120-0D070

3ZZFE..ZZE121..UKP

 1
17118 - STAY, MANIFOLD
17118-0D050

3ZZFE,4ZZFE..ZZE120,121..UKP

(L)

 1
17118-22020

3ZZFE,4ZZFE..ZZE120,121..UKP

(J)

 1
17118-22090

3ZZFE,4ZZFE..ZZE120,121..UKP

 1
17119 - STAY, MANIFOLD, NO.2
17139-22050

3ZZFE,4ZZFE..ZZE120,121..UKP

NO.1

 1
17119-22070

3ZZFE,4ZZFE..ZZE120,121..UKP

NO.2

 1
17139-22050

3ZZFE,4ZZFE..ZZE120,121..UKP

 1
17119 - STAY, MANIFOLD, NO.2
17139-22050

3ZZFE,4ZZFE..ZZE120,121..UKP

NO.1

 1
17119-22070

3ZZFE,4ZZFE..ZZE120,121..UKP

NO.2

 1
17139-22050

3ZZFE,4ZZFE..ZZE120,121..UKP

 1
17141 - MANIFOLD, EXHAUST
17104-22100

3ZZFE,4ZZFE..ZZE120,121..UKP

(J)

 1
17104-0D031

3ZZFE,4ZZFE..ZZE120,121..UKP

(L)

 1
17104-0D101

3ZZFE,4ZZFE..ZZE120,121..UKP

*114=TOYOTA/ZZ005/Y

 1
17148 - PLATE, EXHAUST MANIFOLD(FOR EGR INLET)
17148-22030

3ZZFE,4ZZFE..ZZE120,121..UKP

 1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08043

3ZZFE..ZZE121..UKP

NO.2

 10
90126-08026

3ZZFE,4ZZFE..ZZE120,121..UKP

NO.1

 2
90126-08043

3ZZFE,4ZZFE..ZZE120,121..UKP

NO.2

 5
90126-08026

3ZZFE..ZZE121..UKP

NO.1

 4
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08043

3ZZFE..ZZE121..UKP

NO.2

 10
90126-08026

3ZZFE,4ZZFE..ZZE120,121..UKP

NO.1

 2
90126-08043

3ZZFE,4ZZFE..ZZE120,121..UKP

NO.2

 5
90126-08026

3ZZFE..ZZE121..UKP

NO.1

 4
17166 - INSULATOR, EXHAUST MANIFOLD HEAT,NO.4
17166-22010

3ZZFE,4ZZFE..ZZE120,121..UKP

 1
17166-22011

3ZZFE,4ZZFE..ZZE120,121..UKP

 1
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-22080

3ZZFE,4ZZFE..ZZE120,121..UKP

(J)

 1
17167-0D040

3ZZFE,4ZZFE..ZZE120,121..UKP

(L)

 1
17167-0D052

3ZZFE,4ZZFE..ZZE120,121..UKP

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-22080

3ZZFE,4ZZFE..ZZE120,121..UKP

(J)

 1
17168-0D030

3ZZFE,4ZZFE..ZZE120,121..UKP

(L)

 1
17168-22120

3ZZFE,4ZZFE..ZZE120,121..UKP

 1
17169 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.3
17169-0D010

3ZZFE,4ZZFE..ZZE120,121..UKP

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-22010

3ZZFE,4ZZFE..ZZE120,121..UKP

 1
17173-22010

3ZZFE,4ZZFE..ZZE120,121..UKP

 1
17173-0D010

3ZZFE,4ZZFE..ZZE120,121..UKP

(L)

 1
17173-22010

3ZZFE,4ZZFE..ZZE120,121..UKP

(J)

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17171-22030

3ZZFE,4ZZFE..ZZE120,121..UKP

 1
17171-22030

3ZZFE,4ZZFE..ZZE120,121..UKP

(J)

 1
17171-0D030

3ZZFE,4ZZFE..ZZE120,121..UKP

(L)

 1
17171-0D030

3ZZFE,4ZZFE..ZZE120,121..UKP

(L)

 1
17171-22030

3ZZFE,4ZZFE..ZZE120,121..UKP

(J)

 1
Common parts
90119-08530
90119-W0002
90119-W0018
90119-W0024
90119-W0025
90179-08017
90179-08228
91641-80832
91641-80835
91642-81028
91651-B0814
91651-B0825
91671-80825
94150-80801
Linked diagrams
2211
