ZZE121R-DHPDKW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - Feb 2007
Engine 3ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0111- )UKP

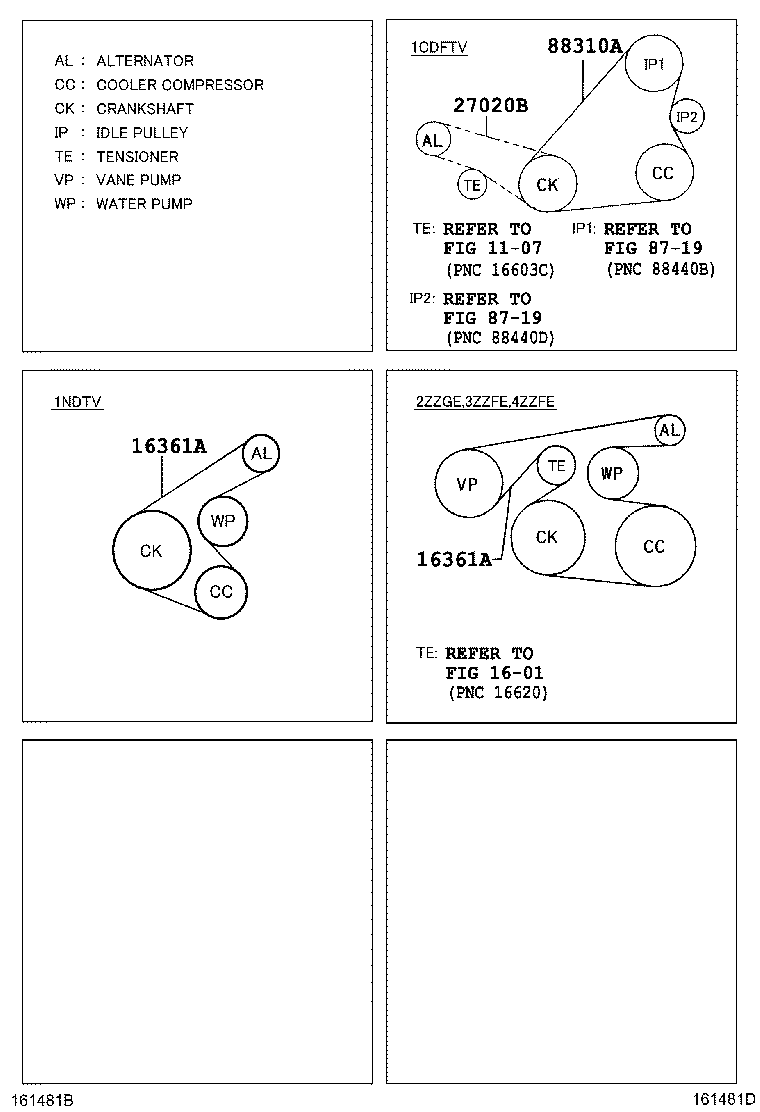

Click highlighted areas on diagram

diagram 1107 1601 16361A 16361A 27020B 8719 8719 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02545

3ZZFE,4ZZFE..ZZE120,121..UKP

 1
90916-02546

3ZZFE,4ZZFE..ZZE120,121..UKP

W(AIR CONDITIONER)

 1
90916-02546

3ZZFE,4ZZFE..ZZE120,121..UKP

W(DEALER OPTION AIR CONDITIONER)

 1
90916-W2008

3ZZFE,4ZZFE..ZZE120,121..UKP

W(MAKER OPTION AIR C0NDITI0NER)

 1
90916-W2007

3ZZFE,4ZZFE..ZZE120,121..UKP..TERRA

 1
90916-02546

3ZZFE,4ZZFE..ZZE120,121..UKP..TERRA

W(DEALER OPTION AIR CONDITIONER)

 1
90916-W2008

3ZZFE,4ZZFE..ZZE120,121..UKP

W(MAKER OPTION AIR C0NDITI0NER)

 1
90916-W2007

3ZZFE,4ZZFE..ZZE120,121..UKP

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02545

3ZZFE,4ZZFE..ZZE120,121..UKP

 1
90916-02546

3ZZFE,4ZZFE..ZZE120,121..UKP

W(AIR CONDITIONER)

 1
90916-02546

3ZZFE,4ZZFE..ZZE120,121..UKP

W(DEALER OPTION AIR CONDITIONER)

 1
90916-W2008

3ZZFE,4ZZFE..ZZE120,121..UKP

W(MAKER OPTION AIR C0NDITI0NER)

 1
90916-W2007

3ZZFE,4ZZFE..ZZE120,121..UKP..TERRA

 1
90916-02546

3ZZFE,4ZZFE..ZZE120,121..UKP..TERRA

W(DEALER OPTION AIR CONDITIONER)

 1
90916-W2007

3ZZFE,4ZZFE..ZZE120,121..UKP

 1
90916-W2008

3ZZFE,4ZZFE..ZZE120,121..UKP

W(MAKER OPTION AIR C0NDITI0NER)

 1
Linked diagrams
1107
1601
8719
