ZZE121R-DHPDKW (2001)
Toyota Corolla Hb (Ukp)

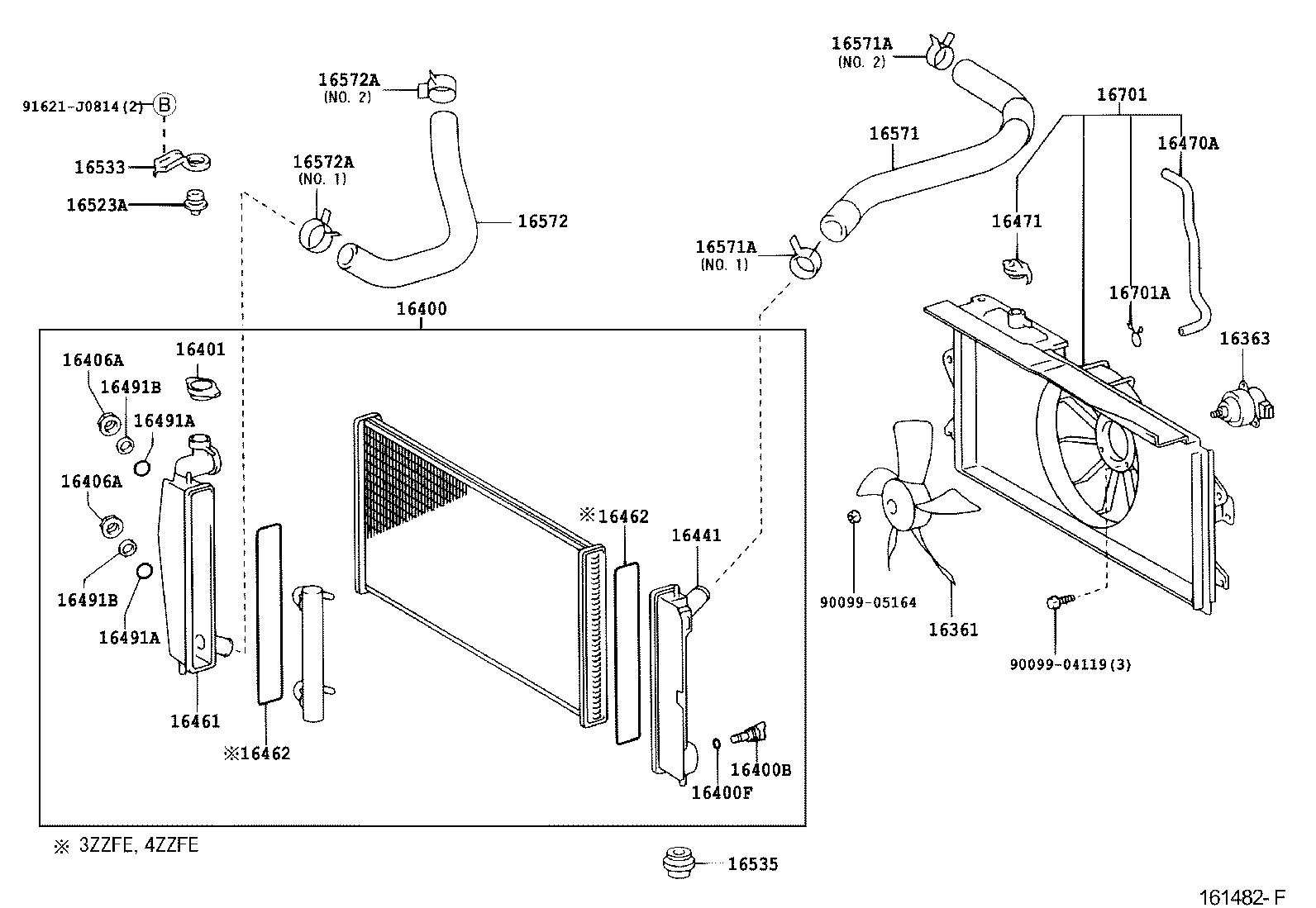

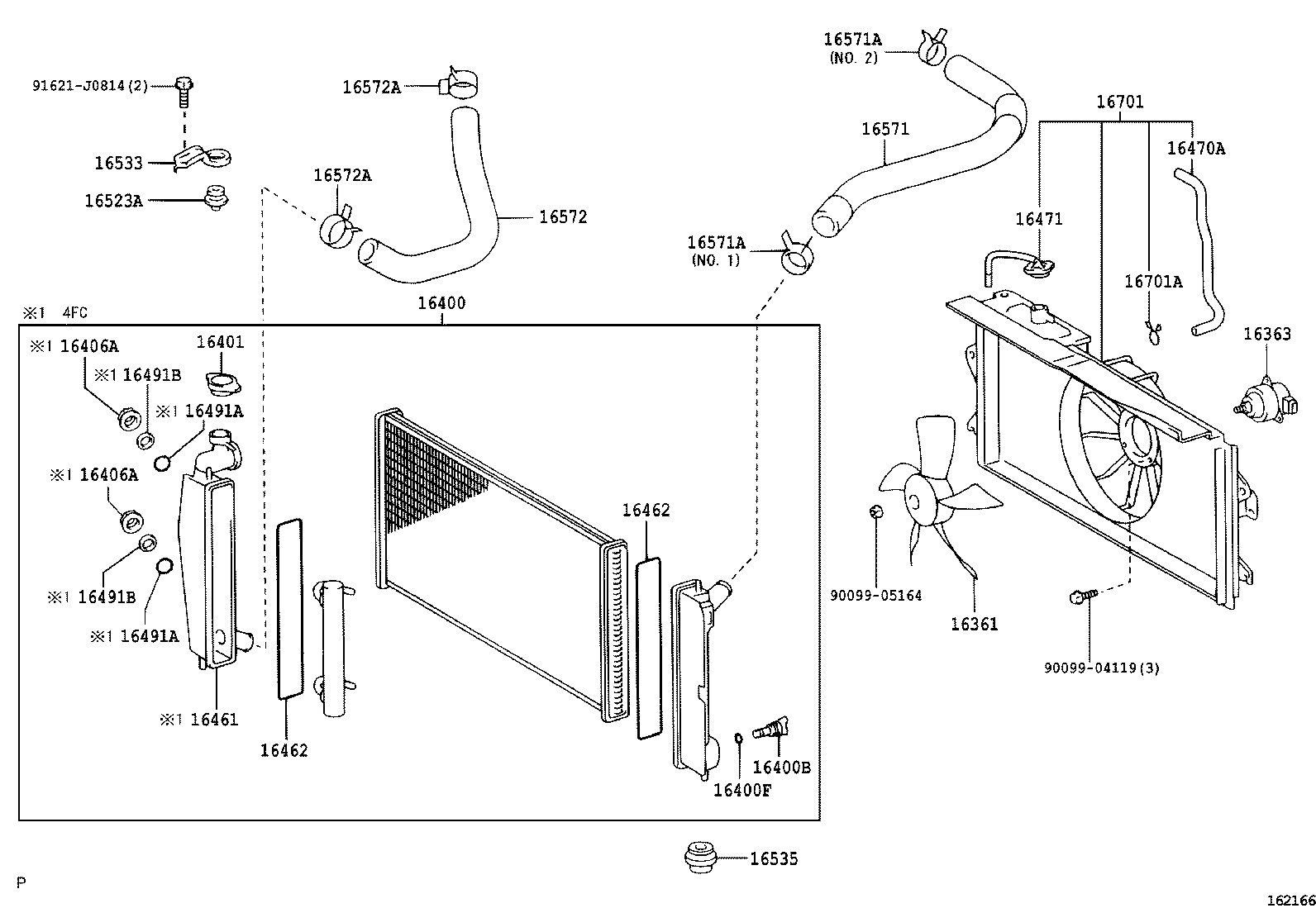

ILLUST NO. 1 OF 2(0111-0405)2ZZGE,3ZZFE,4ZZFE..UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-0D080 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
1 | ||
| 16361-0D080 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-0H030 |
3ZZFE..ZZE121..UKP;2ZZGE..ZZE123..UKP..LHD |
1 | ||
| 16363-0J020 |
3ZZFE..ZZE121..UKP;2ZZGE..ZZE123..UKP..LHD |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0D220 |
3ZZFE..ZZE121..UKP..4FC |
1 | ||
| 16400-0D220 |
3ZZFE..ZZE121..UKP..4FC |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90080-34010 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
1 | ||
| 90080-34010 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
1 | ||
| 16492-21050 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
1 | ||
| 16401-72090 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
1 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-74520 |
3ZZFE..ZZE121..UKP..4FC |
2 | ||
| 16406-74520 |
3ZZFE..ZZE121..UKP..4FC |
2 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-74520 |
3ZZFE..ZZE121..UKP..4FC |
2 | ||
| 16406-74520 |
3ZZFE..ZZE121..UKP..4FC |
2 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-0D200 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
1 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16461-0D220 |
3ZZFE..ZZE121..UKP..4FC |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-21180 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
2 | ||
| 16462-21180 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
2 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-21180 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
2 | ||
| 16462-21180 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
2 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16377-21040 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
1 | ||
| 16377-0D080 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-0D040 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 16405-0D040 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 16471-0J010 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
1 | ||
| 16405-0D080 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-02030 |
3ZZFE..ZZE121..UKP..4FC |
2 | ||
| 16492-02030 |
3ZZFE..ZZE121..UKP..4FC |
2 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-02030 |
3ZZFE..ZZE121..UKP..4FC |
2 | ||
| 16492-02030 |
3ZZFE..ZZE121..UKP..4FC |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-74520 |
3ZZFE..ZZE121..UKP..4FC |
2 | ||
| 16493-74520 |
3ZZFE..ZZE121..UKP..4FC |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-74520 |
3ZZFE..ZZE121..UKP..4FC |
2 | ||
| 16493-74520 |
3ZZFE..ZZE121..UKP..4FC |
2 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-0D020 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
2 | ||
| 16523-0D020 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-21020 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
2 | ||
| 16533-21020 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-0D031 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
2 | ||
| 16535-0D031 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-0D130 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP (L) |
1 | ||
| 16571-0D180 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 16571-22070 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP (J) |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34004 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP NO.2 |
1 | ||
| 90467-37005 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP NO.1 |
1 | ||
| 90466-W0011 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP NO.2 |
1 | ||
| 90466-W0012 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP NO.1 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34004 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP NO.2 |
1 | ||
| 90467-37005 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP NO.1 |
1 | ||
| 90466-W0011 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP NO.2 |
1 | ||
| 90466-W0012 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP NO.1 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-0D110 |
3ZZFE,4ZZFE..ZZE120,121..UKP (L) |
1 | ||
| 16572-22070 |
3ZZFE,4ZZFE..ZZE120,121..UKP (J) |
1 | ||
| 16572-0D110 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-37002 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP NO.1 |
1 | ||
| 90466-35001 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP NO.2 |
1 | ||
| 90466-W0013 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-37002 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP NO.1 |
1 | ||
| 90466-35001 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP NO.2 |
1 | ||
| 90466-W0013 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-0D060 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 16711-0D060 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90467-11085 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
1 | ||
| 90068-35004 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 90467-11085 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 91621-J0814 | ||||

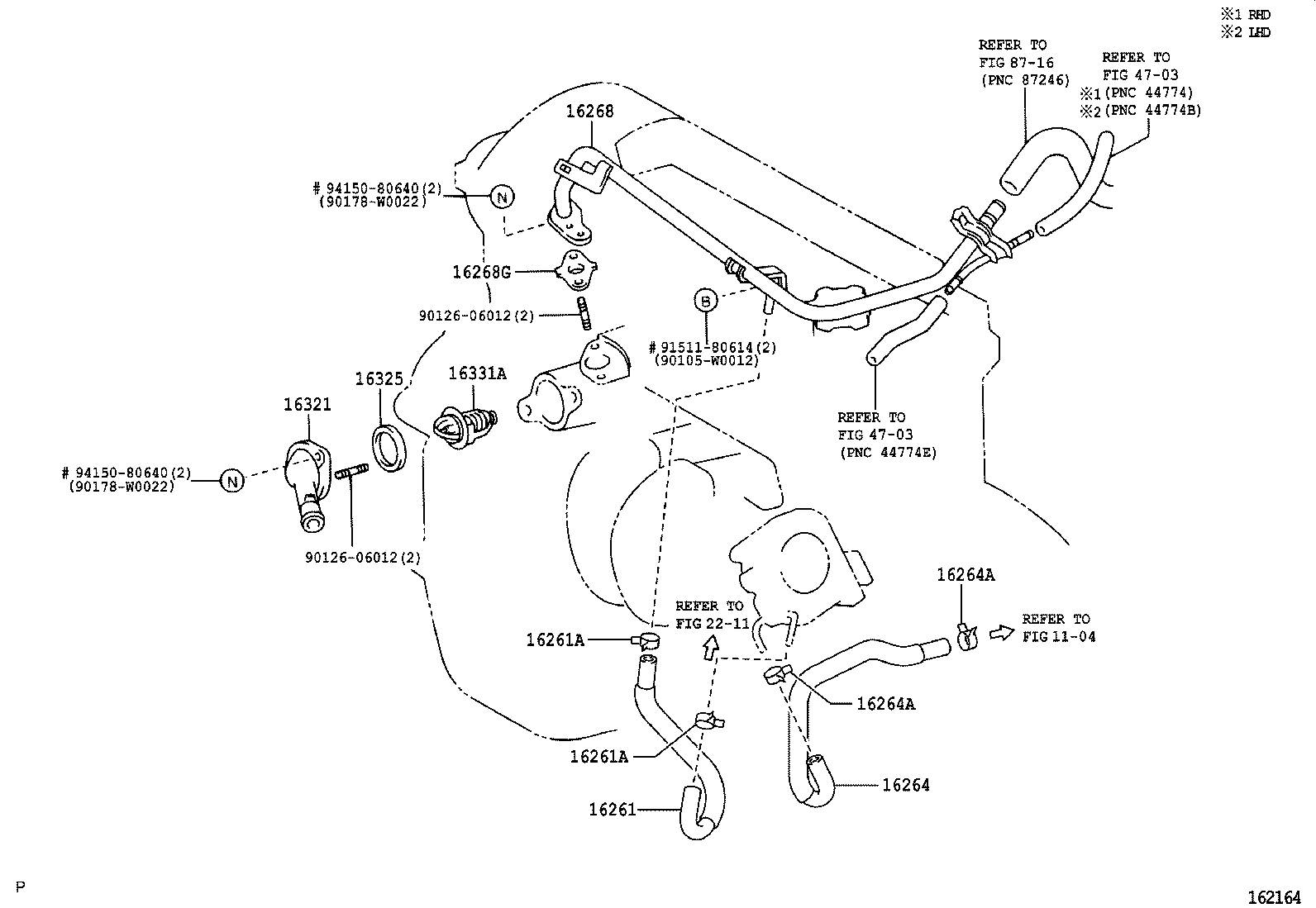

ILLUST NO. 2 OF 2(0111-0405)3ZZFE,4ZZFE..UKP ; (0405- )4ZZFE..UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-0D122 |
3ZZFE..ZZE121..UKP (L) |
1 | ||
| 16261-0D080 |
3ZZFE,4ZZFE..ZZE120,121..UKP (L) |
1 | ||
| 16261-22100 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 16261-22142 |
3ZZFE..ZZE121..UKP (J) |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-W0002 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
2 | ||
| 96135-51300 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
2 | ||
| 90466-W0002 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-W0002 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
2 | ||
| 96135-51300 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
2 | ||
| 90466-W0002 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-0D090 |
3ZZFE,4ZZFE..ZZE120,121..UKP (L) |
1 | ||
| 16264-22122 |
3ZZFE..ZZE121..UKP (J) |
1 | ||
| 16264-0D121 |
3ZZFE..ZZE121..UKP (L) |
1 | ||
| 16264-0D122 |
3ZZFE..ZZE121..UKP (L) |
1 | ||
| 16264-22110 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 16264-22123 |
3ZZFE..ZZE121..UKP (J) |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-W0002 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
2 | ||
| 96135-51300 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
2 | ||
| 90466-W0002 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-W0002 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
2 | ||
| 96135-51300 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
2 | ||
| 90466-W0002 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-22100 |
3ZZFE,4ZZFE..ZZE120,121..UKP (J) |
1 | ||
| 16268-0D020 |
3ZZFE,4ZZFE..ZZE120,121..UKP (L) |
1 | ||
| 16268-0D060 |
3ZZFE..ZZE121..UKP (L) |
1 | ||
| 16268-22160 |
3ZZFE..ZZE121..UKP (J) |
1 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-22010 |
3ZZFE,4ZZFE..ZZE120,121..UKP (J) |
1 | ||
| 16258-0D020 |
3ZZFE,4ZZFE..ZZE120,121..UKP (L) |
1 | ||
| 16258-22010 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 16258-22010 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-0D030 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 16321-0D030 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-0D010 |
3ZZFE,4ZZFE..ZZE120,121..UKP (L) |
1 | ||
| 16325-0D010 |
3ZZFE,4ZZFE..ZZE120,121..UKP (L) |
1 | ||
| 16325-62010 |
3ZZFE,4ZZFE..ZZE120,121..UKP (J) |
1 | ||
| 16325-62010 |
3ZZFE,4ZZFE..ZZE120,121..UKP (J) |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03129 |
3ZZFE,4ZZFE..ZZE120,121..UKP *WAX 82-95 |
1 | ||
| 90916-03129 |
3ZZFE,4ZZFE..ZZE120,121..UKP *WAX 82-95 |
1 | ||
| Common parts | ||||
| 90105-W0012 | ||||
| 90126-06012 | ||||
| 90178-W0022 | ||||
| 91511-80614 | ||||
| 94150-80640 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 2211 | ||||
| 4703 | ||||
| 8716 | ||||

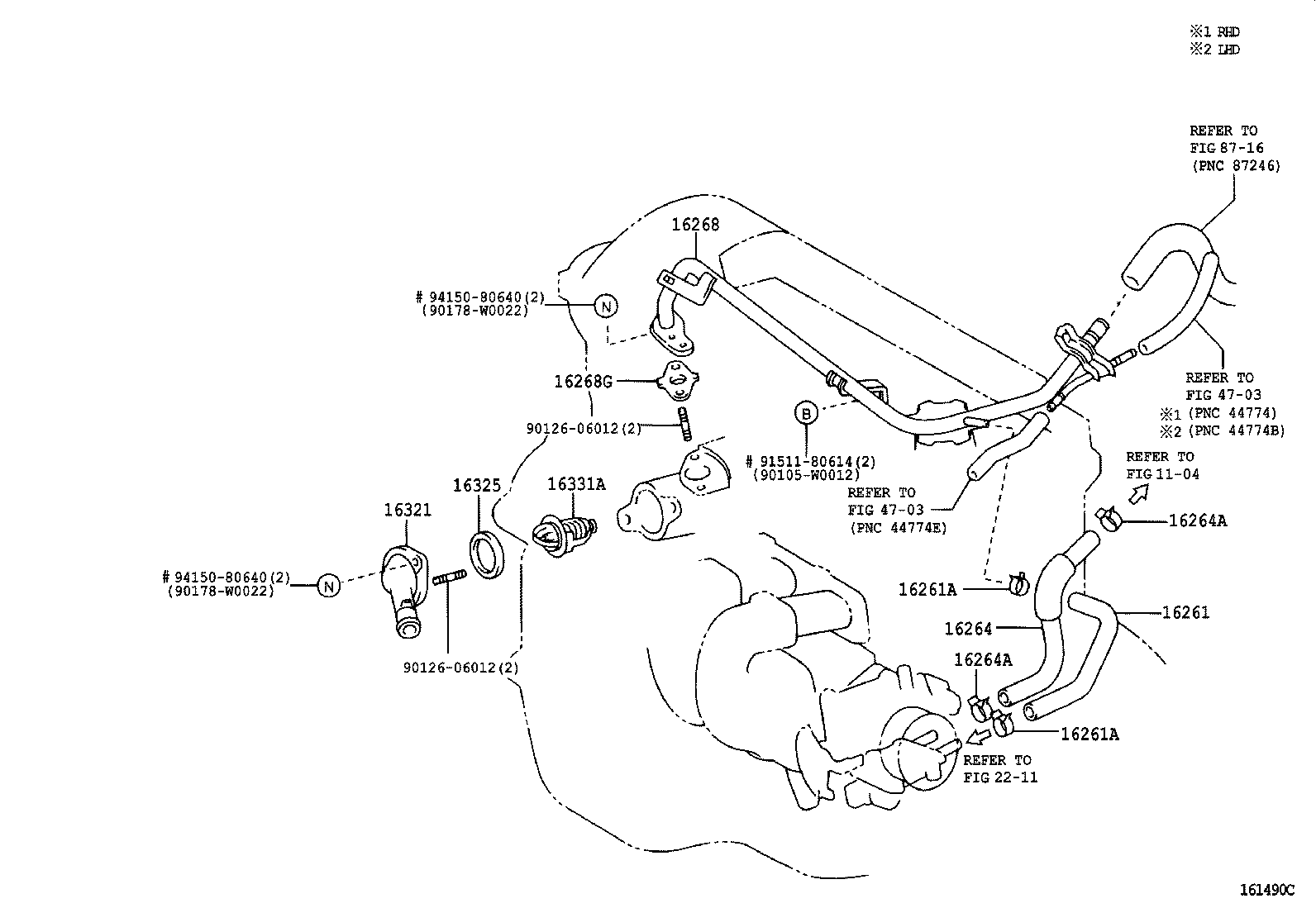

ILLUST NO. 2 OF 2(0405- )3ZZFE..UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-0D122 |
3ZZFE..ZZE121..UKP (L) |
1 | ||
| 16261-0D080 |
3ZZFE,4ZZFE..ZZE120,121..UKP (L) |
1 | ||
| 16261-22100 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 16261-22142 |
3ZZFE..ZZE121..UKP (J) |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-W0002 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
2 | ||
| 96135-51300 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
2 | ||
| 90466-W0002 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-W0002 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
2 | ||
| 96135-51300 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
2 | ||
| 90466-W0002 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-0D090 |
3ZZFE,4ZZFE..ZZE120,121..UKP (L) |
1 | ||
| 16264-22122 |
3ZZFE..ZZE121..UKP (J) |
1 | ||
| 16264-0D121 |
3ZZFE..ZZE121..UKP (L) |
1 | ||
| 16264-0D122 |
3ZZFE..ZZE121..UKP (L) |
1 | ||
| 16264-22123 |
3ZZFE..ZZE121..UKP (J) |
1 | ||
| 16264-22110 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-W0002 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
2 | ||
| 96135-51300 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
2 | ||
| 90466-W0002 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-W0002 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
2 | ||
| 96135-51300 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
2 | ||
| 90466-W0002 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-22100 |
3ZZFE,4ZZFE..ZZE120,121..UKP (J) |
1 | ||
| 16268-0D020 |
3ZZFE,4ZZFE..ZZE120,121..UKP (L) |
1 | ||
| 16268-0D060 |
3ZZFE..ZZE121..UKP (L) |
1 | ||
| 16268-22160 |
3ZZFE..ZZE121..UKP (J) |
1 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-22010 |
3ZZFE,4ZZFE..ZZE120,121..UKP (J) |
1 | ||
| 16258-0D020 |
3ZZFE,4ZZFE..ZZE120,121..UKP (L) |
1 | ||
| 16258-22010 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 16258-22010 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-0D030 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 16321-0D030 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-0D010 |
3ZZFE,4ZZFE..ZZE120,121..UKP (L) |
1 | ||
| 16325-0D010 |
3ZZFE,4ZZFE..ZZE120,121..UKP (L) |
1 | ||
| 16325-62010 |
3ZZFE,4ZZFE..ZZE120,121..UKP (J) |
1 | ||
| 16325-62010 |
3ZZFE,4ZZFE..ZZE120,121..UKP (J) |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03129 |
3ZZFE,4ZZFE..ZZE120,121..UKP *WAX 82-95 |
1 | ||
| 90916-03129 |
3ZZFE,4ZZFE..ZZE120,121..UKP *WAX 82-95 |
1 | ||
| Common parts | ||||
| 90105-W0012 | ||||
| 90126-06012 | ||||
| 90178-W0022 | ||||
| 91511-80614 | ||||
| 94150-80640 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 2211 | ||||
| 4703 | ||||
| 8716 | ||||
ILLUST NO. 1 OF 2(0405- )3ZZFE,4ZZFE..UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-0D080 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
1 | ||
| 16361-0D080 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-0H030 |
3ZZFE..ZZE121..UKP;2ZZGE..ZZE123..UKP..LHD |
1 | ||
| 16363-0J020 |
3ZZFE..ZZE121..UKP;2ZZGE..ZZE123..UKP..LHD |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0D220 |
3ZZFE..ZZE121..UKP..4FC |
1 | ||
| 16400-0D220 |
3ZZFE..ZZE121..UKP..4FC |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90080-34010 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
1 | ||
| 90080-34010 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
1 | ||
| 16492-21050 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
1 | ||
| 16401-72090 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
1 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-74520 |
3ZZFE..ZZE121..UKP..4FC |
2 | ||
| 16406-74520 |
3ZZFE..ZZE121..UKP..4FC |
2 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-74520 |
3ZZFE..ZZE121..UKP..4FC |
2 | ||
| 16406-74520 |
3ZZFE..ZZE121..UKP..4FC |
2 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16461-0D220 |
3ZZFE..ZZE121..UKP..4FC |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-21180 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
2 | ||
| 16462-21180 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
2 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-21180 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
2 | ||
| 16462-21180 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
2 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16377-21040 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
1 | ||
| 16377-0D080 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-0D040 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 16405-0D040 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 16471-0J010 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
1 | ||
| 16405-0D080 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-02030 |
3ZZFE..ZZE121..UKP..4FC |
2 | ||
| 16492-02030 |
3ZZFE..ZZE121..UKP..4FC |
2 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-02030 |
3ZZFE..ZZE121..UKP..4FC |
2 | ||
| 16492-02030 |
3ZZFE..ZZE121..UKP..4FC |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-74520 |
3ZZFE..ZZE121..UKP..4FC |
2 | ||
| 16493-74520 |
3ZZFE..ZZE121..UKP..4FC |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-74520 |
3ZZFE..ZZE121..UKP..4FC |
2 | ||
| 16493-74520 |
3ZZFE..ZZE121..UKP..4FC |
2 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-0D020 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
2 | ||
| 16523-0D020 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-21020 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
2 | ||
| 16533-21020 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-0D031 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
2 | ||
| 16535-0D031 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-0D130 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP (L) |
1 | ||
| 16571-0D180 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 16571-22070 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP (J) |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34004 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP NO.2 |
1 | ||
| 90467-37005 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP NO.1 |
1 | ||
| 90466-W0011 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP NO.2 |
1 | ||
| 90466-W0012 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP NO.1 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34004 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP NO.2 |
1 | ||
| 90467-37005 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP NO.1 |
1 | ||
| 90466-W0011 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP NO.2 |
1 | ||
| 90466-W0012 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP NO.1 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-0D110 |
3ZZFE,4ZZFE..ZZE120,121..UKP (L) |
1 | ||
| 16572-22070 |
3ZZFE,4ZZFE..ZZE120,121..UKP (J) |
1 | ||
| 16572-0D110 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-37002 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP NO.1 |
1 | ||
| 90466-35001 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP NO.2 |
1 | ||
| 90466-W0013 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-37002 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP NO.1 |
1 | ||
| 90466-35001 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP NO.2 |
1 | ||
| 90466-W0013 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-0D060 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 16711-0D060 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90467-11085 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
1 | ||
| 90068-35004 |
3ZZFE,4ZZFE..ZZE120,121..UKP |
1 | ||
| 90467-11085 |
2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 91621-J0814 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
