Toyota Corolla hb (ukp) ZZE121 MOUNTING

ZZE121R-DHPDKW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - Feb 2007

Engine 3ZZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

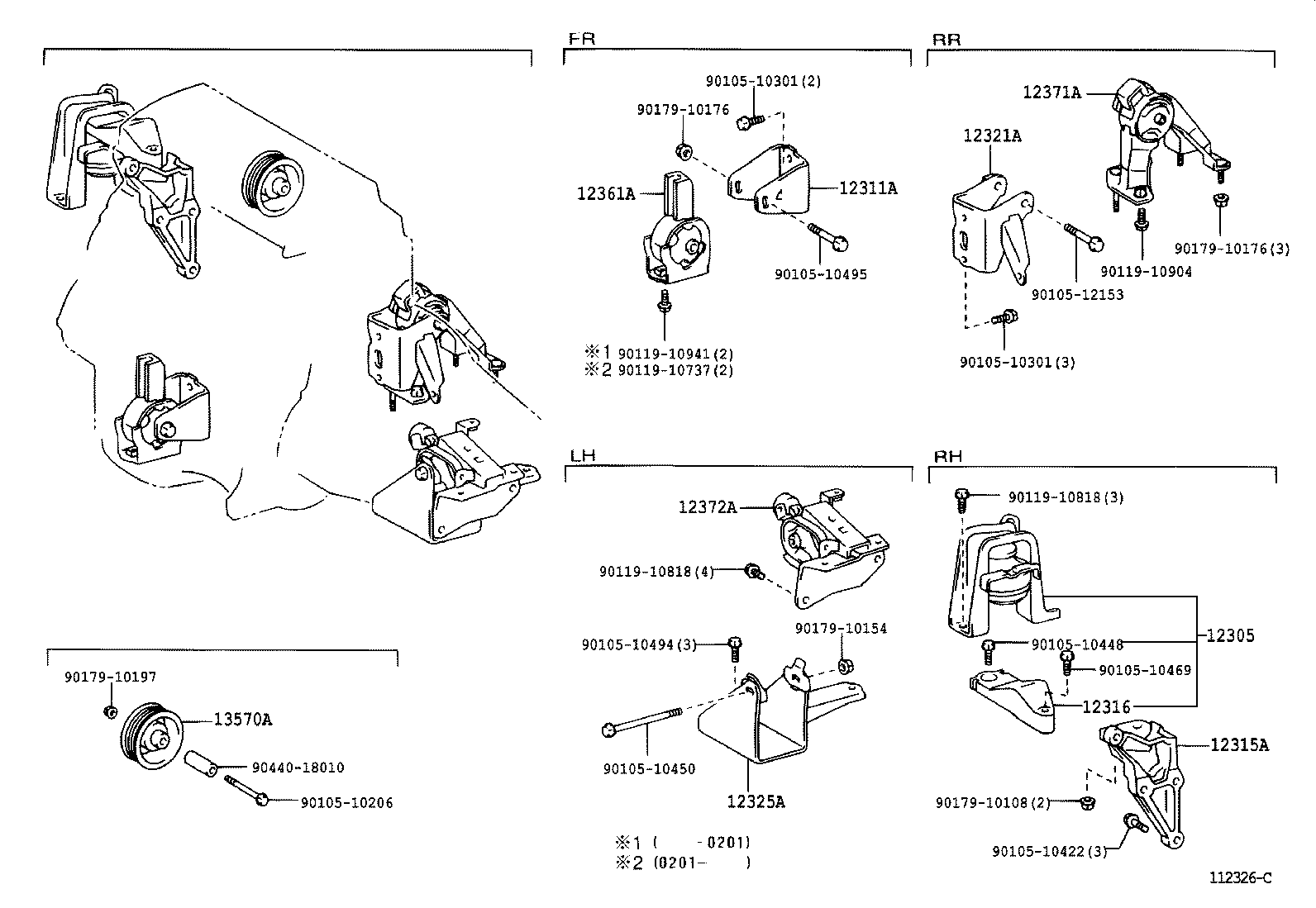

(0111-0208)3ZZFE..UKP..4FC

Click highlighted areas on diagram

Part #	Description	Period	Qty
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-22150	3ZZFE,4ZZFE..ZZE120,121..UKP	11/2001 - 08/2002	1
12305-0D051	3ZZFE,4ZZFE..ZZE120,121..UKP	12/2003 - 05/2004	1
12305-0D050	3ZZFE,4ZZFE..ZZE120,121..UKP	08/2002 - 12/2003	1
12305-0D051	3ZZFE,4ZZFE..ZZE120,121..UKP	05/2004 - 12/2999	1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-0D050	3ZZFE,4ZZFE..ZZE120,121..UKP	11/2001 - 05/2004	1
12311-0D050	3ZZFE,4ZZFE..ZZE120,121..UKP	05/2004 - 12/2999	1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-22050	3ZZFE,4ZZFE..ZZE120,121..UKP (J)	11/2001 - 05/2004	1
12315-0D040	3ZZFE,4ZZFE..ZZE120,121..UKP ENGINE NO.=UXXXXXX-WXXXXXX,(L)	11/2001 - 05/2004	1
12315-0D070	3ZZFE,4ZZFE..ZZE120,121..UKP ENGINE NO.=EXXXXXX-FXXXXXX,(L)	01/2003 - 05/2004	1
12315-22050	3ZZFE,4ZZFE..ZZE120,121..UKP (J)	05/2004 - 12/2999	1
12315-0D040	3ZZFE,4ZZFE..ZZE120,121..UKP ENGINE NO.=UXXXXXX-WXXXXXX,(L)	05/2004 - 12/2999	1
12315-0D070	3ZZFE,4ZZFE..ZZE120,121..UKP ENGINE NO.=EXXXXXX-FXXXXXX,(L)	05/2004 - 12/2999	1
12316 - BRACKET, ENGINE MOUNTING, NO.2 RH
12316-22100	3ZZFE,4ZZFE..ZZE120,121..UKP	11/2001 - 08/2002	1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-22120	3ZZFE..ZZE121..UKP..4FC	11/2001 - 05/2004	1
12321-22120	3ZZFE..ZZE121..UKP..4FC	05/2004 - 06/2005	1
12321-22121	3ZZFE..ZZE121..UKP..4FC	07/2005 - 12/2999	1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-22100	3ZZFE..ZZE121..UKP..4FC	11/2001 - 05/2004	1
12325-22100	3ZZFE..ZZE121..UKP..4FC	05/2004 - 02/2007	1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-22090	3ZZFE..ZZE121..UKP..4FC	11/2001 - 08/2002	1
12361-0D120	3ZZFE..ZZE121..UKP..4FC	05/2004 - 12/2999	1
12361-0D120	3ZZFE..ZZE121..UKP..4FC	08/2002 - 05/2004	1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-22130	3ZZFE..ZZE121..UKP..4FC	05/2004 - 12/2999	1
12371-22130	3ZZFE..ZZE121..UKP..4FC	11/2001 - 05/2004	1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-0D090	2ZZGE,3ZZFE..ZZE121,123..UKP..(4FC,6F)	11/2001 - 05/2004	1
12372-0D090	2ZZGE,3ZZFE..ZZE121,123..UKP..(4FC,6F)	05/2004 - 12/2999	1
13570A - IDLER ASSY, V-RIBBED, NO.1
13570-22010	2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP	11/2001 - 05/2004	1
13570-22010	2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP	05/2004 - 12/2999	1
Common parts
90105-10206
90105-10301
90105-10422
90105-10448
90105-10450
90105-10469
90105-10494
90105-10495
90105-12153
90119-10737
90119-10818
90119-10904
90119-10941
90179-10108
90179-10154
90179-10176
90179-10197
90440-18010

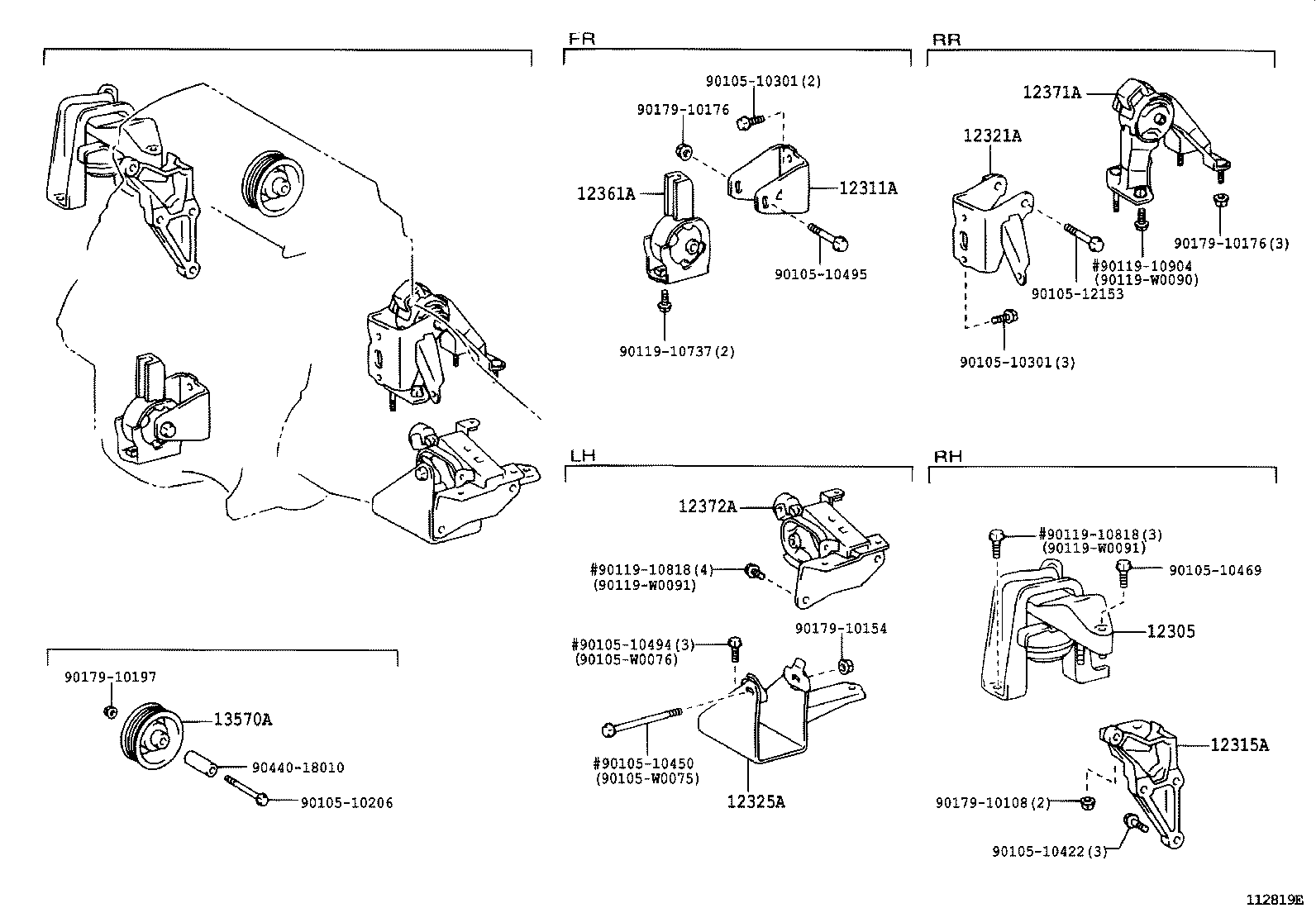

(0208- )3ZZFE..UKP..4FC

Click highlighted areas on diagram

Part #	Description	Period	Qty
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-22150	3ZZFE,4ZZFE..ZZE120,121..UKP	11/2001 - 08/2002	1
12305-0D051	3ZZFE,4ZZFE..ZZE120,121..UKP	12/2003 - 05/2004	1
12305-0D050	3ZZFE,4ZZFE..ZZE120,121..UKP	08/2002 - 12/2003	1
12305-0D051	3ZZFE,4ZZFE..ZZE120,121..UKP	05/2004 - 12/2999	1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-0D050	3ZZFE,4ZZFE..ZZE120,121..UKP	11/2001 - 05/2004	1
12311-0D050	3ZZFE,4ZZFE..ZZE120,121..UKP	05/2004 - 12/2999	1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-22050	3ZZFE,4ZZFE..ZZE120,121..UKP (J)	11/2001 - 05/2004	1
12315-0D040	3ZZFE,4ZZFE..ZZE120,121..UKP ENGINE NO.=UXXXXXX-WXXXXXX,(L)	11/2001 - 05/2004	1
12315-0D070	3ZZFE,4ZZFE..ZZE120,121..UKP ENGINE NO.=EXXXXXX-FXXXXXX,(L)	01/2003 - 05/2004	1
12315-22050	3ZZFE,4ZZFE..ZZE120,121..UKP (J)	05/2004 - 12/2999	1
12315-0D040	3ZZFE,4ZZFE..ZZE120,121..UKP ENGINE NO.=UXXXXXX-WXXXXXX,(L)	05/2004 - 12/2999	1
12315-0D070	3ZZFE,4ZZFE..ZZE120,121..UKP ENGINE NO.=EXXXXXX-FXXXXXX,(L)	05/2004 - 12/2999	1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-22120	3ZZFE..ZZE121..UKP..4FC	11/2001 - 05/2004	1
12321-22120	3ZZFE..ZZE121..UKP..4FC	05/2004 - 06/2005	1
12321-22121	3ZZFE..ZZE121..UKP..4FC	07/2005 - 12/2999	1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-22100	3ZZFE..ZZE121..UKP..4FC	11/2001 - 05/2004	1
12325-22100	3ZZFE..ZZE121..UKP..4FC	05/2004 - 02/2007	1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-22090	3ZZFE..ZZE121..UKP..4FC	11/2001 - 08/2002	1
12361-0D120	3ZZFE..ZZE121..UKP..4FC	05/2004 - 12/2999	1
12361-0D120	3ZZFE..ZZE121..UKP..4FC	08/2002 - 05/2004	1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-22130	3ZZFE..ZZE121..UKP..4FC	05/2004 - 12/2999	1
12371-22130	3ZZFE..ZZE121..UKP..4FC	11/2001 - 05/2004	1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-0D090	2ZZGE,3ZZFE..ZZE121,123..UKP..(4FC,6F)	11/2001 - 05/2004	1
12372-0D090	2ZZGE,3ZZFE..ZZE121,123..UKP..(4FC,6F)	05/2004 - 12/2999	1
13570A - IDLER ASSY, V-RIBBED, NO.1
13570-22010	2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP	11/2001 - 05/2004	1
13570-22010	2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP	05/2004 - 12/2999	1
Common parts
90105-10206
90105-10301
90105-10422
90105-10450
90105-10469
90105-10494
90105-10495
90105-12153
90105-W0075
90105-W0076
90119-10737
90119-10818
90119-10904
90119-W0090
90119-W0091
90179-10108
90179-10154
90179-10176
90179-10197
90440-18010
