ZZE121R-DHPDKW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - Feb 2007
Engine 3ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0111- )3ZZFE,4ZZFE..UKP

Click highlighted areas on diagram

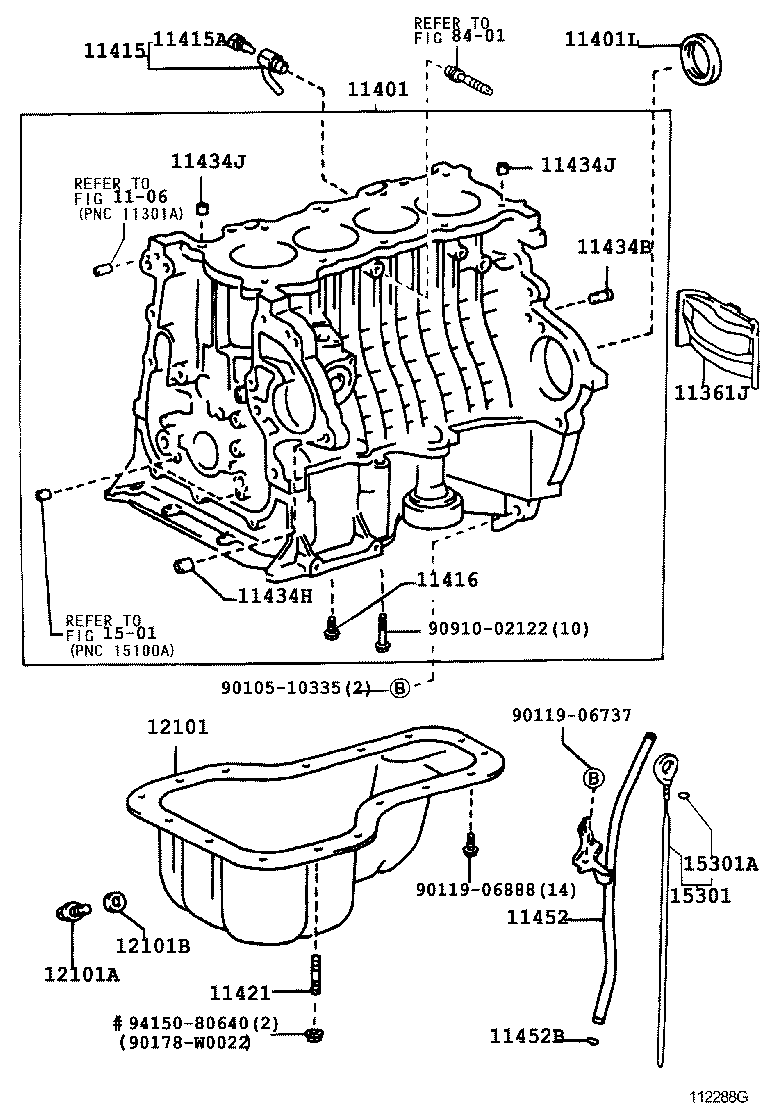

diagram 1106 11361J 11401 11401L 11415 11415A 11416 11421 11434B 11434H 11434J 11434J 11452 11452B 12101 12101A 12101B 1501 15301 15301A 8401 9010510335 9011906737 9011906888 90178W0022 9091002122 9415080640
Part # Description Qty Price
11361J - COVER, FLYWHEEL HOUSING UNDER
11361-22021

2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP

 1
11361-0D010

2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP

(L)

 1
11361-22021

2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP

(J)

 1
11361-0D010

3ZZFE,4ZZFE..ZZE120,121..UKP

(L)

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11410-09030

3ZZFE..ZZE121..UKP

 1
11410-29155

3ZZFE..ZZE121..UKP

(J)

 1
11410-29155

3ZZFE..ZZE121..UKP

(J)

 1
11410-09030

3ZZFE..ZZE121..UKP

(L)

 1
11410-29057

3ZZFE..ZZE121..UKP

(J)

 1
11401L - SEAL, ENGINE REAR OIL
90080-31059

3ZZFE,4ZZFE..ZZE120,121..UKP

(L)

 1
90080-31059

3ZZFE,4ZZFE..ZZE120,121..UKP

(L)

 1
90311-76001

3ZZFE,4ZZFE..ZZE120,121..UKP

(J)

 1
90311-76001

3ZZFE,4ZZFE..ZZE120,121..UKP

(J)

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09107

3ZZFE,4ZZFE..ZZE120,121..UKP

 1
90910-09107

3ZZFE,4ZZFE..ZZE120,121..UKP

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087

2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP

 1
90910-09087

2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
91511-K0840

3ZZFE,4ZZFE..ZZE120,121..UKP

 10
91511-K0840

3ZZFE,4ZZFE..ZZE120,121..UKP

 10
11421 - BOLT, STUD(FOR OIL PAN)
90126-06010

3ZZFE,4ZZFE..ZZE120,121..UKP

 2
90126-06010

3ZZFE,4ZZFE..ZZE120,121..UKP

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP

L=22,OD=10

 2
90250-10113

3ZZFE,4ZZFE..ZZE120,121..UKP

L=22,OD=10

 2
11434H - PIN, RING (FOR TIMING BELT COVER SET)
90253-14003

2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP

 1
90253-14003

3ZZFE,4ZZFE..ZZE120,121..UKP

 1
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-13017

3ZZFE,4ZZFE..ZZE120,121..UKP

 2
90253-13017

2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-13017

3ZZFE,4ZZFE..ZZE120,121..UKP

 2
90253-13017

2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-22030

3ZZFE,4ZZFE..ZZE120,121..UKP

 1
11452-22030

3ZZFE,4ZZFE..ZZE120,121..UKP

 1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
96721-19010

2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP

 1
96721-19010

2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP

 1
12101 - PAN SUB-ASSY, OIL
12101-0D020

3ZZFE,4ZZFE..ZZE120,121..UKP

ENGINE NO.=UXXXXXX-WXXXXXX,(L)

 1
12101-22024

3ZZFE,4ZZFE..ZZE120,121..UKP

(J)

 1
12101-22024

3ZZFE,4ZZFE..ZZE120,121..UKP

(J)

 1
12101-0D020

3ZZFE,4ZZFE..ZZE120,121..UKP

ENGINE NO.=UXXXXXX-WXXXXXX,(L)

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP

 1
90341-12012

3ZZFE,4ZZFE..ZZE120,121..UKP

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90080-43037

3ZZFE,4ZZFE..ZZE120,121..UKP

(L)

 1
90430-12031

3ZZFE,4ZZFE..ZZE120,121..UKP

 1
90080-43037

3ZZFE,4ZZFE..ZZE120,121..UKP

(L)

 1
90430-12031

3ZZFE,4ZZFE..ZZE120,121..UKP

(J)

 1
90430-12031

3ZZFE,4ZZFE..ZZE120,121..UKP

(J)

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-0D010

3ZZFE,4ZZFE..ZZE120,121..UKP

(L)

 1
15301-22030

3ZZFE,4ZZFE..ZZE120,121..UKP

(J)

 1
15301-22030

3ZZFE,4ZZFE..ZZE120,121..UKP

(J)

 1
15301-0D010

3ZZFE,4ZZFE..ZZE120,121..UKP

(L)

 1
15301-22050

3ZZFE,4ZZFE..ZZE120,121..UKP

(J)

 1
15301-0D011

3ZZFE,4ZZFE..ZZE120,121..UKP

(L)

 1
15301A - RING, O(FOR OIL LEVEL GAGE)
96741-19005

3ZZFE,4ZZFE..ZZE120,121..UKP

 1
96741-19005

3ZZFE,4ZZFE..ZZE120,121..UKP

 1
Common parts
90105-10335
90119-06737
90119-06888
90178-W0022
90910-02122
94150-80640
