Toyota Corolla hb (ukp) ZZE121 ACCELERATOR LINK

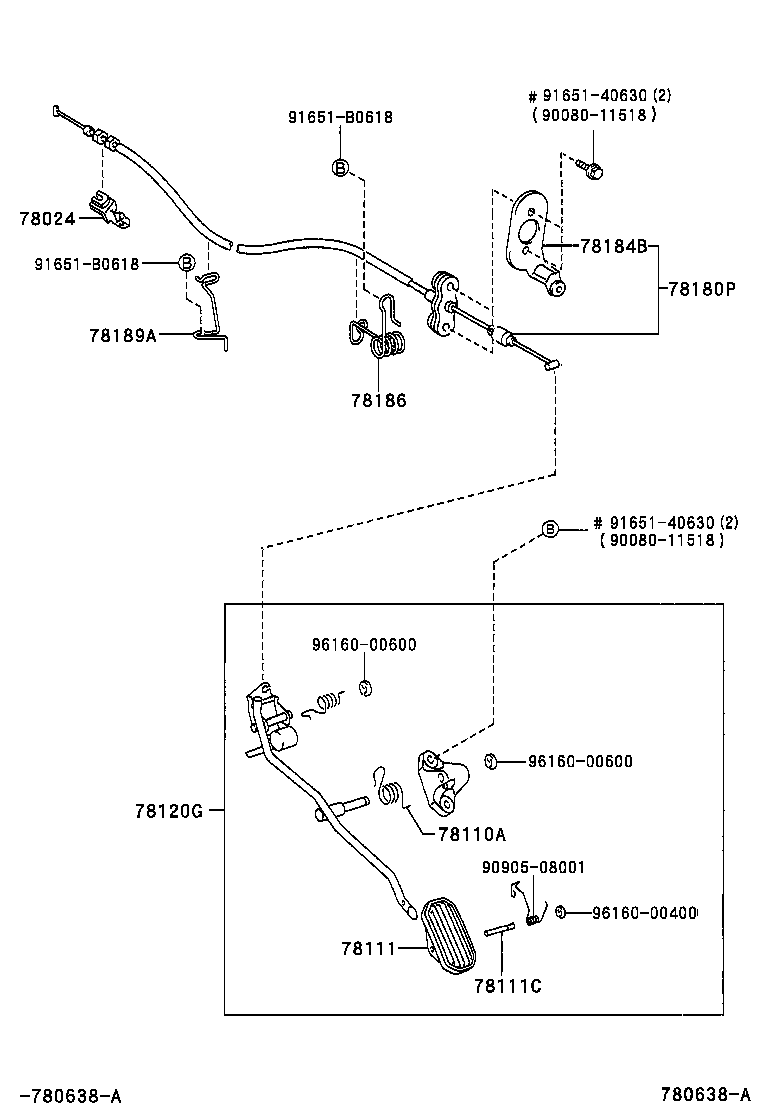

Part #	Description	Period	Qty
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-12090	ZZE120,121..UKP	11/2001 - 05/2004	1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-26036	ZZE12#..UKP..LHD	11/2001 - 05/2004	1
78111 - PEDAL, ACCELERATOR
78111-32010	ZZE121..UKP..LHD..4FC	11/2001 - 05/2004	1
78111-35030	CDE120,NDE120,ZZE121..UKP..LHD	05/2004 - 12/2999	1
78111C - PIN (FOR ACCELERATOR PEDAL)
90254-04019	CDE120,NDE120,ZZE12#..UKP	05/2004 - 02/2007	1
90249-05001	ZZE121..UKP..LHD..4FC	11/2001 - 05/2004	1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-13030	ZZE121..UKP..LHD..4FC	11/2001 - 05/2004	1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-02250	ZZE120,121..UKP..LHD	11/2001 - 05/2004	1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-02080	ZZE120,121..UKP..LHD	11/2001 - 05/2004	1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-13040	ZZE12#..UKP..LHD	11/2001 - 05/2004	1
78189A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.2
78189-12100	ZZE12#..UKP	11/2001 - 05/2004	1
Common parts
90080-11518
90905-08001
91651-40630
91651-B0618
96160-00400
96160-00600

Part #	Description	Period	Qty

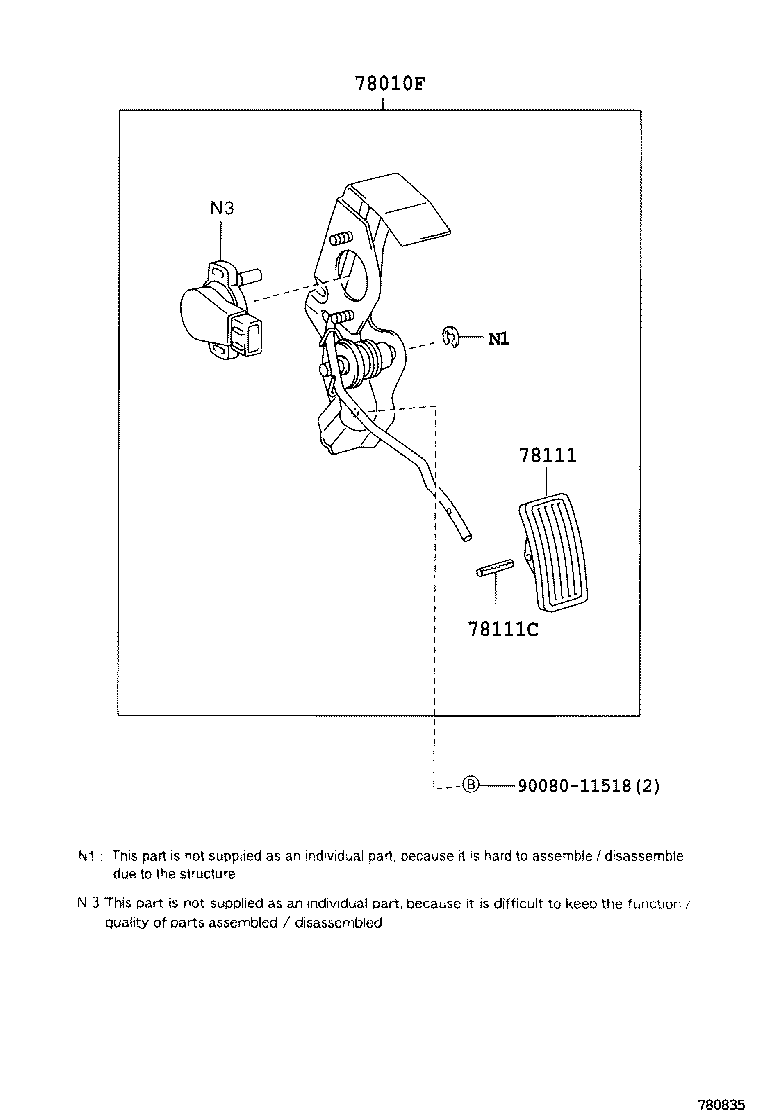

78010F - PEDAL ASSY, ACCELERATOR
78010-20122	NDE120,ZZE121..UKP..LHD..(4FC,5FS)	05/2004 - 12/2999	1
78111 - PEDAL, ACCELERATOR
78111-32010	ZZE121..UKP..LHD..4FC	11/2001 - 05/2004	1
78111-35030	CDE120,NDE120,ZZE121..UKP..LHD	05/2004 - 12/2999	1
78111C - PIN (FOR ACCELERATOR PEDAL)
90254-04019	CDE120,NDE120,ZZE12#..UKP	05/2004 - 02/2007	1
90249-05001	ZZE121..UKP..LHD..4FC	11/2001 - 05/2004	1
Common parts
90080-11518

ZZE121L-DHPDKW (2001)
