Toyota Corolla hb (ukp) ZZE121 STEERING COLUMN & SHAFT

ZZE121L-DHPDKW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - Feb 2007

Engine 3ZZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

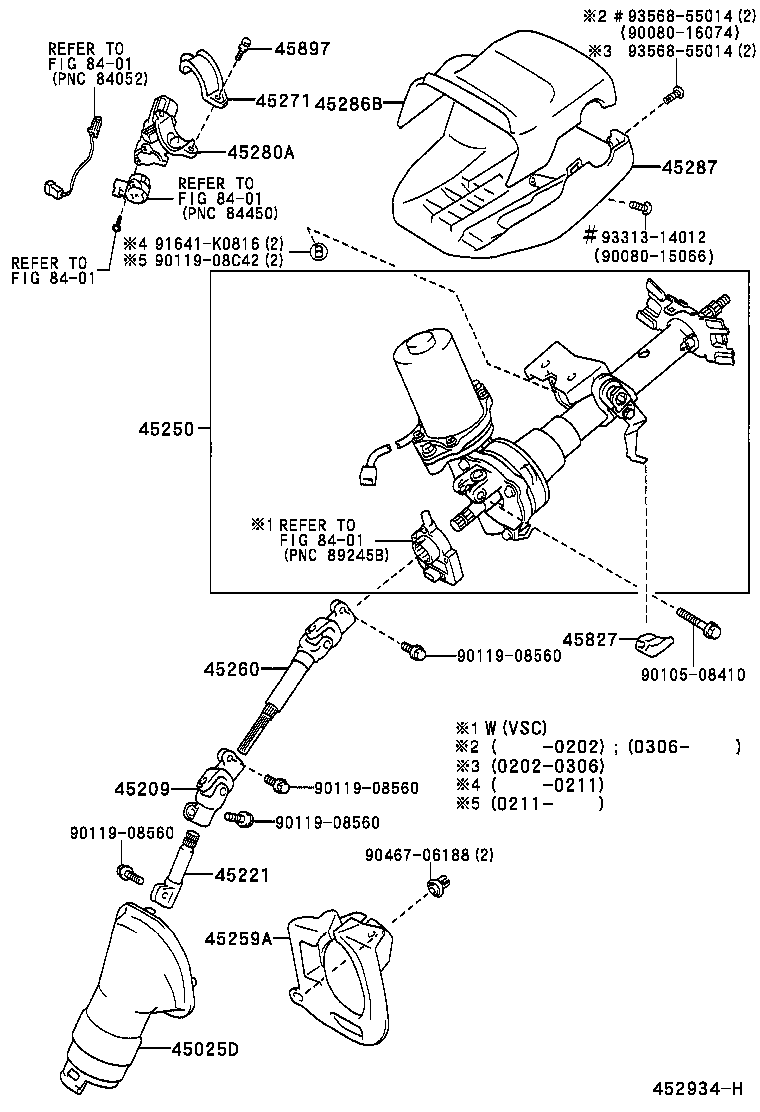

(0111-0405)UKP..LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-02060	ZZE12#..UKP..LHD (L)	01/2003 - 05/2004	1
45025-13060	ZZE12#..UKP..LHD (J)	11/2001 - 05/2004	1
45025-02060	ZZE12#..UKP..LHD	05/2004 - 12/2999	1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-02010	CDE120,ZZE12#..UKP..LHD	11/2001 - 05/2004	1
45209-02011	CDE120,NDE120,ZZE12#..UKP..LHD	05/2004 - 12/2999	1
45221 - SHAFT, STEERING INTERMEDIATE
45221-02021	CDE120,ZZE12#..UKP	09/2003 - 04/2004	1
45221-02022	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
45221-02020	CDE120,ZZE12#..UKP	11/2001 - 09/2003	1
45250 - COLUMN ASSY, STEERING
45250-02480	CDE120,NDE120,ZZE120,121..UKP..LHD	05/2004 - 12/2999	1
45250-02320	CDE120,ZZE120,121..UKP..LHD	11/2001 - 04/2004	1
45250-02440	ZZE121,123..UKP..LHD W(VSC)	11/2001 - 04/2004	1
45250-02500	CDE120,NDE120,ZZE12#..UKP..LHD W(VSC)	05/2004 - 12/2999	1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-02040	CDE120,ZZE12#..UKP..LHD	11/2001 - 05/2004	1
45259-02040	CDE120,NDE120,ZZE12#..UKP..LHD	05/2004 - 12/2999	1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-02040	CDE120,ZZE12#..UKP..LHD	11/2001 - 04/2004	1
45260-02040	CDE120,NDE120,ZZE12#..UKP..LHD	05/2004 - 12/2999	1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-16020	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
45271-16020	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-02060	ZZE121..UKP..4FC	11/2001 - 05/2004	1
45280-02060	ZZE121..UKP..4FC	05/2004 - 12/2999	1
45286B - COVER, STEERING COLUMN, UPR
45286-02180B0	CDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1#,8#	11/2001 - 11/2002	1
45286-02220B0	ZZE123..UKP;CDE120,NDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1#	05/2004 - 02/2007	1
45286-02181B0	CDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1#,8#	11/2002 - 05/2004	1
45287 - COVER, STEERING COLUMN, LWR
45024-02011B0	CDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1#,8#	11/2002 - 05/2004	1
45287-02170B0	ZZE123..UKP;CDE120,NDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1#	05/2004 - 02/2007	1
45024-02010B0	CDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1#,8#	11/2001 - 11/2002	1
45827 - KNOB, STEERING TILT LEVER
45827-02020	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
45897 - BOLT, STEERING LOCK SET
45897-12020	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	2
45897-12020	CDE120,ZZE12#..UKP	11/2001 - 05/2004	2
Common parts
90080-15066
90080-16074
90105-08410
90119-08560
90119-08C42
90467-06188
91641-K0816
93313-14012
93568-55014
Linked diagrams
8401

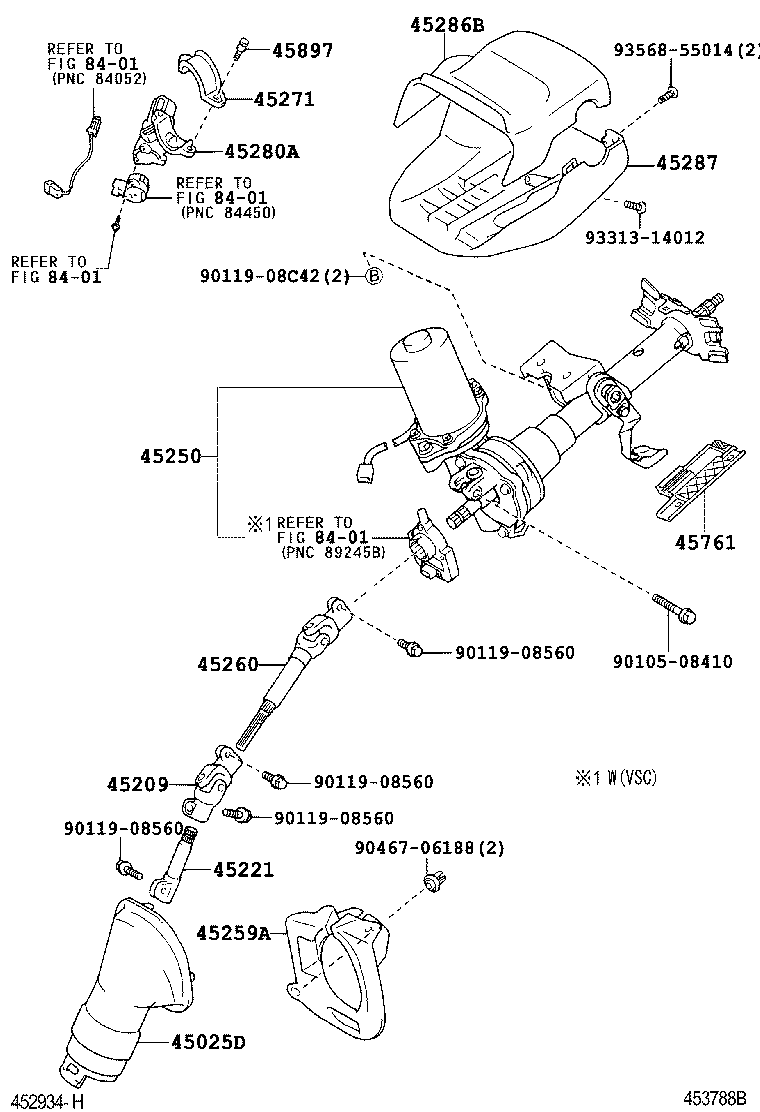

(0405- )UKP..LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-02060	ZZE12#..UKP..LHD (L)	01/2003 - 05/2004	1
45025-13060	ZZE12#..UKP..LHD (J)	11/2001 - 05/2004	1
45025-02060	ZZE12#..UKP..LHD	05/2004 - 12/2999	1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-02010	CDE120,ZZE12#..UKP..LHD	11/2001 - 05/2004	1
45209-02011	CDE120,NDE120,ZZE12#..UKP..LHD	05/2004 - 12/2999	1
45221 - SHAFT, STEERING INTERMEDIATE
45221-02021	CDE120,ZZE12#..UKP	09/2003 - 04/2004	1
45221-02022	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
45221-02020	CDE120,ZZE12#..UKP	11/2001 - 09/2003	1
45250 - COLUMN ASSY, STEERING
45250-02320	CDE120,ZZE120,121..UKP..LHD	11/2001 - 04/2004	1
45250-02480	CDE120,NDE120,ZZE120,121..UKP..LHD	05/2004 - 12/2999	1
45250-02440	ZZE121,123..UKP..LHD W(VSC)	11/2001 - 04/2004	1
45250-02500	CDE120,NDE120,ZZE12#..UKP..LHD W(VSC)	05/2004 - 12/2999	1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-02040	CDE120,ZZE12#..UKP..LHD	11/2001 - 05/2004	1
45259-02040	CDE120,NDE120,ZZE12#..UKP..LHD	05/2004 - 12/2999	1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-02040	CDE120,ZZE12#..UKP..LHD	11/2001 - 04/2004	1
45260-02040	CDE120,NDE120,ZZE12#..UKP..LHD	05/2004 - 12/2999	1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-16020	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
45271-16020	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-02060	ZZE121..UKP..4FC	11/2001 - 05/2004	1
45280-02060	ZZE121..UKP..4FC	05/2004 - 12/2999	1
45286B - COVER, STEERING COLUMN, UPR
45286-02180B0	CDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1#,8#	11/2001 - 11/2002	1
45286-02220B0	ZZE123..UKP;CDE120,NDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1#	05/2004 - 02/2007	1
45286-02181B0	CDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1#,8#	11/2002 - 05/2004	1
45287 - COVER, STEERING COLUMN, LWR
45024-02011B0	CDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1#,8#	11/2002 - 05/2004	1
45287-02170B0	ZZE123..UKP;CDE120,NDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1#	05/2004 - 02/2007	1
45024-02010B0	CDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1#,8#	11/2001 - 11/2002	1
45761 - SLIDER, TELESCOPIC STEERING
45761-02010	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
45897 - BOLT, STEERING LOCK SET
45897-12020	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	2
45897-12020	CDE120,ZZE12#..UKP	11/2001 - 05/2004	2
Common parts
90105-08410
90119-08560
90119-08C42
90467-06188
93313-14012
93568-55014
Linked diagrams
8401
