ZZE120L-DGMDKW (2001)
Toyota Corolla Hb (Ukp)
ILLUST NO. 1 OF 3(0111-0405)UKP
CONTROL PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900A - CONTROL & ACCESSORY ASSY, HEATER | ||||
| 55900-02141 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 55900-02140 |
CDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 55900-02180 |
CDE120,ZZE120,121..UKP |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90069-98005 |
CDE120,ZZE120,121..UKP |
2 | ||
| 90981-WB011 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
2 | ||
| 90069-98005 |
CDE120,ZZE120,121..UKP..TERRA |
2 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90069-98005 |
CDE120,ZZE120,121..UKP |
2 | ||
| 90981-WB011 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
2 | ||
| 90069-98005 |
CDE120,ZZE120,121..UKP..TERRA |
2 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-02160 |
CDE120,ZZE120,121..UKP NO.1 |
1 | ||
| 55905-02270 |
CDE120,ZZE120,121..UKP NO.2 |
2 | ||
| 55905-0F030 |
CDE120,NDE120,ZZE120,121..UKP..TERRA NO.1 |
1 | ||
| 55905-02270 |
CDE120,NDE120,ZZE120,121..UKP..TERRA NO.2 |
2 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-02160 |
CDE120,ZZE120,121..UKP NO.1 |
1 | ||
| 55905-02270 |
CDE120,ZZE120,121..UKP NO.2 |
2 | ||
| 55905-0F030 |
CDE120,NDE120,ZZE120,121..UKP..TERRA NO.1 |
1 | ||
| 55905-02270 |
CDE120,NDE120,ZZE120,121..UKP..TERRA NO.2 |
2 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-02160 |
CDE120,ZZE120,121..UKP NO.1 |
1 | ||
| 55905-02270 |
CDE120,ZZE120,121..UKP NO.2 |
2 | ||
| 55905-0F030 |
CDE120,NDE120,ZZE120,121..UKP..TERRA NO.1 |
1 | ||
| 55905-02270 |
CDE120,NDE120,ZZE120,121..UKP..TERRA NO.2 |
2 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-02060 |
ZZE121..LHD..SOL;ZZE121..LHD..5F..TERRA;ZZE121..LHD..5D..4FC..TERRA;CDE120,ZZE120..LHD..(DCRL,HTWC) |
1 | ||
| 55906-02120 |
CDE120,NDE120,ZZE120,121..UKP..LHD..TERRA |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-02060 |
ZZE121..LHD..SOL;ZZE121..LHD..5F..TERRA;ZZE121..LHD..5D..4FC..TERRA;CDE120,ZZE120..LHD..(DCRL,HTWC) |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-02060 |
ZZE121..LHD..SOL;ZZE121..LHD..5F..TERRA;ZZE121..LHD..5D..4FC..TERRA;CDE120,ZZE120..LHD..(DCRL,HTWC) |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-02050 |
ZZE120;ZZE121..5D..SOL;CDE120..5D..DCRL;ZZE121..RHD..TERRA;ZZE121..LHD..3D..SOL;CDE120..LHD..3D..DCRL;ZZE121..LHD..5F..TERRA;ZZE121..LHD..5D..4FC..TERRA |
1 | ||
| 55909-02080 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 55933A - CLAMP, HEATER CONTROL CABLE | ||||
| 55933-0D010 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 55933-0D010 |
ZZE121..LHD..SOL;ZZE121..LHD..5F..TERRA;ZZE121..LHD..5D..4FC..TERRA;CDE120,ZZE120..LHD..(DCRL,HTWC) |
1 | ||
| 55933A - CLAMP, HEATER CONTROL CABLE | ||||
| 55933-0D010 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 55933-0D010 |
ZZE121..LHD..SOL;ZZE121..LHD..5F..TERRA;ZZE121..LHD..5D..4FC..TERRA;CDE120,ZZE120..LHD..(DCRL,HTWC) |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-02190 |
CDE120,ZZE120,121..UKP |
1 | ||
| Common parts | ||||
| 90167-W0007 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 5501 | ||||
| 8401 | ||||
ILLUST NO. 1 OF 3(0111- )UKP
CONTROL PANEL--PUSH TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90069-98005 |
CDE120,ZZE120,121..UKP |
2 | ||
| 90981-WB011 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
2 | ||
| 90069-98005 |
CDE120,ZZE120,121..UKP..TERRA |
2 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-02190 |
CDE120,ZZE120,121..UKP |
1 | ||
| Common parts | ||||
| 90167-30010 | ||||
| Linked diagrams | ||||
| 5501 | ||||

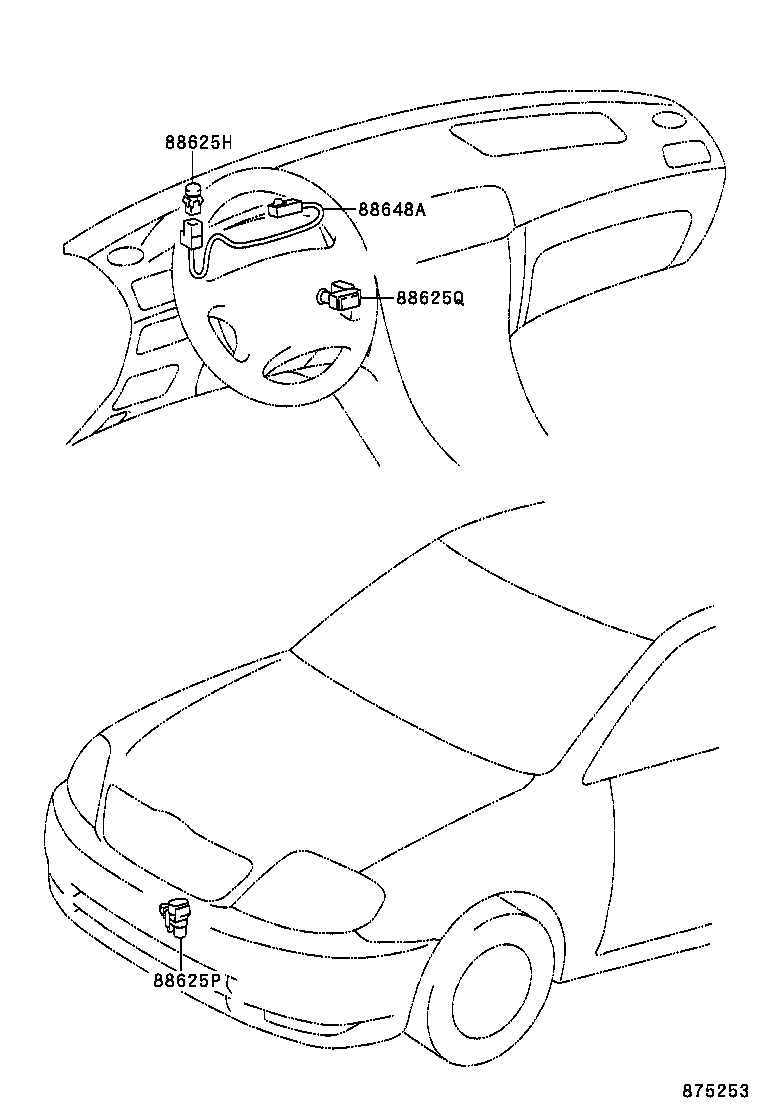

ILLUST NO. 3 OF 3(0111- )UKP..LHD
SENSOR
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 1 OF 3(0405- )UKP
CONTROL PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900A - CONTROL & ACCESSORY ASSY, HEATER | ||||
| 55900-02141 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 55900-02140 |
CDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 55900-02180 |
CDE120,ZZE120,121..UKP |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90069-98005 |
CDE120,ZZE120,121..UKP |
2 | ||
| 90981-WB011 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
2 | ||
| 90069-98005 |
CDE120,ZZE120,121..UKP..TERRA |
2 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90069-98005 |
CDE120,ZZE120,121..UKP |
2 | ||
| 90981-WB011 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
2 | ||
| 90069-98005 |
CDE120,ZZE120,121..UKP..TERRA |
2 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-02160 |
CDE120,ZZE120,121..UKP NO.1 |
1 | ||
| 55905-02270 |
CDE120,ZZE120,121..UKP NO.2 |
2 | ||
| 55905-0F030 |
CDE120,NDE120,ZZE120,121..UKP..TERRA NO.1 |
1 | ||
| 55905-02270 |
CDE120,NDE120,ZZE120,121..UKP..TERRA NO.2 |
2 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-02160 |
CDE120,ZZE120,121..UKP NO.1 |
1 | ||
| 55905-02270 |
CDE120,ZZE120,121..UKP NO.2 |
2 | ||
| 55905-0F030 |
CDE120,NDE120,ZZE120,121..UKP..TERRA NO.1 |
1 | ||
| 55905-02270 |
CDE120,NDE120,ZZE120,121..UKP..TERRA NO.2 |
2 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-02160 |
CDE120,ZZE120,121..UKP NO.1 |
1 | ||
| 55905-02270 |
CDE120,ZZE120,121..UKP NO.2 |
2 | ||
| 55905-0F030 |
CDE120,NDE120,ZZE120,121..UKP..TERRA NO.1 |
1 | ||
| 55905-02270 |
CDE120,NDE120,ZZE120,121..UKP..TERRA NO.2 |
2 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-02060 |
ZZE121..LHD..SOL;ZZE121..LHD..5F..TERRA;ZZE121..LHD..5D..4FC..TERRA;CDE120,ZZE120..LHD..(DCRL,HTWC) |
1 | ||
| 55906-02120 |
CDE120,NDE120,ZZE120,121..UKP..LHD..TERRA |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-02050 |
ZZE120;ZZE121..5D..SOL;CDE120..5D..DCRL;ZZE121..RHD..TERRA;ZZE121..LHD..3D..SOL;CDE120..LHD..3D..DCRL;ZZE121..LHD..5F..TERRA;ZZE121..LHD..5D..4FC..TERRA |
1 | ||
| 55909-02080 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 55933A - CLAMP, HEATER CONTROL CABLE | ||||
| 55933-0D010 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 55933-0D010 |
ZZE121..LHD..SOL;ZZE121..LHD..5F..TERRA;ZZE121..LHD..5D..4FC..TERRA;CDE120,ZZE120..LHD..(DCRL,HTWC) |
1 | ||
| Common parts | ||||
| 90167-W0007 | ||||
| Linked diagrams | ||||
| 5501 | ||||
| 8401 | ||||

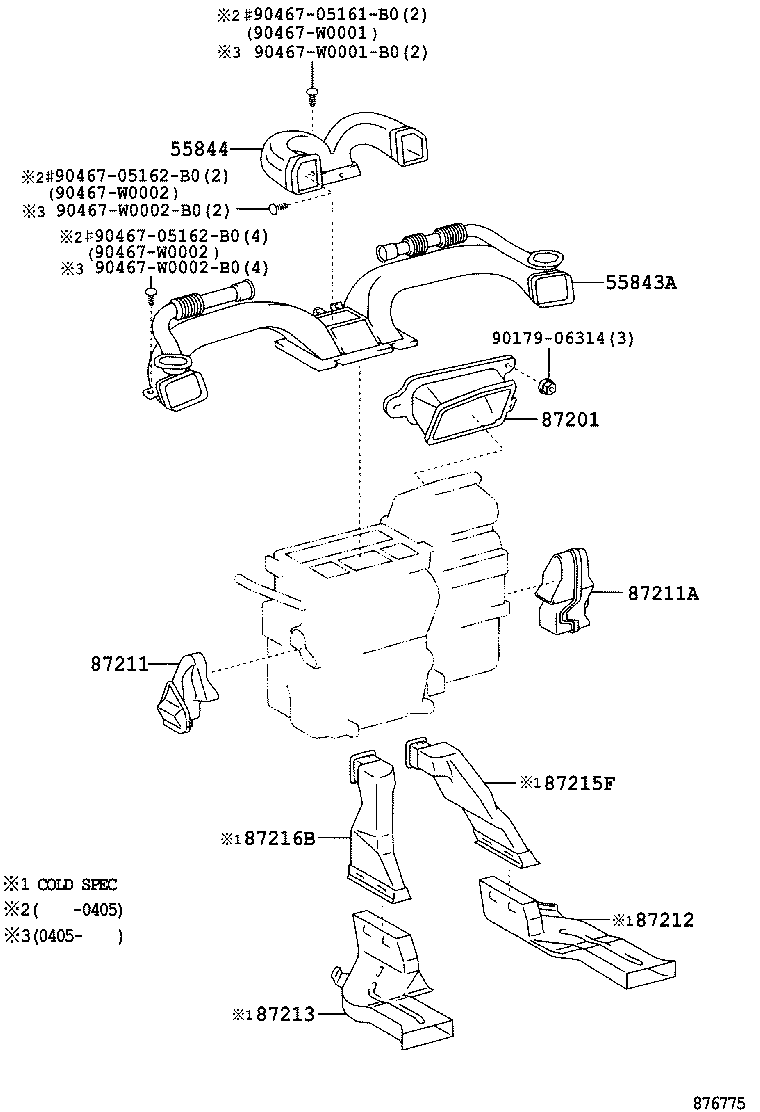

ILLUST NO. 2 OF 3(0111- )UKP..LHD
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-02100 |
ZZE121..LHD..SOL;ZZE121..LHD..5F..TERRA;ZZE121..LHD..5D..4FC..TERRA;CDE120,ZZE120,123..LHD..(DCRL,HTWC,TWC) |
1 | ||
| 55843-02100 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-02130 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| 55844-02130 |
ZZE121..LHD..SOL;ZZE121..LHD..5F..TERRA;ZZE121..LHD..5D..4FC..TERRA;CDE120,ZZE120,123..LHD..(DCRL,HTWC,TWC) |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-02150 |
ZZE12#..UKP..LHD |
1 | ||
| 87201-02150 |
ZZE121..LHD..SOL;ZZE121..LHD..5F..TERRA;ZZE121..LHD..5D..4FC..TERRA;CDE120,ZZE120,123..LHD..(DCRL,HTWC,TWC) |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-02130 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 87211-02130 |
CDE120,ZZE12#..UKP..LHD FRAME NO.=RXXXXXX |
1 | ||
| 87211-02130 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| 87211-02130 |
CDE120,ZZE12#..UKP..LHD FRAME NO.=EXXXXXX |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87211-02140 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 87211-0F040 |
CDE120,ZZE12#..UKP..LHD FRAME NO.=RXXXXXX |
1 | ||
| 87211-02140 |
CDE120,ZZE12#..UKP..LHD FRAME NO.=EXXXXXX |
1 | ||
| 87211-02190 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-02050 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| 87212-02050 |
ZZE121..LHD..SOL;ZZE121..LHD..5F..TERRA;ZZE121..LHD..5D..4FC..TERRA;CDE120,ZZE120,123..LHD..(DCRL,HTWC,TWC) |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-02050 |
ZZE121..LHD..SOL;ZZE121..LHD..5F..TERRA;ZZE121..LHD..5D..4FC..TERRA;CDE120,ZZE120,123..LHD..(DCRL,HTWC,TWC) |
1 | ||
| 87213-02050 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| 87215F - DUCT, AIR, REAR NO.3 | ||||
| 87215-02040 |
ZZE121..LHD..SOL;ZZE121..LHD..5F..TERRA;ZZE121..LHD..5D..4FC..TERRA;CDE120,ZZE120,123..LHD..(DCRL,HTWC,TWC) |
1 | ||
| 87215-02040 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| 87216B - DUCT, AIR, REAR NO.4 | ||||
| 87216-02030 |
ZZE121..LHD..SOL;ZZE121..LHD..5F..TERRA;ZZE121..LHD..5D..4FC..TERRA;CDE120,ZZE120,123..LHD..(DCRL,HTWC,TWC) |
1 | ||
| 87216-02030 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| Common parts | ||||
| 90179-06314 | ||||
| 90467-05161B0 | ||||
| 90467-05162B0 | ||||
| 90467-W0001 | ||||
| 90467-W0001B0 | ||||
| 90467-W0002 | ||||
| 90467-W0002B0 | ||||
